Exploded View: Notes

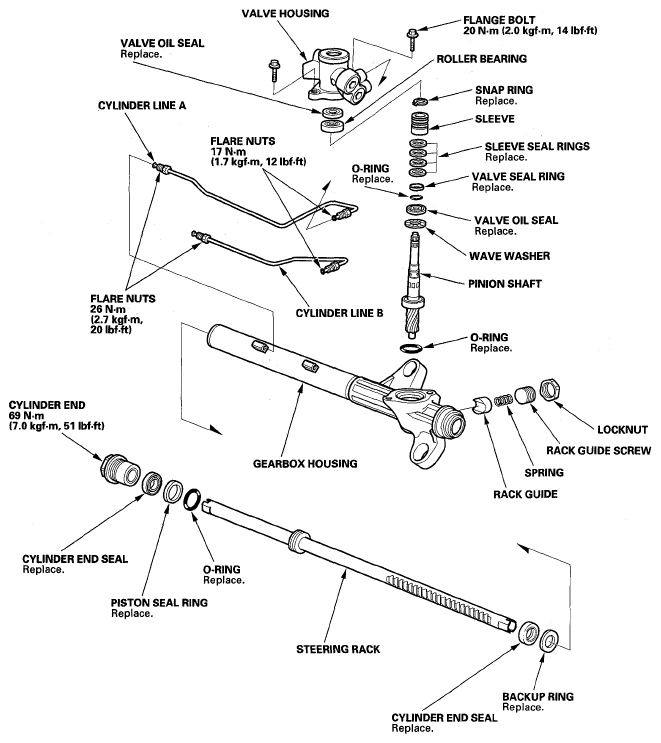

Fig 1: Exploded View Of Steering Gearbox Overhaul Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Cylinder end seal remover attachment 07NAD-SR3020A
• Pilot collar 07GAF-PH70100
• Valve seal ring sizing tool 07NAG-SR3090A
• Sleeve seal ring guide 07YAG-S2X0100
• Sleeve seal ring sizing tool, 36 mm 07ZAG-S5A0100
• Attachment, 32 x 35 mm 07746-0010100
• Driver 07749-0010000
• Piston seal ring guide 07HAG-SF10100
• Piston seal ring sizing tool 07HAG-SF1020A or 07HAG-SF10200
• Cylinder end seal slider 07ZAG-S5A0300
• Pincers Oetiker 1098 or equivalent, commercially available
  NOTE: Refer to the Exploded View as needed during this procedure.
