Shift Lever Disassembly/Reassembly

Apply silicone grease to movable joints of the shift lock/reverse lock mechanism.

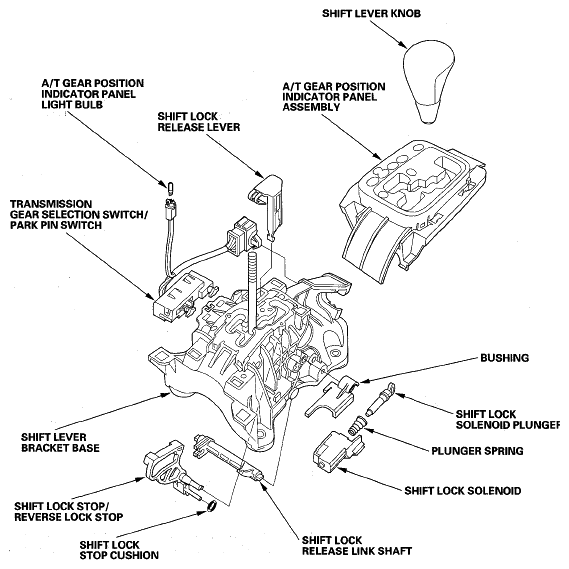

Fig 1: Exploded View Of Shift Lever Assembly
G05459097Courtesy of AMERICAN HONDA MOTOR CO., INC.
