MAP Sensor Replacement

  1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the MAP sensor connector (A).

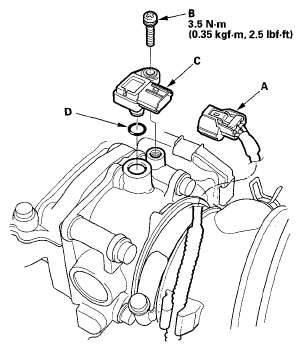

    Fig 1: MAP Sensor Connector And Screw With Torque Specifications
    G05494511Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
