Gateway Function

The gauge control module acts as a gateway to allow both systems to share information, the gauge control module translates information from B-CAN to F-CAN and from F-CAN to B-CAN.

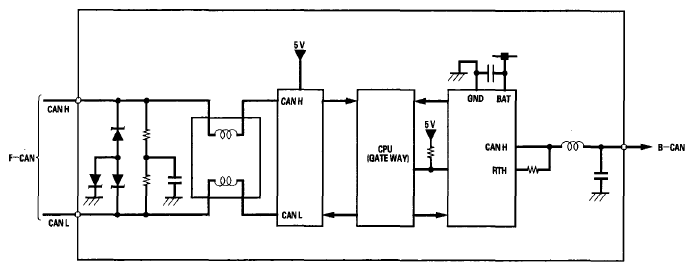

Fig 1: CPU - CAN Communication Diagram
G06269248Courtesy of AMERICAN HONDA MOTOR CO., INC.
