Front Subframe Torque

NOTE:
  • After loosening the subframe mounting bolts, be sure to replace them with new ones.
  • When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.

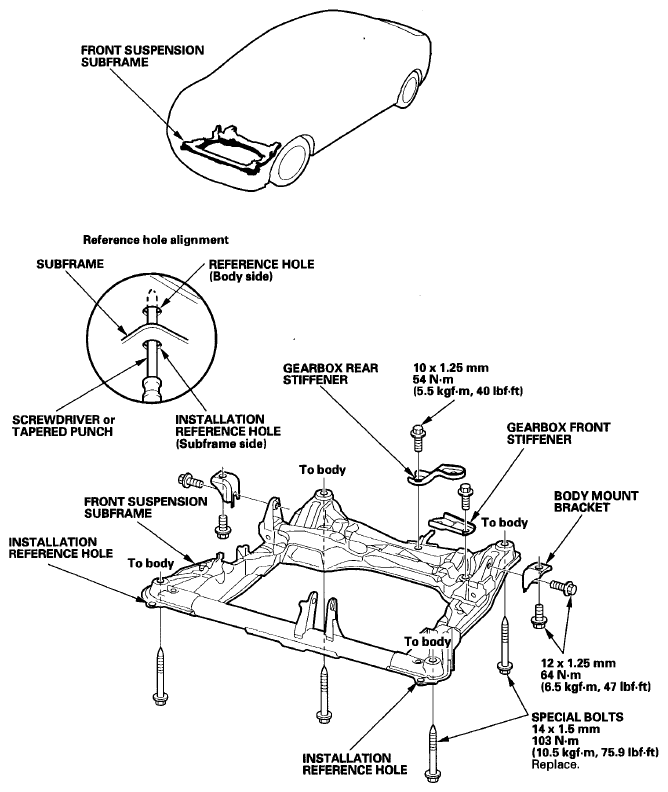

    Fig 1: Front Subframe Replacement Components With Torque Specifications
    G06268730Courtesy of AMERICAN HONDA MOTOR CO., INC.
