Console Accessory Power Socket Test/Replacement

NOTE: If both of the front and console accessory power sockets do not work, check the No. 35 (7.5 A) fuse in the under-dash fuse/relay box.

Remove the center console.
- With audio (see AUDIO UNIT REMOVAL/INSTALLATION )
- With navigation (see NAVIGATION UNIT REMOVAL/INSTALLATION )
Remove the screw and accessory power socket panel (A).

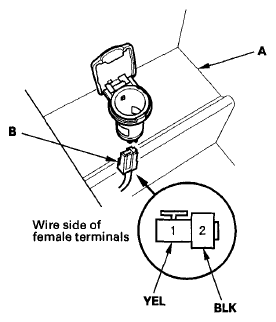

Fig 1: Identifying Accessory Power Socket Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.
Turn the ignition switch to ACC (I), and check for voltage between the No. 1 terminal and body ground. There should be battery voltage.
- If there is battery voltage, go to step 5.
- If there is no battery voltage, check for:
  - Blown No. 28 (15 A) fuse in the under-dash fuse/relay box.
  - Faulty console accessory power socket relay.
  - Poor ground (G 503).
  - An open in the wire.
Check for continuity between the No. 2 terminal and body ground. There should be continuity.
- If there is continuity, go to step 6.
- If there is no continuity, check for:
  - Poor ground (G 601).
  - An open in the wire.
Remove the socket (A).

Fig 2: Identifying Console Accessory Power Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the housing (A) from the panel.

Fig 3: Identifying Console Accessory Power Socket Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the power socket in the reverse order of removal.
