Component Location Index

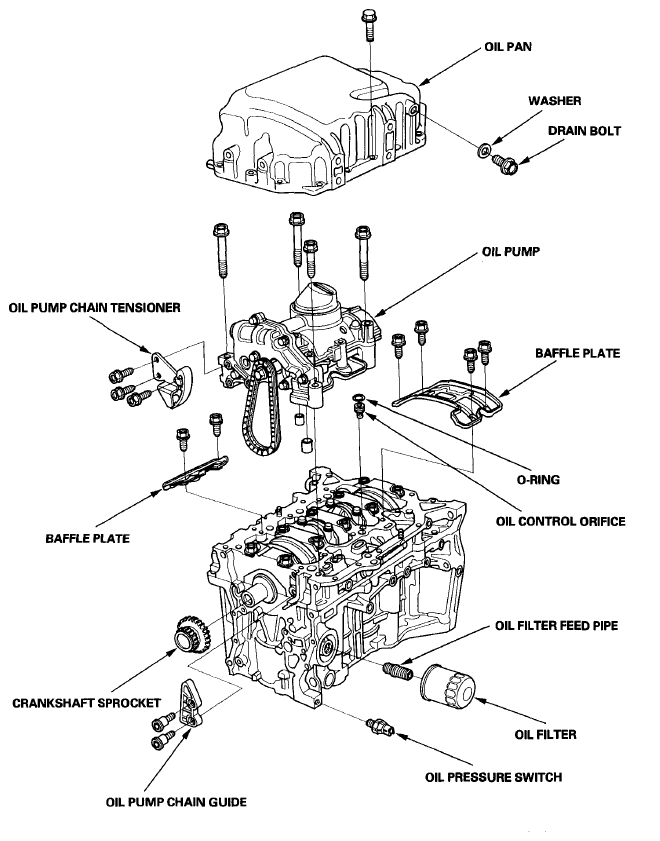

Fig 1: Identifying Engine Lubrication Component Location (K20Z2)
G06265650Courtesy of AMERICAN HONDA MOTOR CO., INC.

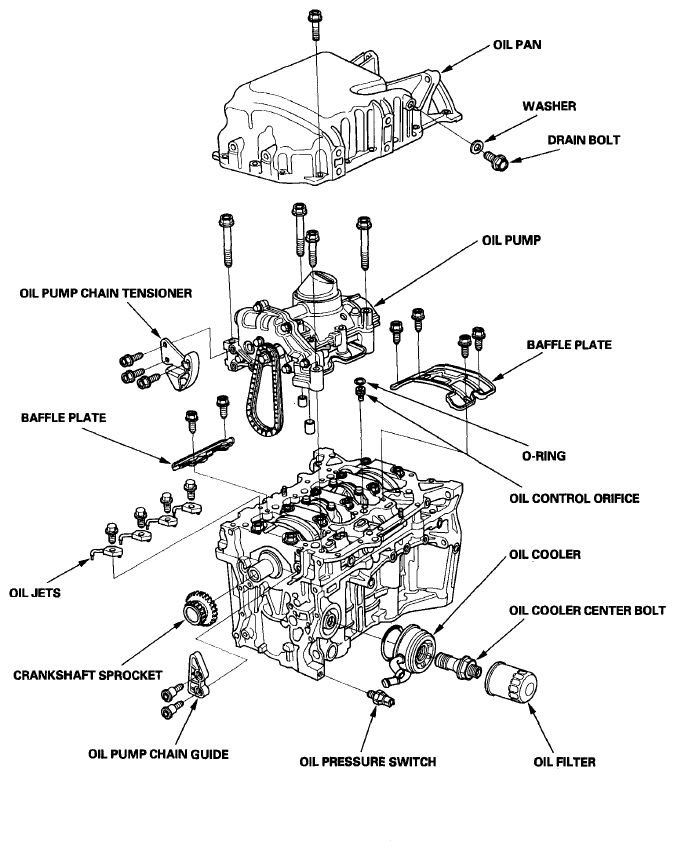

Fig 2: Identifying Engine Lubrication Component Location (K20Z3)
G06265651Courtesy of AMERICAN HONDA MOTOR CO., INC.
