Sealing Bolt Installation

NOTE:

When installing the sealing bolt, always use a new washer.
When installing the joint pipe, always use a new O-ring.

K20Z2

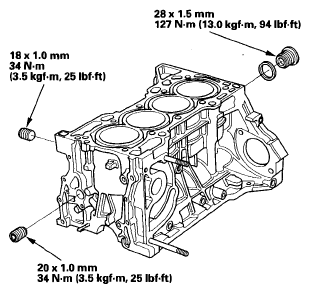

Fig 1: Sealing Bolt, Washer And O-Ring (K20Z2) With Torque Specifications

G06264405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3

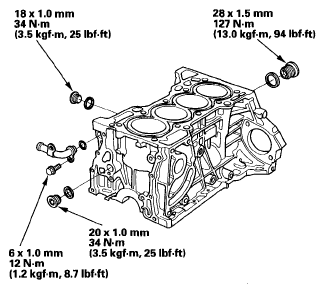

Fig 2: Sealing Bolt, Washer And O-Ring (K20Z3) With Torque Specifications

G06264406

Courtesy of AMERICAN HONDA MOTOR CO., INC.
