Shift Lever Disassembly/Reassembly

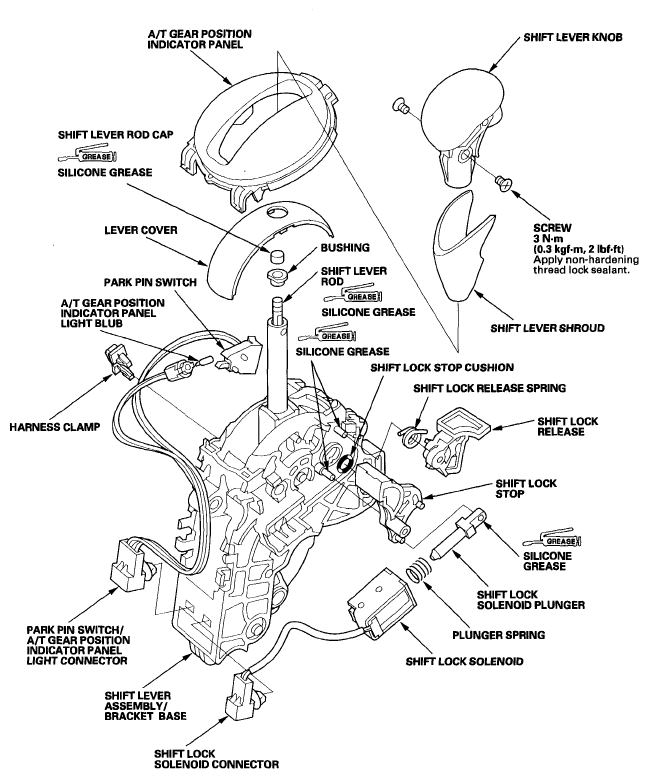

Fig 1: Exploded View Of Shift Lever

G06265131

Courtesy of AMERICAN HONDA MOTOR CO., INC.
