Gauge Control Module Replacement
NOTE:
Before replacing the gauge control module, do the "REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE " (see
).
- Remove the parts shown:
- Driver's switch panel (see DRIVER'S OUTER DASHBOARD TRIM REMOVAL/INSTALLATION ).
- Instrument fascia (see INSTRUMENT FASCIA REMOVAL/ INSTALLATION ).

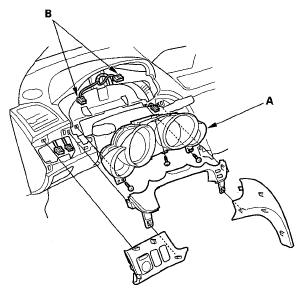

- Remove the screws from the gauge control module (A).
- Disconnect the connectors (B), and remove the gauge control module.
- Install the gauge control module in the reverse order of removal.
