Power Window Master Switch Replacement

  1. Remove the driver's door armrest (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the power window master switch (B).

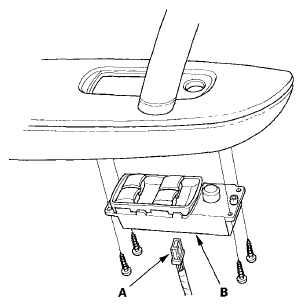

    Fig 1: Identifying 6P Connector
    G06160813Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four screws and the switch.
  4. Install the switch in the reverse order of removal.
  5. After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
