Front Accessory Power Socket Test/Replacement

Remove the console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ), and disconnect the 6P connector (C528) (A).

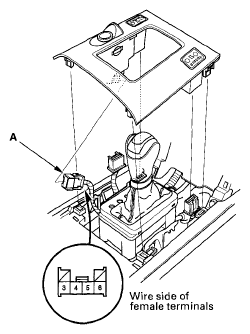

Fig 1: Identifying 6P Connector (C528)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.
Turn the ignition switch to ACC (I), and measure the voltage between terminal No. 4 and body ground. There should be battery voltage.
- If there is battery voltage, go to step 4.
- If there is no battery voltage, check for:
  - Blown No. 9 (20 A) or No. 32 (10 A) fuse in the driver's under-dash fuse/relay box.
  - Faulty accessory power socket relay.
  - An open in the WHT wire. -Poor ground (G601).
Check for continuity between terminal No. 3 and body ground. There should be continuity.
- If there is continuity, go to step 5.
- If there is no continuity, check for:
  - An open in the BLK wire.
  - Poor ground (G 503).
Remove the cover (A) and disconnect the 2P connector (B) from the front accessory power socket.

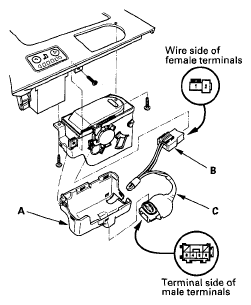

Fig 2: Identifying Cover And 2P Connector Of Front Accessory Power Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the accessory power socket subharness 6P connector (C528) terminal No. 4 and the accessory power socket 2P connector terminal No. 1, and the 6P connector (C528) terminal No. 3 and the accessory power socket 2P connector terminal No. 2. If the harness is OK, go to step 7.
Replace the front accessory power socket (A).

Fig 3: Identifying Front Accessory Power Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
