RFC Unit Replacement

  1. Remove the grille cover (see UPPER GRILLE COVER REPLACEMENT ).
  2. Disconnect the connectors from the radiator fan control (RFC) unit, then remove the RFC unit.
    NOTE: When removing the RFC unit mounting screws take care not to damage the screw heads.

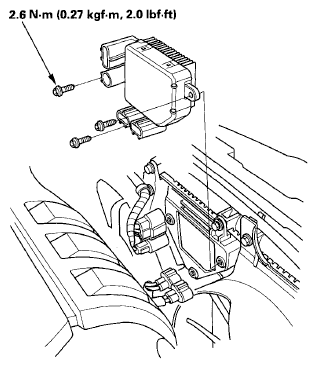

    Fig 1: RFC Unit With Torque Specifications
    G06163670Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the RFC unit in the reverse order of removal.
