Exploded View

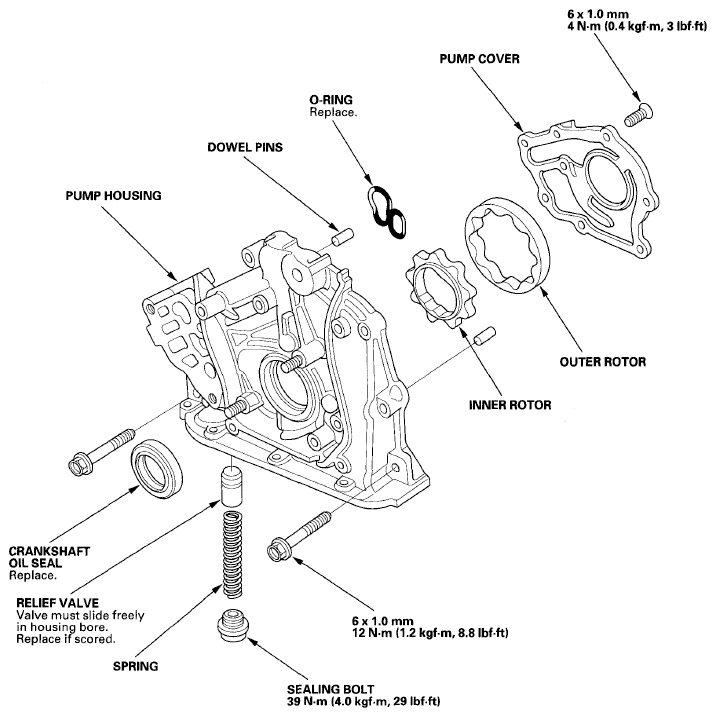

Fig 1: Exploded View Of Oil Pump Overhaul With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver, 64 mm 070AD-RCAA100
• 2008 V6 Attachment arm SIL02C000033 *
• Engine support hanger, A and Reds AAR-T1256 *
• Engine hanger balance bar VSB02C000019 *

  * : Available through the Acura Tool and Equipment program, 888-424-6857.
