Component Location Index

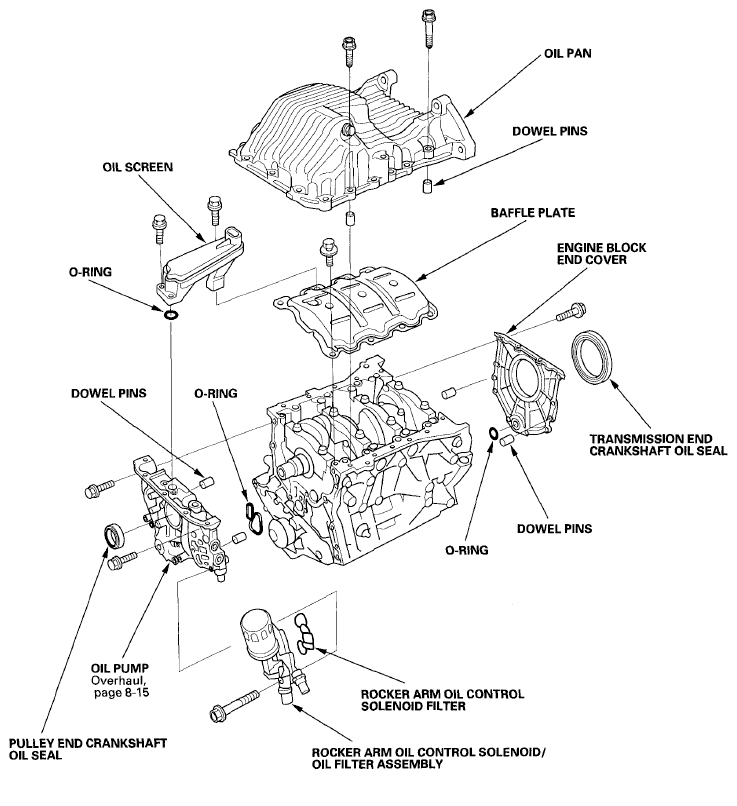

Fig 1: Identifying Engine Block Component Location (1 Of 3)
G06163516Courtesy of AMERICAN HONDA MOTOR CO., INC.

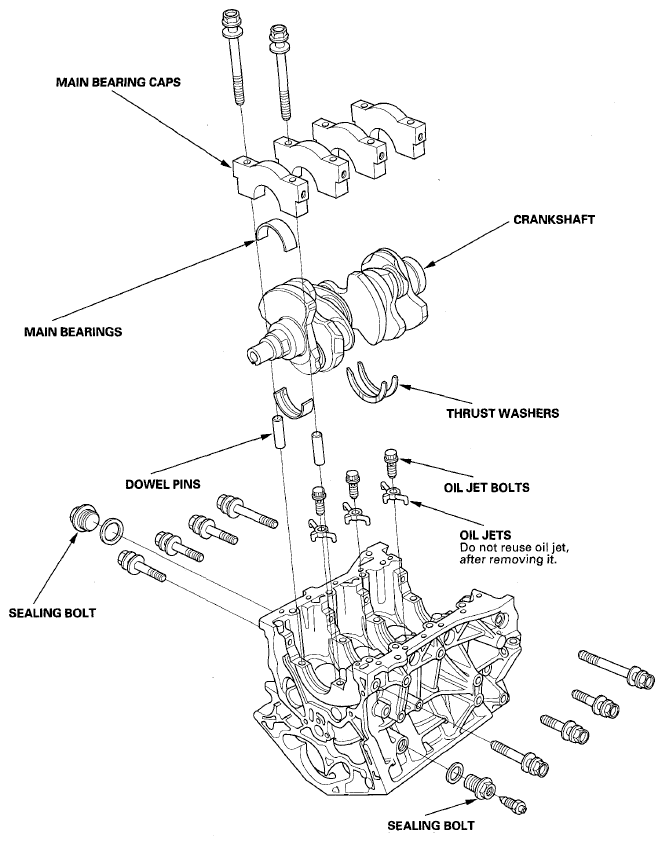

Fig 2: Identifying Engine Block Component Location (2 Of 3)
G06163517Courtesy of AMERICAN HONDA MOTOR CO., INC.

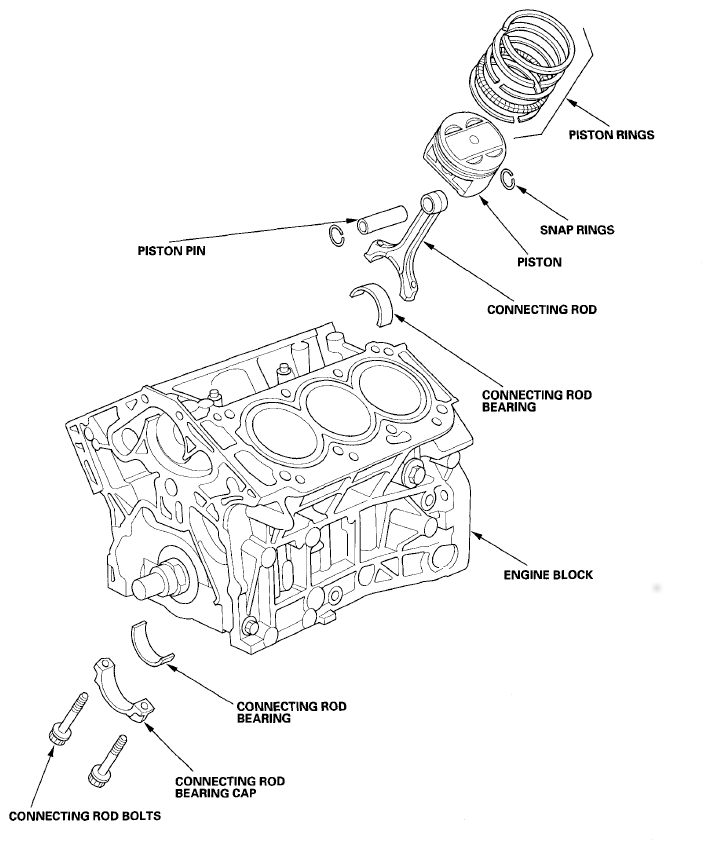

Fig 3: Identifying Engine Block Component Location (3 Of 3)
G06163518Courtesy of AMERICAN HONDA MOTOR CO., INC.
