Knock Sensor Replacement

  1. Remove the intake manifold (see REMOVAL ).
  2. Remove the injector base (see INJECTOR BASE REMOVAL AND INSTALLATION ).
  3. Disconnect the knock sensor connector (A), then remove the knock sensor (B).

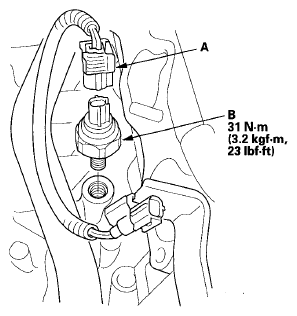

    Fig 1: Lnock Sensor And Connector With Torque Specifications
    G06163937Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
