MAP Sensor Replacement

  1. Remove the engine cover (see REMOVAL ).
  2. Disconnect the MAP sensor connector (A).

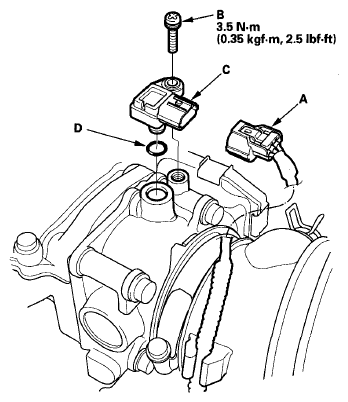

    Fig 1: MAP Sensor, Connector And Screw With Torque Specifications
    G06163926Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
