Shift Lever Disassembly/Reassembly

Apply silicone grease to movable joints of the shift lock mechanism, shift lever, and top of the lock-pin rod. Keep the connector terminals and the A/T gear position indicator panel free of silicone grease.

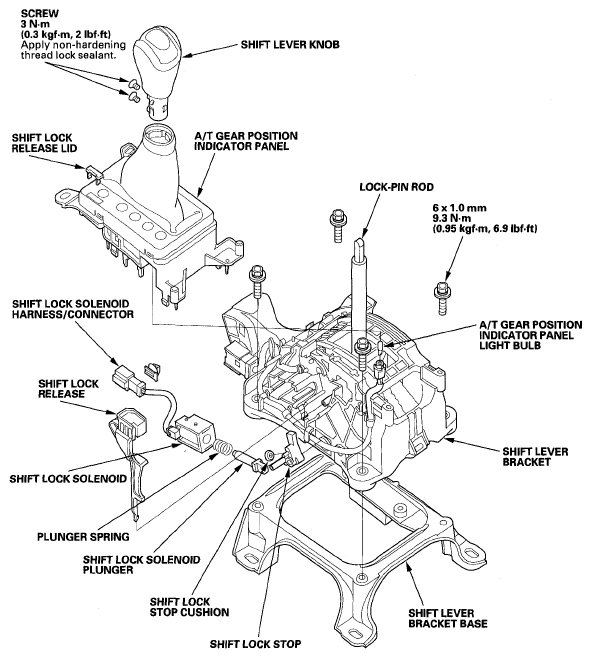

Fig 1: Shift Lever Disassembly/Reassembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
