Transfer Assembly Removal

Raise the vehicle on a lift, and make sure it is supported securely.
Shift the transmission into N.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig 1: Locating ATF Drain Plug With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Remove the exhaust pipe A.

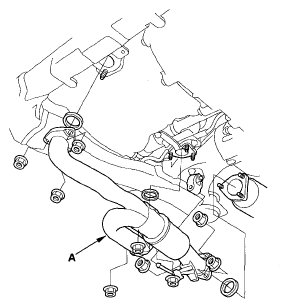

Fig 2: Locating Exhaust Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly.

Fig 3: Locating Breather Hose And Breather Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 4: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.
Remove the transfer assembly from the transmission.

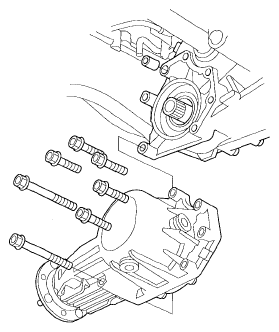

Fig 5: Identifying Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
