Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

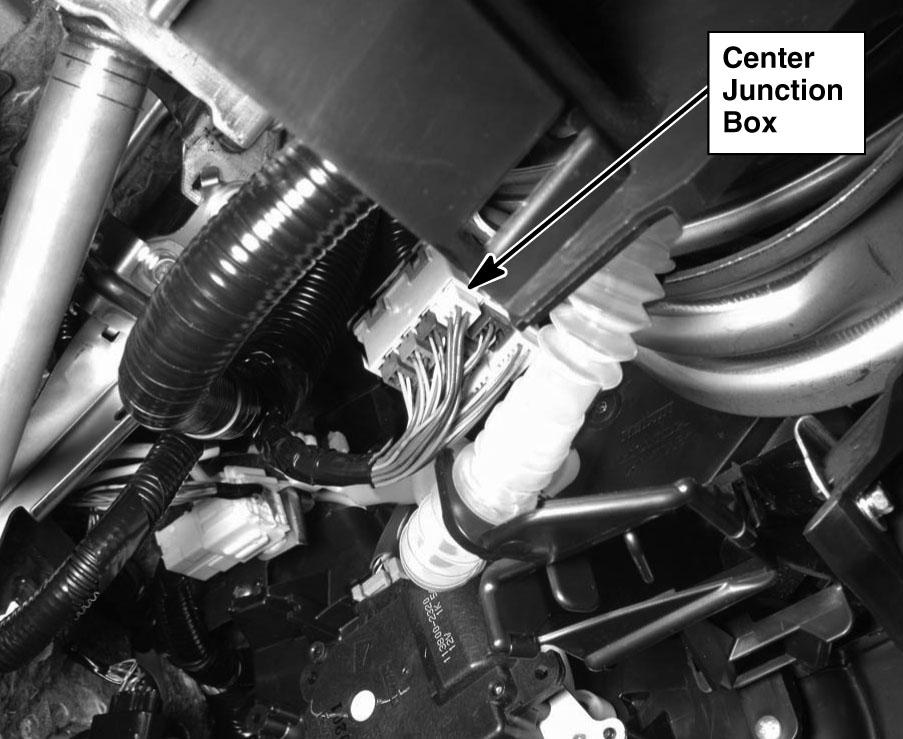

| Center Junction Box | Under left side of dash. See Figure. |

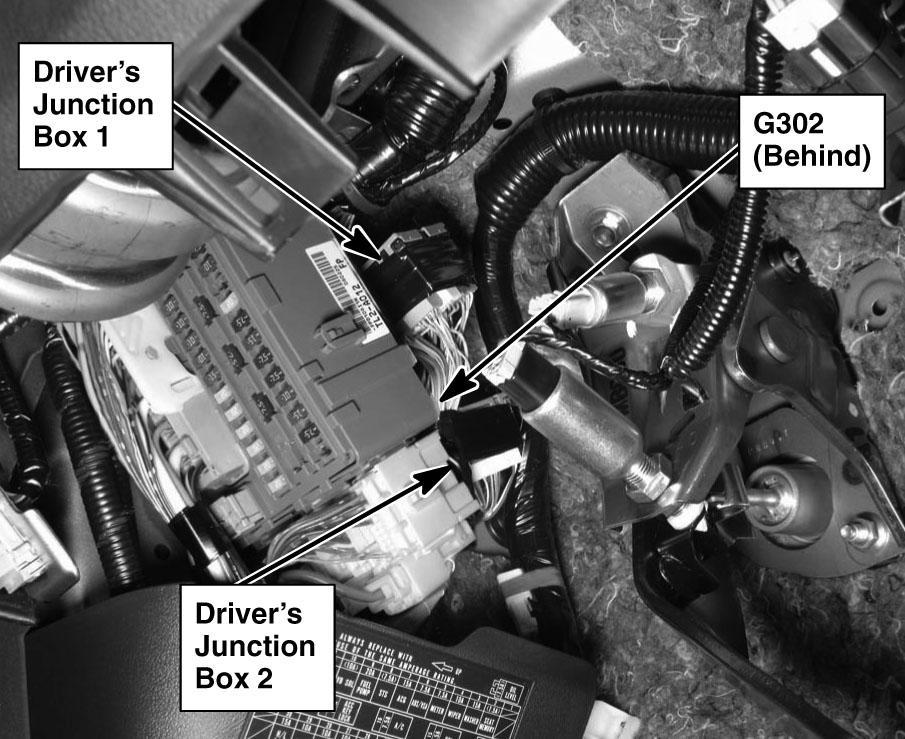

| Driver's Junction Boxes 1 & 2 | Under left side of dash. See Figure. |

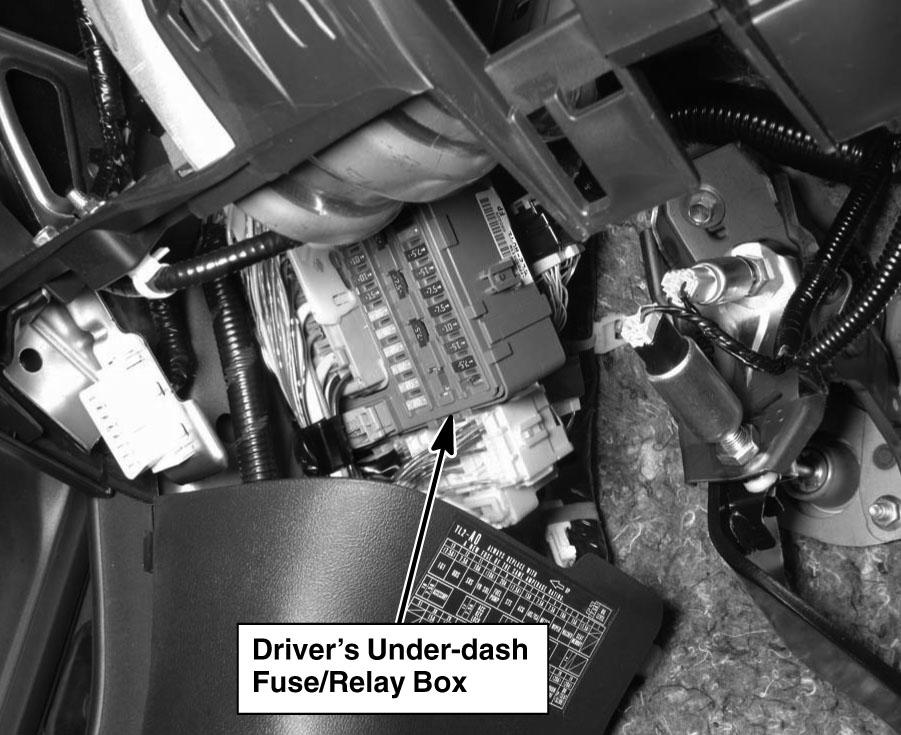

| Driver's Under-Dash Fuse/Relay Box | Behind left kick panel. See Figure. |

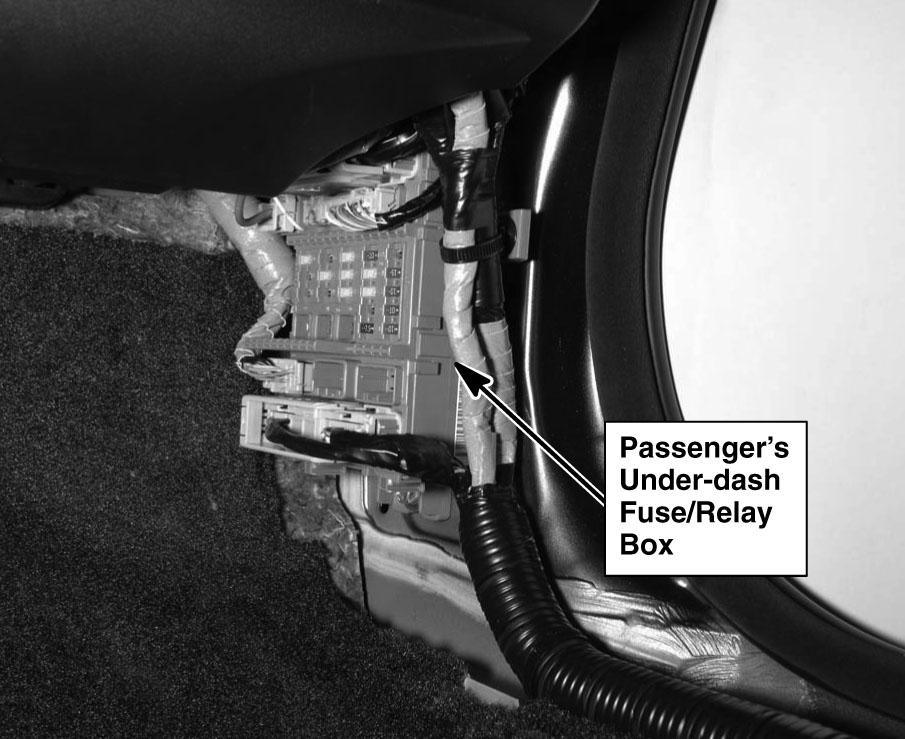

| Passenger's Under-Dash Fuse/Relay Box | Behind right kick panel. See Figure. |

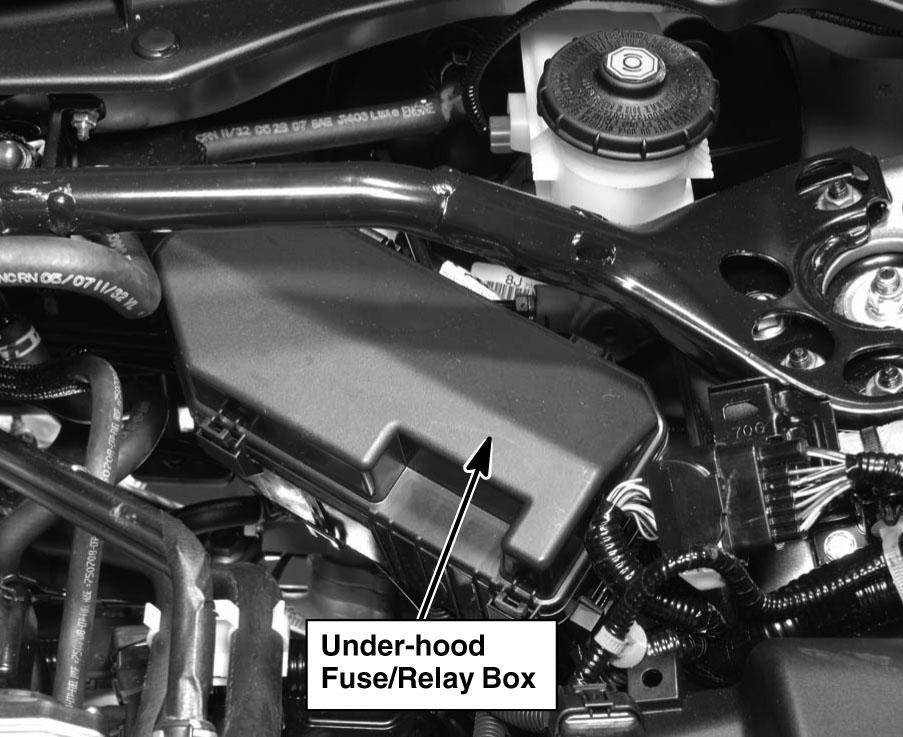

| Under-Hood Fuse/Relay Box | Left rear of engine compartment. See Figure. |
