Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

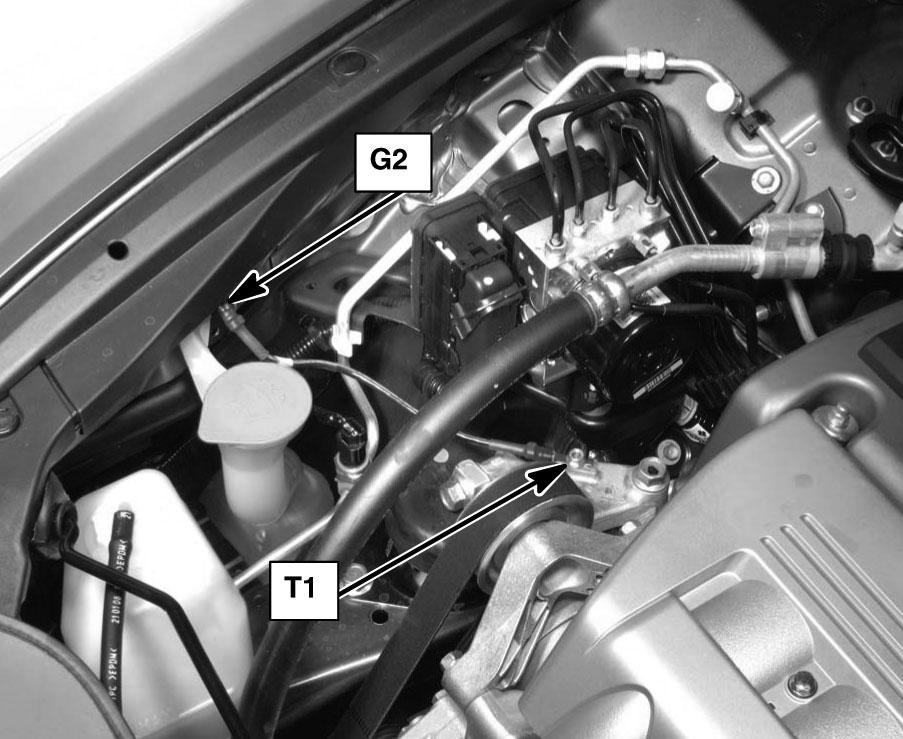

Fig 1: Right Side Of Engine Compartment

G00471385

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00471386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

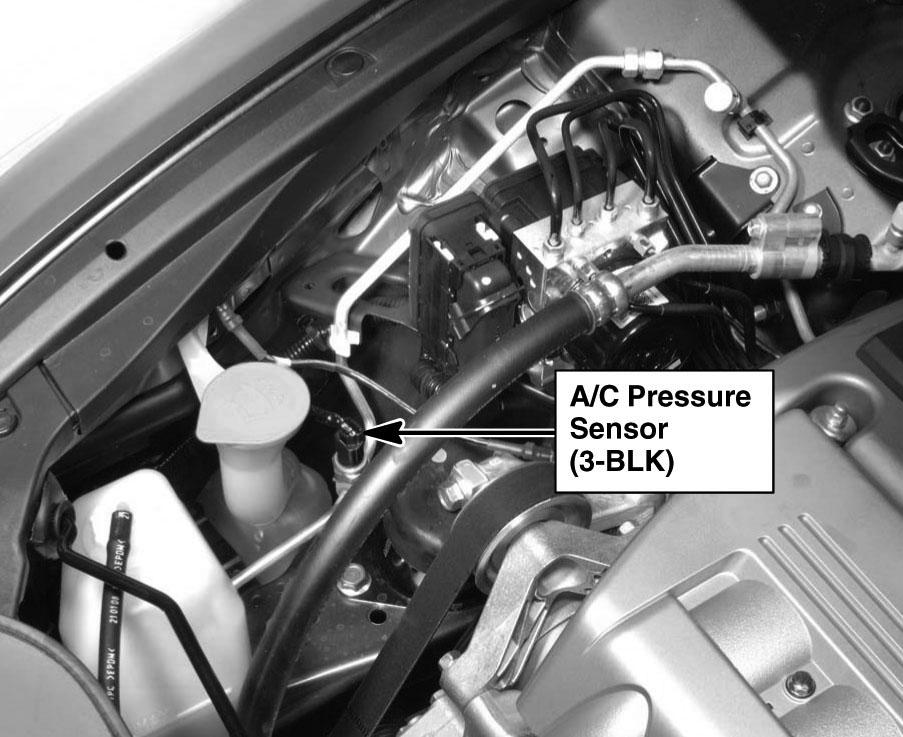

Fig 3: Right Side Of Engine Compartment

G00471387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

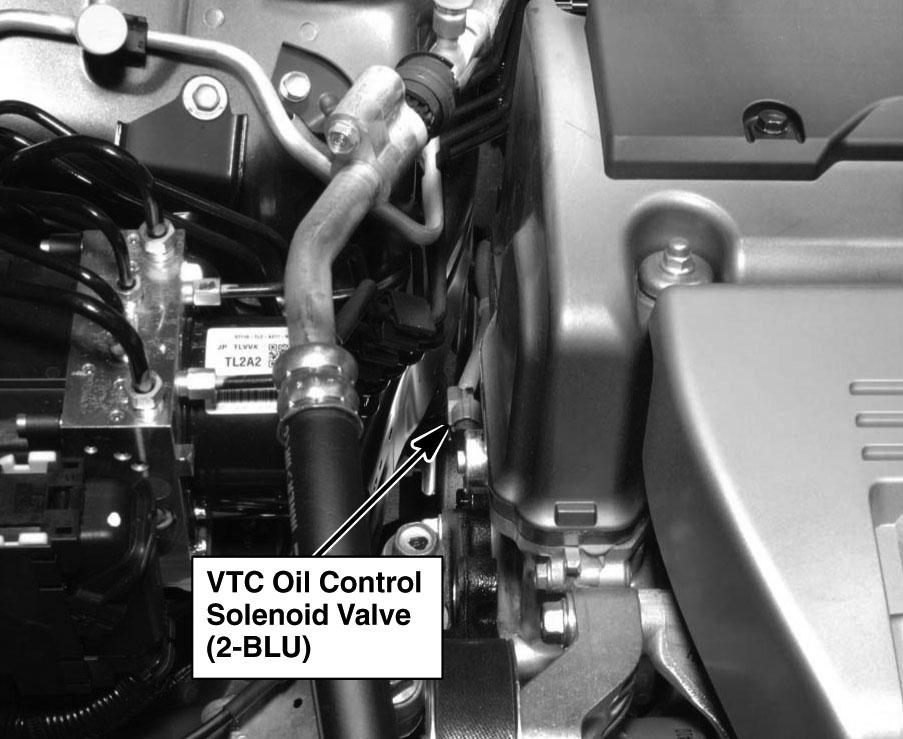

Fig 4: Front Of Engine

G00471388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

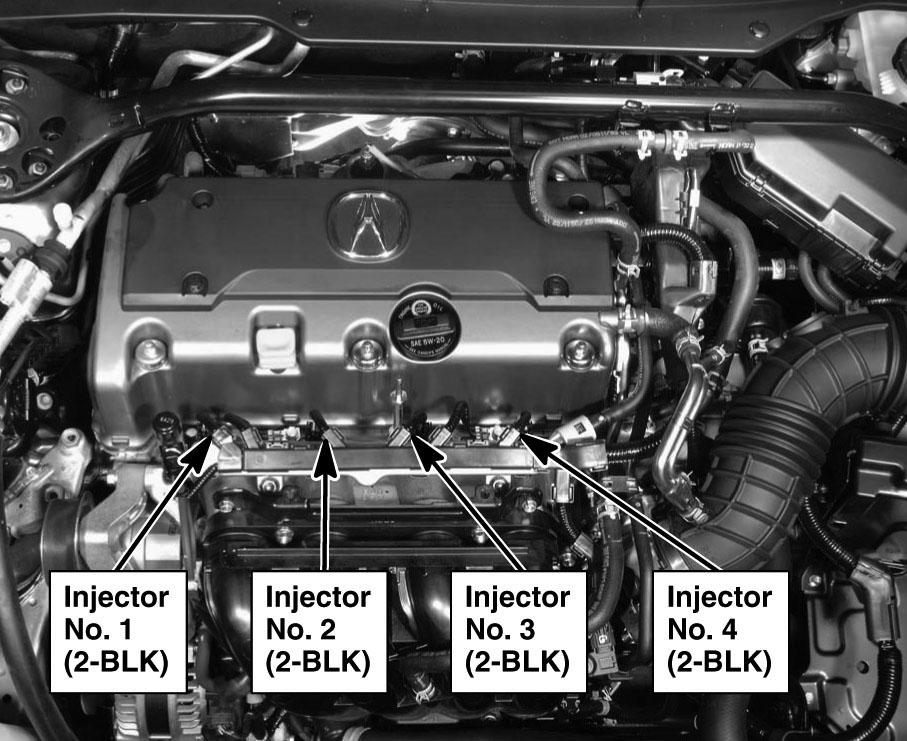

Fig 5: Top Of Engine

G00471389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

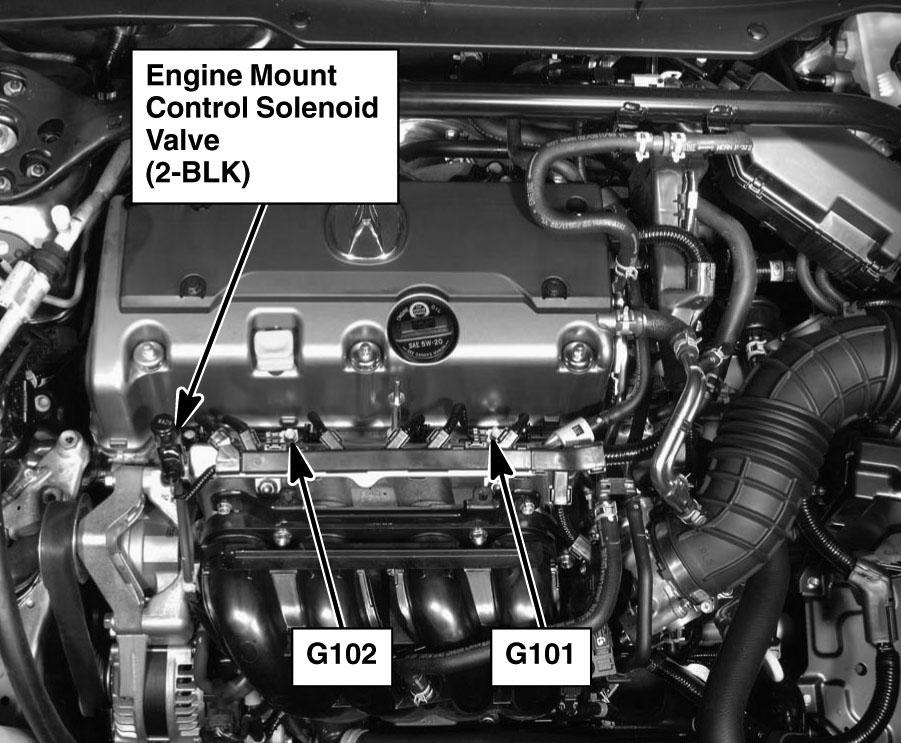

Fig 6: Top Of Engine

G00471390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

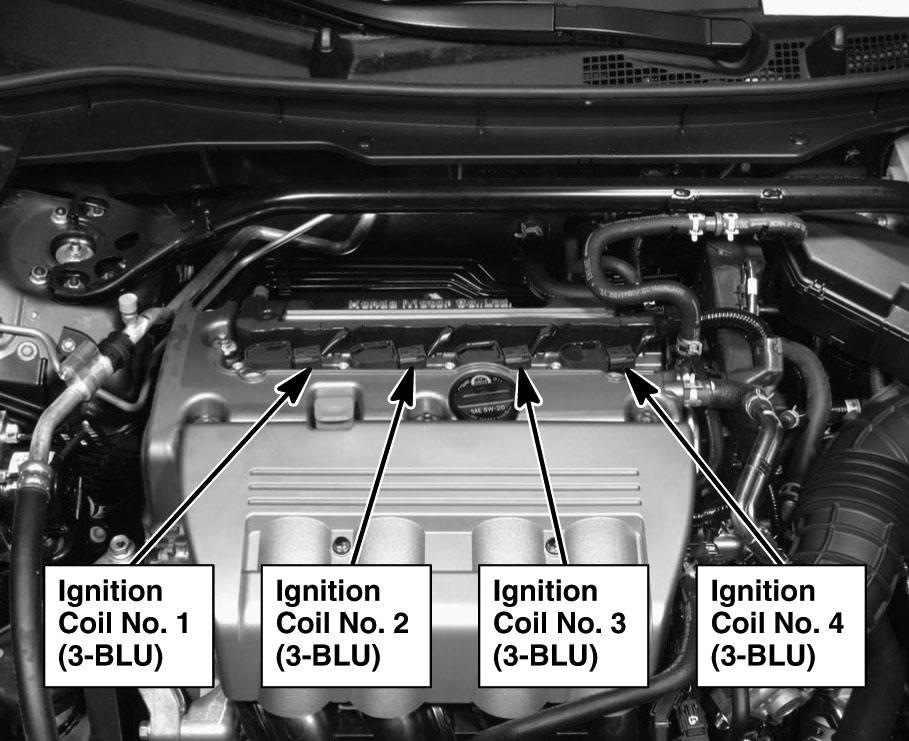

Fig 7: Top Of Engine

G00471391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

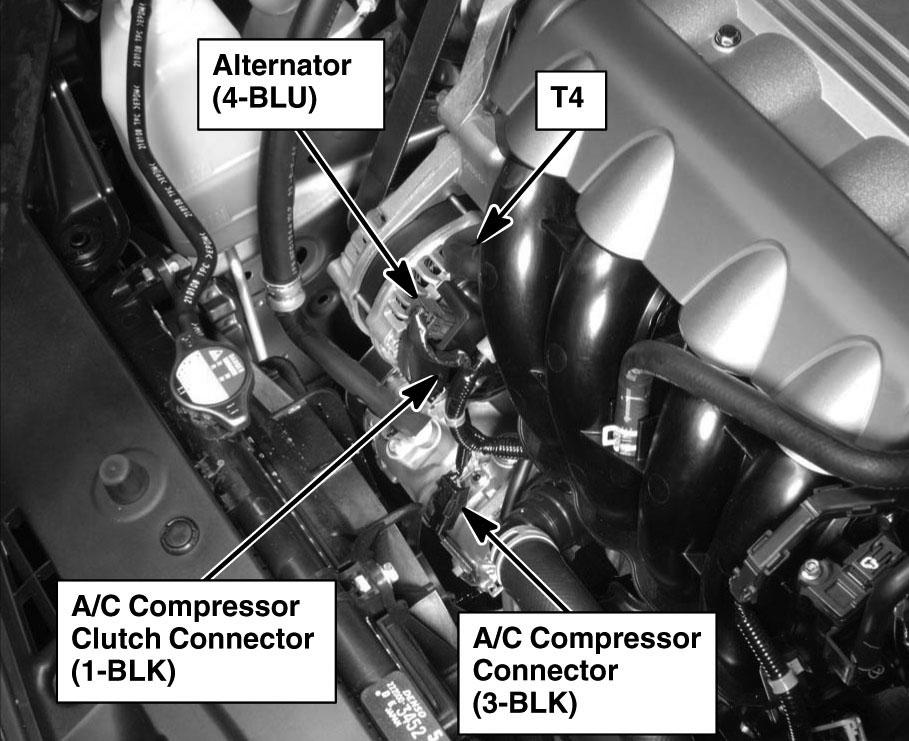

Fig 8: Left Side Of Engine

G00471392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

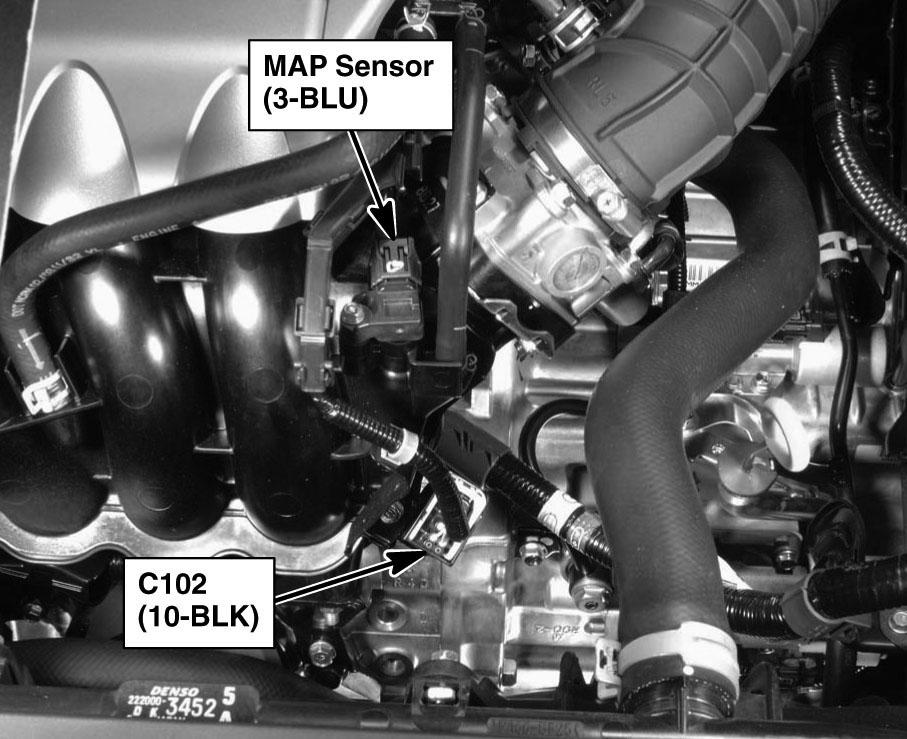

Fig 9: Left Side Of Engine

G00471393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

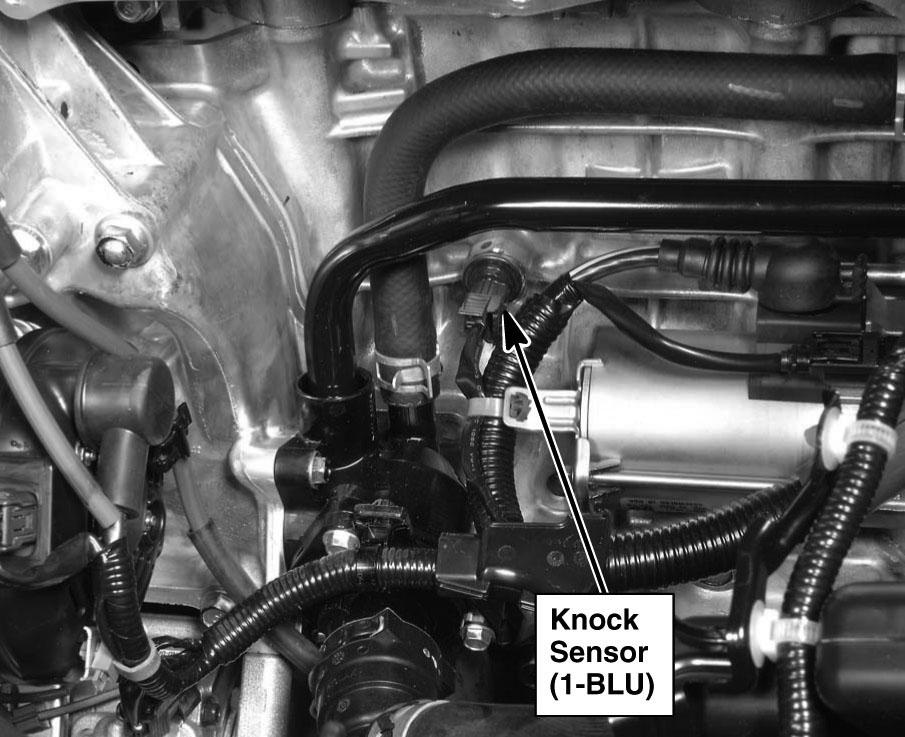

Fig 10: Left Side Of Engine

G00471394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

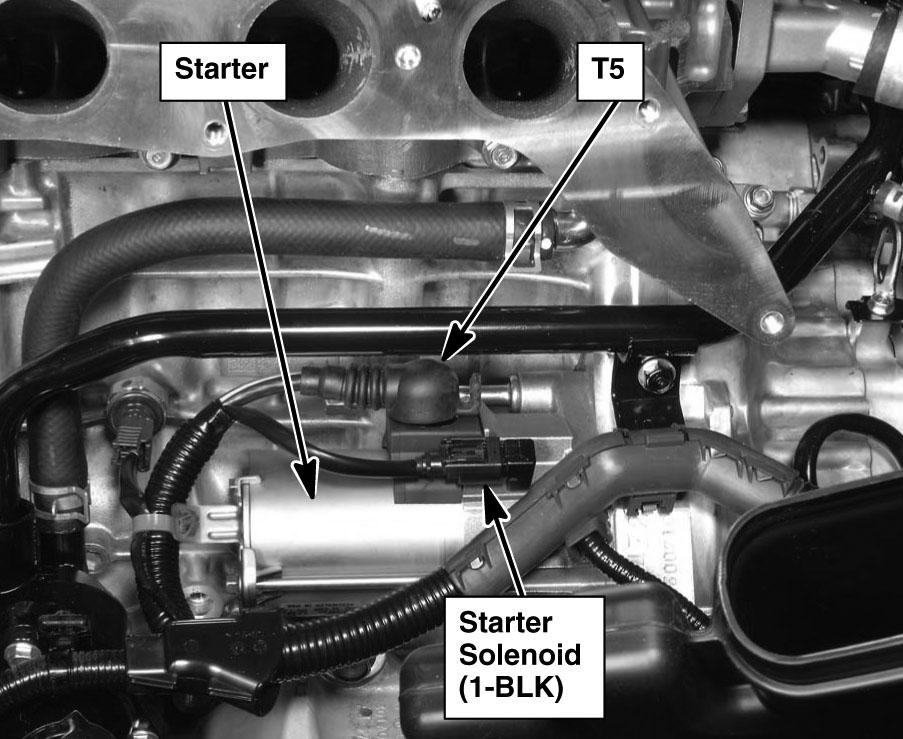

Fig 11: Left Rear Of engine

G00471395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

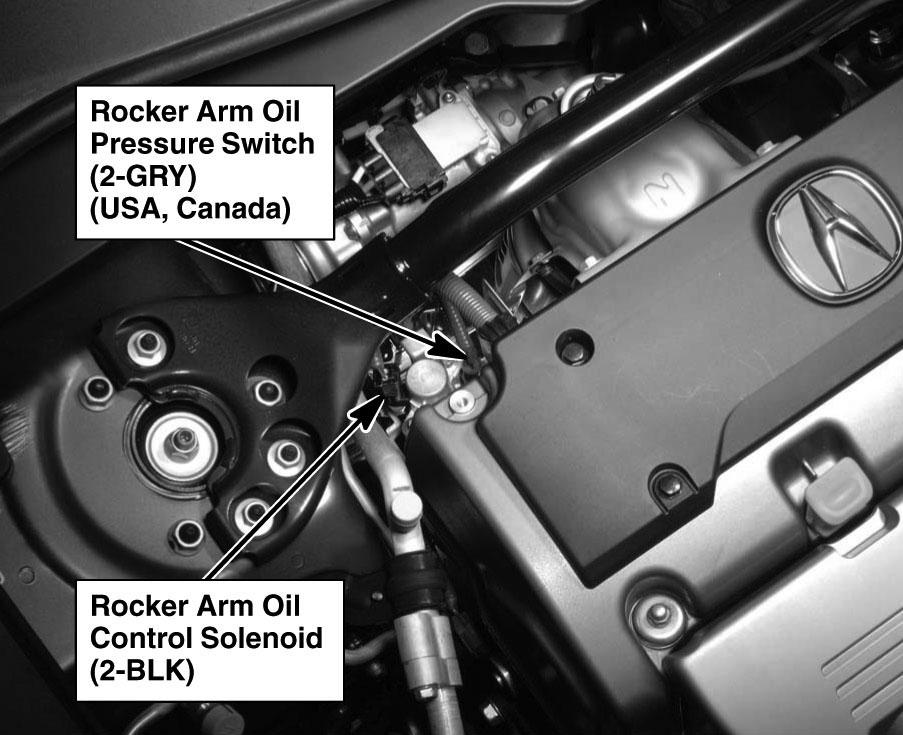

Fig 12: Right Front Of Engine

G00471396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

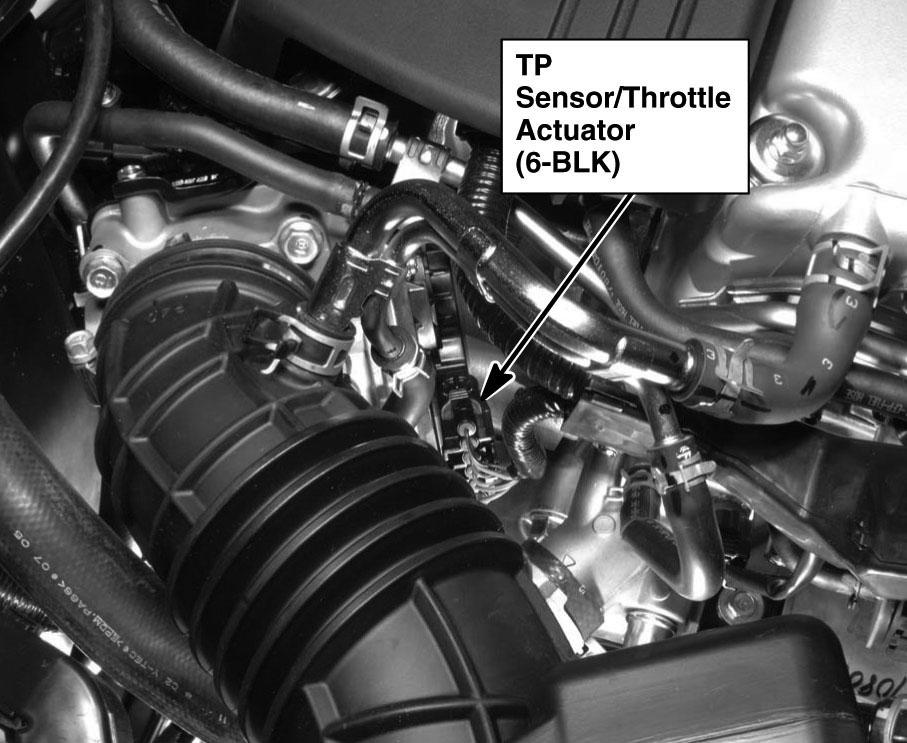

Fig 13: Rear Of Engine

G00471397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

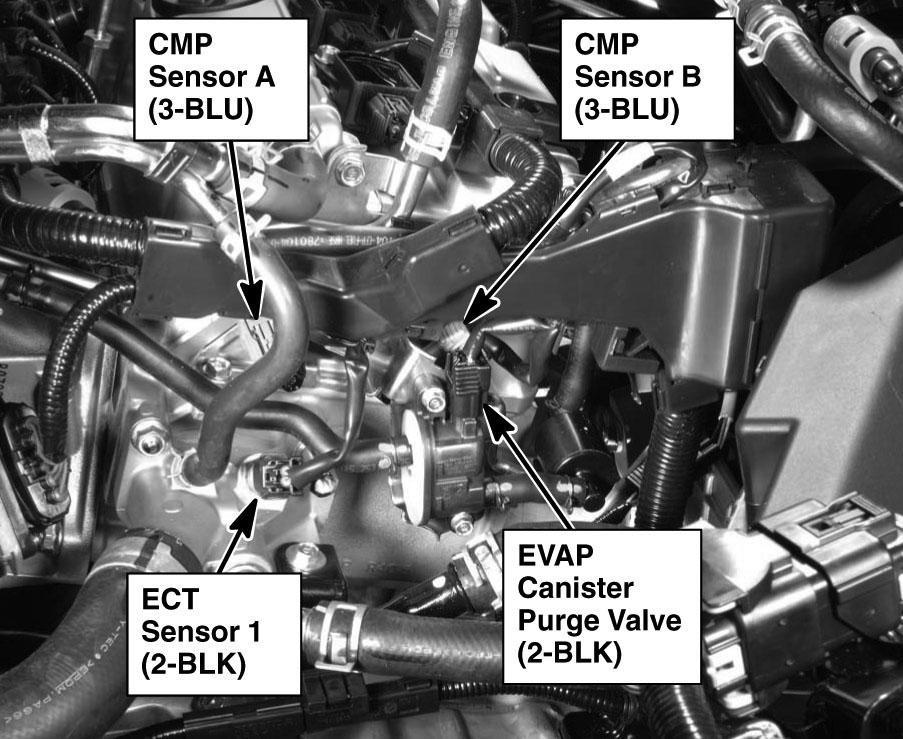

Fig 14: Right Rear Of Engine

G00471398

Courtesy of AMERICAN HONDA MOTOR CO., INC.

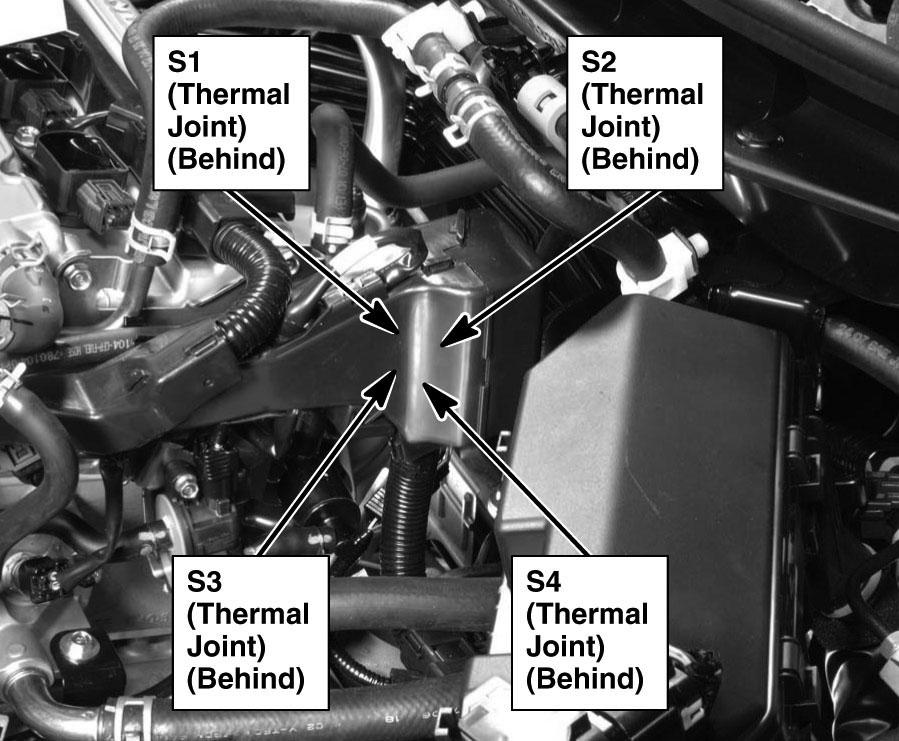

Fig 15: Rear Of Engine

G00471399

Courtesy of AMERICAN HONDA MOTOR CO., INC.

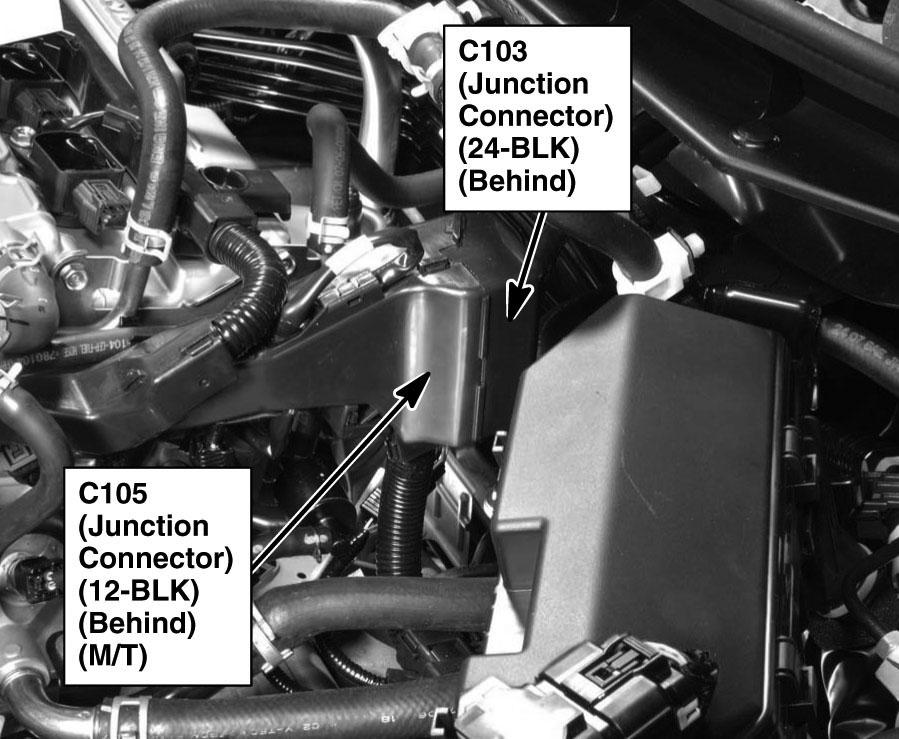

Fig 16: Rear Of Engine

G00471400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

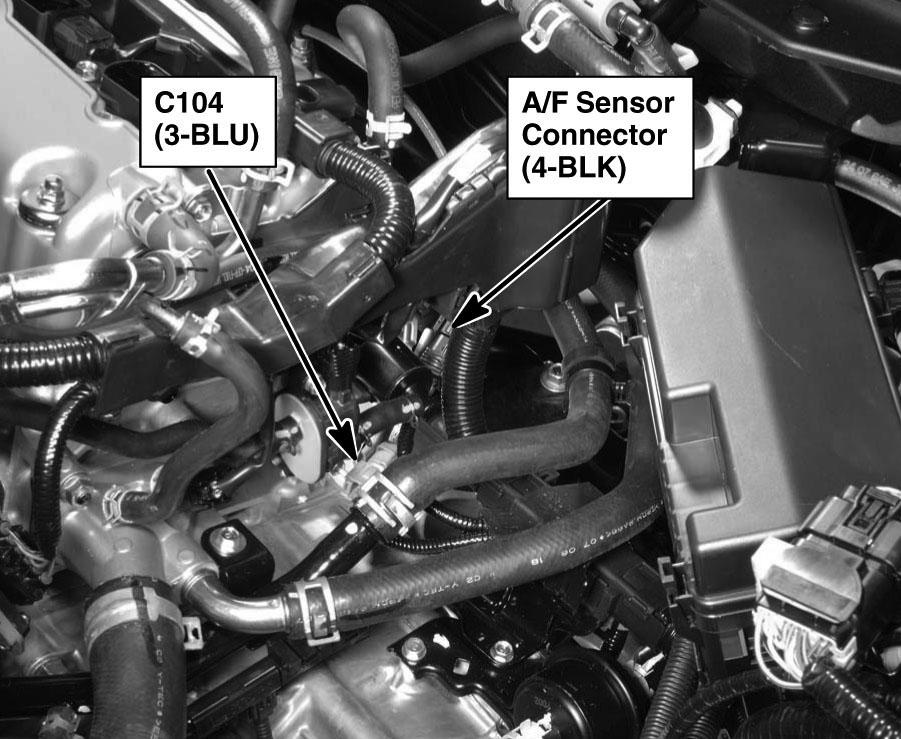

Fig 17: Rear Of Engine

G00471401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

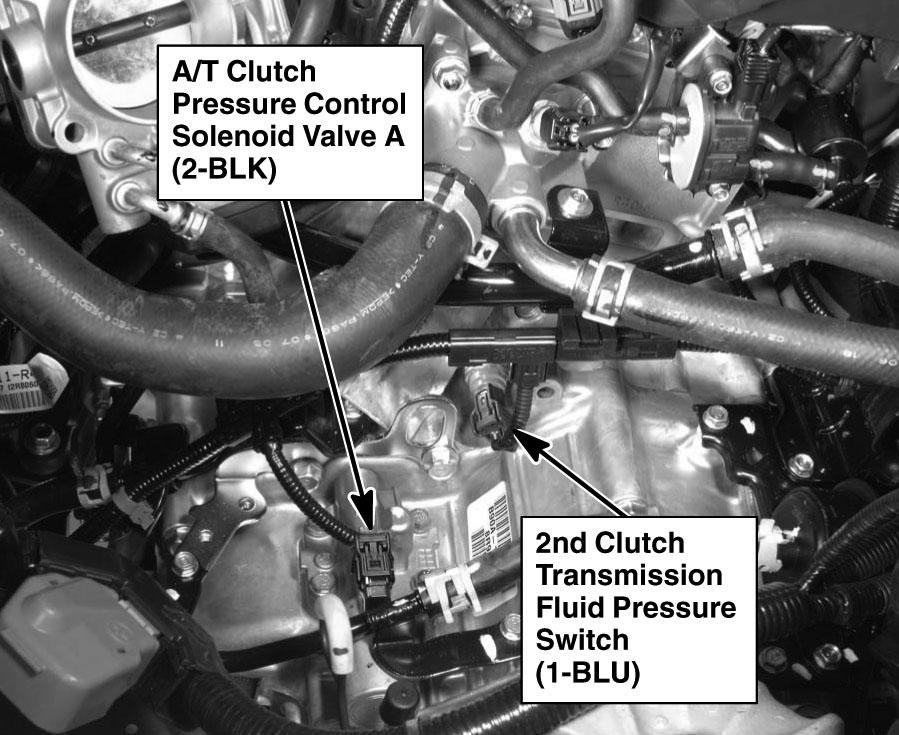

Fig 18: Top Of Automatic Transmission

G00471402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

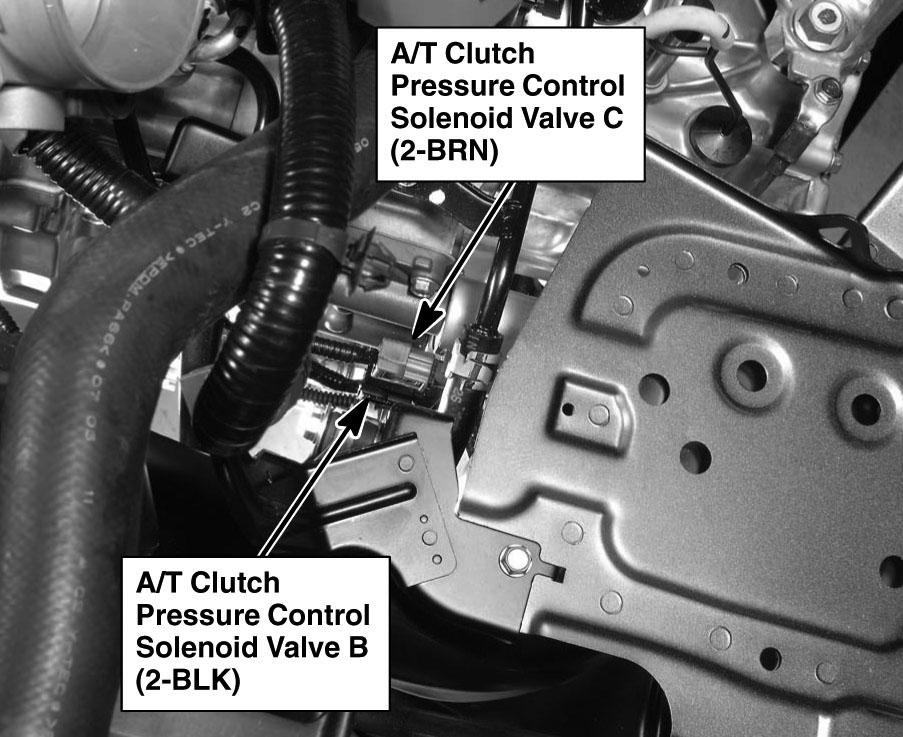

Fig 19: Automatic Transmission

G00471403

Courtesy of AMERICAN HONDA MOTOR CO., INC.

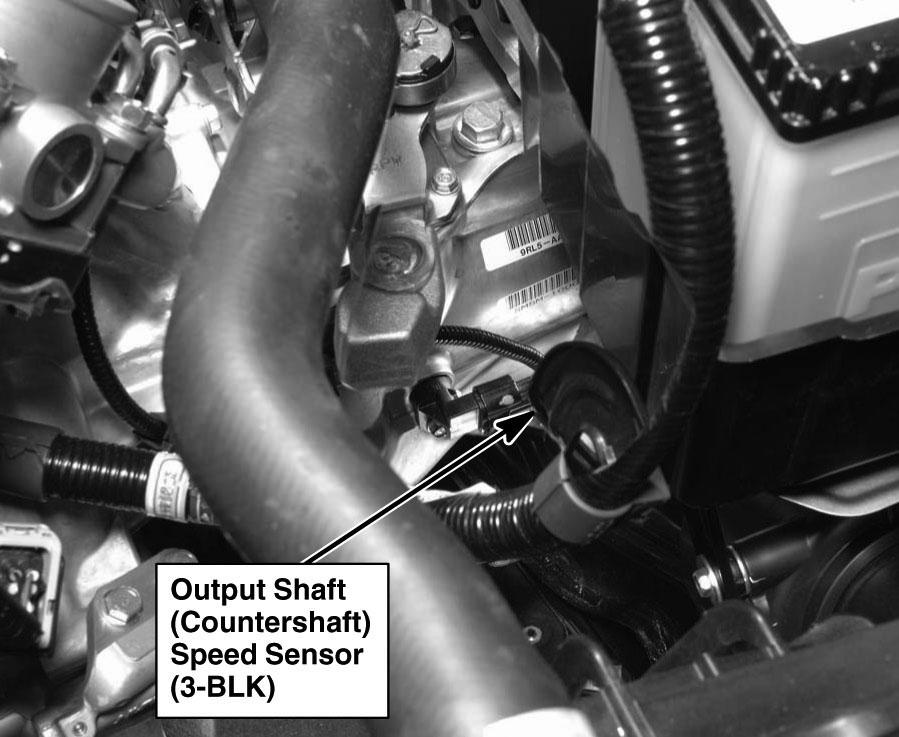

Fig 20: Top Of Manual Transmission

G00471404

Courtesy of AMERICAN HONDA MOTOR CO., INC.

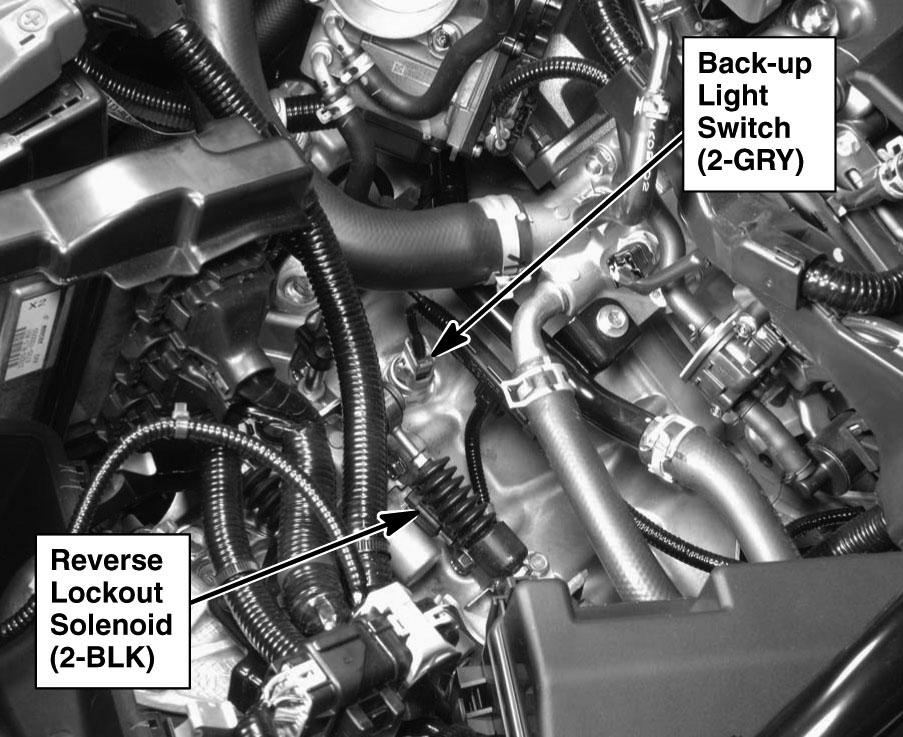

Fig 21: Manual Transmission

G00471405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

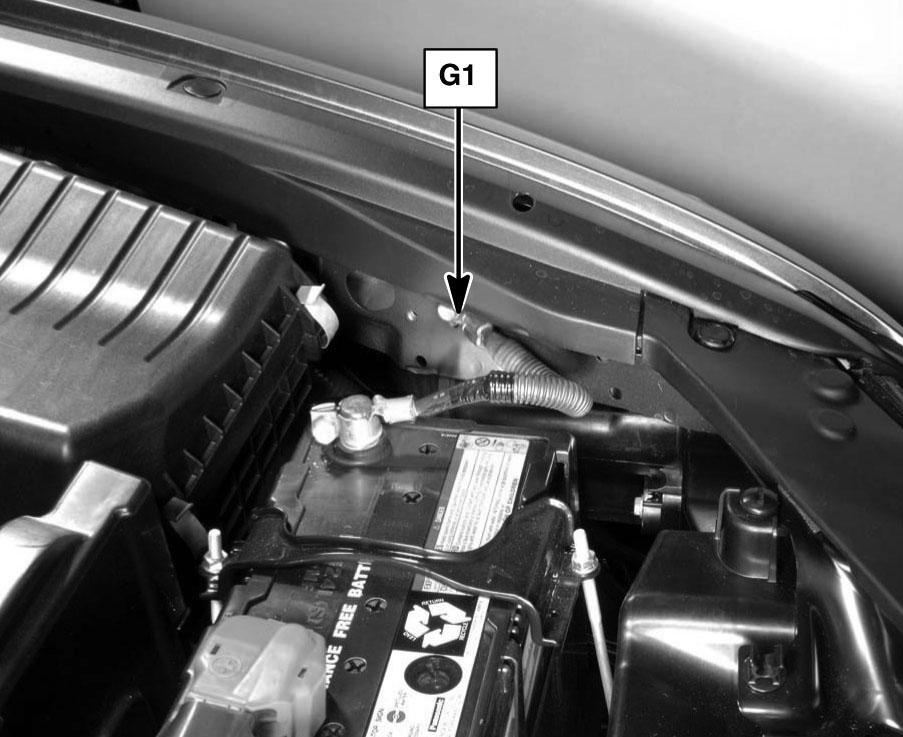

Fig 22: Left Front Of Engine Compartment

G00471406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

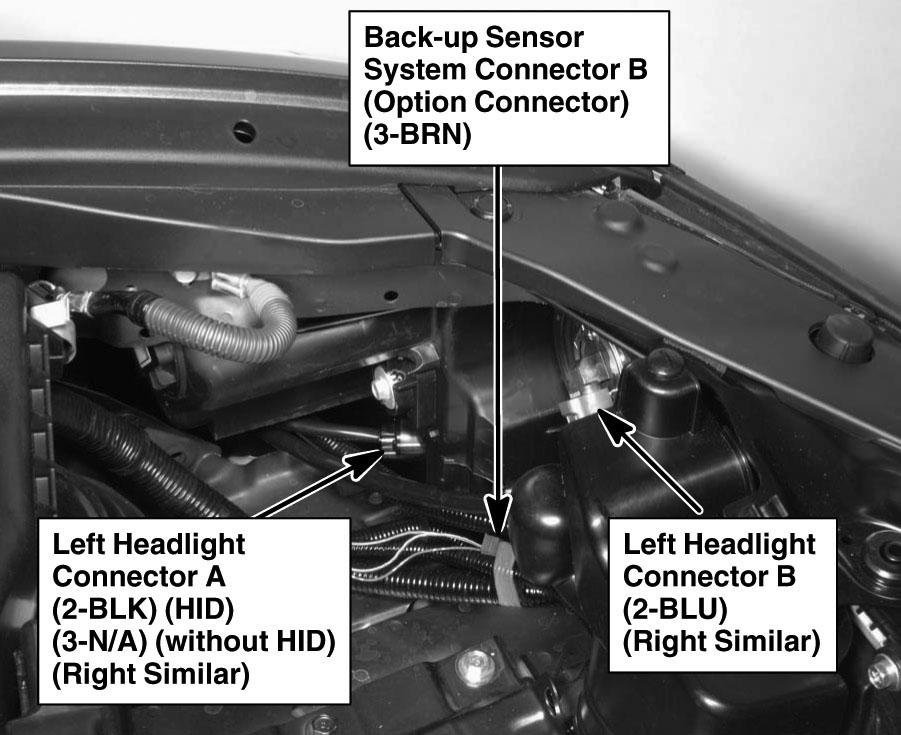

Fig 23: Left Front Of Engine Compartment

G00471407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Left Side Of Engine Compartment

G00471408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

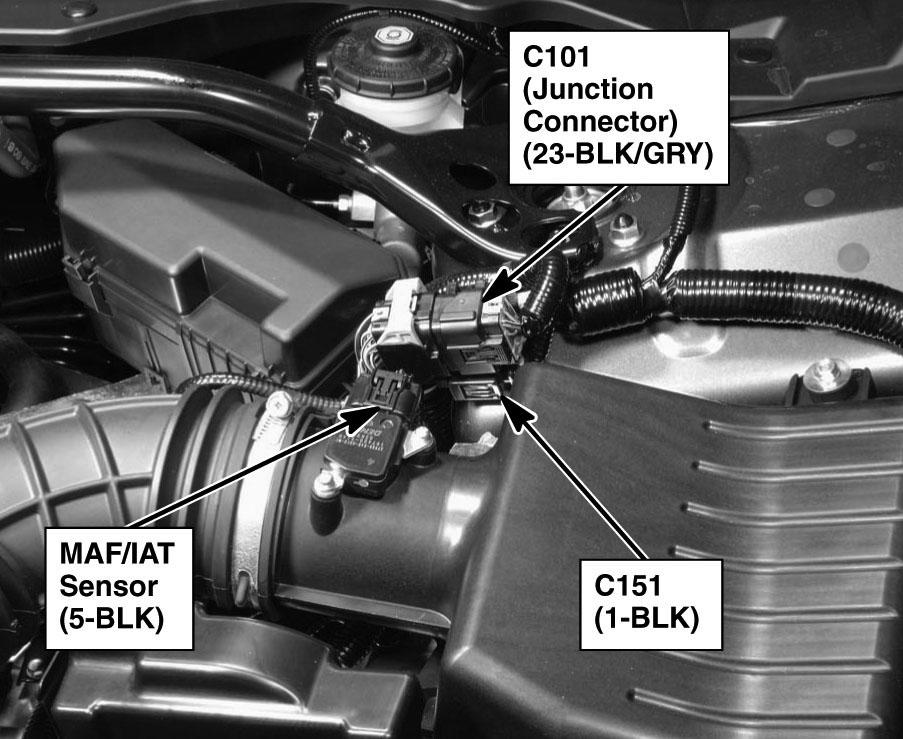

Fig 25: Left Side Of engine Compartment

G00471409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Rear Of Engine Compartment

G00471410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

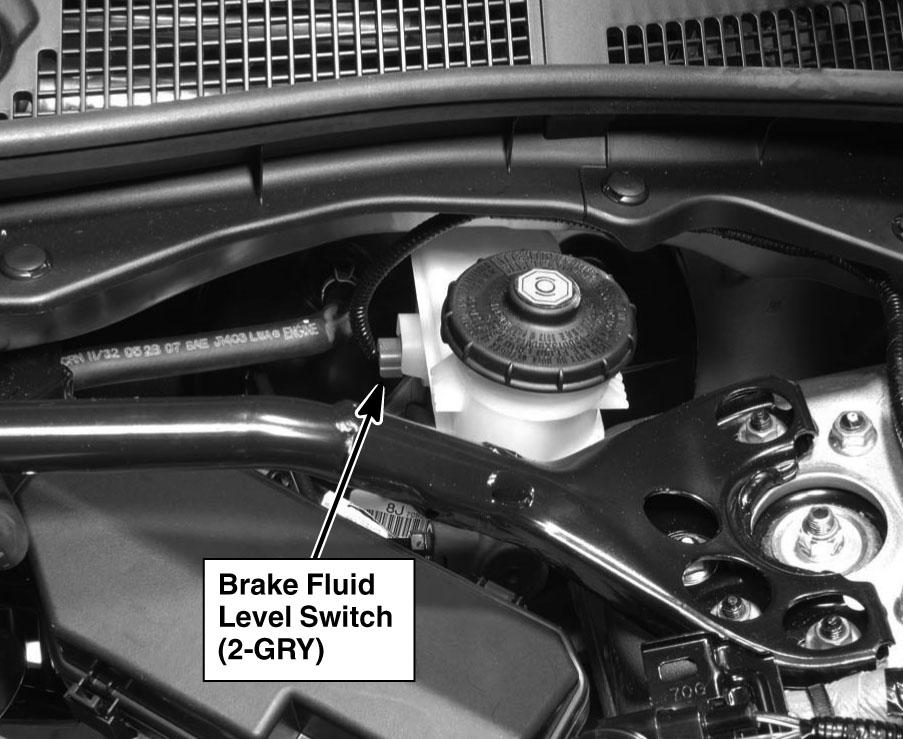

Fig 27: Left Rear Of Engine Compartment

G00471411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

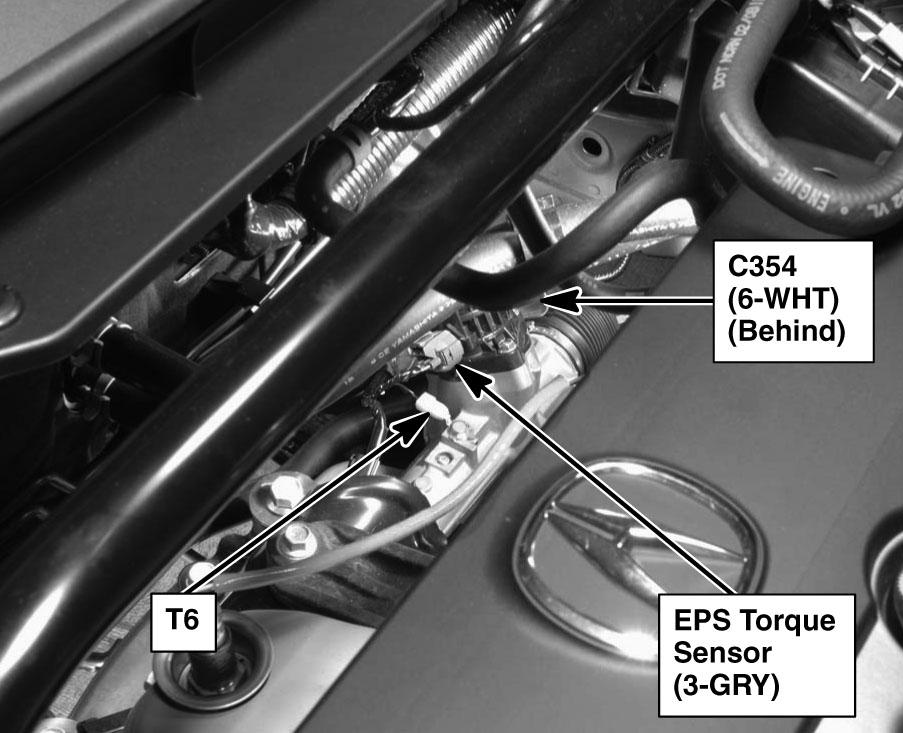

Fig 28: Left Rear Of Engine Compartment

G00471412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

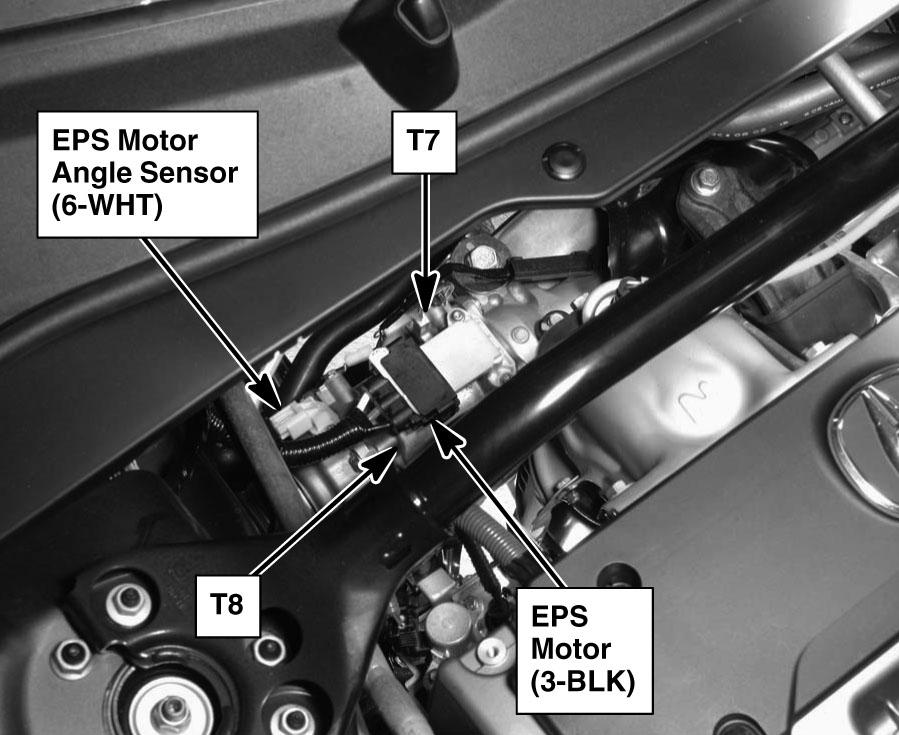

Fig 29: Right Rear Of Engine Compartment

G00471413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

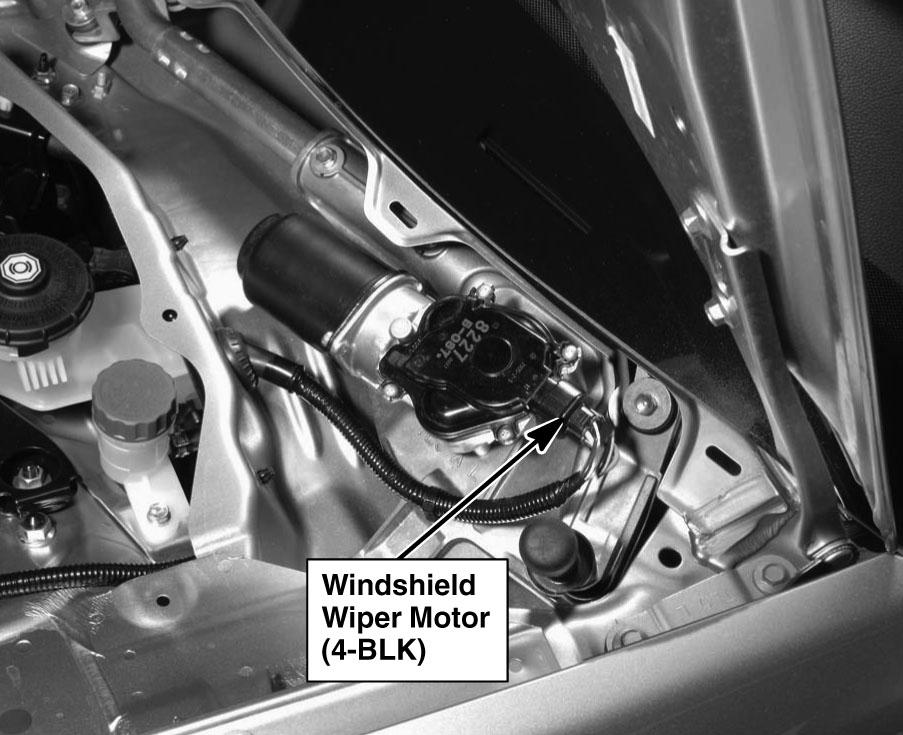

Fig 30: Left Rear Of Engine Compartment

G00471414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

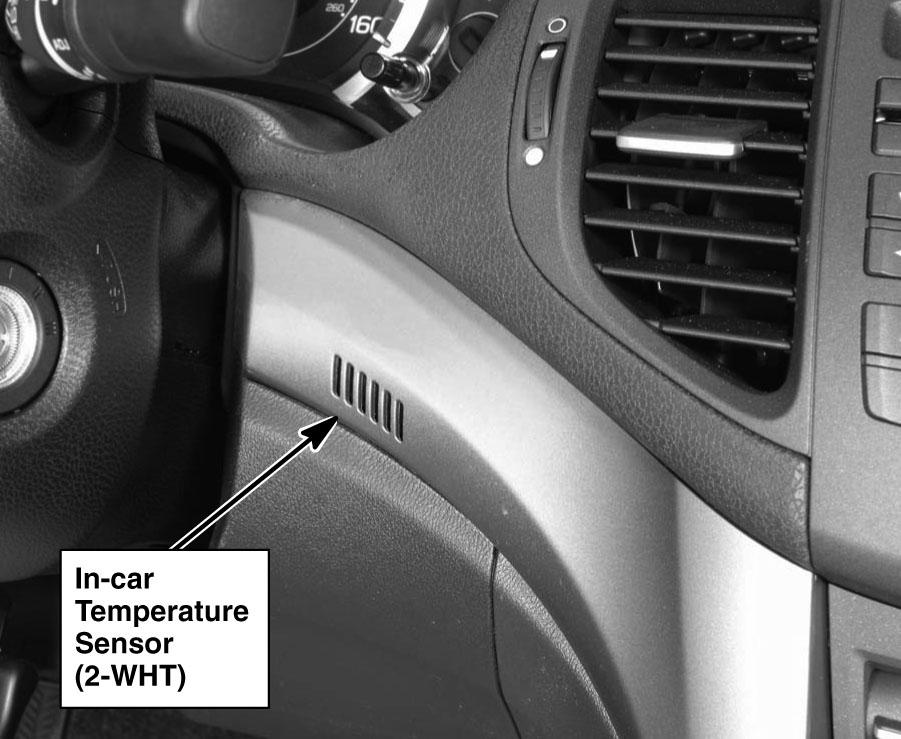

Fig 31: Left Side Of Dash

G00471415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

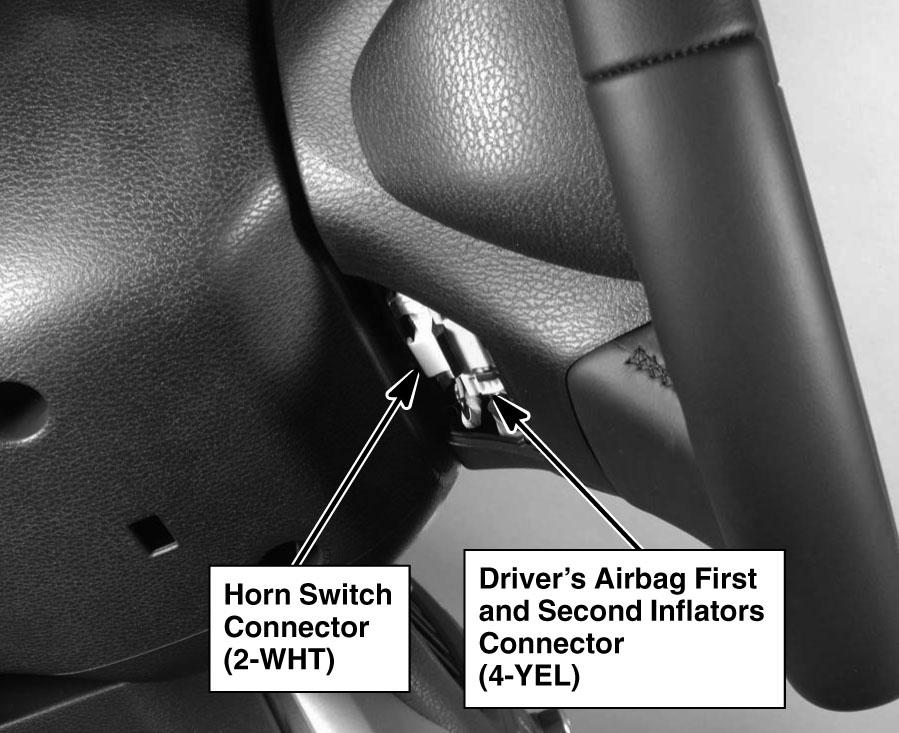

Fig 32: Steering Wheel

G00471416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

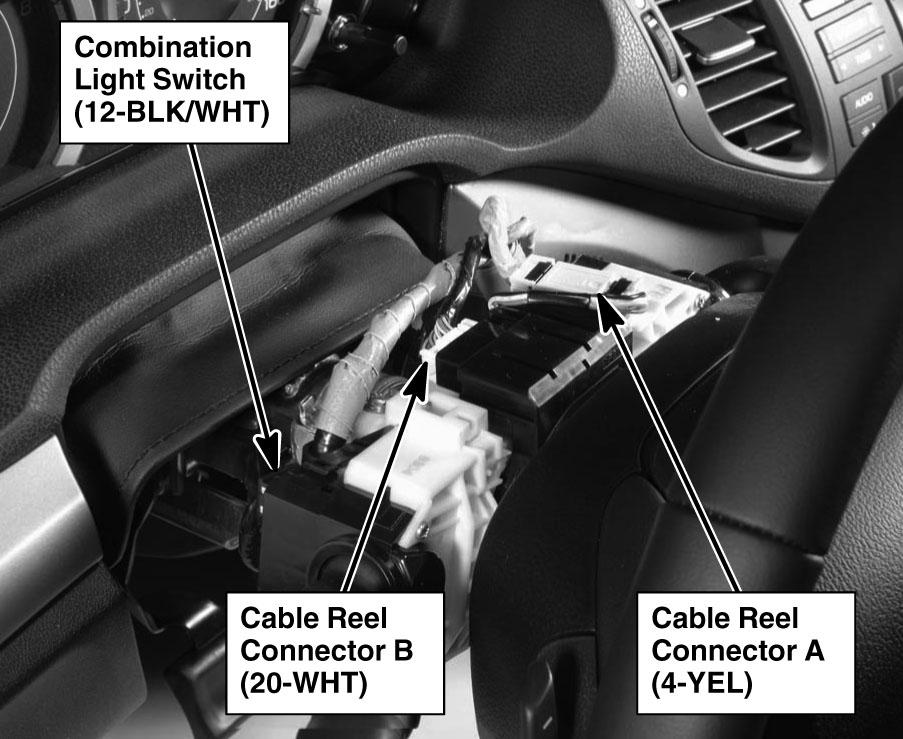

Fig 33: Steering Column

G00471417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

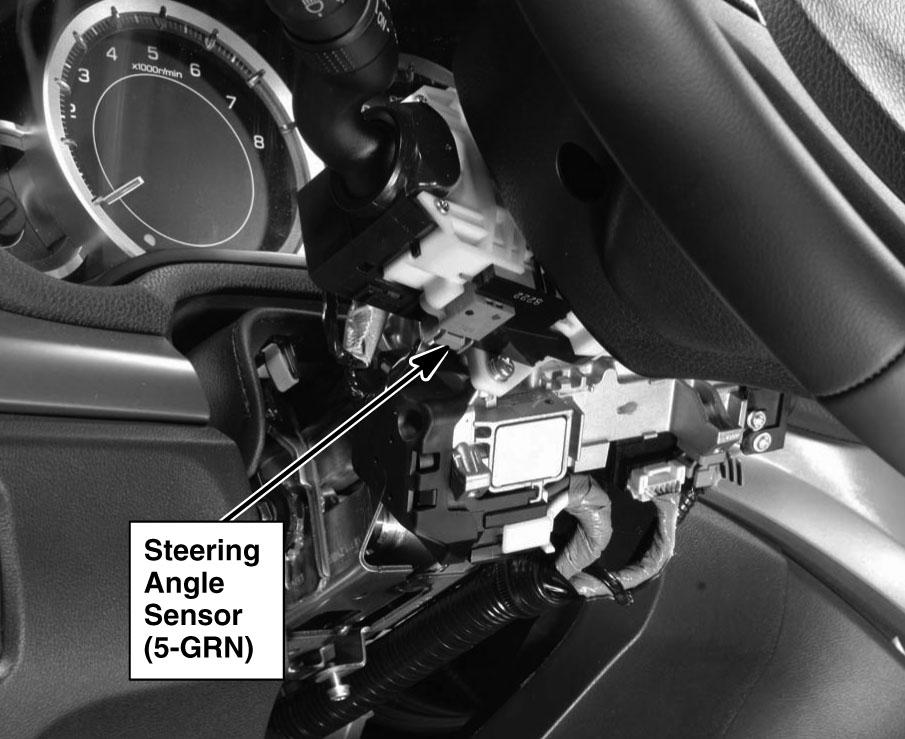

Fig 34: Steering Column

G00471418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Steering Column

G00471419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

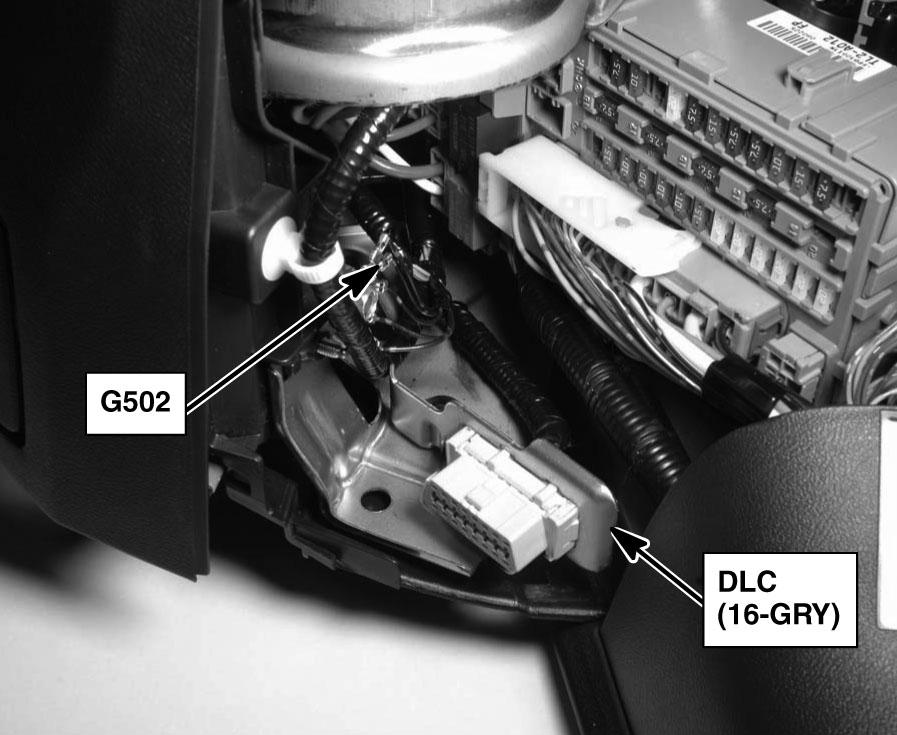

Fig 36: Under Left Side Of Dash

G00471420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

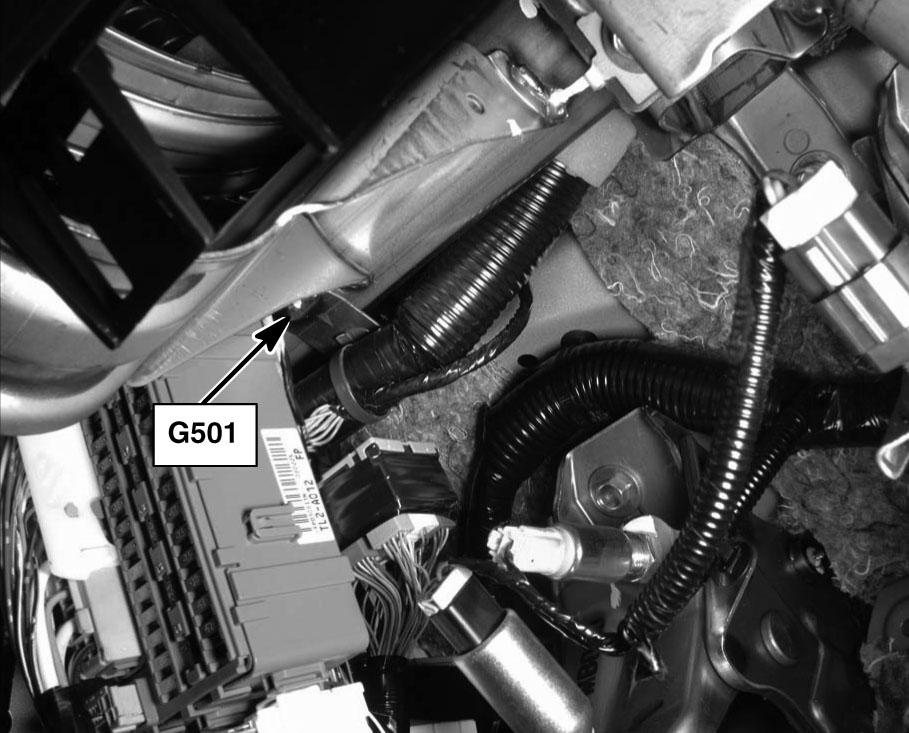

Fig 37: Under Left Side Of Dash

G00471421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

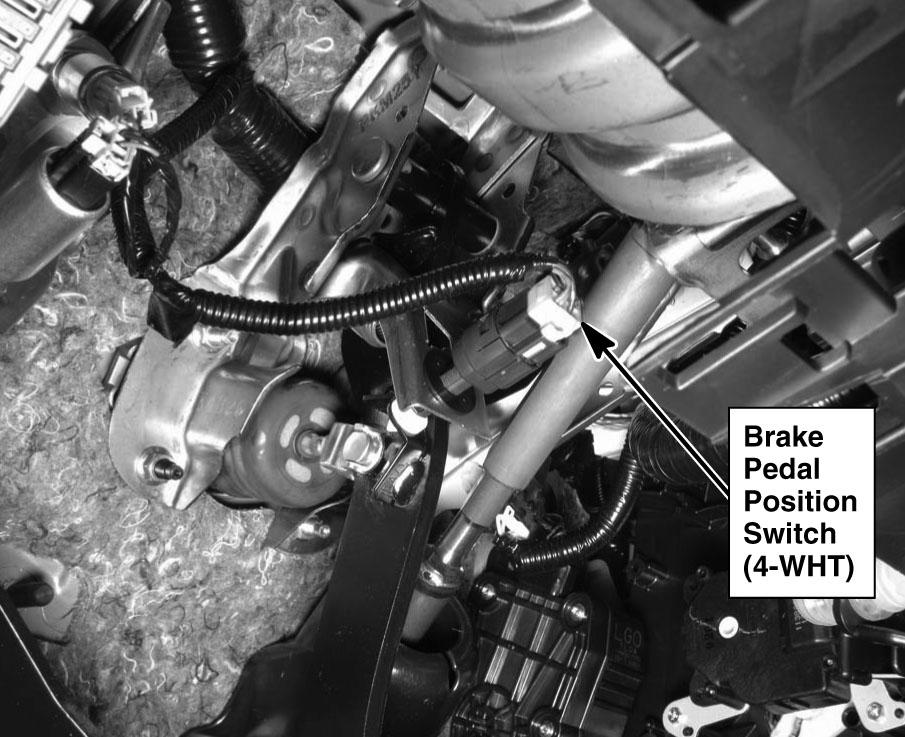

Fig 38: Under Left Side Of Dash

G00471422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

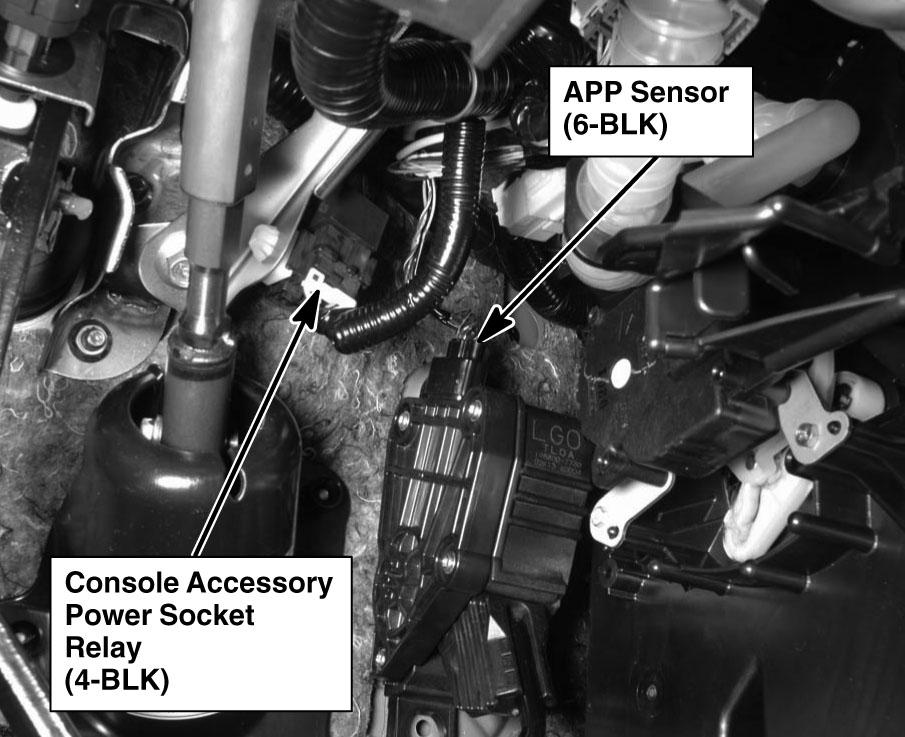

Fig 39: Under Left Side Of Dash

G00471423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Left Side Of Dash

G00471424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

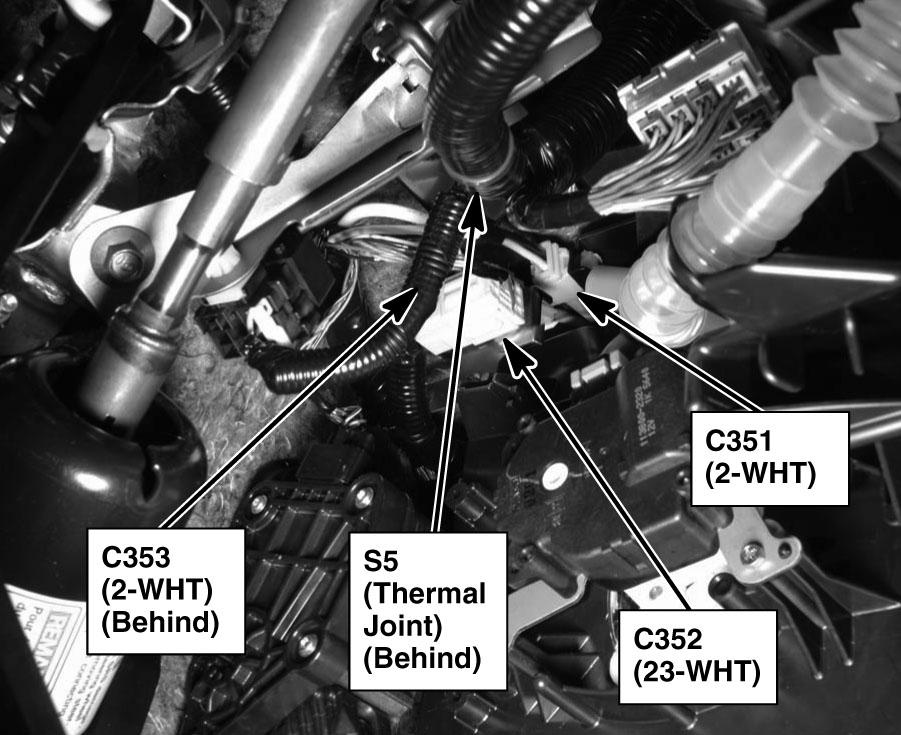

Fig 41: Under Left Side Of Dash

G00471425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

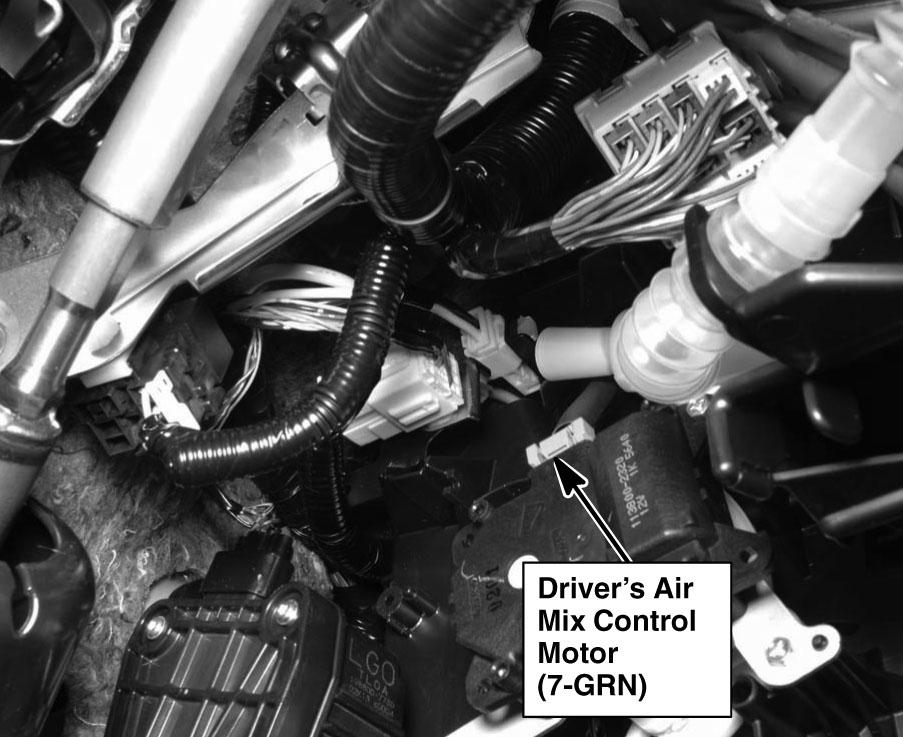

Fig 42: Under Left Side Of Dash

G00471426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00471427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

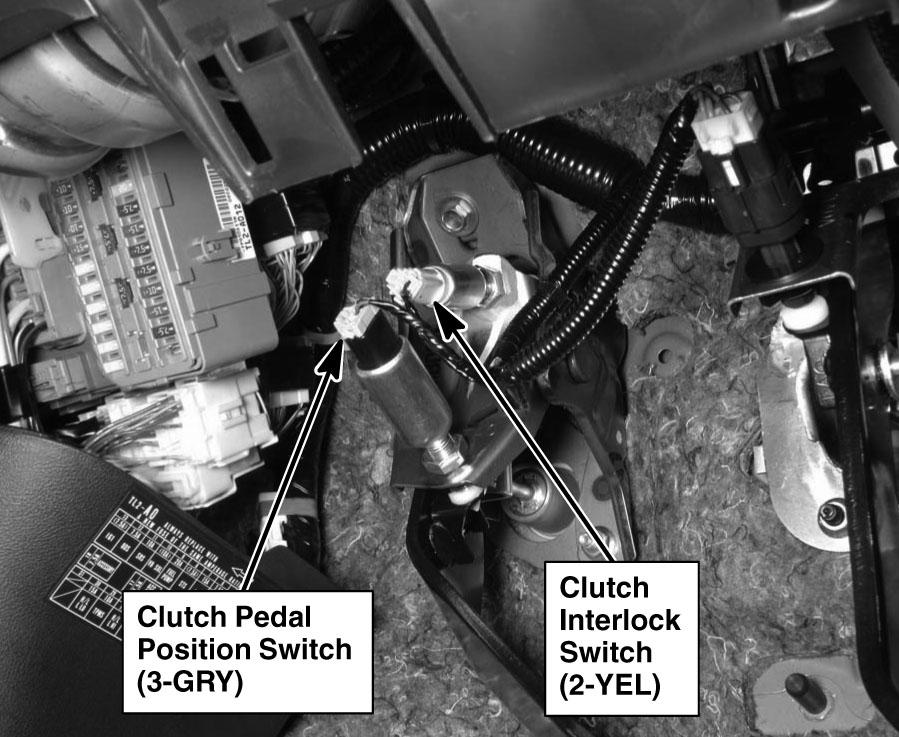

Fig 44: Under Left Side Of Dash

G00471428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Behind Left Kick Panel

G00471429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Left Side Of Dash

G00471430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

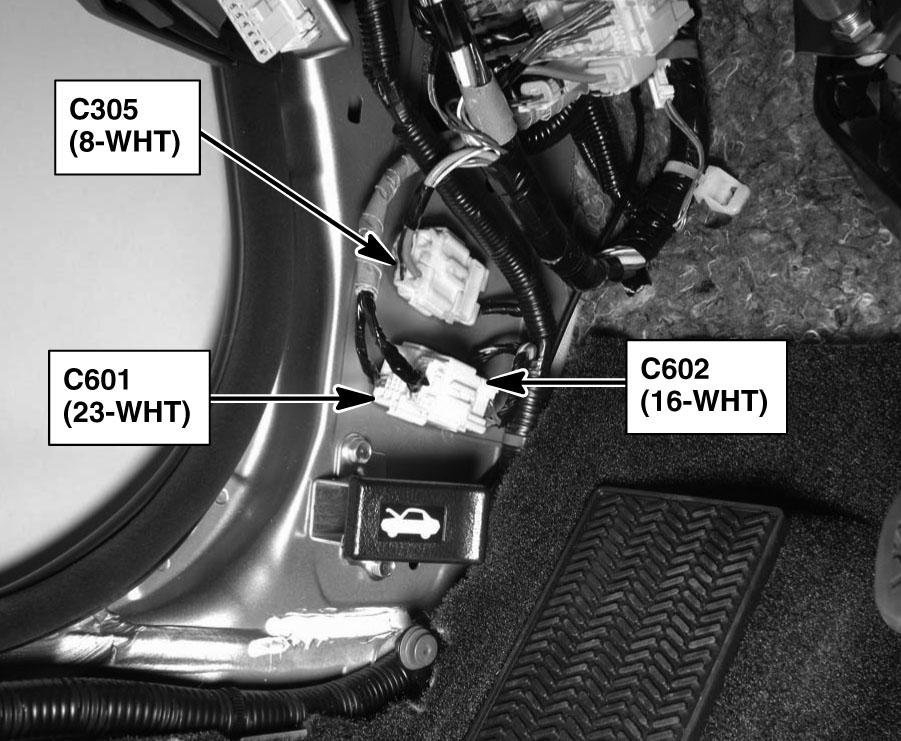

Fig 47: Behind Left Kick Panel

G00471431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

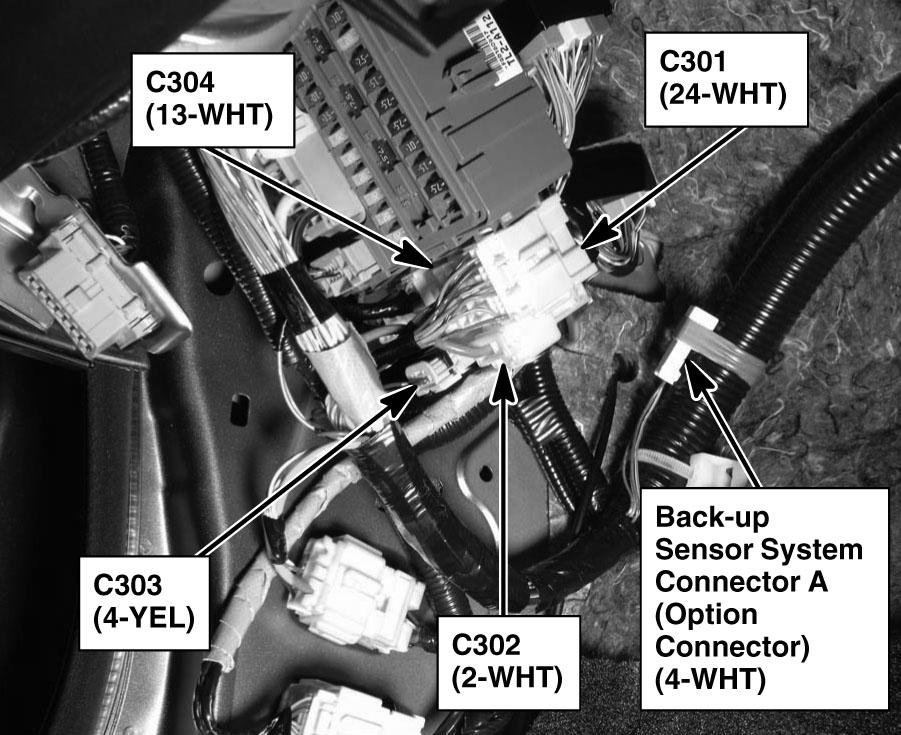

Fig 48: Behind Left Kick Panel

G00472620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

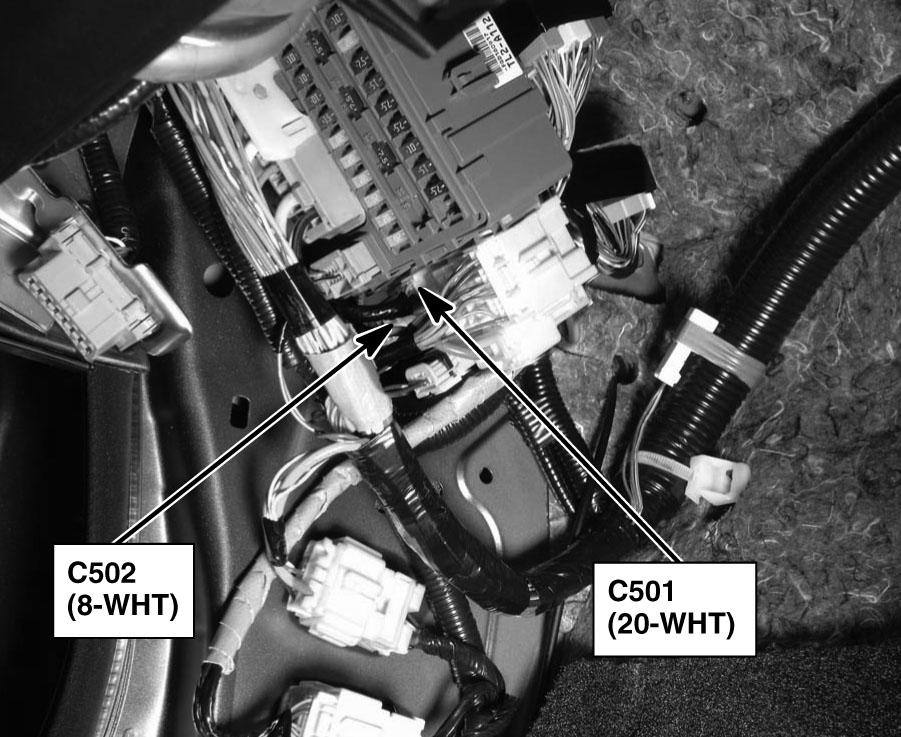

Fig 49: Behind Left Kick Panel

G00472621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

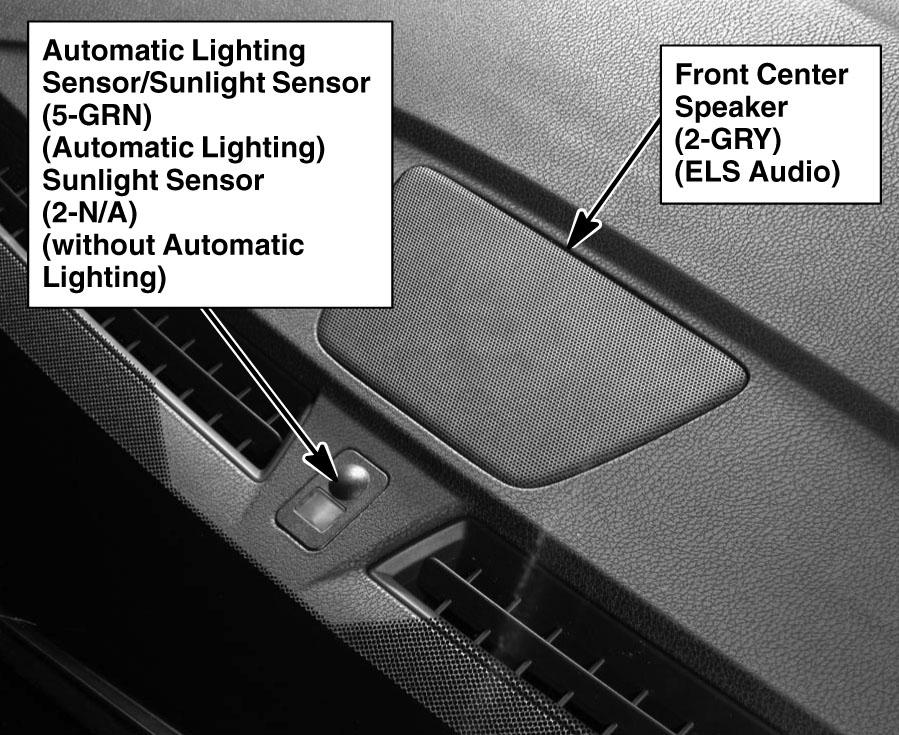

Fig 50: Top Center Of Dash

G00472622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

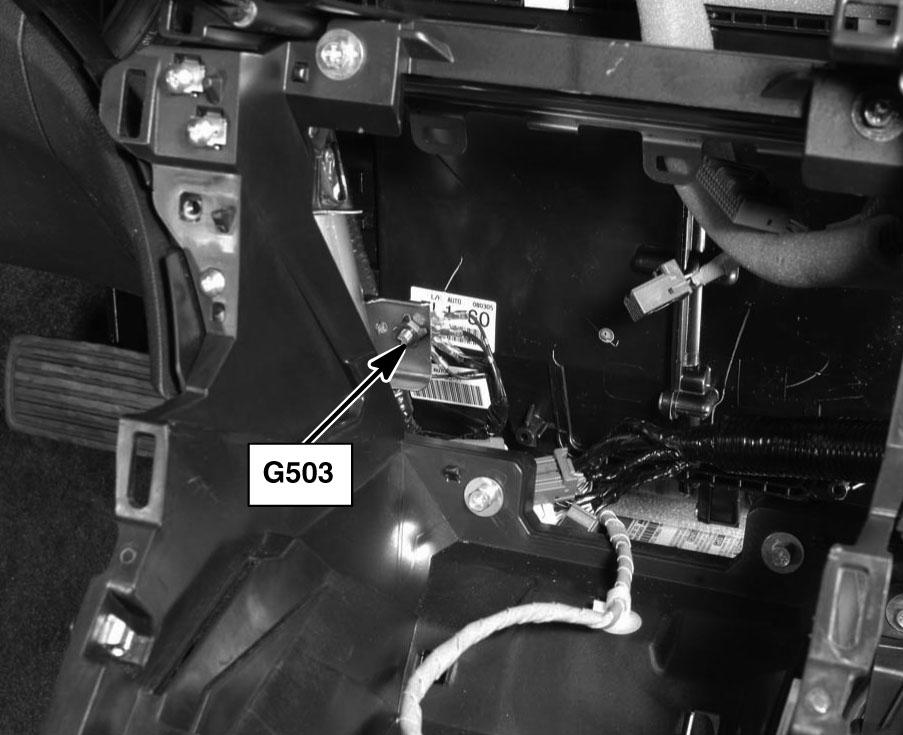

Fig 51: Behind Center Of Dash

G00472623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

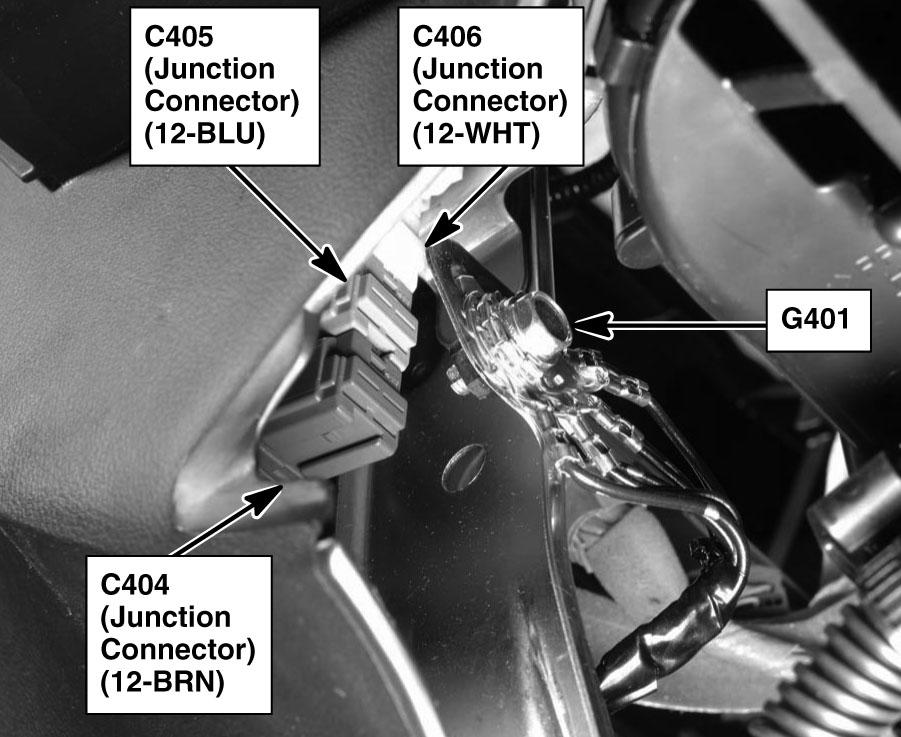

Fig 52: Behind Center Of Dash

G00472624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Behind Center Of Dash

G00472625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

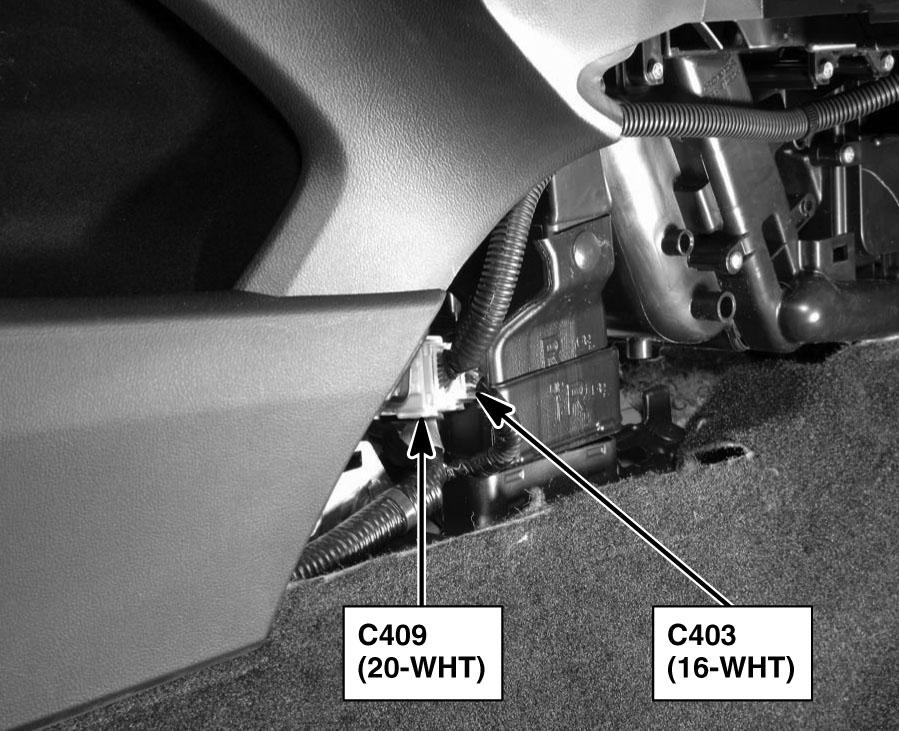

Fig 54: Under Center Of Dash

G00472626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

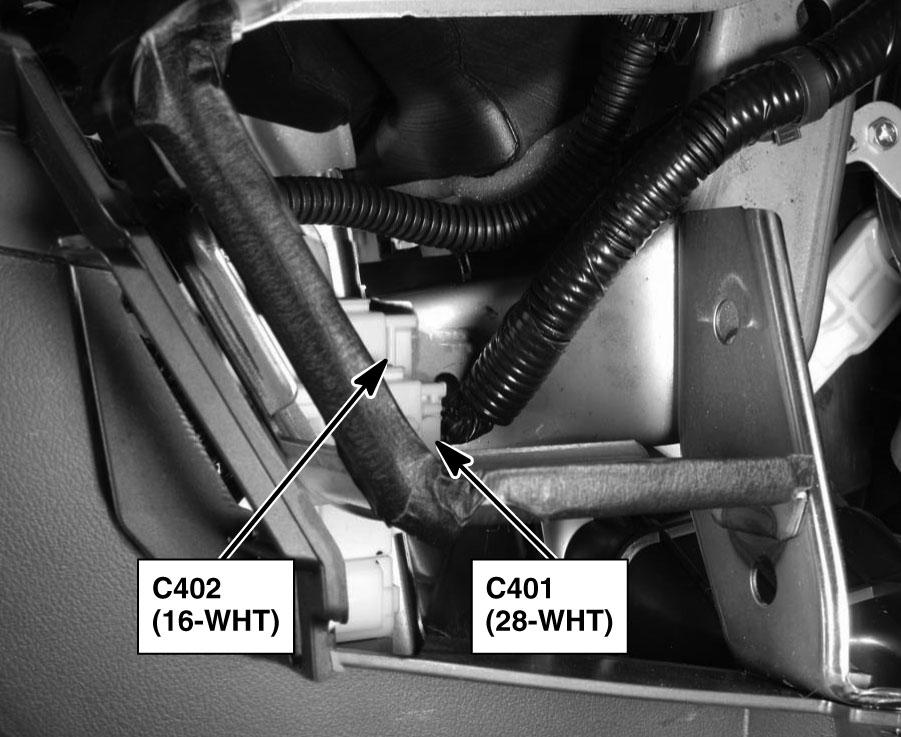

Fig 55: Behind Right Side Of Dash

G00472627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

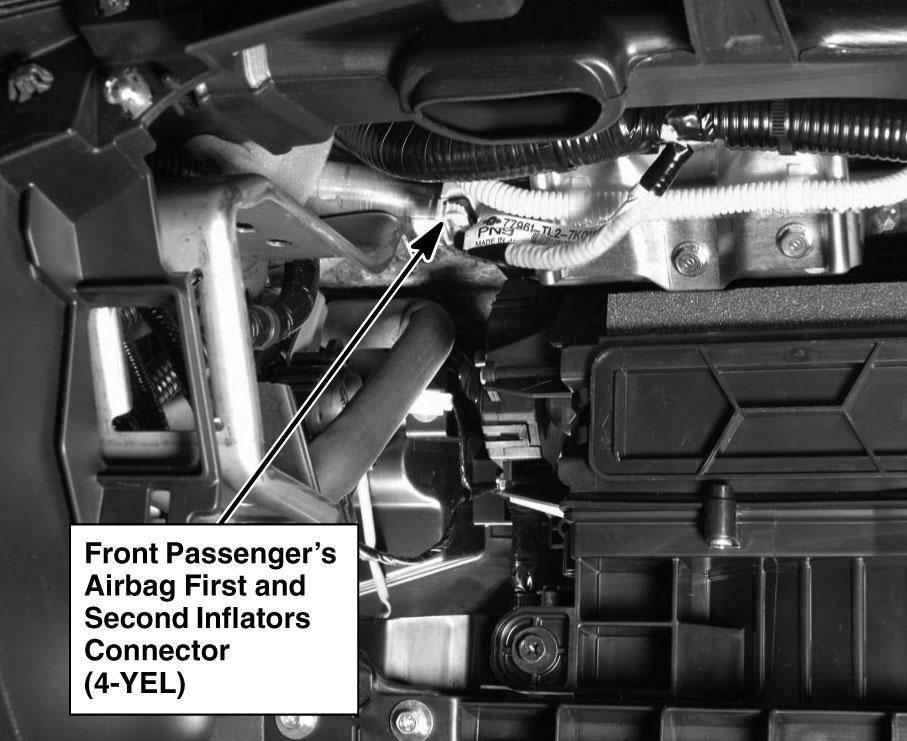

Fig 56: Behind Right Side Of Dash

G00472628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

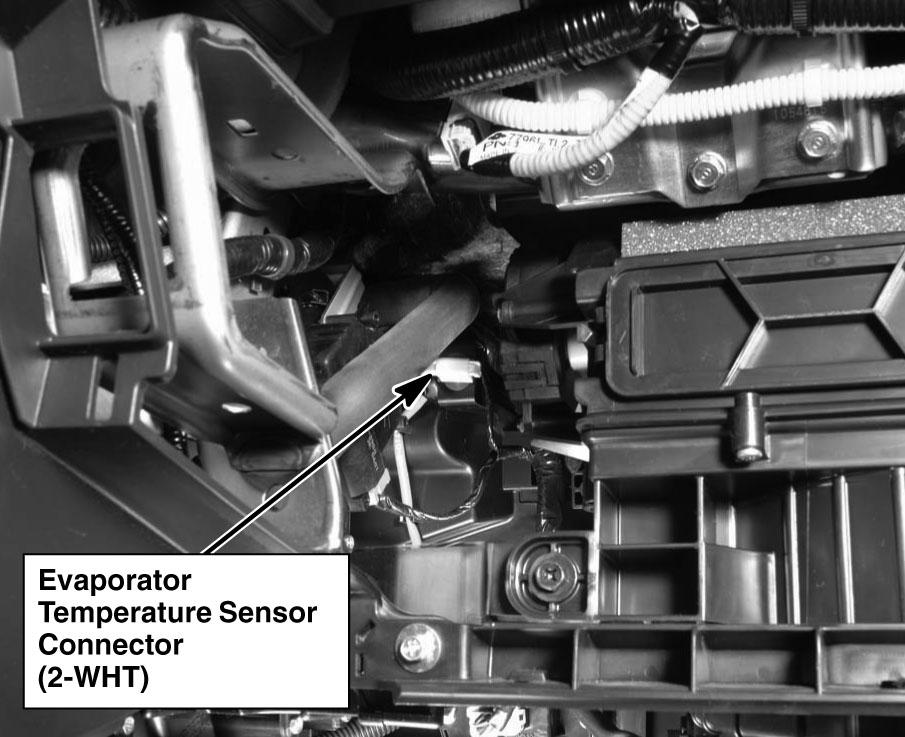

Fig 57: Behind Right Side Of Dash

G00472629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

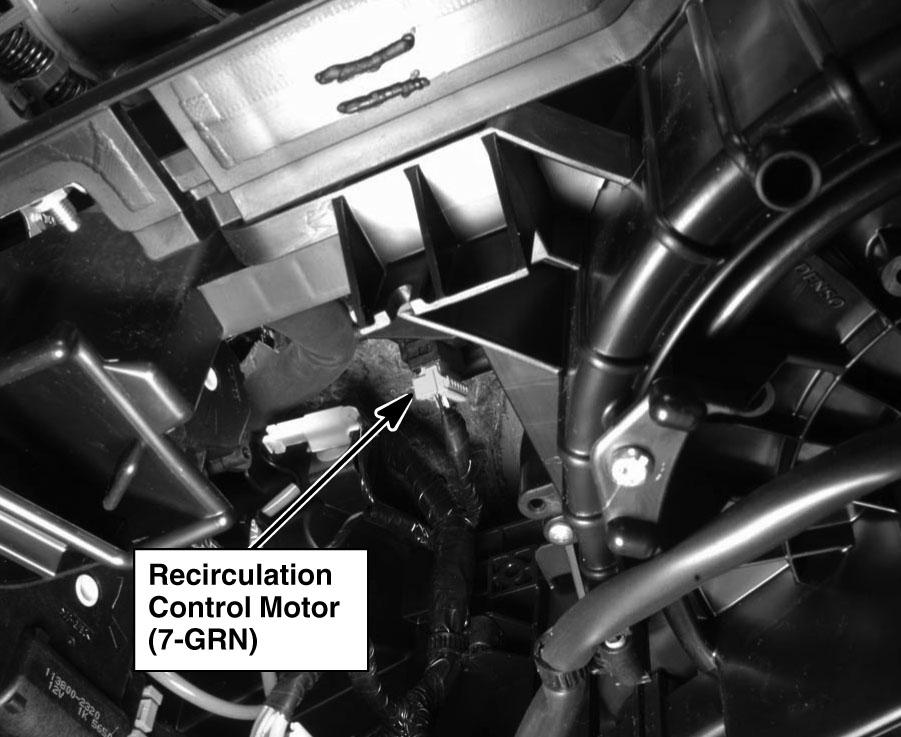

Fig 58: Behind Right Side Of Dash

G00472630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

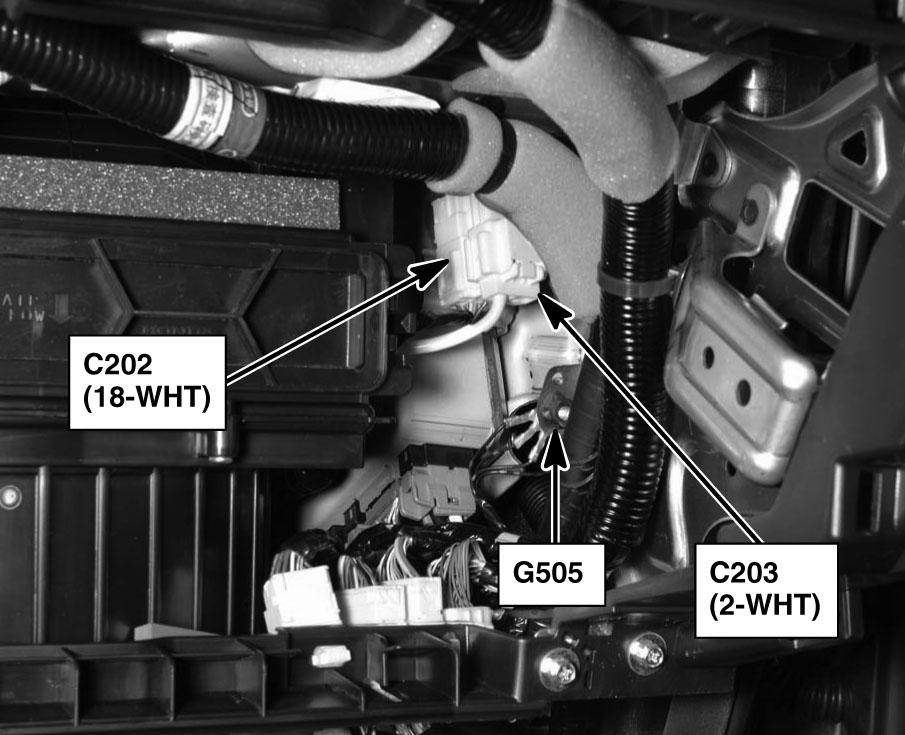

Fig 59: Under Right Side Of Dash

G00472631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

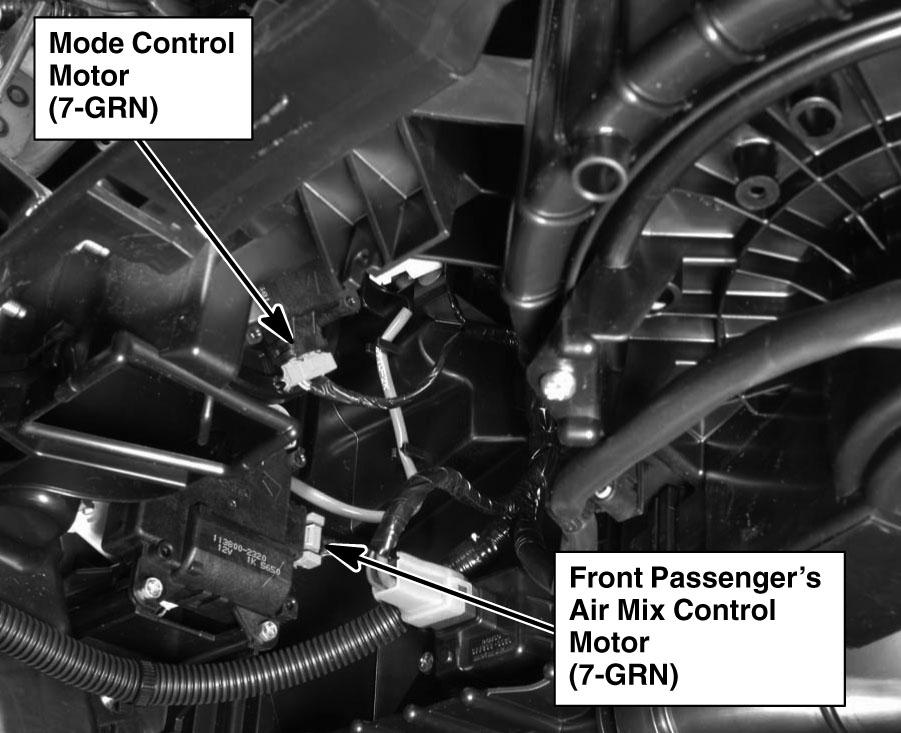

Fig 60: Under Right Side Of Dash

G00472632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

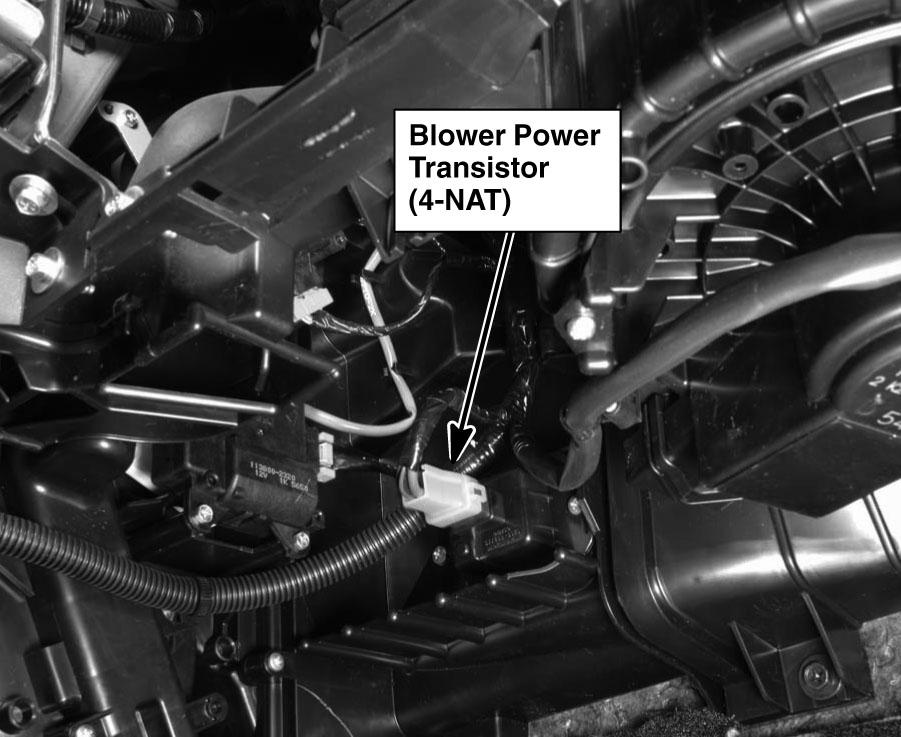

Fig 61: Under Right Side Of Dash

G00472633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

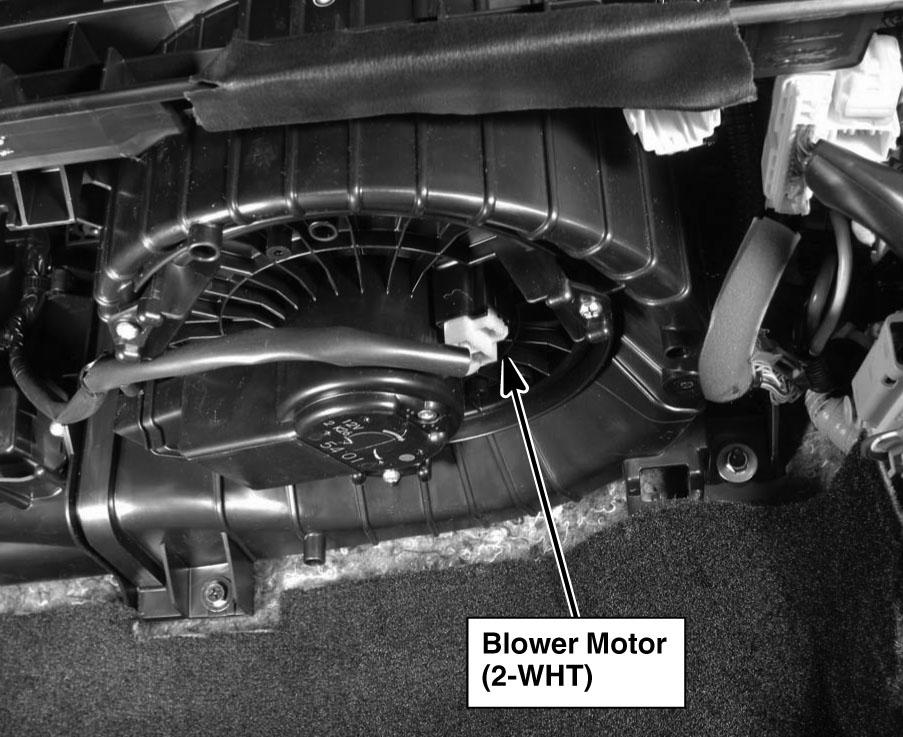

Fig 62: Under Right Side Of Dash

G00472634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Under Right Side Of Dash

G00472635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Behind Right Kick Panel

G00472636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

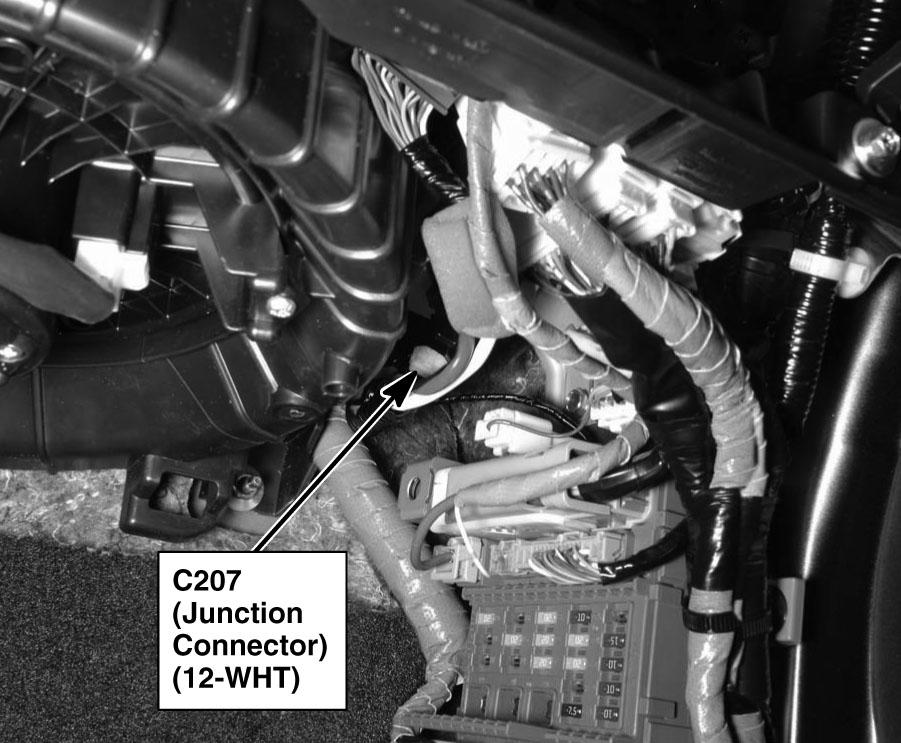

Fig 65: Under Right Side Of Dash

G00472637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

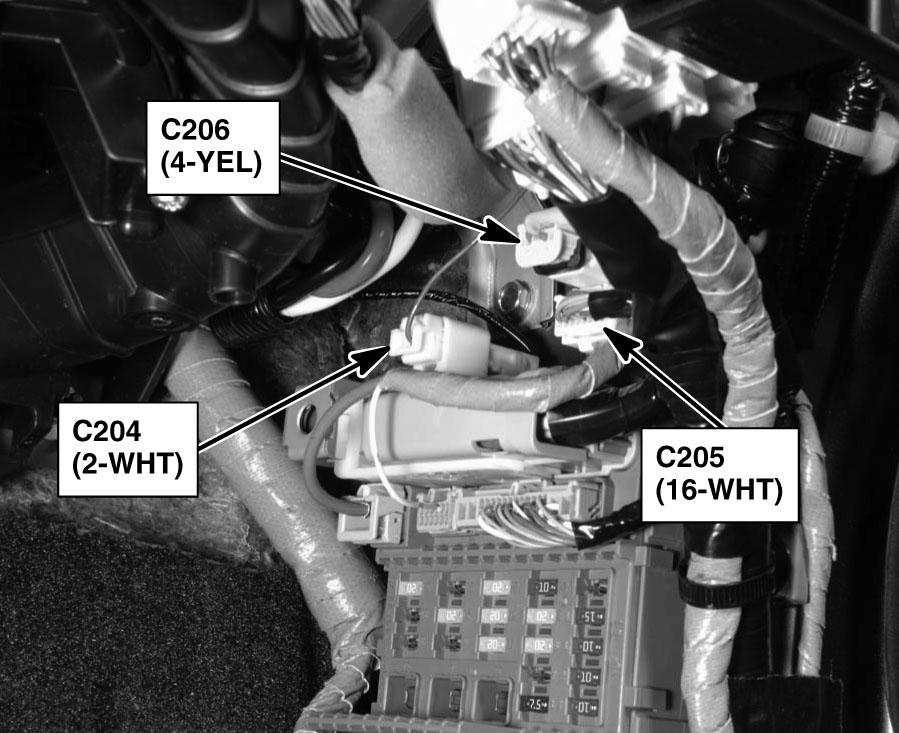

Fig 66: Under Right Side Of Dash

G00472638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

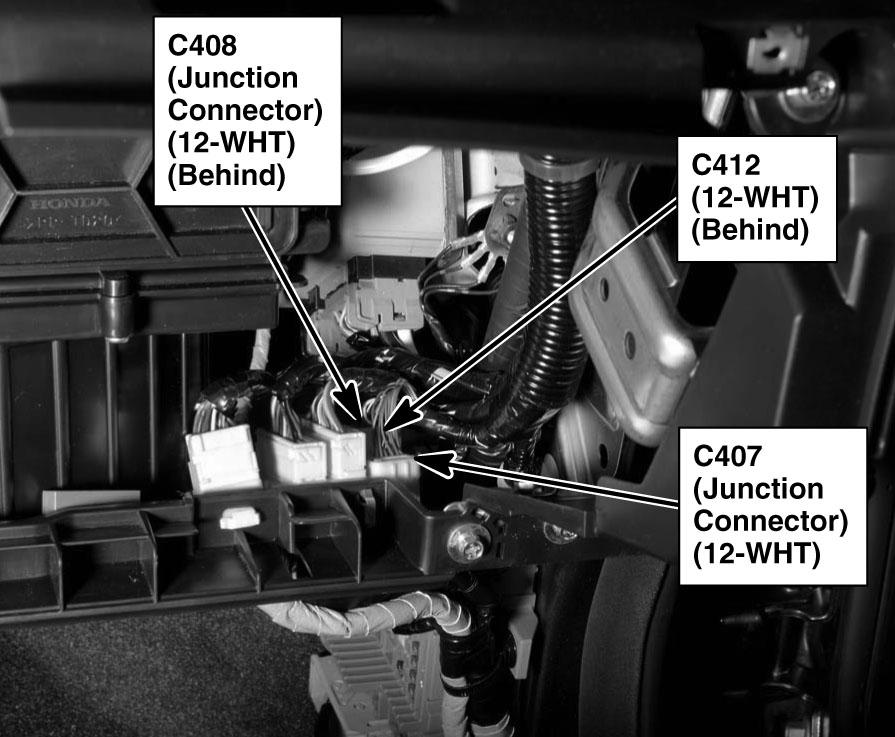

Fig 67: Under Right Side Of Dash

G00472639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

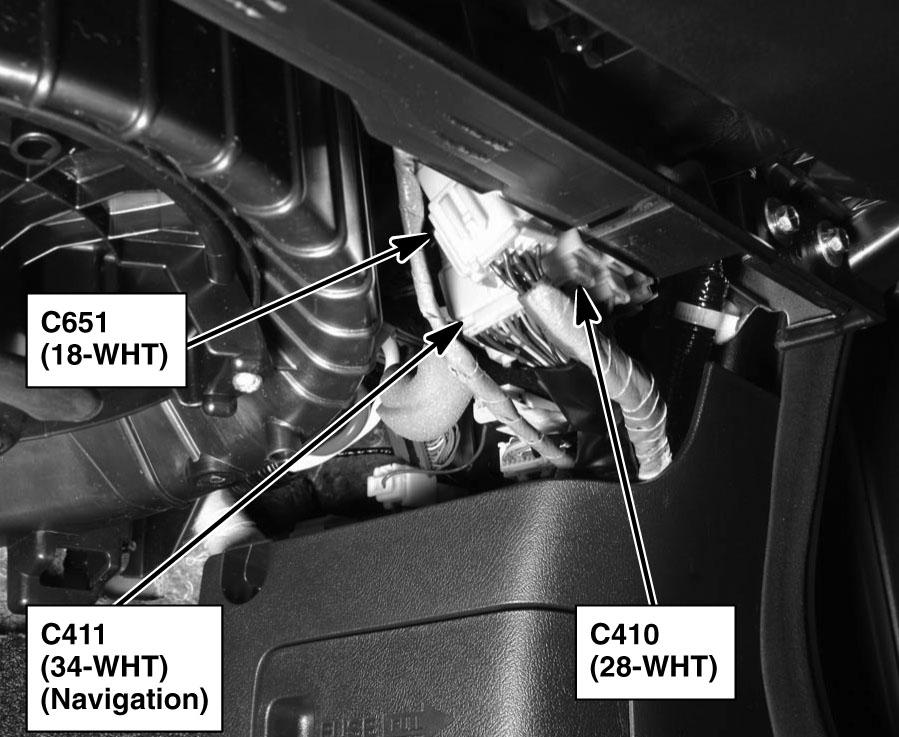

Fig 68: Behind Right Kick Panel

G00472640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Under Right Side Of Dash

G00472641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

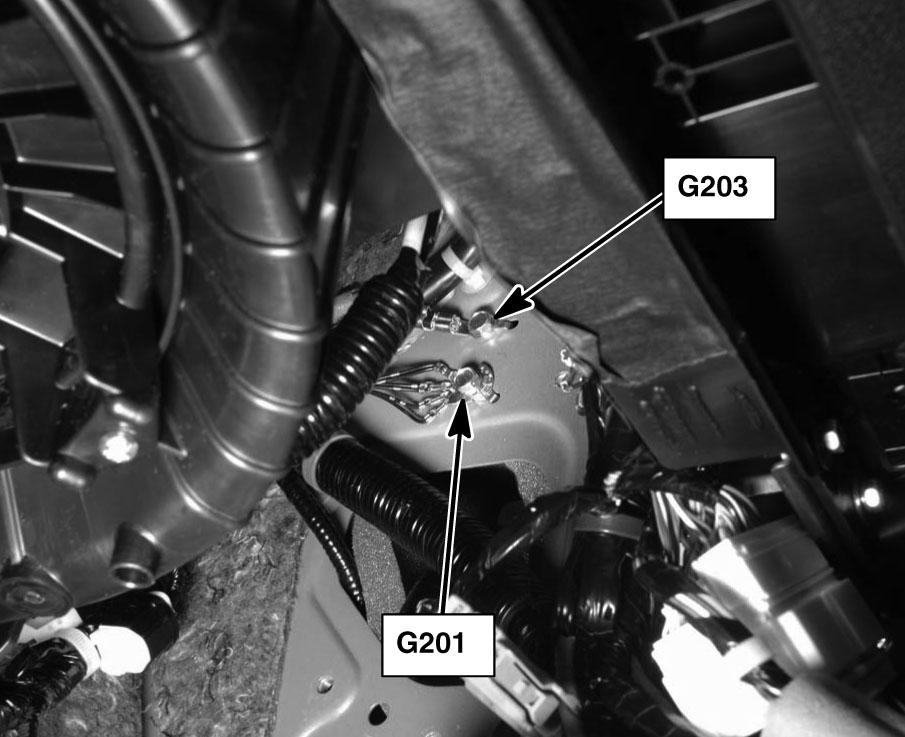

Fig 70: Under Right Side Of Dash

G00472642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Under Driver's Seat

G00472643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

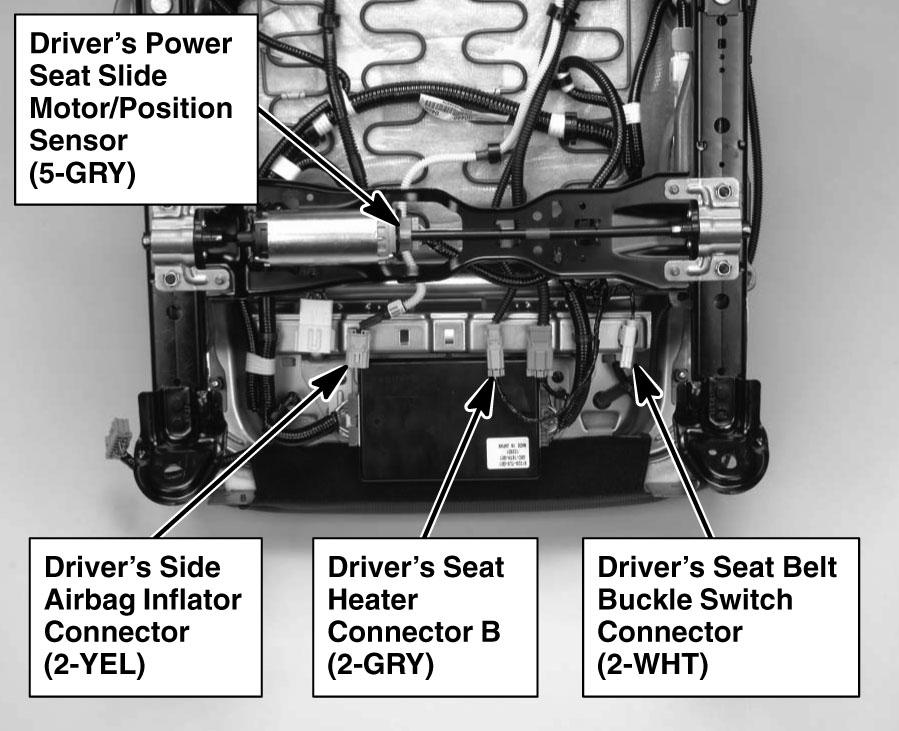

Fig 72: Under Driver's Seat

G00472644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

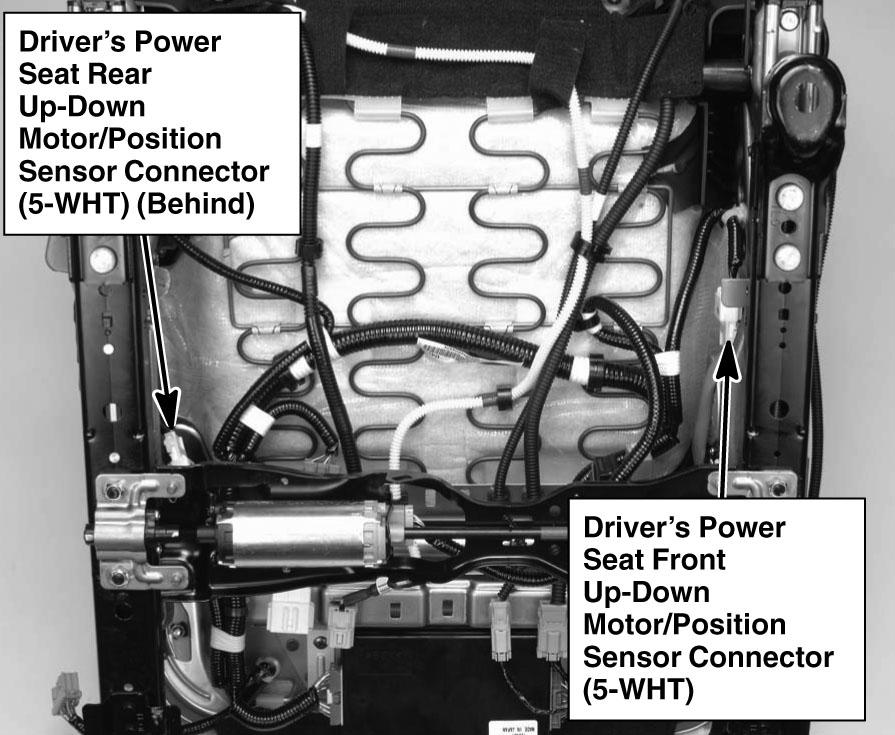

Fig 73: Under Driver's Seat

G00472645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

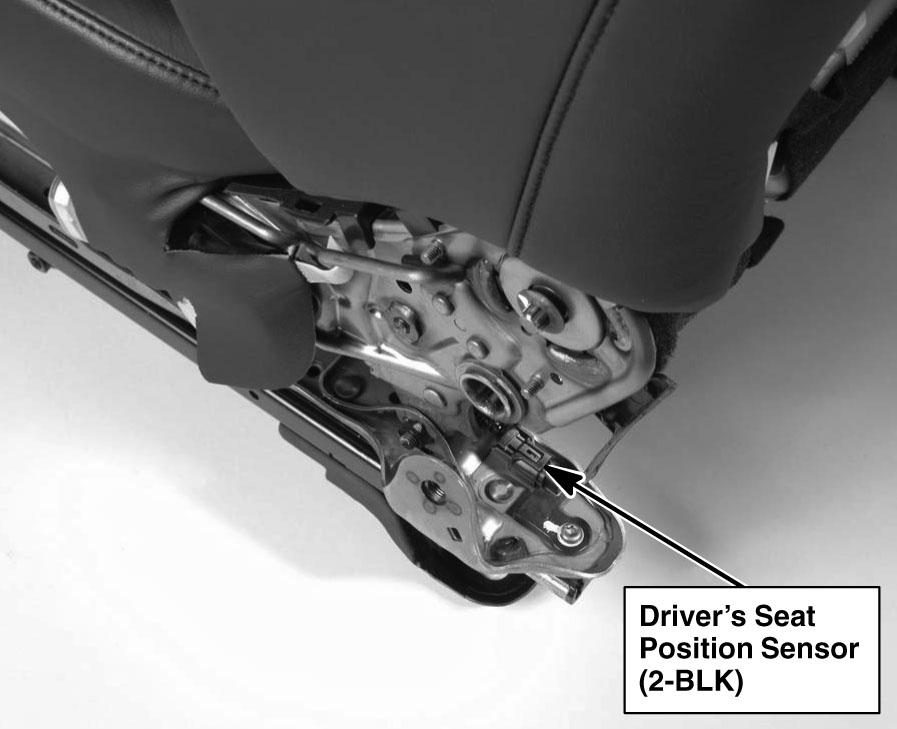

Fig 74: Under Driver's Seat

G00472646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

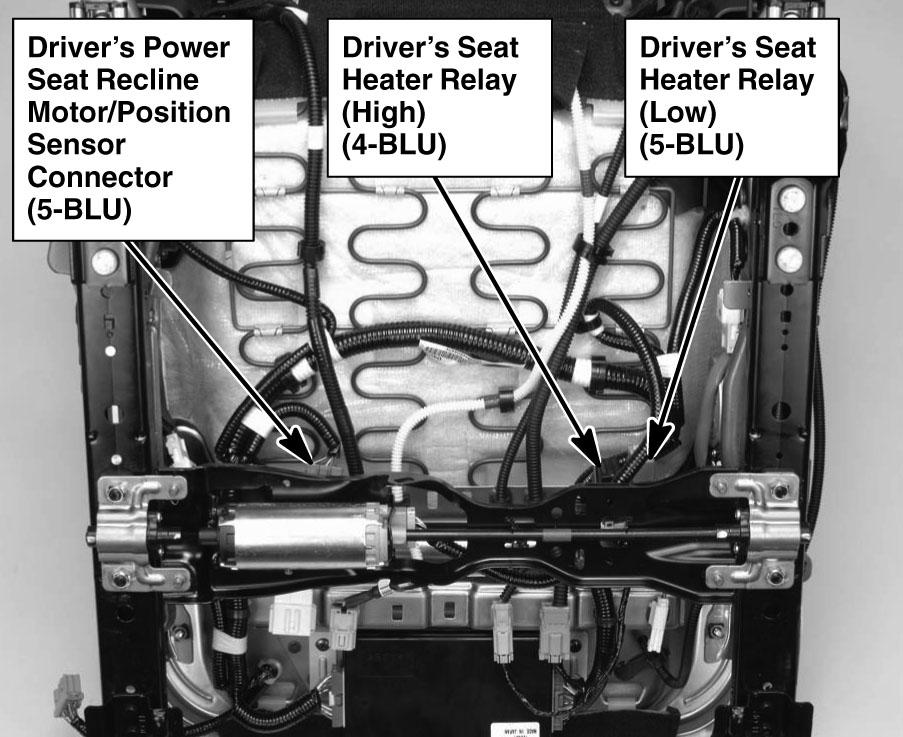

Fig 75: Under Driver's Seat

G00472647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

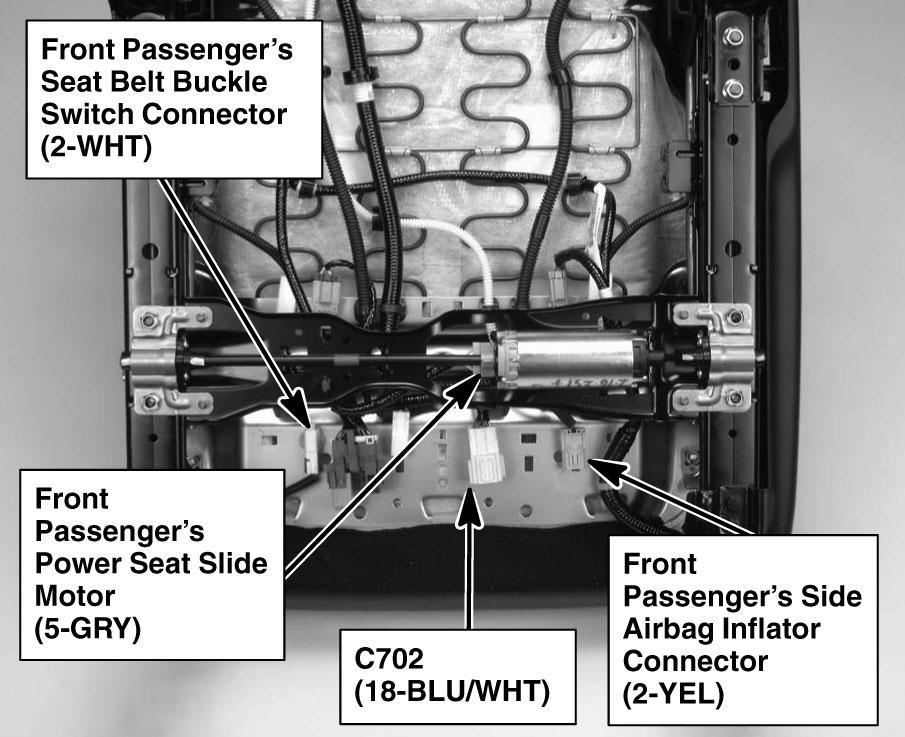

Fig 76: Under Front Passenger's Seat

G00472648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

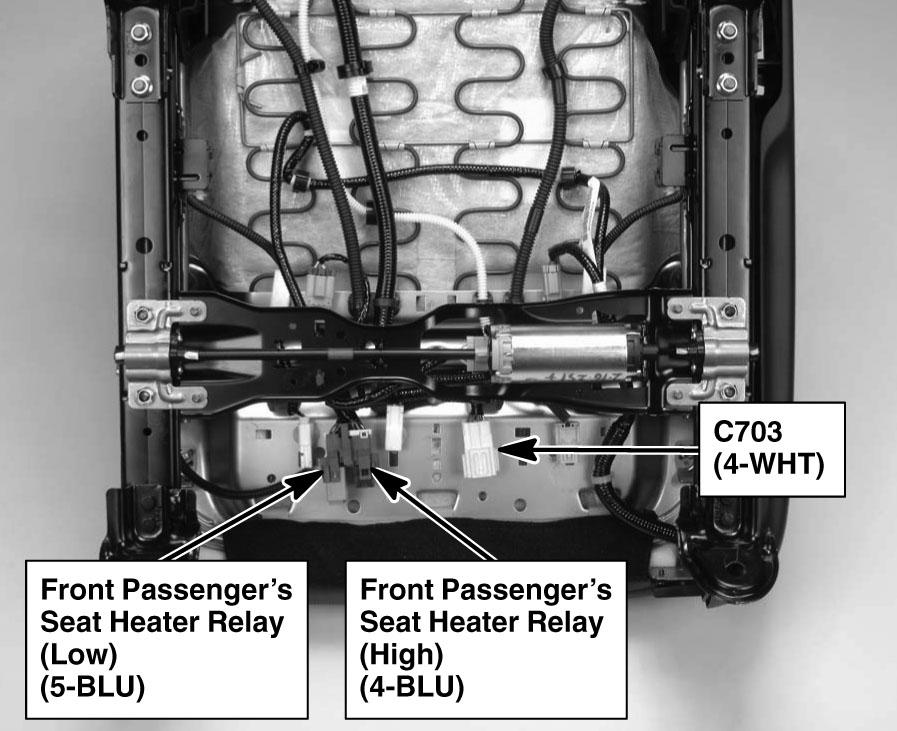

Fig 77: Under Front Passenger's Seat

G00472649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

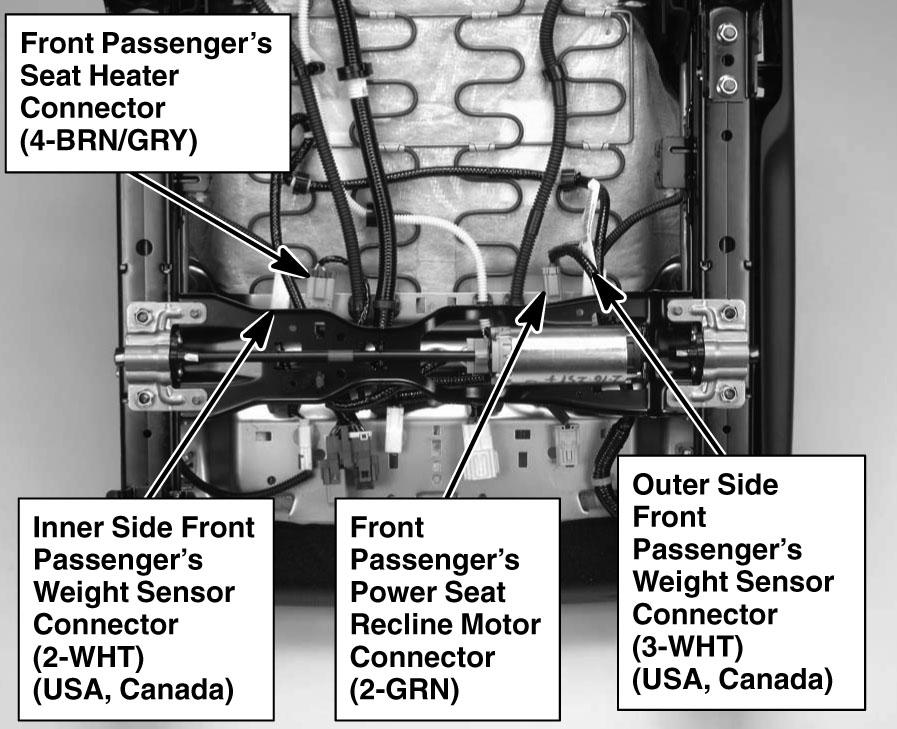

Fig 78: Under Front Passenger's Seat

G00472650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Front Passenger's Seat Back

G00472651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Under Driver's Seat

G00472652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

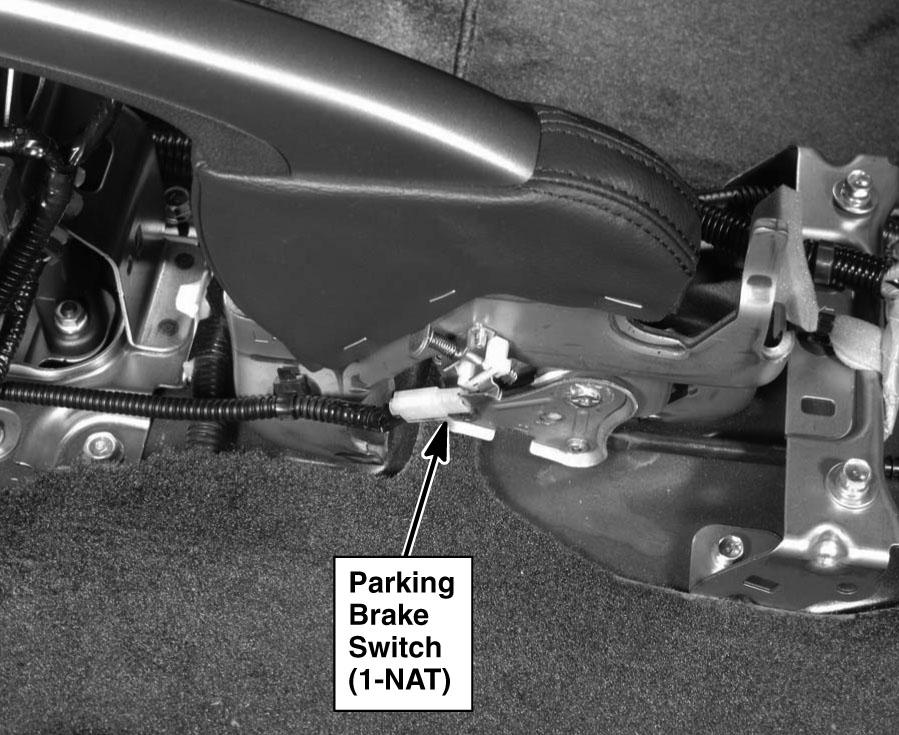

Fig 81: Under Center Console

G00472653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

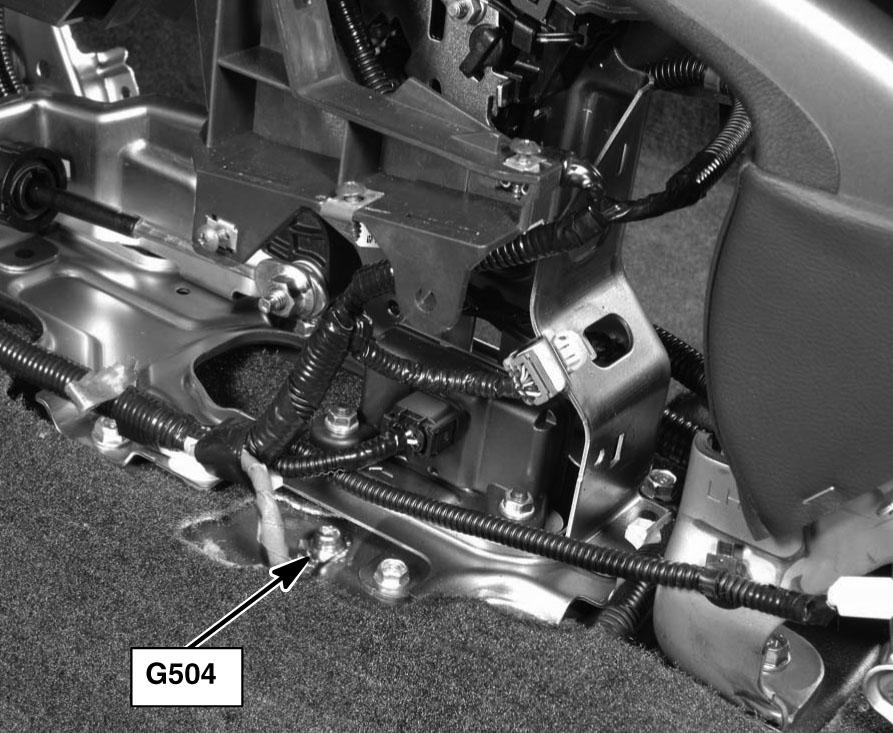

Fig 82: Under Center Console

G00472654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

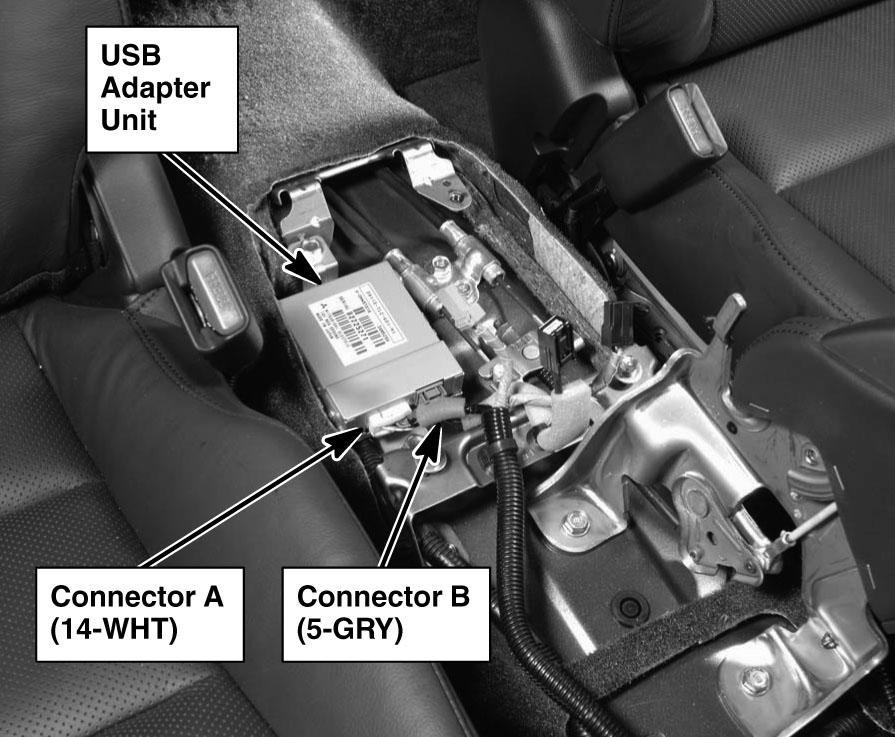

Fig 83: Under Center Console

G00472655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

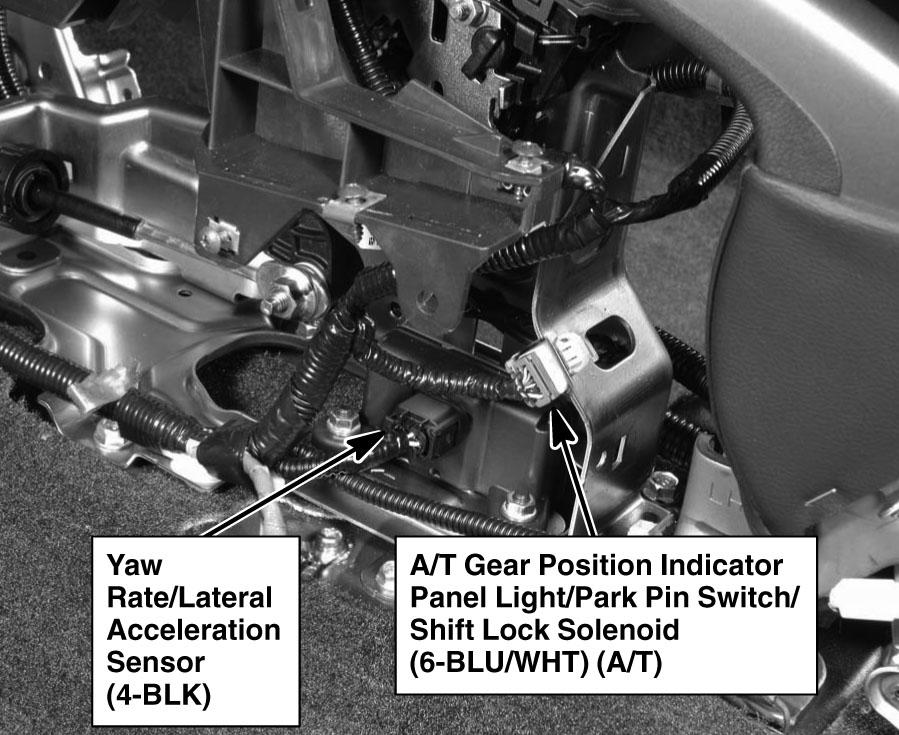

Fig 84: Under Center Console

G00472656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

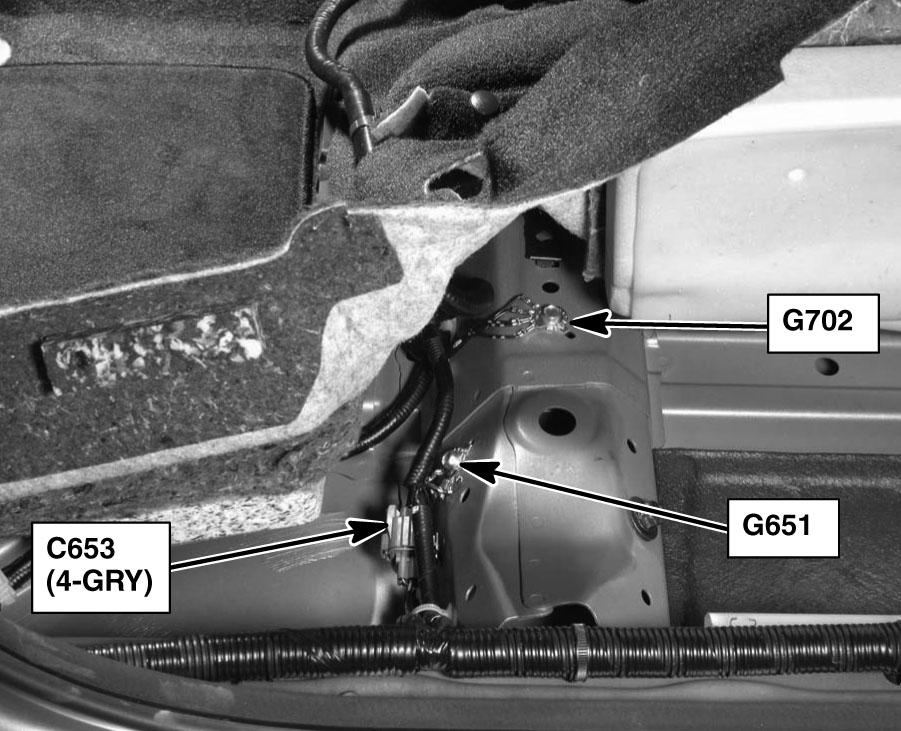

Fig 85: Under Front Passenger's Seat

G00472657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

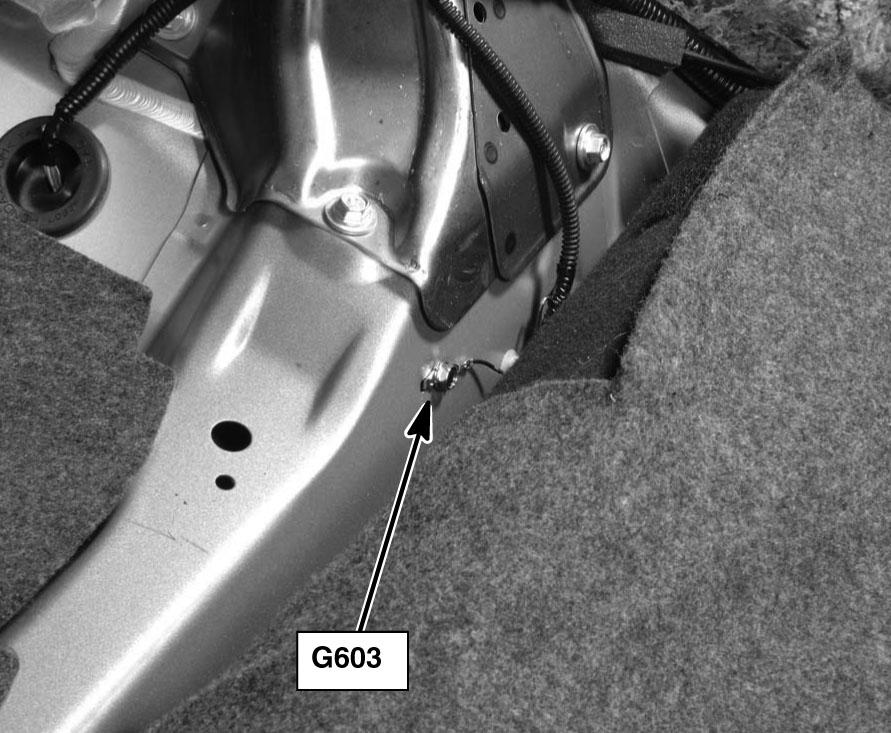

Fig 86: Left Rear Floor

G00472658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

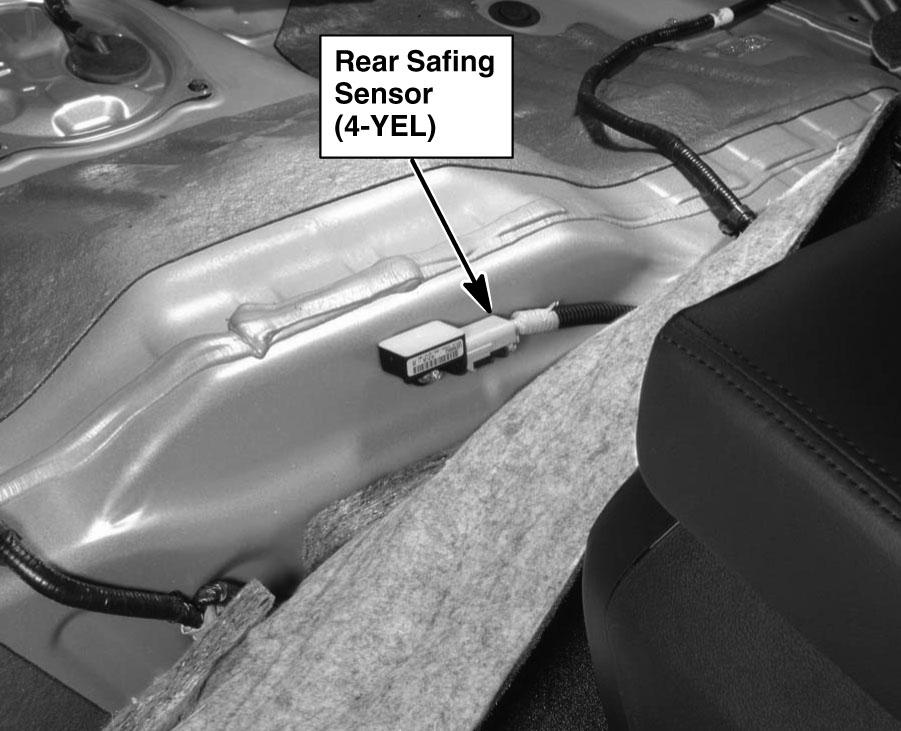

Fig 87: Center Rear Of Floor

G00472659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Under Rear Seats

G00472660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

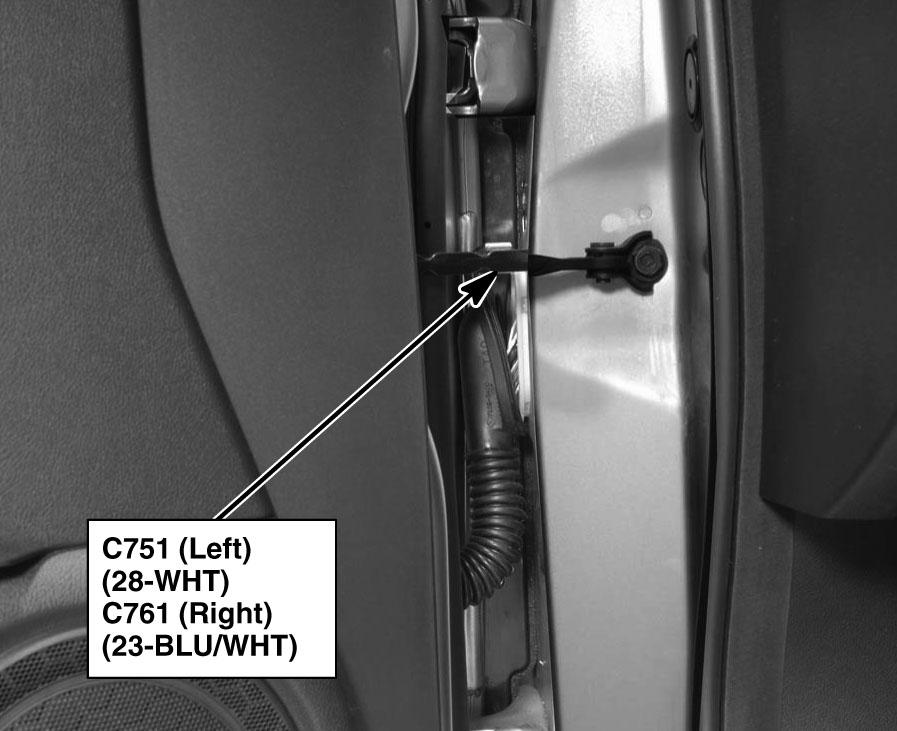

Fig 89: Left "A" Pillar (Right Similar)

G00472661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

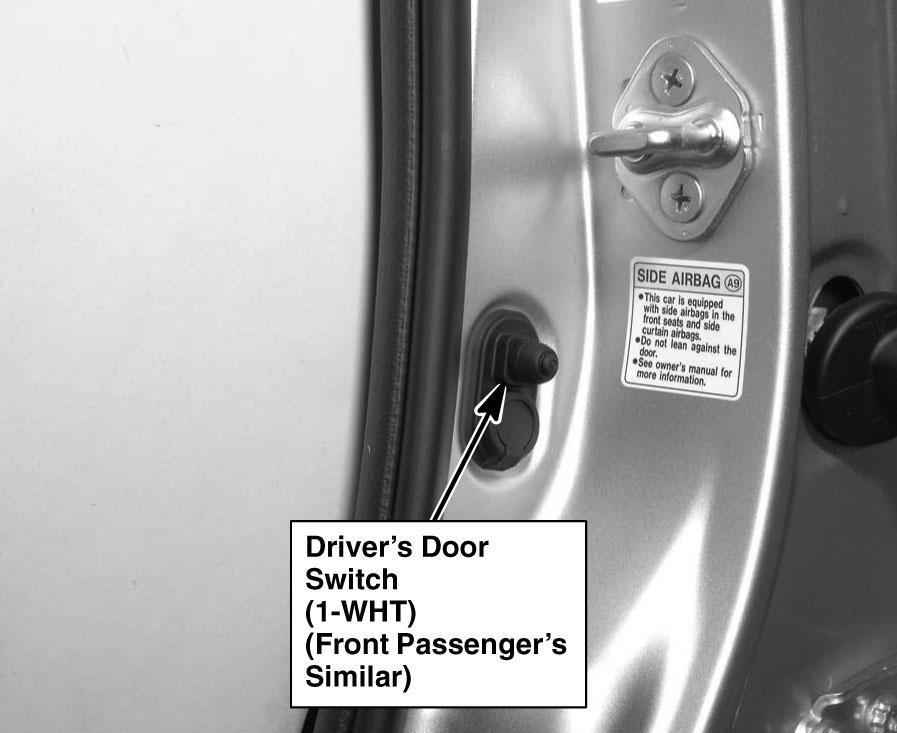

Fig 90: Left "B" Pillar (Right Similar)

G00472662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

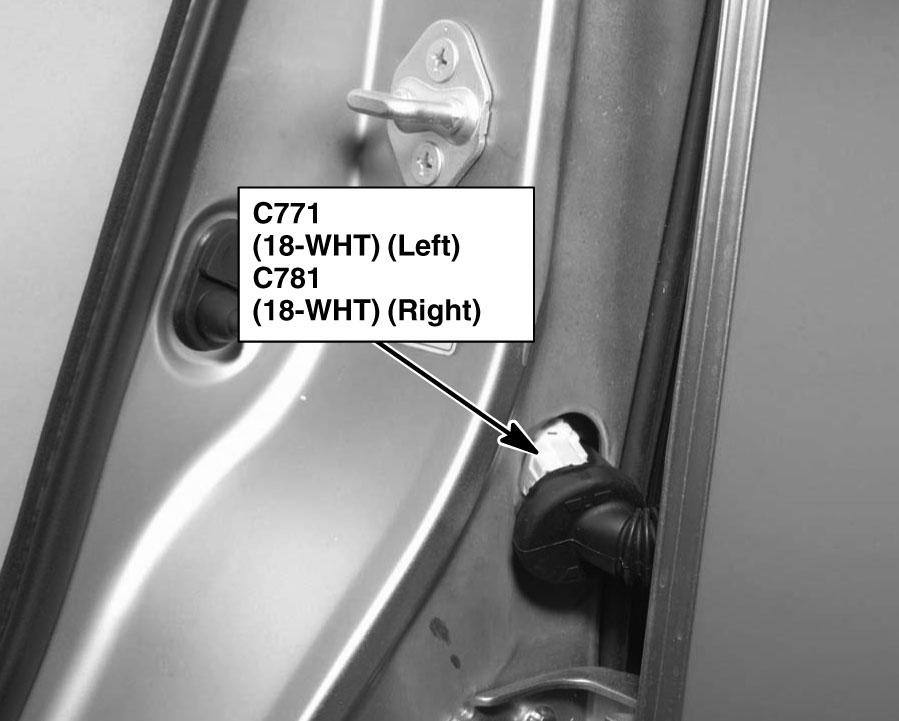

Fig 91: Left "B" Pillar (Right Similar)

G00472663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

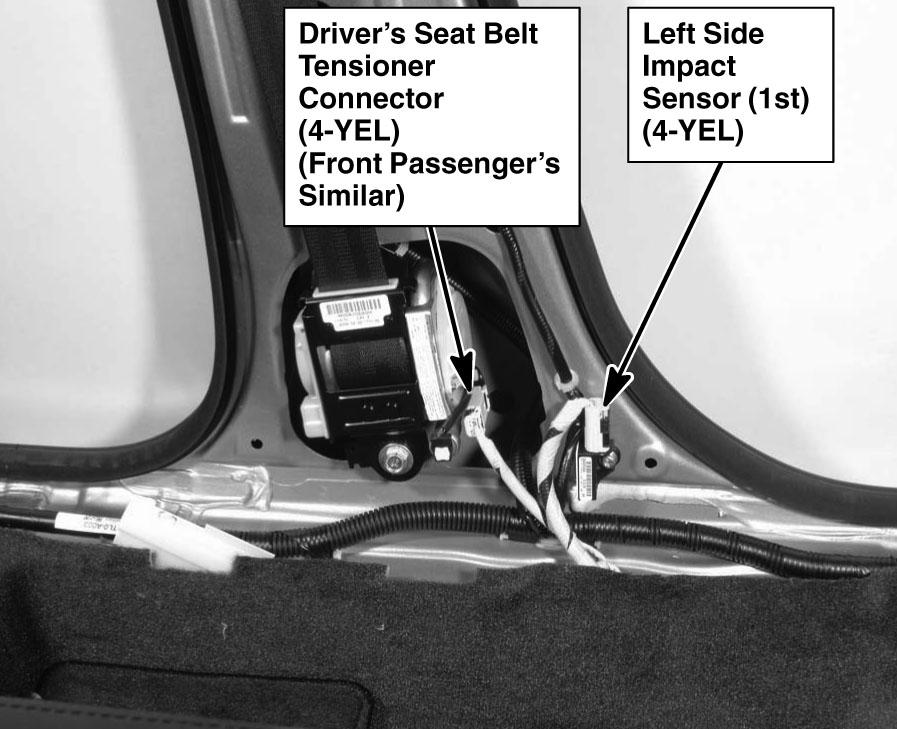

Fig 92: Left "B" Pillar (Right Similar)

G00472664

Courtesy of AMERICAN HONDA MOTOR CO., INC.

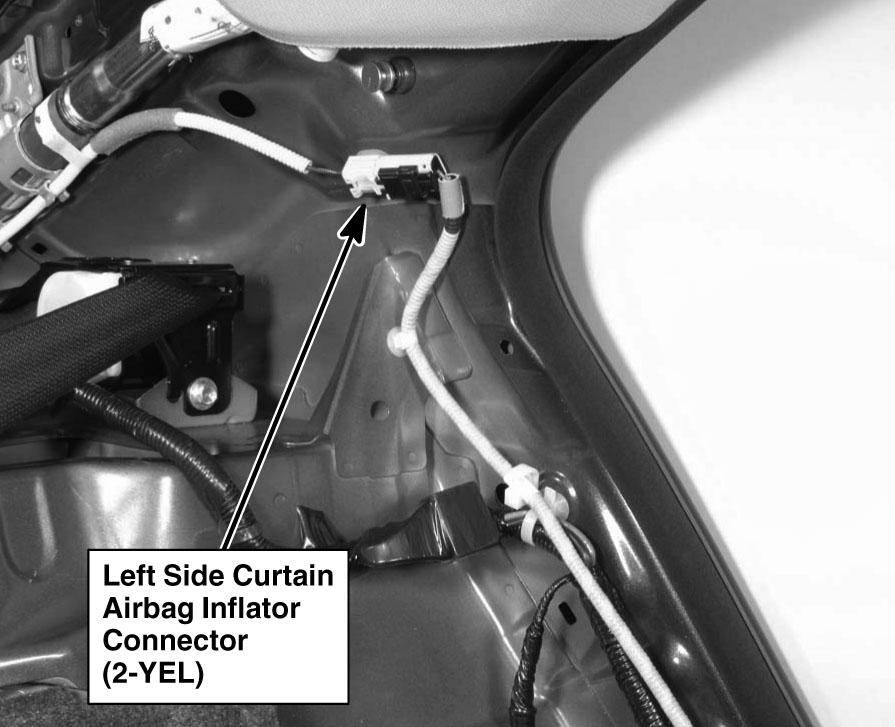

Fig 93: Left "C" Pillar

G00472665

Courtesy of AMERICAN HONDA MOTOR CO., INC.

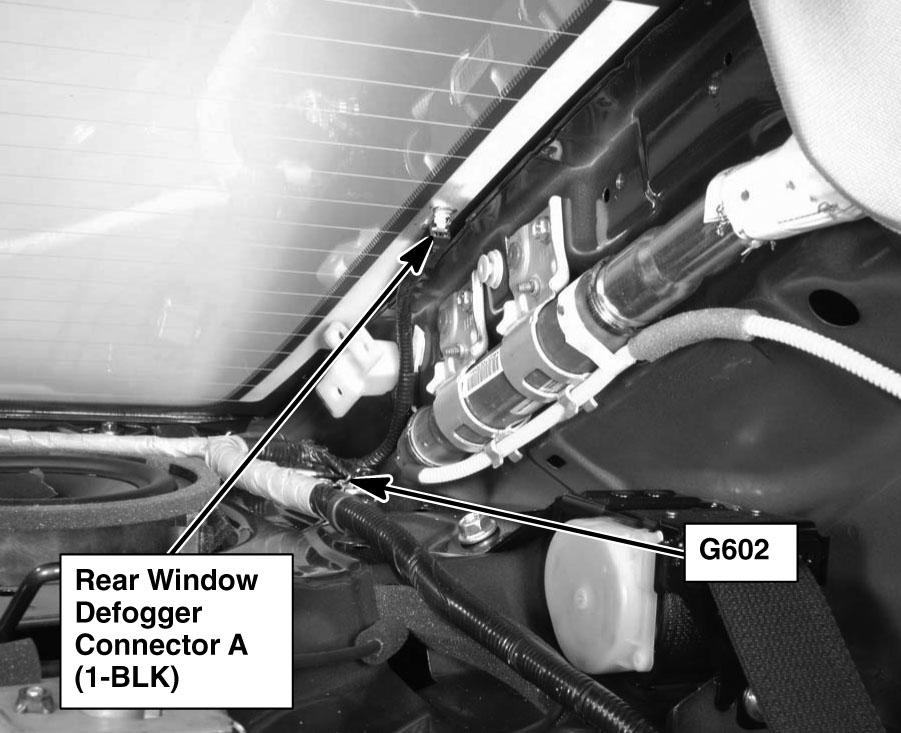

Fig 94: Left "C" Pillar

G00472666

Courtesy of AMERICAN HONDA MOTOR CO., INC.

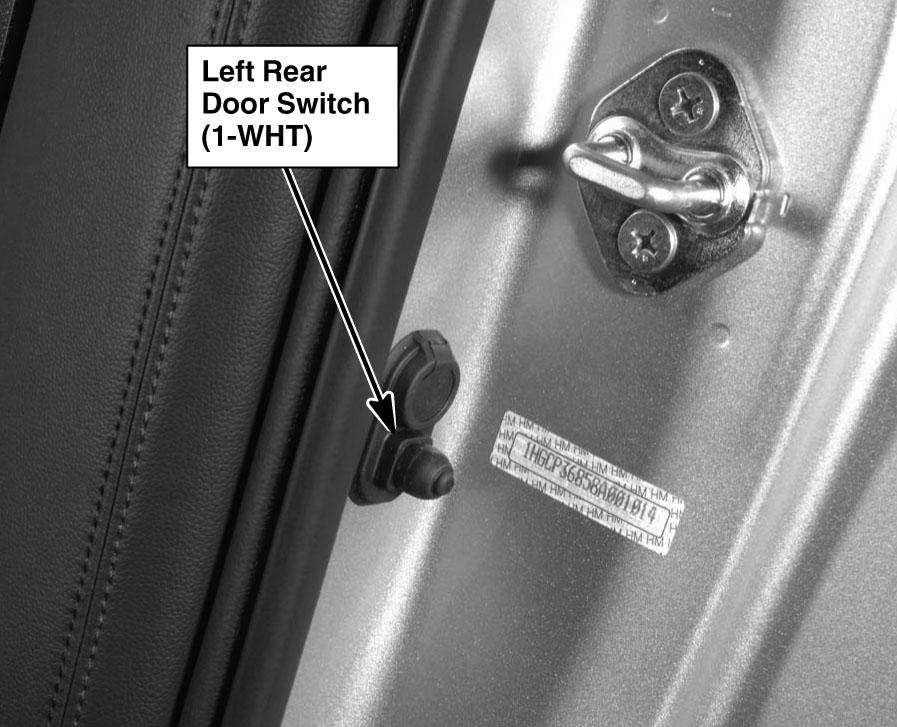

Fig 95: Left "C" Pillar

G00472667

Courtesy of AMERICAN HONDA MOTOR CO., INC.

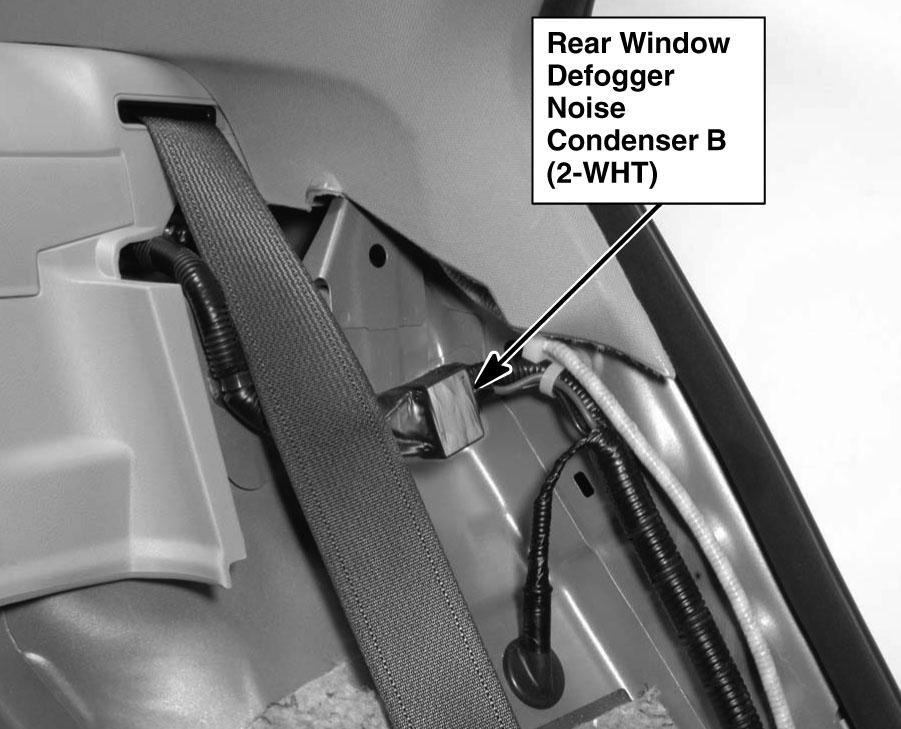

Fig 96: Left "C" Pillar

G00472668

Courtesy of AMERICAN HONDA MOTOR CO., INC.

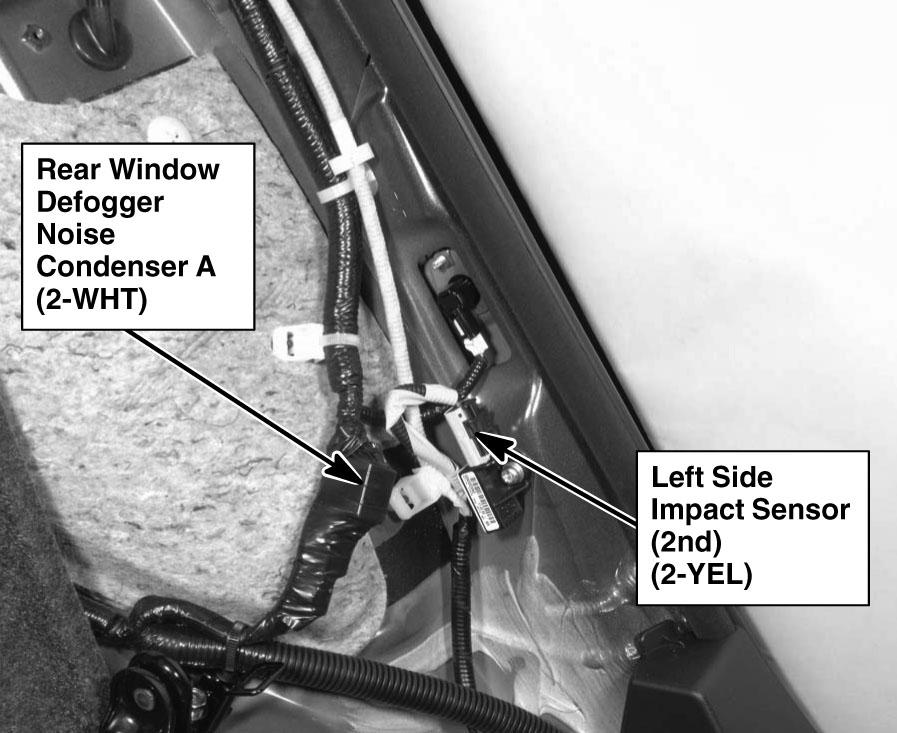

Fig 97: Left "C" Pillar

G00472669

Courtesy of AMERICAN HONDA MOTOR CO., INC.

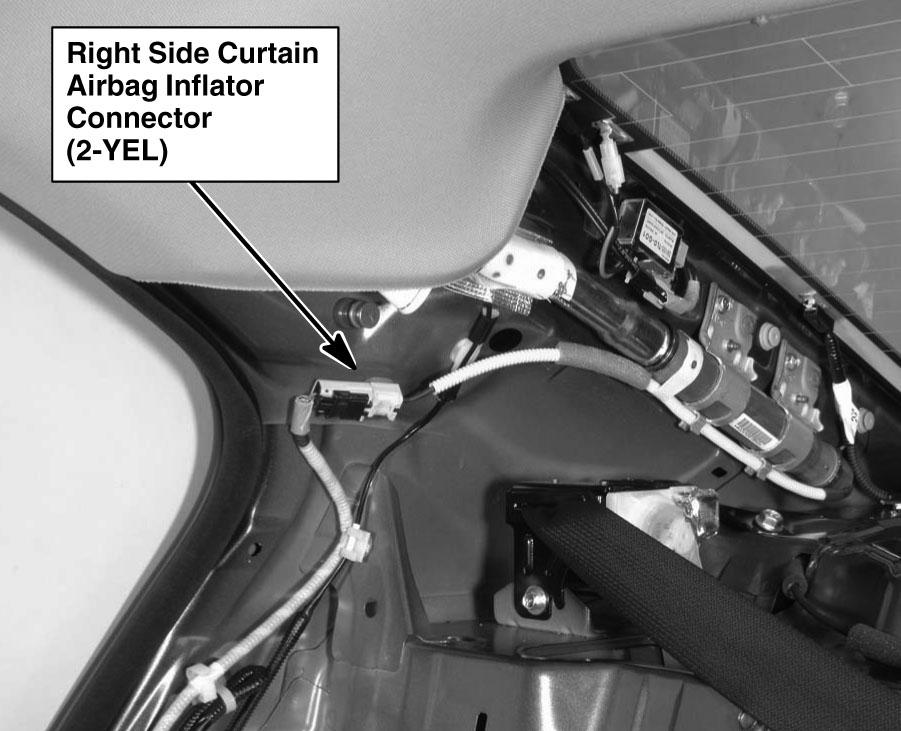

Fig 98: Right "C" Pillar

G00472670

Courtesy of AMERICAN HONDA MOTOR CO., INC.

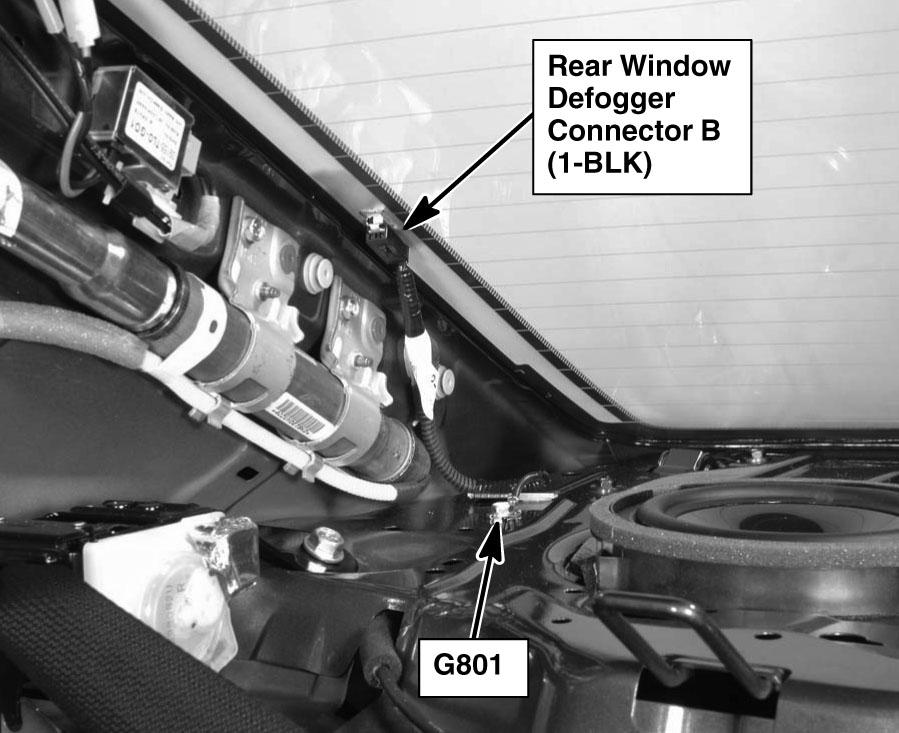

Fig 99: Right "C" Pillar

G00472671

Courtesy of AMERICAN HONDA MOTOR CO., INC.

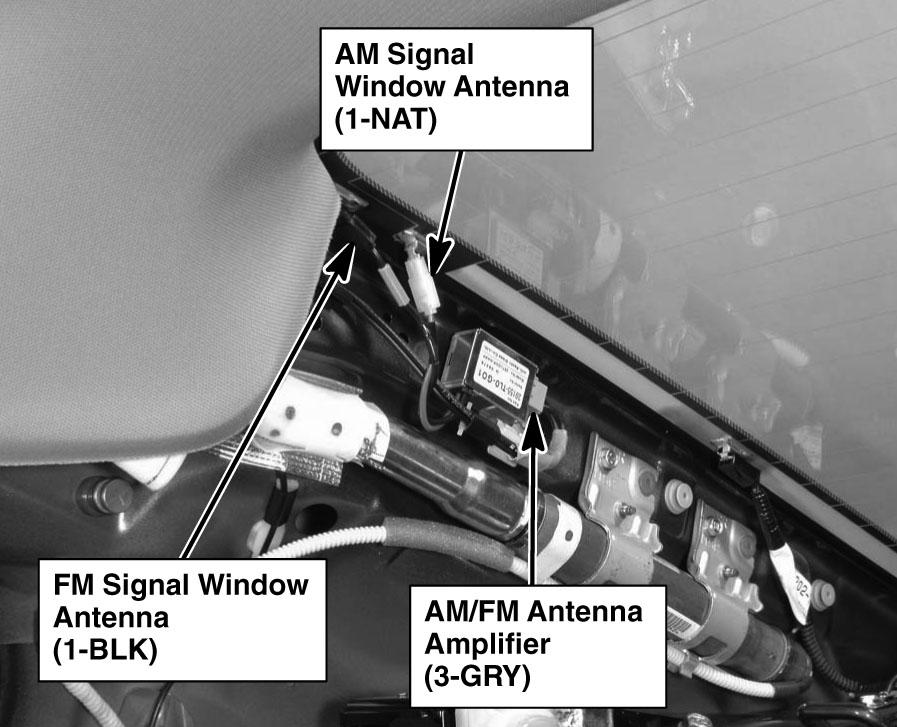

Fig 100: Right "C" Pillar

G00472672

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Right "C" Pillar

G00472673

Courtesy of AMERICAN HONDA MOTOR CO., INC.

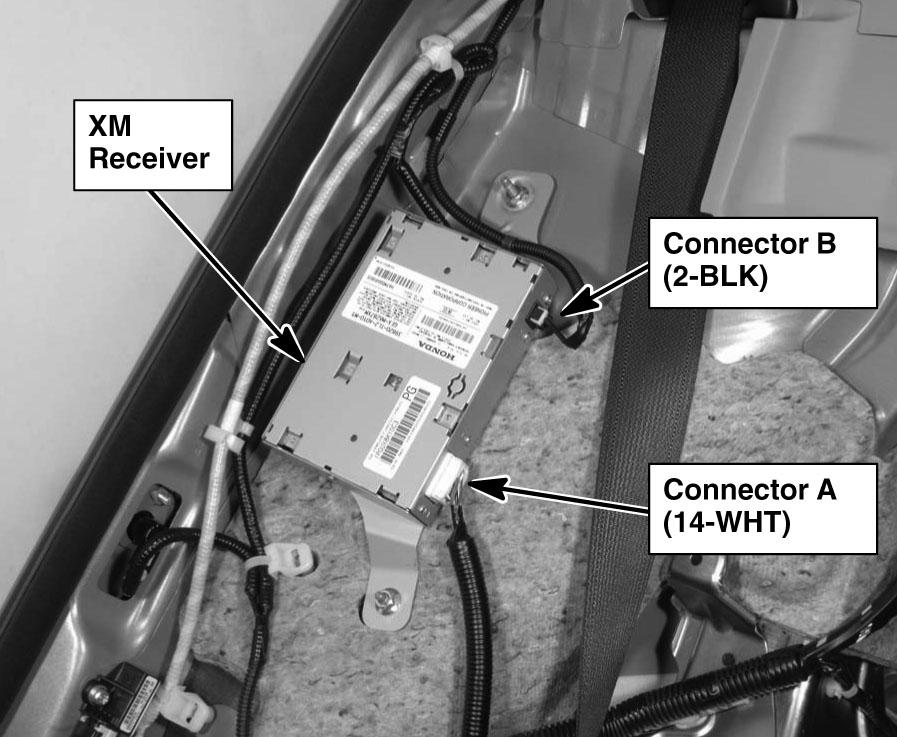

Fig 102: Right "C" Pillar

G00472674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

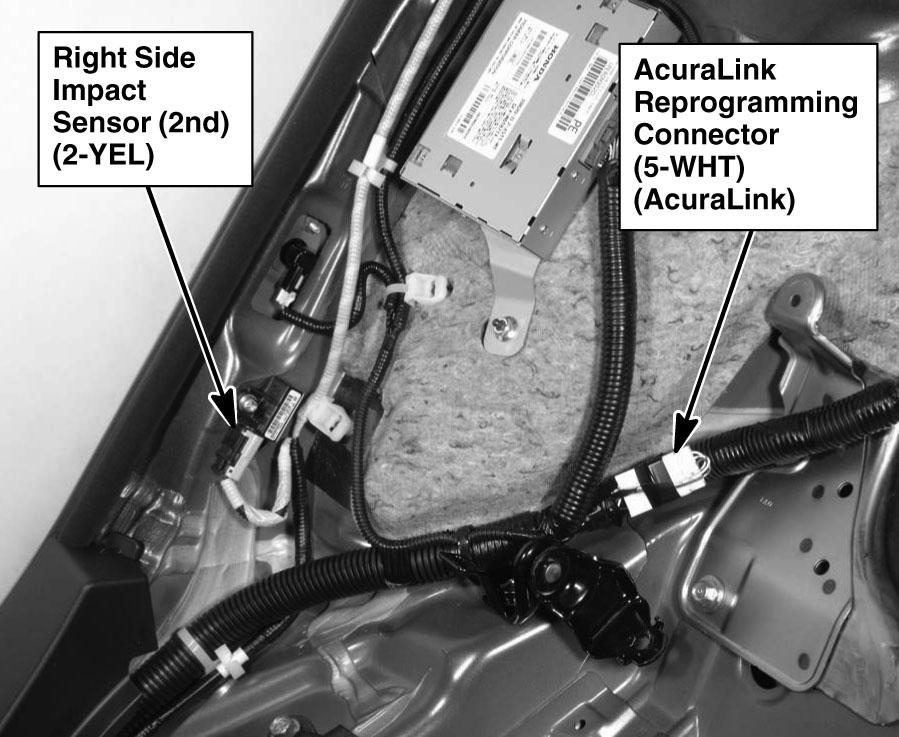

Fig 103: Right "C" Pillar

G00472675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

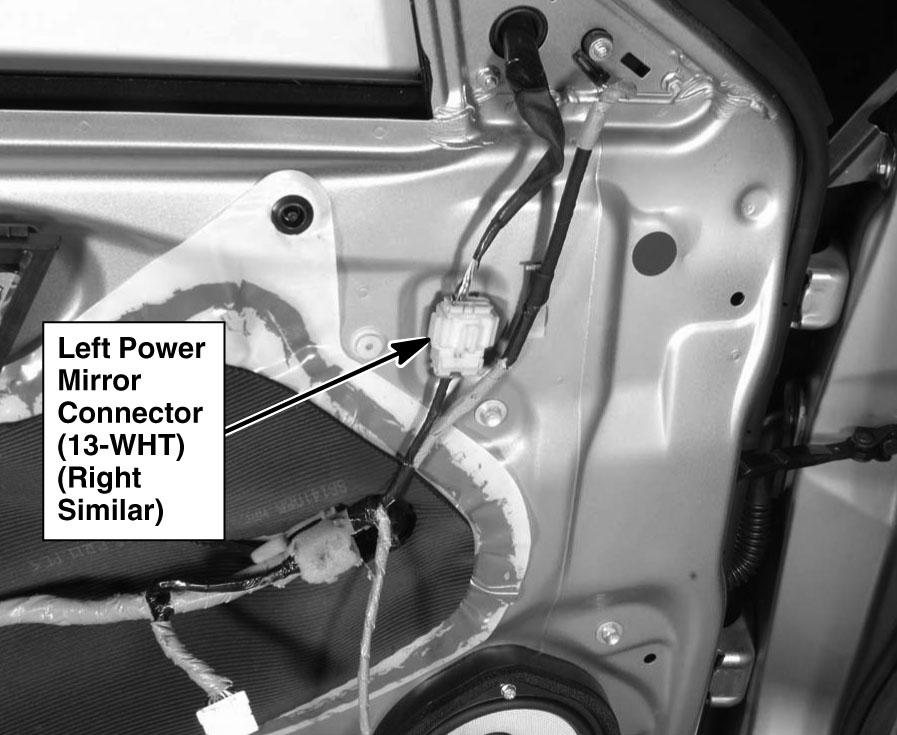

Fig 104: Driver's Door (Front Passenger's Similar)

G00472676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Driver's Door (Front Passenger's Similar)

G00472677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

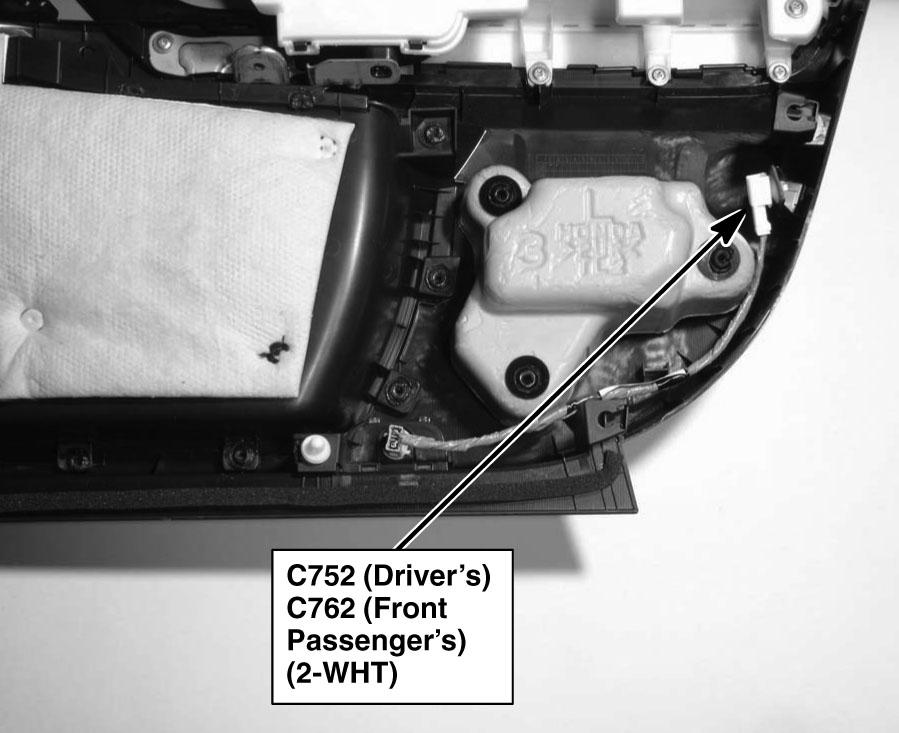

Fig 106: Driver's Door (Front Passenger's Similar)

G00472678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

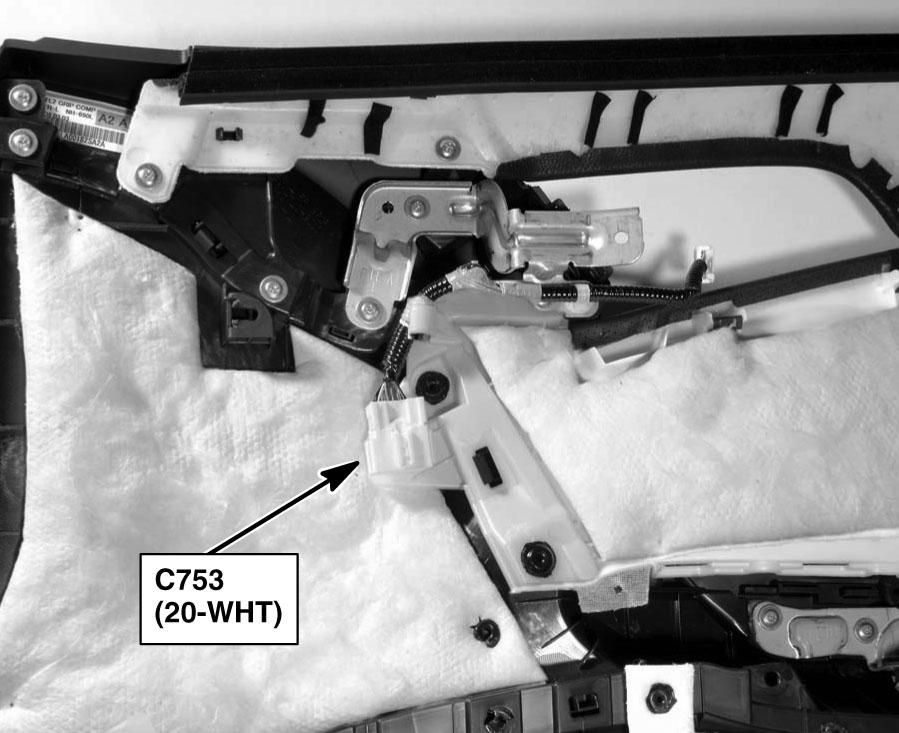

Fig 107: Driver's Door

G00472679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

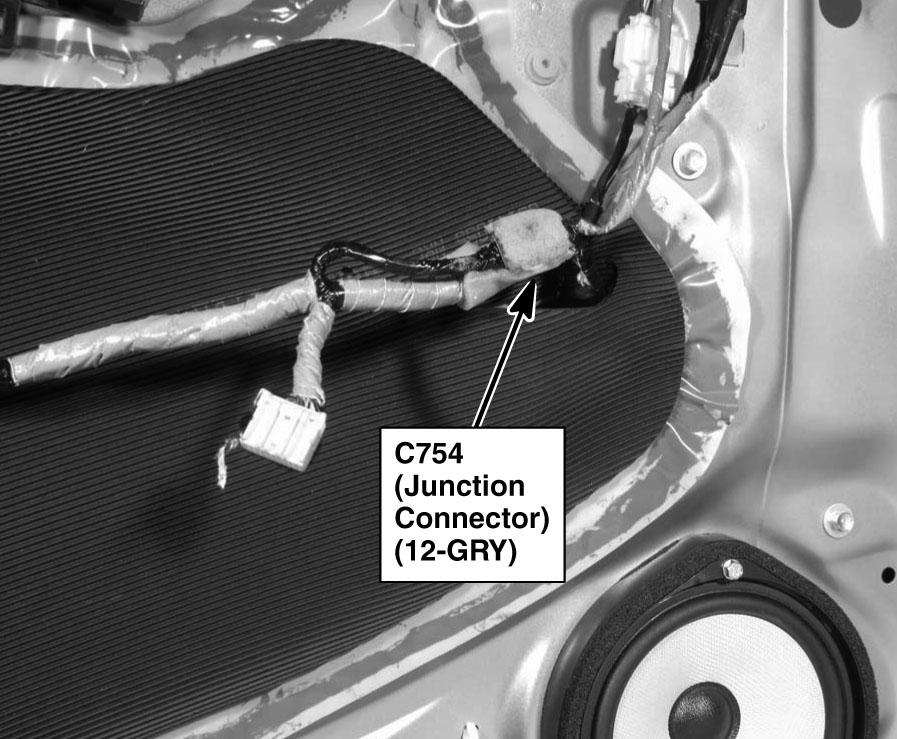

Fig 108: Driver's Door

G00472680

Courtesy of AMERICAN HONDA MOTOR CO., INC.

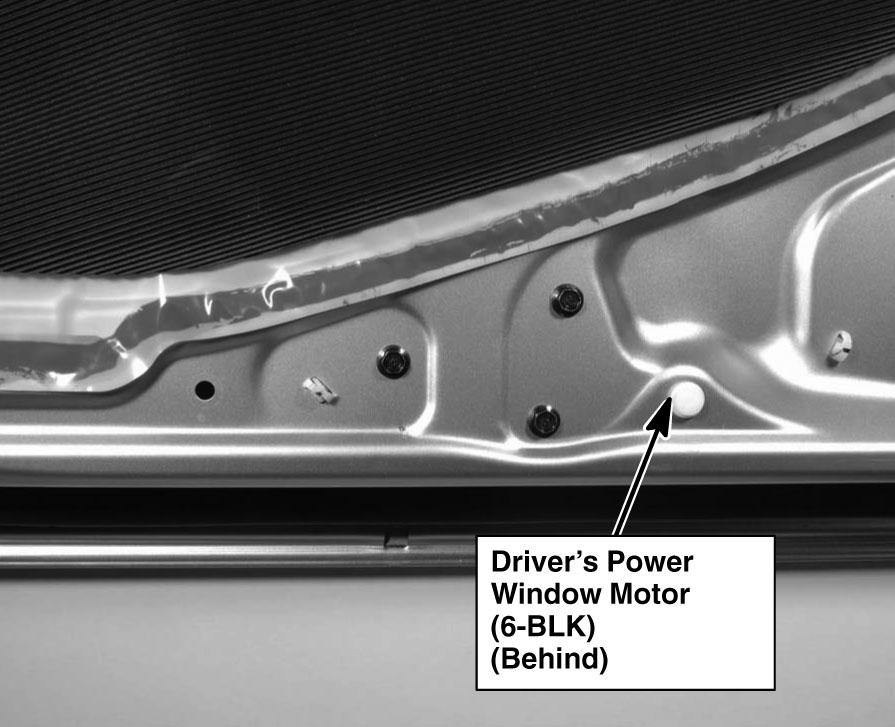

Fig 109: Driver's Door (Front Passenger's Similar)

G00472681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

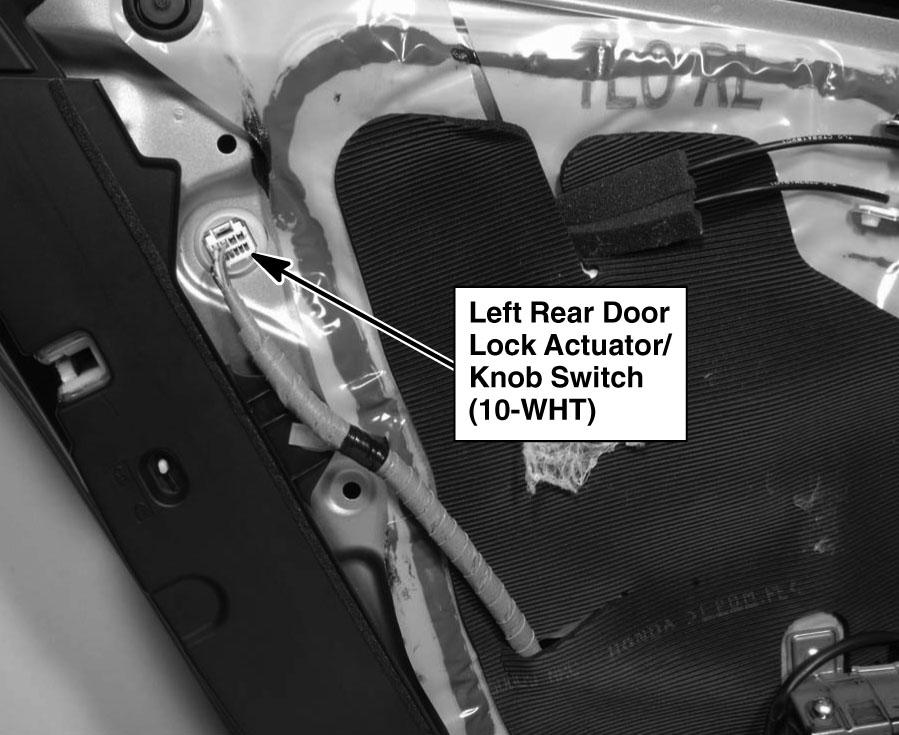

Fig 110: Left Rear Door (Right Similar)

G00472682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

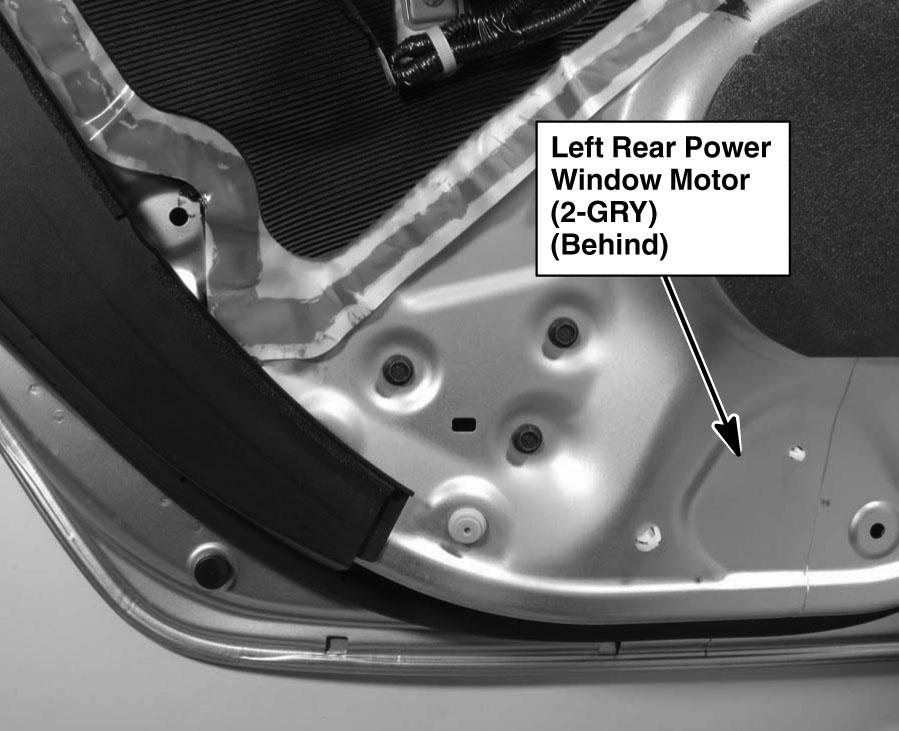

Fig 111: Left Rear Door (Right Similar)

G00472683

Courtesy of AMERICAN HONDA MOTOR CO., INC.

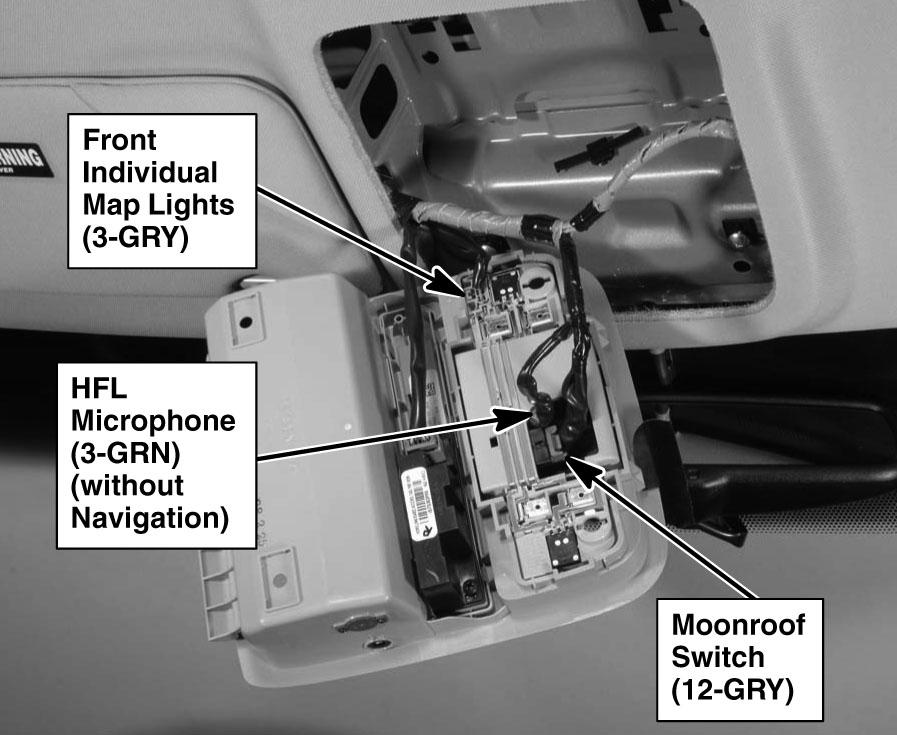

Fig 112: Center Front Of Roof

G00472684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Center Front Of Roof

G00472685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

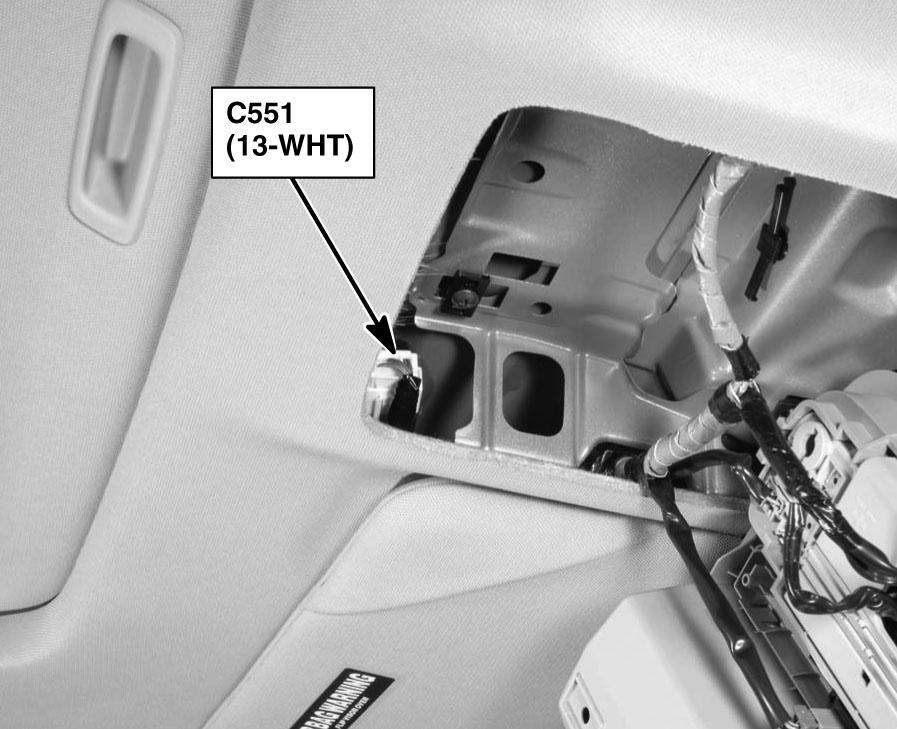

Fig 114: Center Front Of Roof

G00472686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

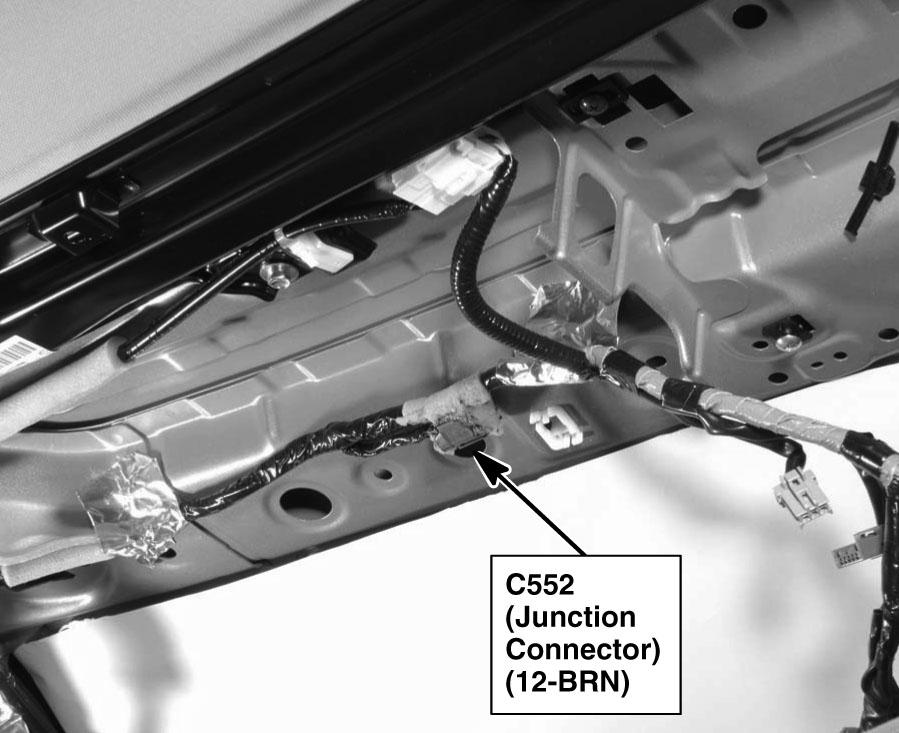

Fig 115: Left Front Of Roof

G00472687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Center Of Roof

G00472688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Under Right Side Of Rear Shelf

G00472689

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Under Right Side Of Rear Shelf

G00472690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

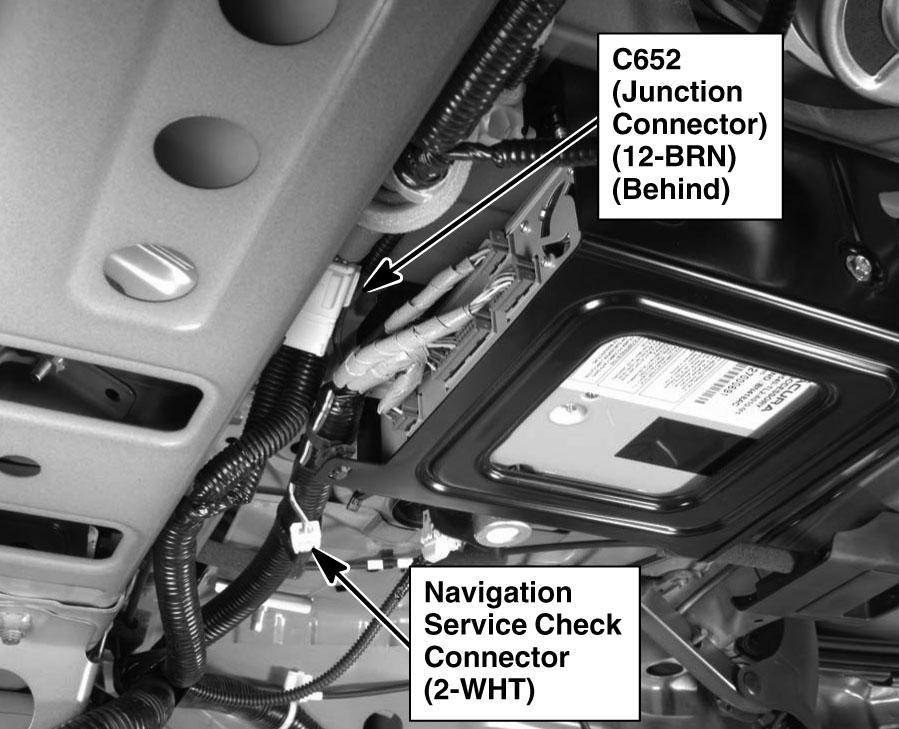

Fig 119: Under Right Side Of Rear Shelf

G00472691

Courtesy of AMERICAN HONDA MOTOR CO., INC.

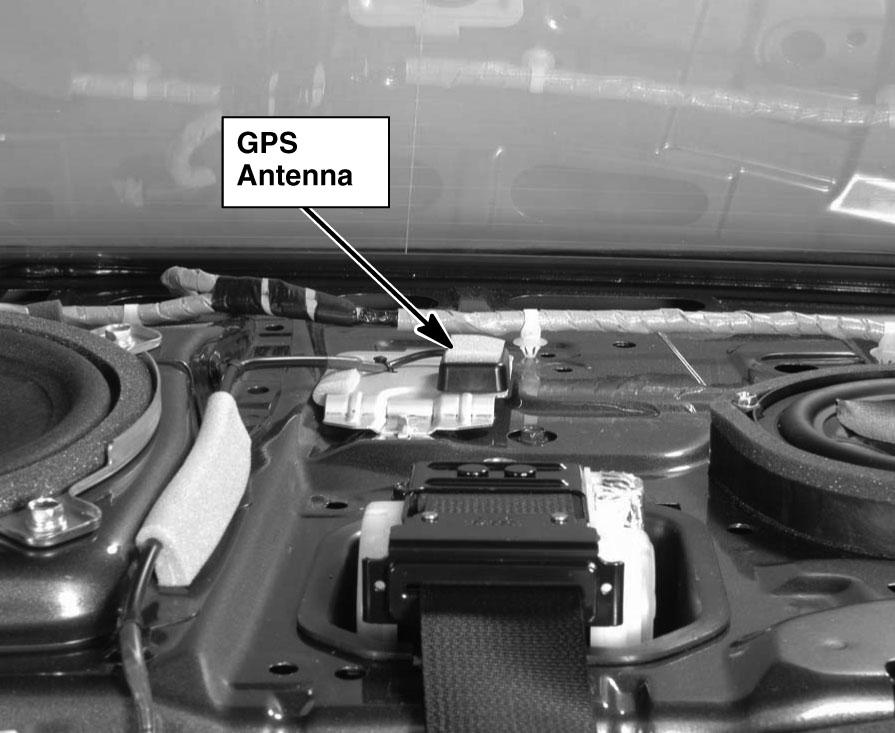

Fig 120: Under Right Side Of Rear Shelf

G00472692

Courtesy of AMERICAN HONDA MOTOR CO., INC.

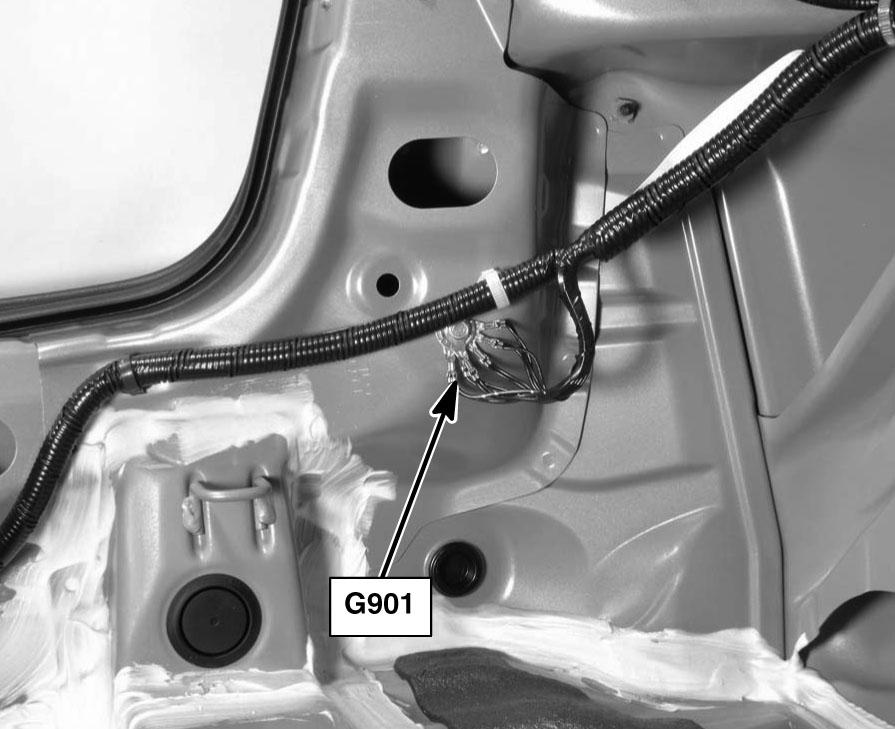

Fig 121: Left Rear Of Trunk

G00472693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

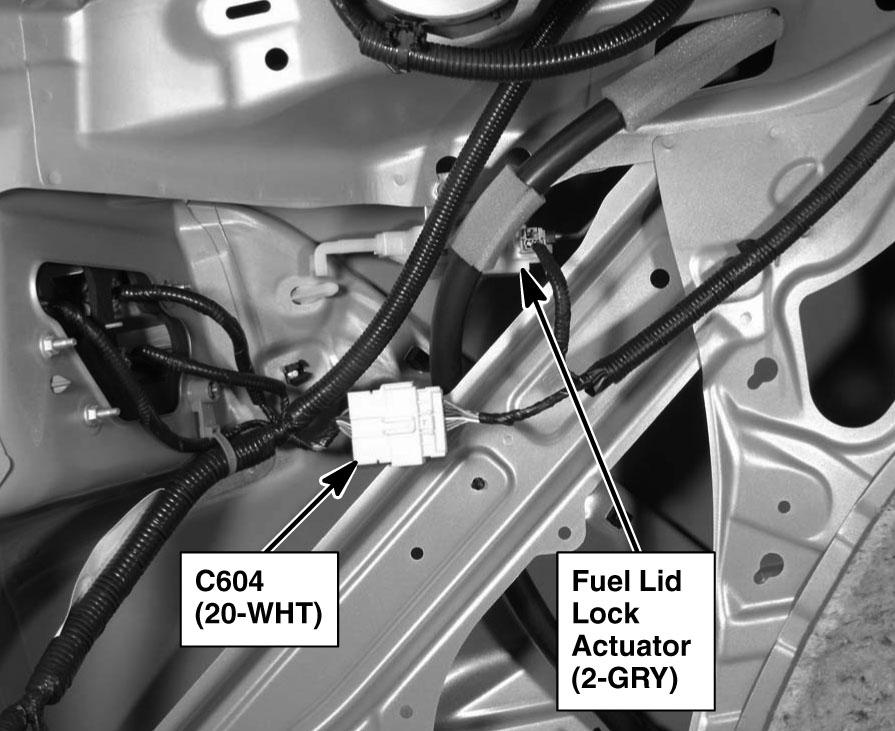

Fig 122: Left Side Of Trunk

G00472694

Courtesy of AMERICAN HONDA MOTOR CO., INC.

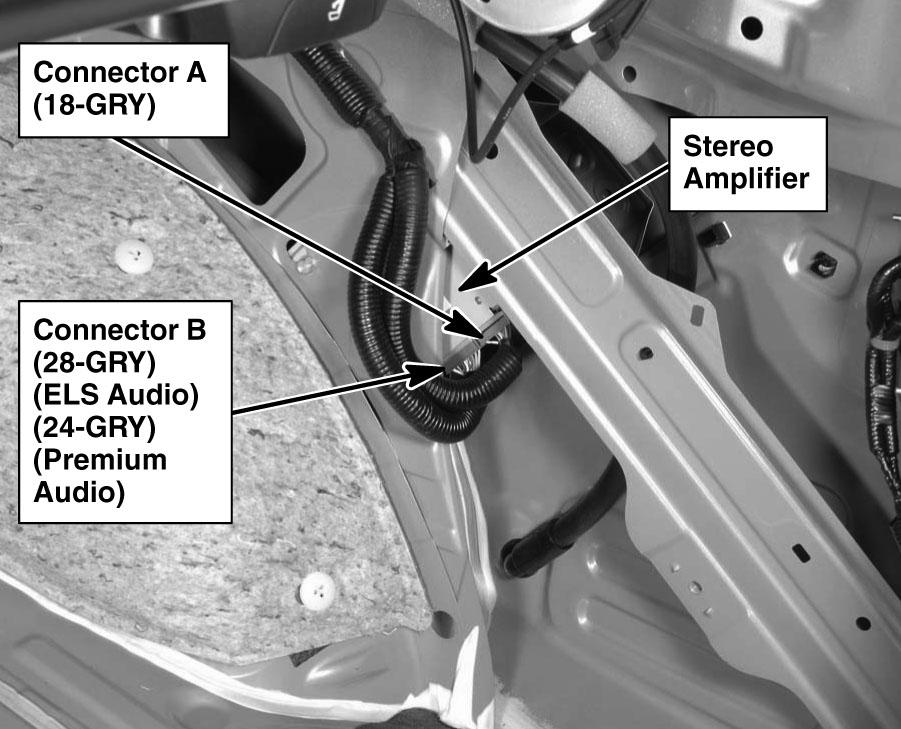

Fig 123: Right Side Of Trunk

G00472695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

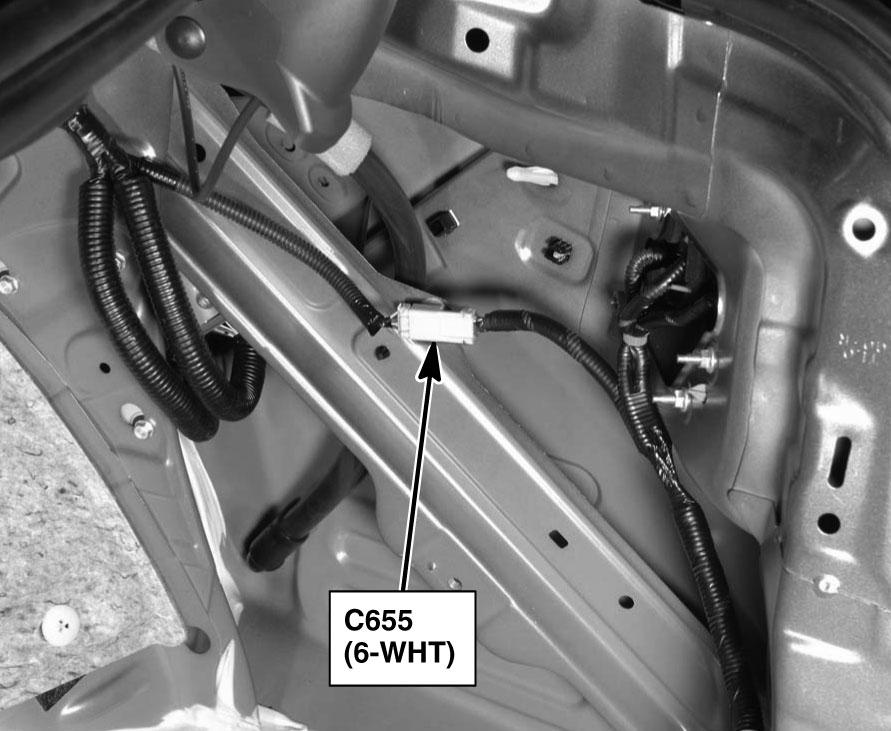

Fig 124: Right Side Of Trunk

G00472696

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Left Side Of Trunk

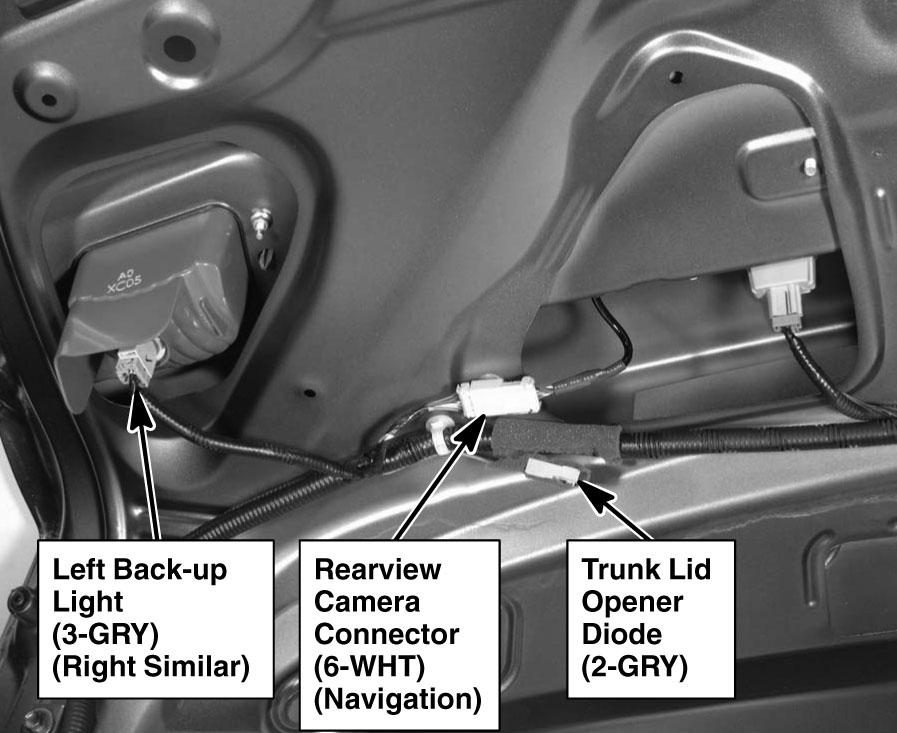

G00472697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

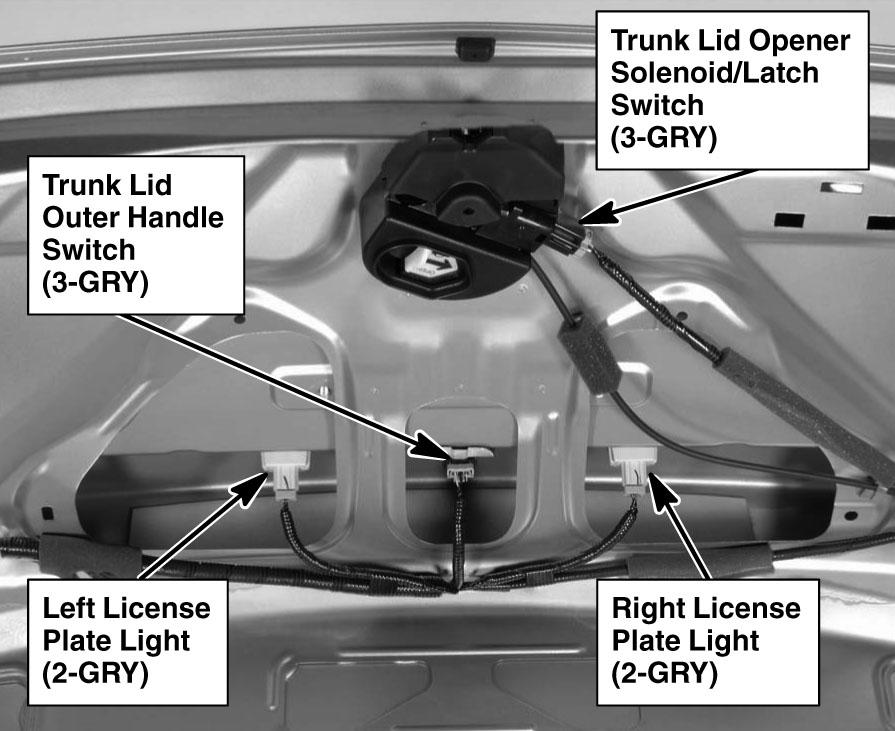

Fig 126: Center Of Trunk Lid

G00472698

Courtesy of AMERICAN HONDA MOTOR CO., INC.

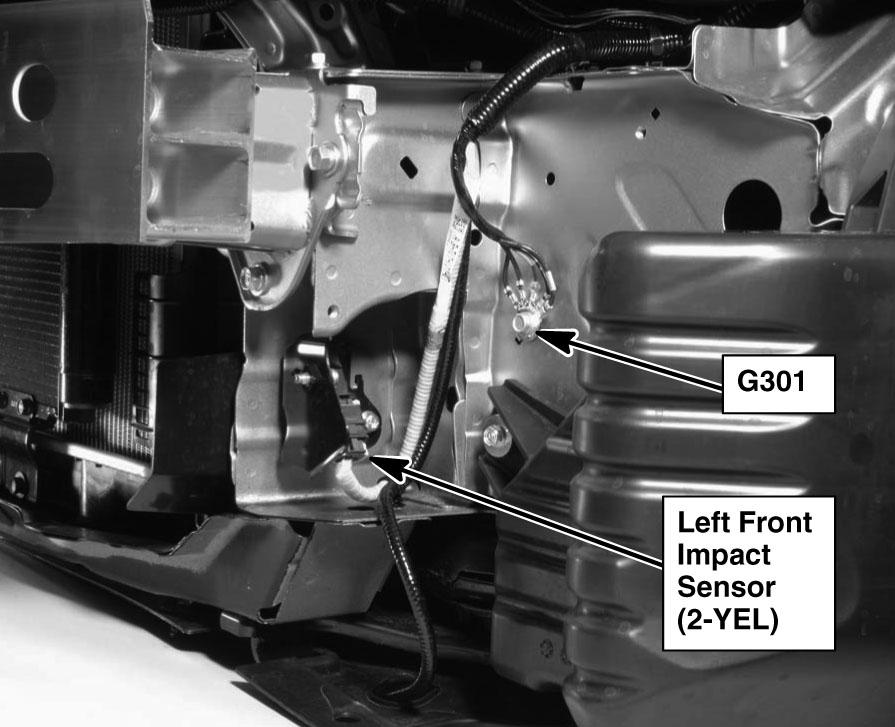

Fig 127: Behind Left Side Of Front Bumper

G00472699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

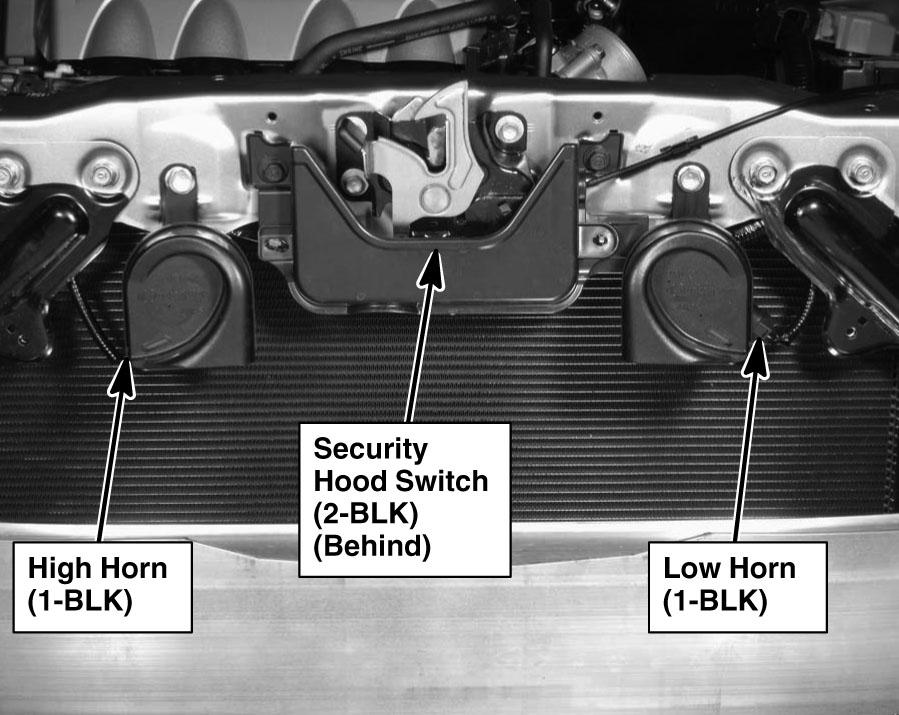

Fig 128: Behind Front Grille

G00472700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

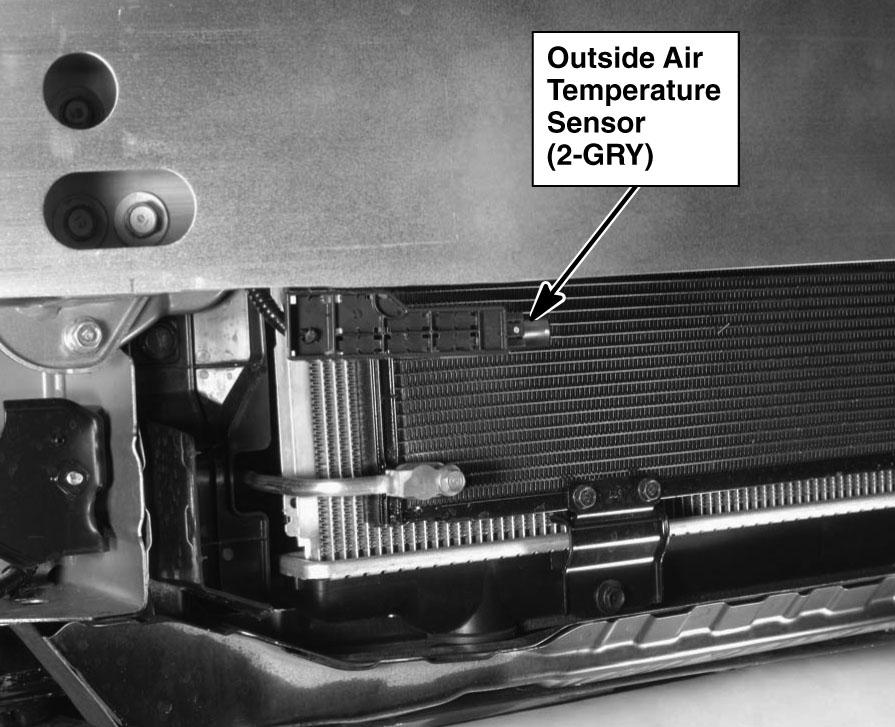

Fig 129: Behind Right Side Of Front Bumper

G00472701

Courtesy of AMERICAN HONDA MOTOR CO., INC.

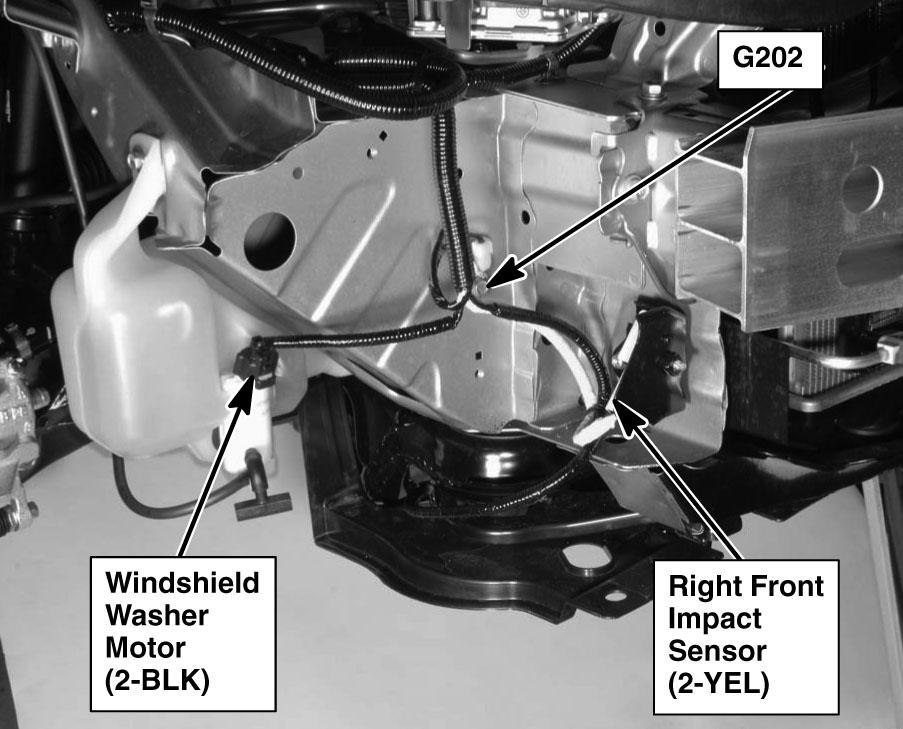

Fig 130: Behind Right Side Of Front Bumper

G00472702

Courtesy of AMERICAN HONDA MOTOR CO., INC.

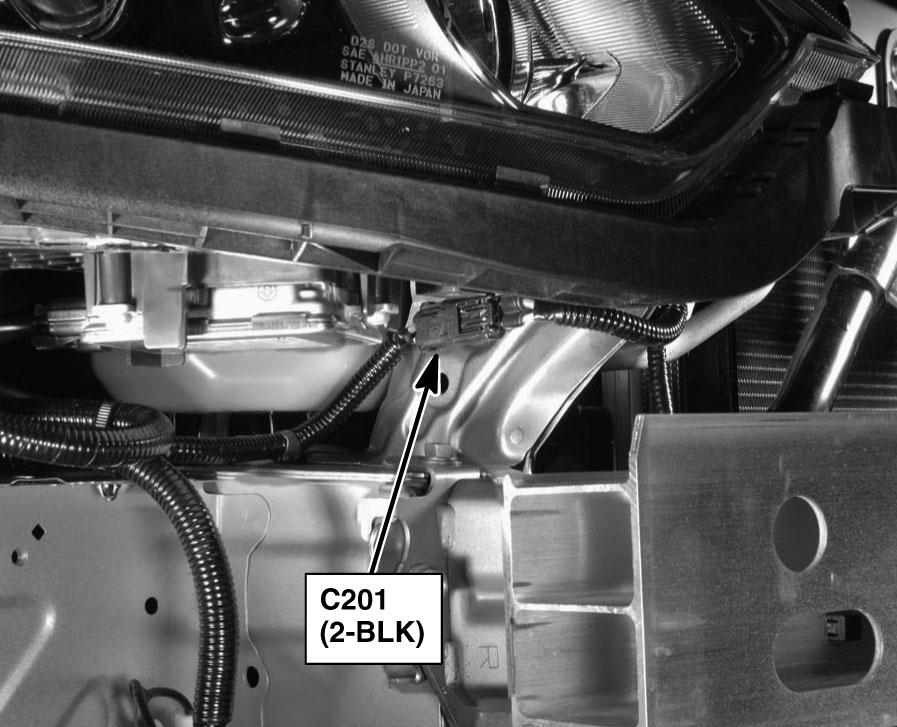

Fig 131: Behind Right Side Of Front Bumper

G00472703

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Left Front Wheelwell (Right Similar)

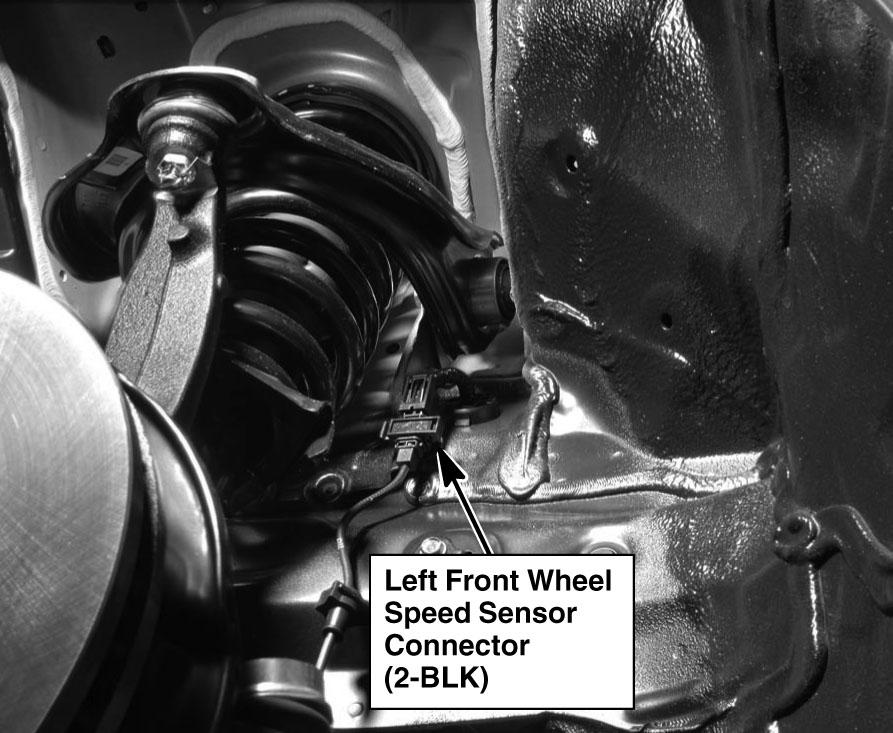

G00472704

Courtesy of AMERICAN HONDA MOTOR CO., INC.

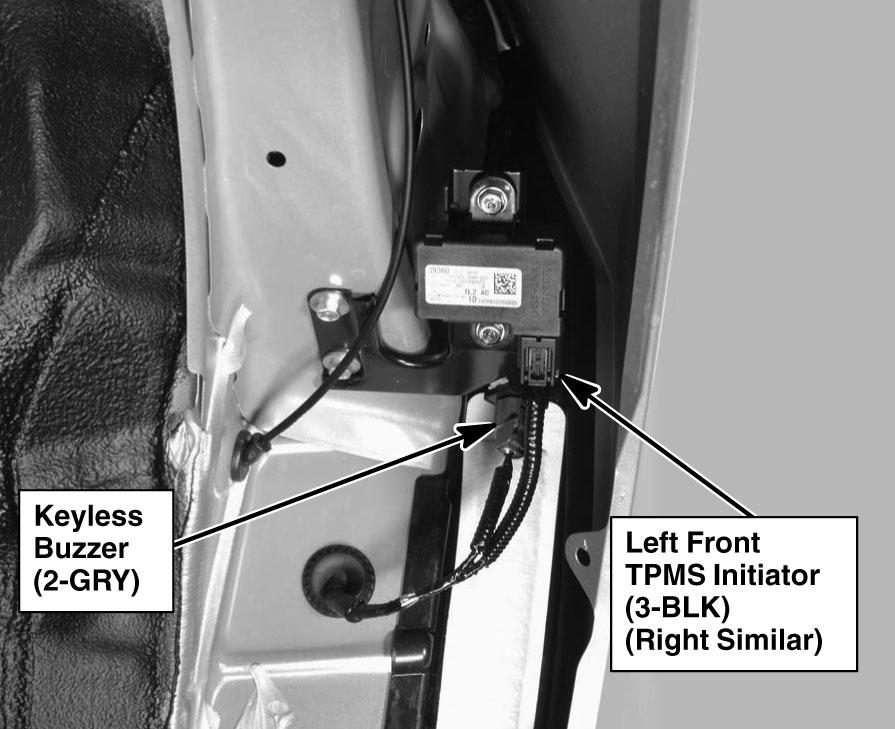

Fig 133: Left Front Wheelwell (Right Similar)

G00472705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Lower Left Front Of Engine Compartment

G00472706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

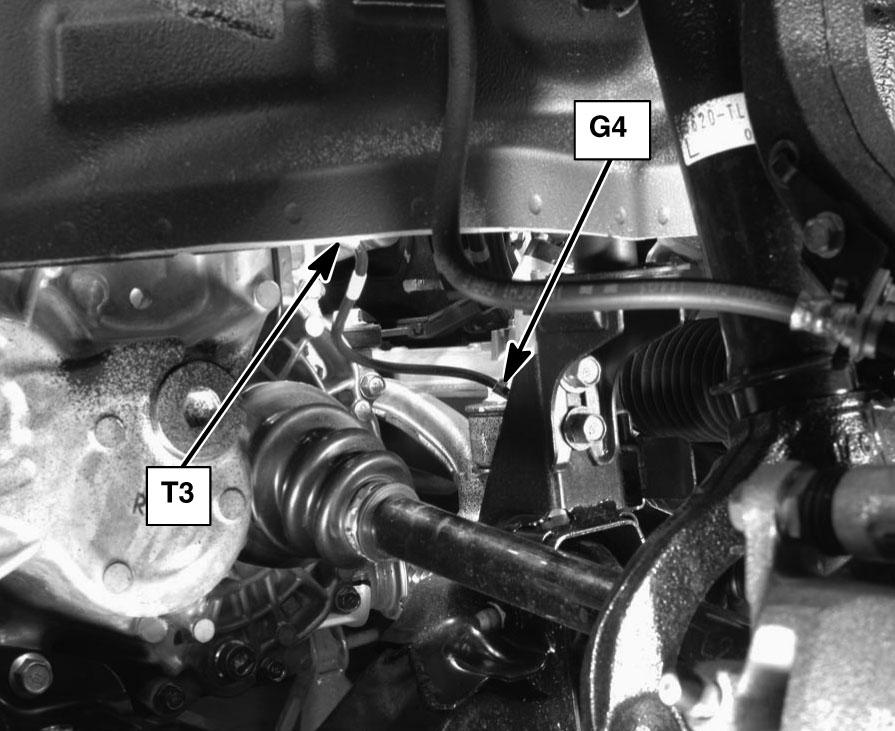

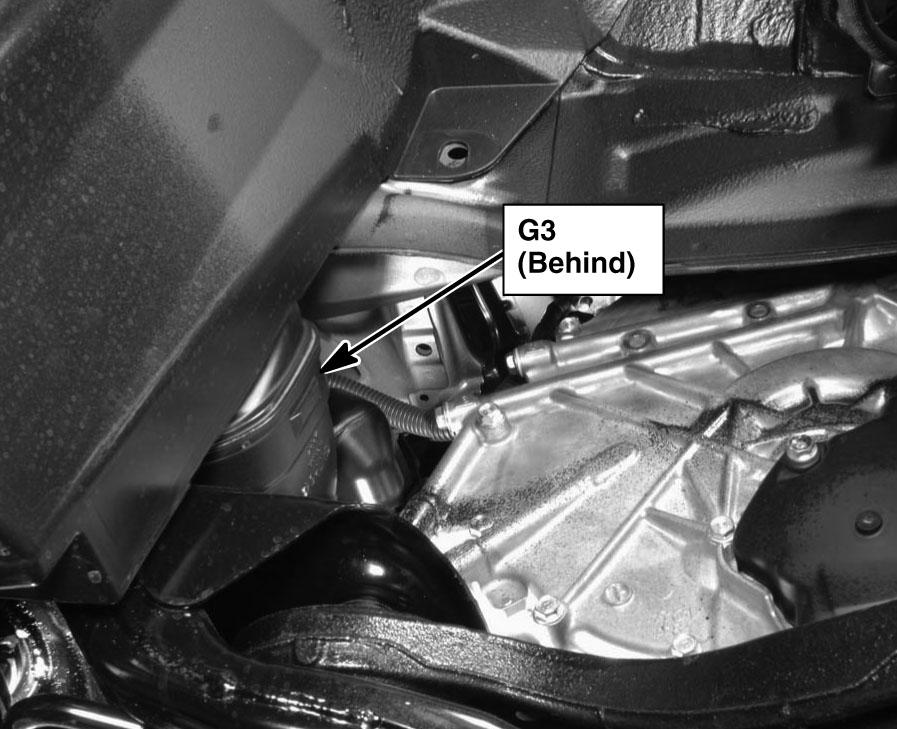

Fig 135: Lower Left Front Of Engine Compartment

G00472707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

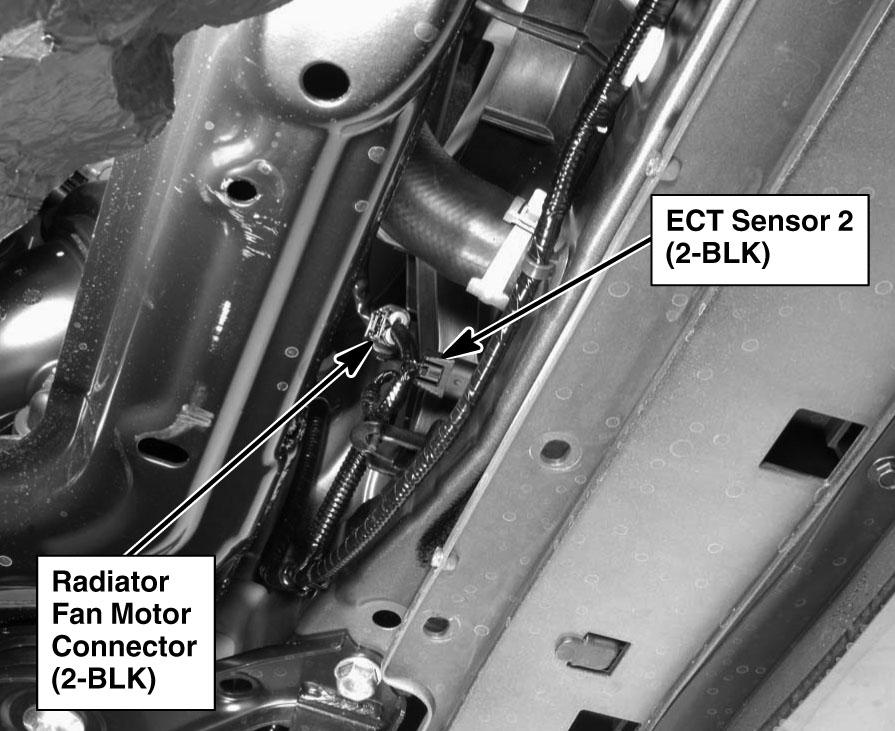

Fig 136: Lower Left Front Of Engine Compartment

G00472708

Courtesy of AMERICAN HONDA MOTOR CO., INC.

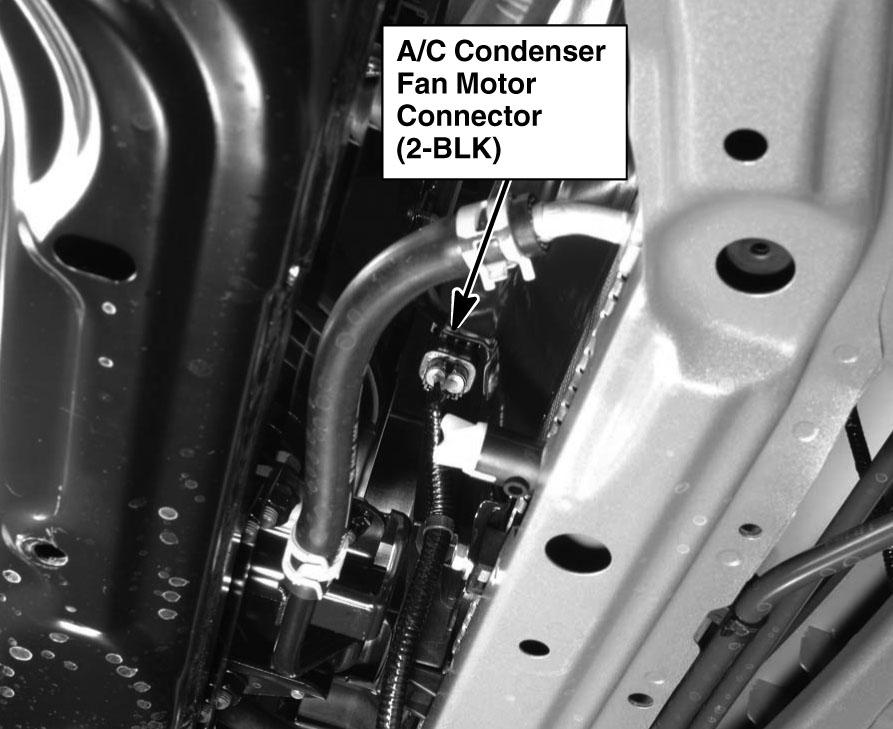

Fig 137: Lower Center Front Of Engine Compartment

G00472709

Courtesy of AMERICAN HONDA MOTOR CO., INC.

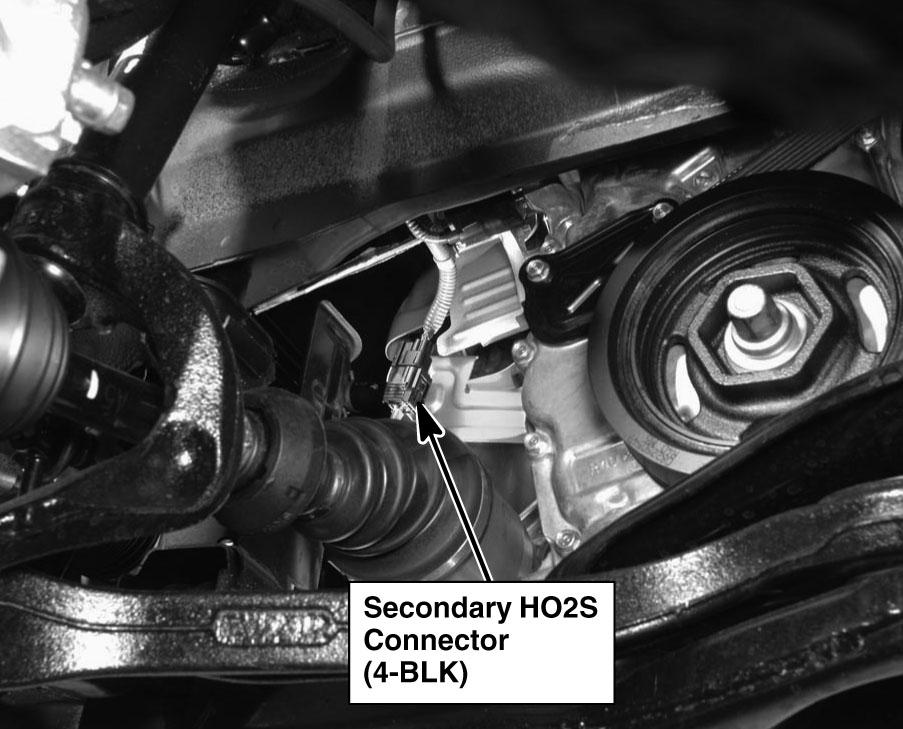

Fig 138: Lower Right Rear Of Engine Compartment

G00472710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

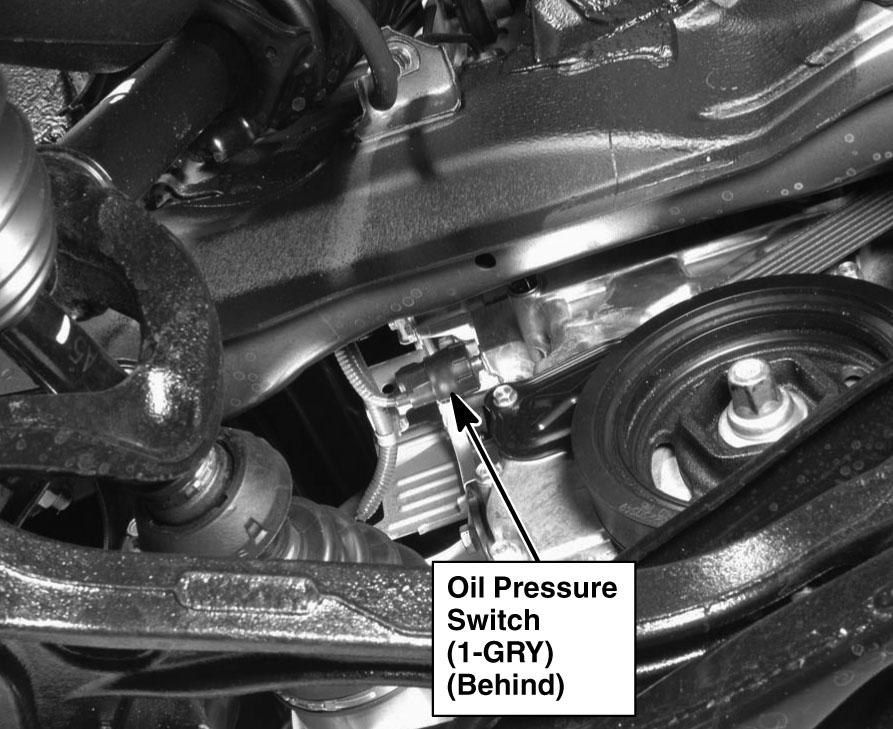

Fig 139: Lower Front Of Engine

G00472711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

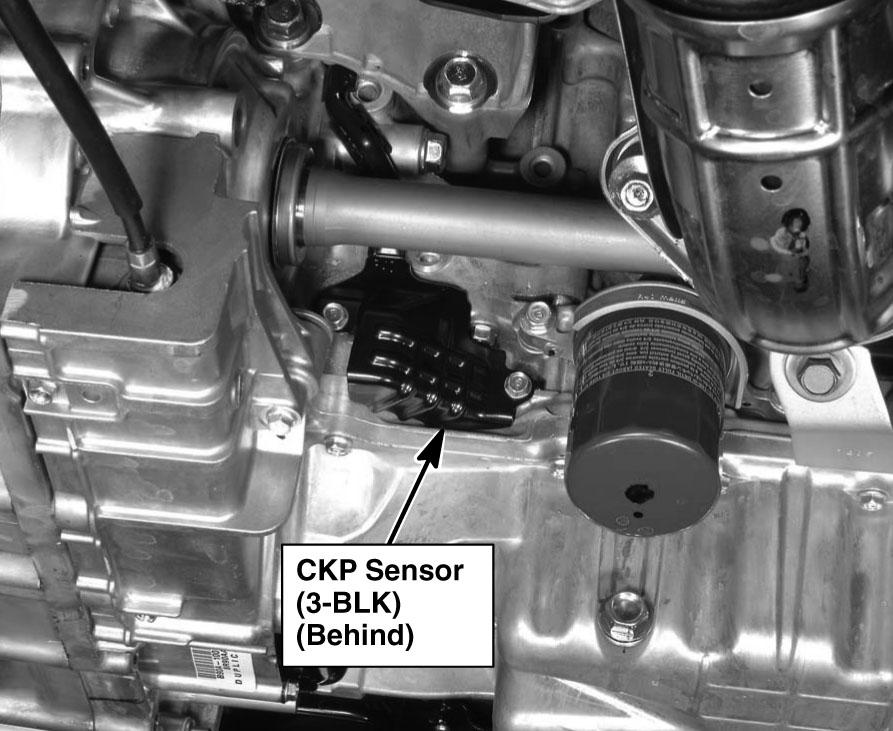

Fig 140: Under Rear Of Engine

G00472712

Courtesy of AMERICAN HONDA MOTOR CO., INC.

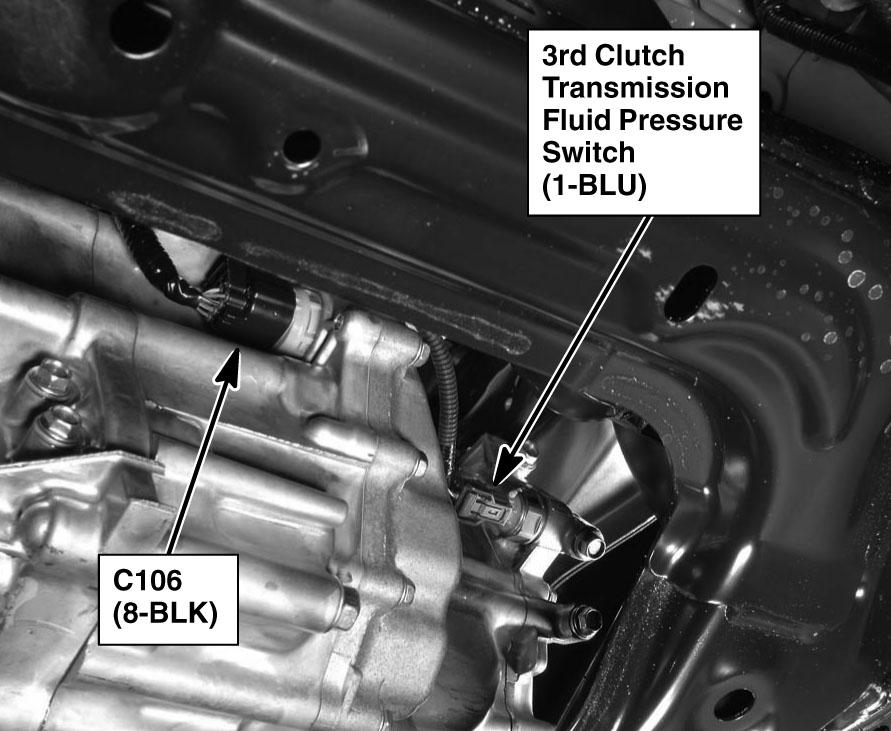

Fig 141: Under Automatic Transmission

G00472713

Courtesy of AMERICAN HONDA MOTOR CO., INC.

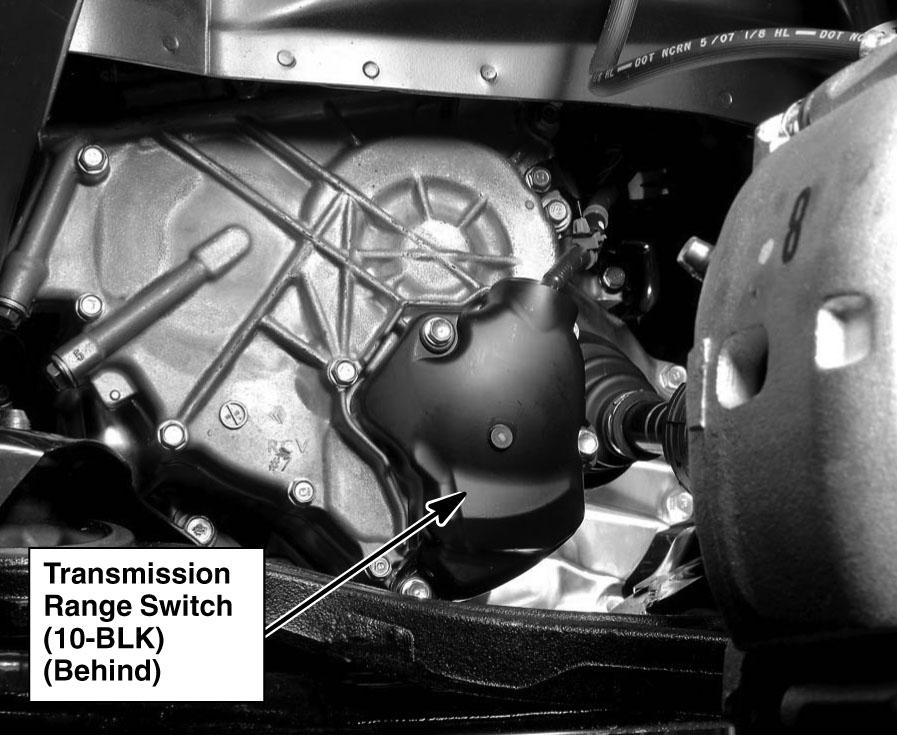

Fig 142: Under Automatic Transmission

G00472714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

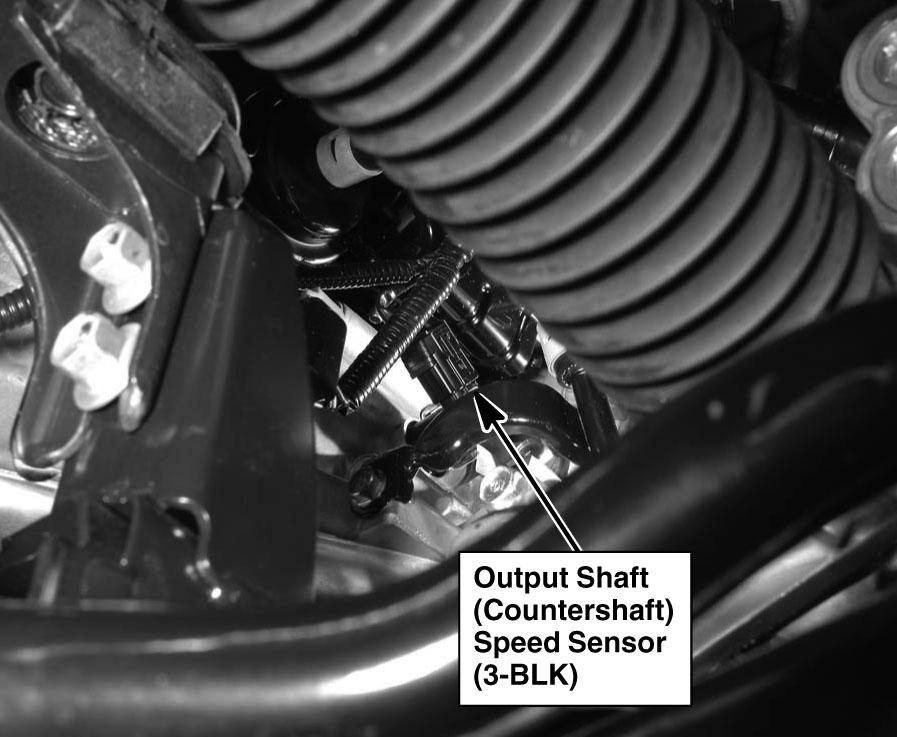

Fig 143: Under Automatic Transmission

G00472715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

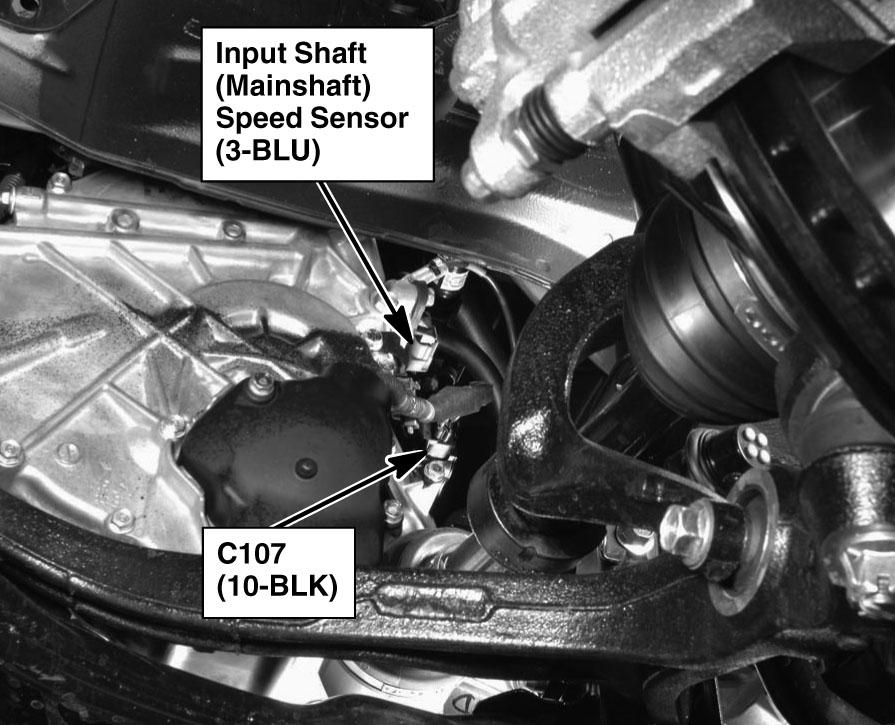

Fig 144: Under Automatic Transmission

G00472716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

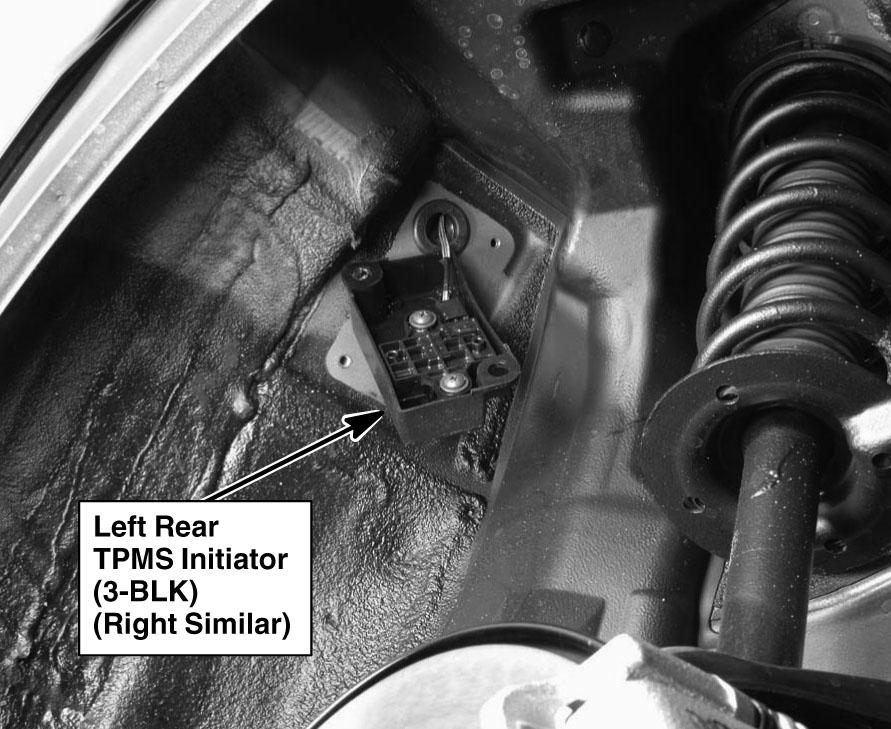

Fig 145: Left Rear Wheelwell (Right Similar)

G00472717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

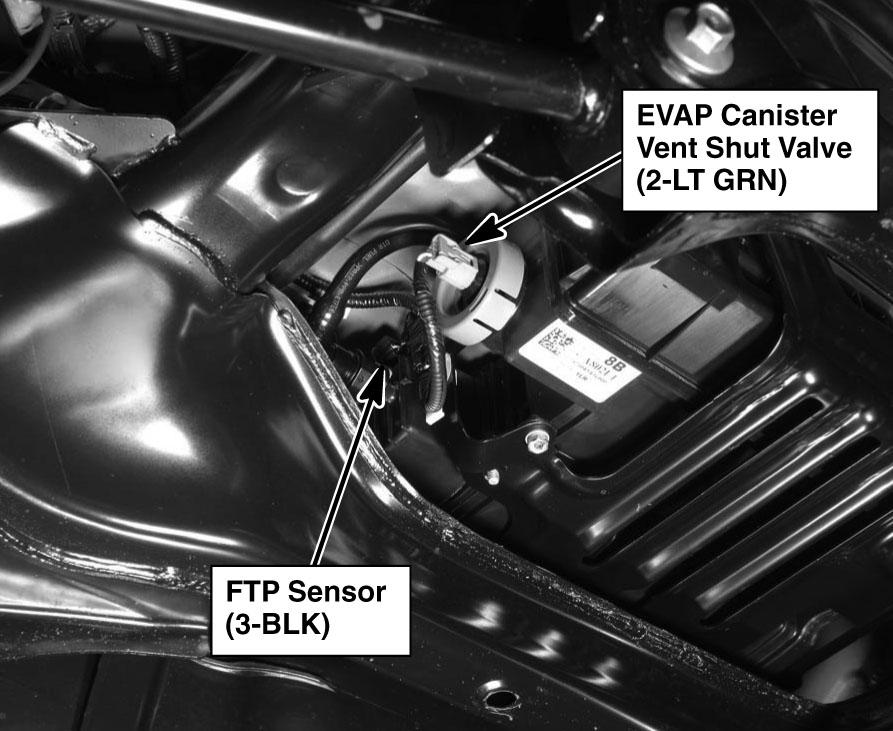

Fig 146: Under Center Rear Of Vehicle

G00472718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

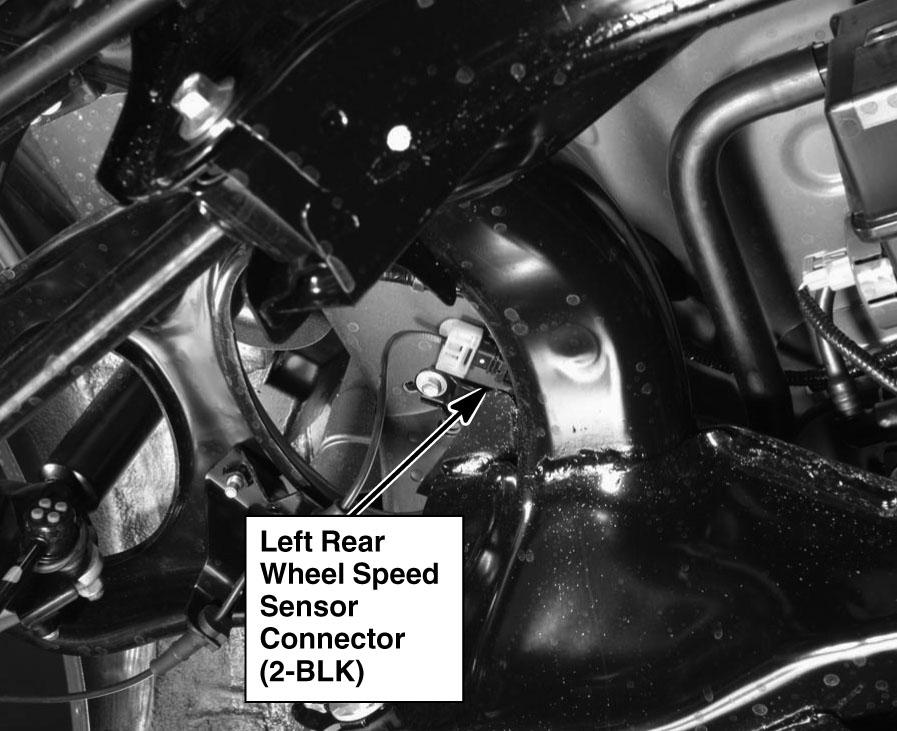

Fig 147: Under Left Rear Of Vehicle

G00472719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

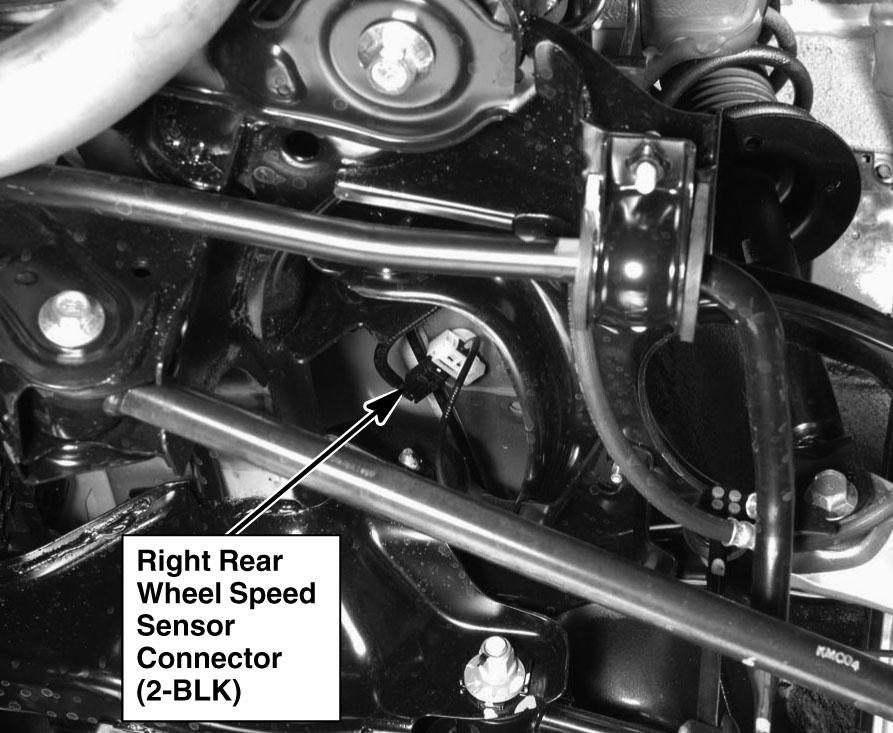

Fig 148: Under Right Rear Of Vehicle

G00472720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

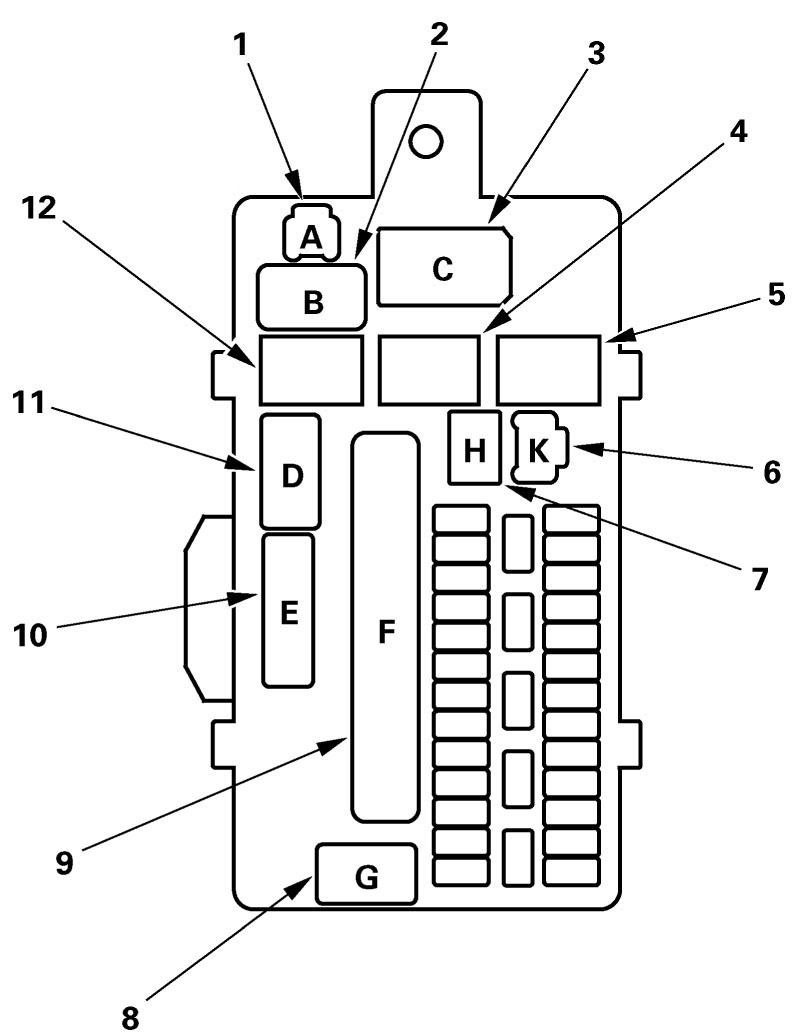

Fig 149: Driver's Under-Dash Fuse/Relay Box

G00472721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

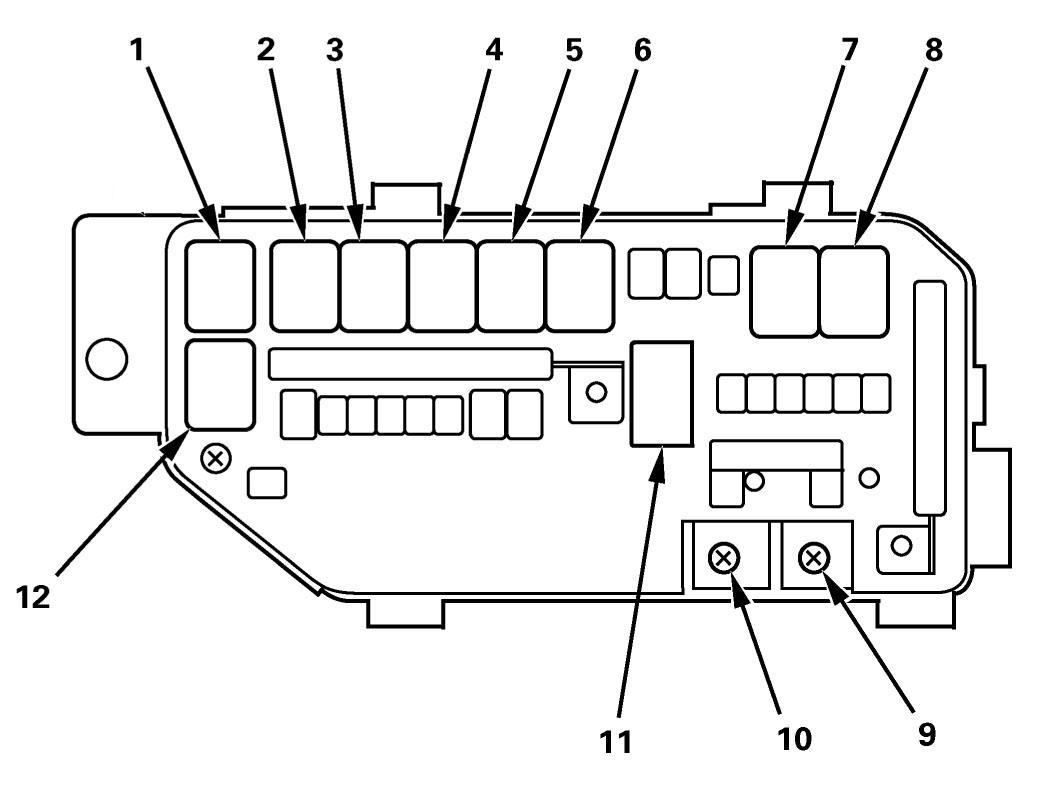

Fig 150: Under-Hood Fuse/Relay Box

G00472722

Courtesy of AMERICAN HONDA MOTOR CO., INC.
