Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

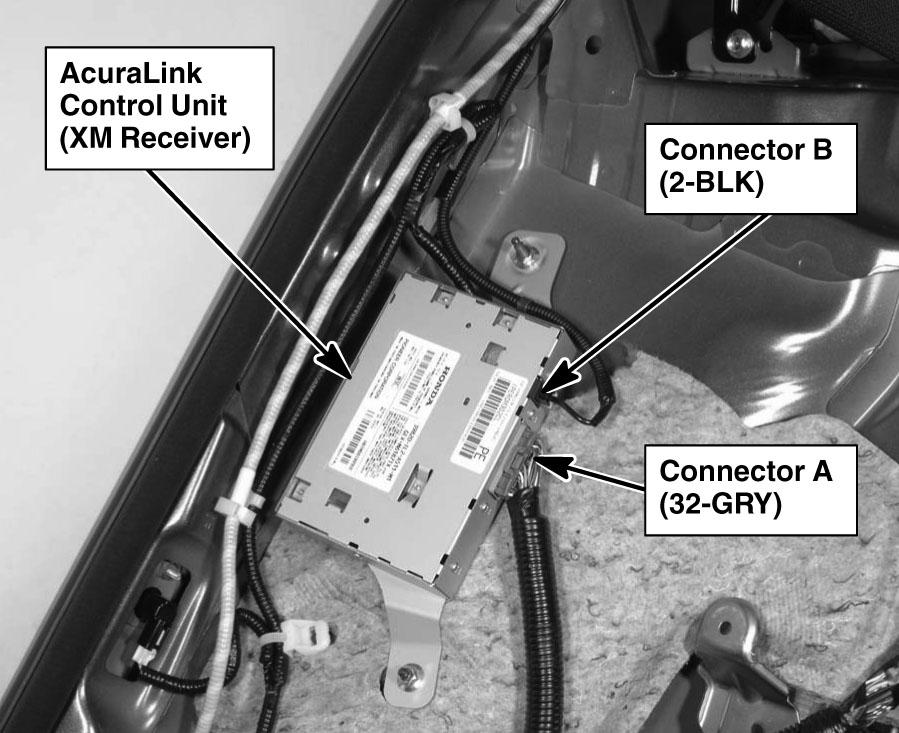

| Acuralink Control Unit | Right "C" pillar. See Figure. |

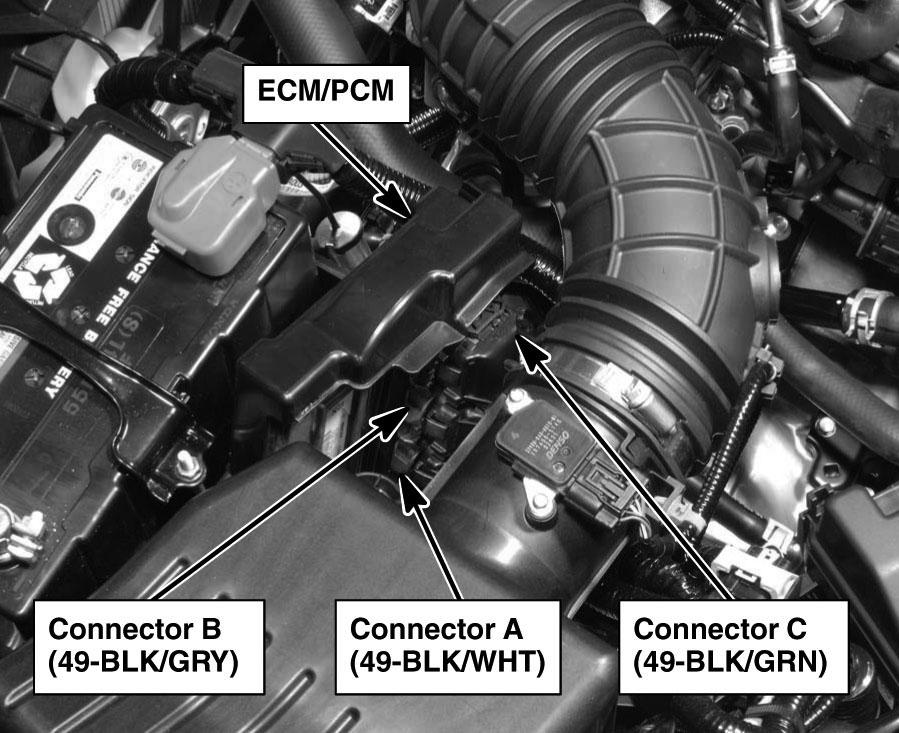

| ECM/PCM | Left side of engine compartment. See Figure. |

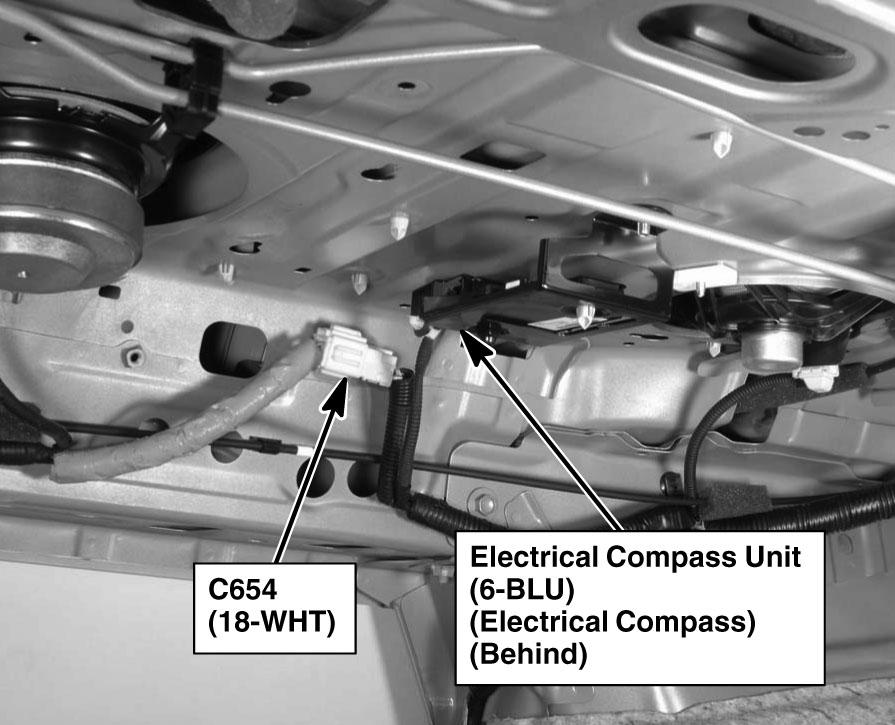

| Electrical Compass Unit | Under right side of rear shelf. See Figure. |

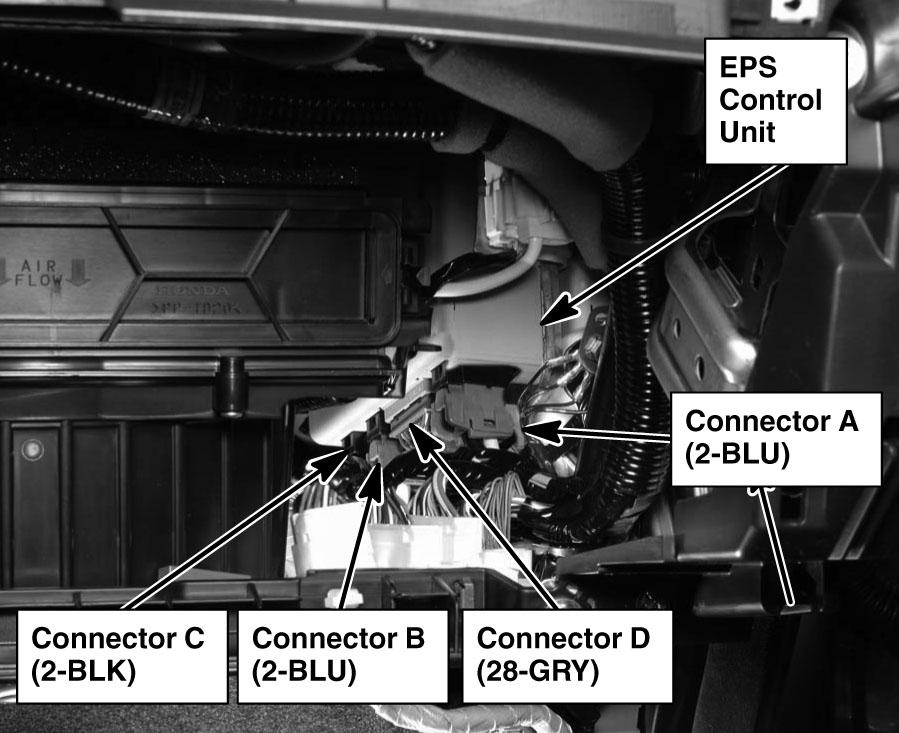

| EPS Control Unit | Under right side of dash. See Figure. |

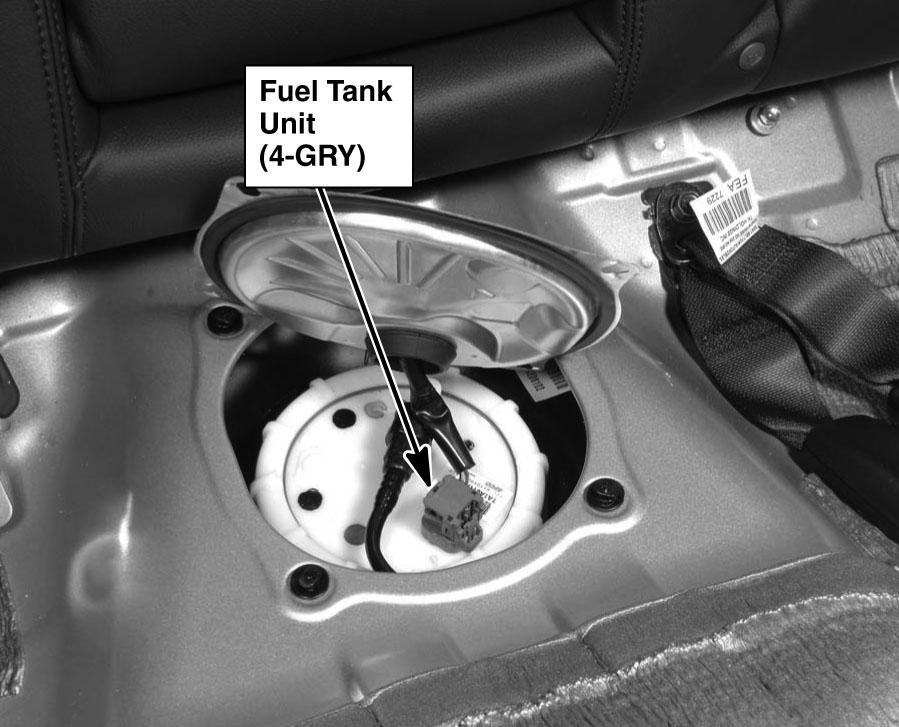

| Fuel Tank Unit | Top of fuel tank. See Figure. |

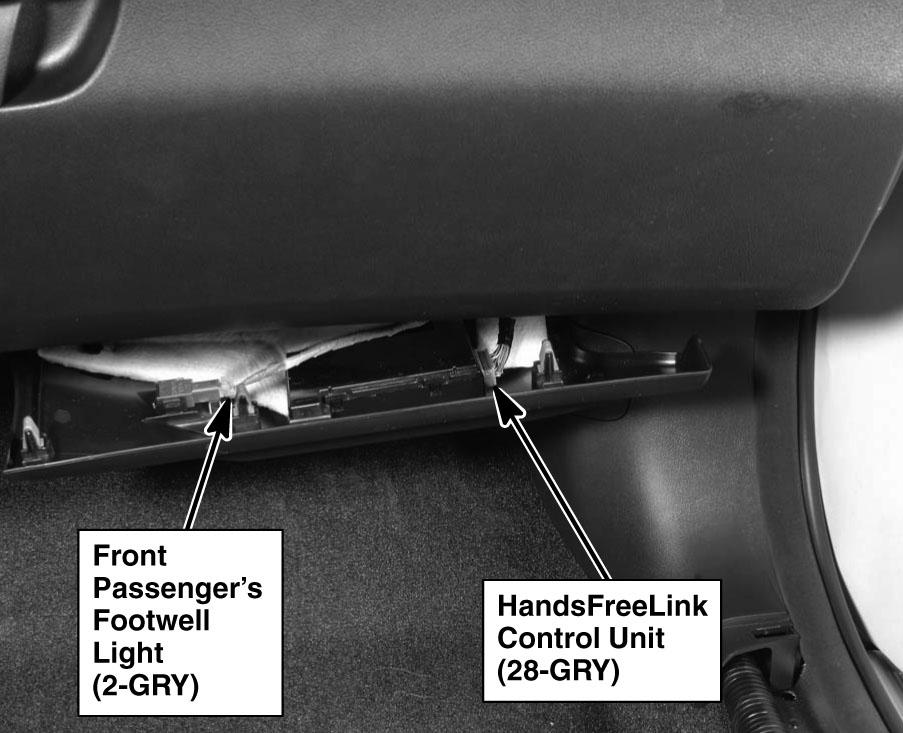

| HandsFreeLink Control Unit | Under right side of dash. See Figure. |

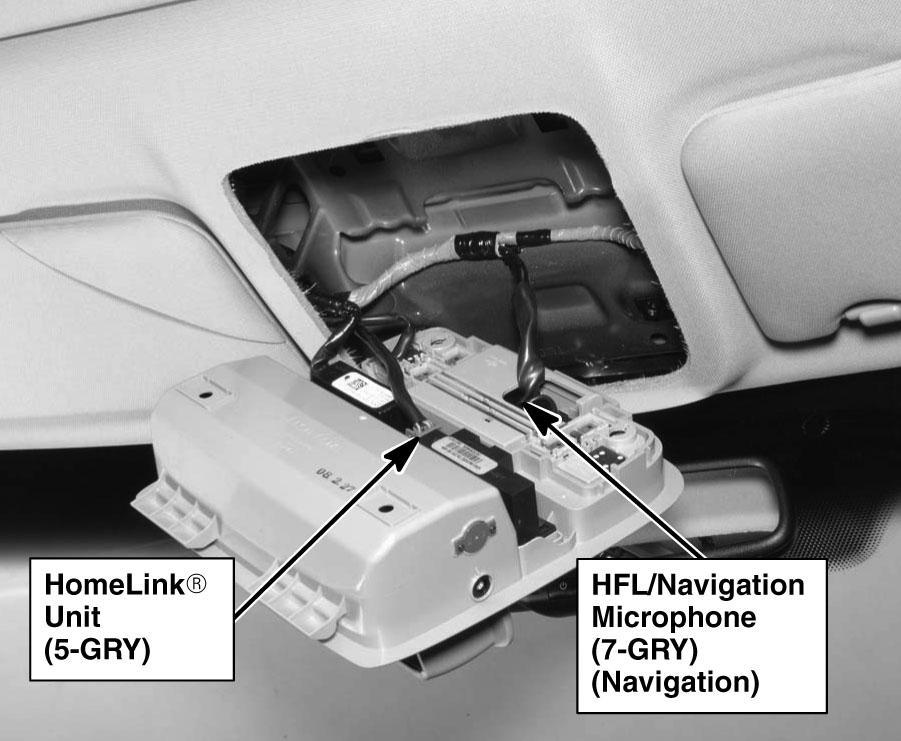

| Homelink Unit | In roof console. See Figure. |

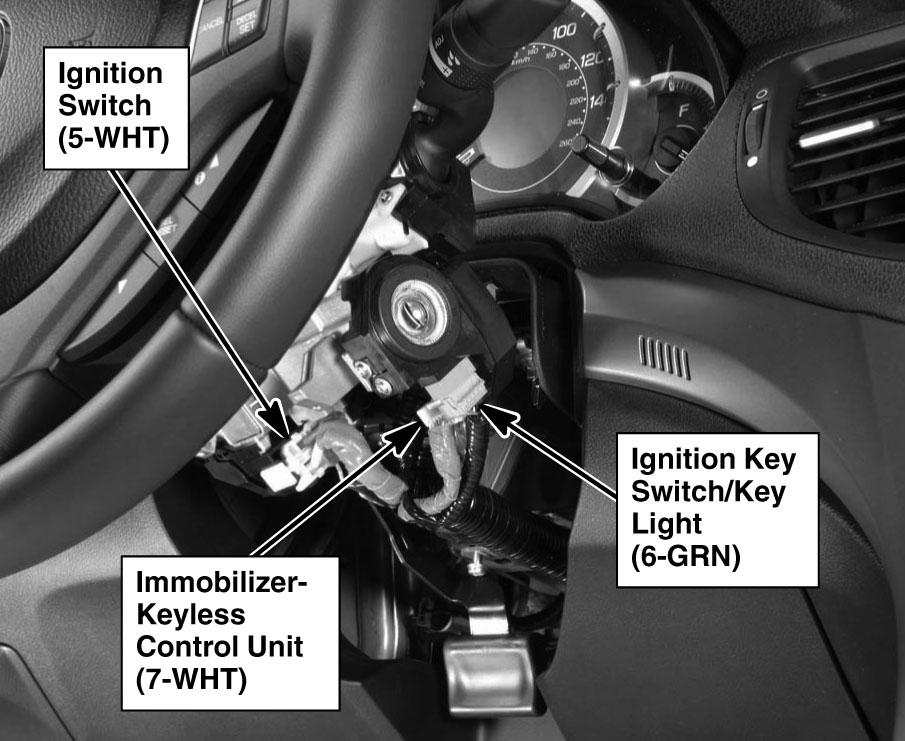

| Immobilizer-Keyless Control Unit | Under steering column cover. See Figure. |

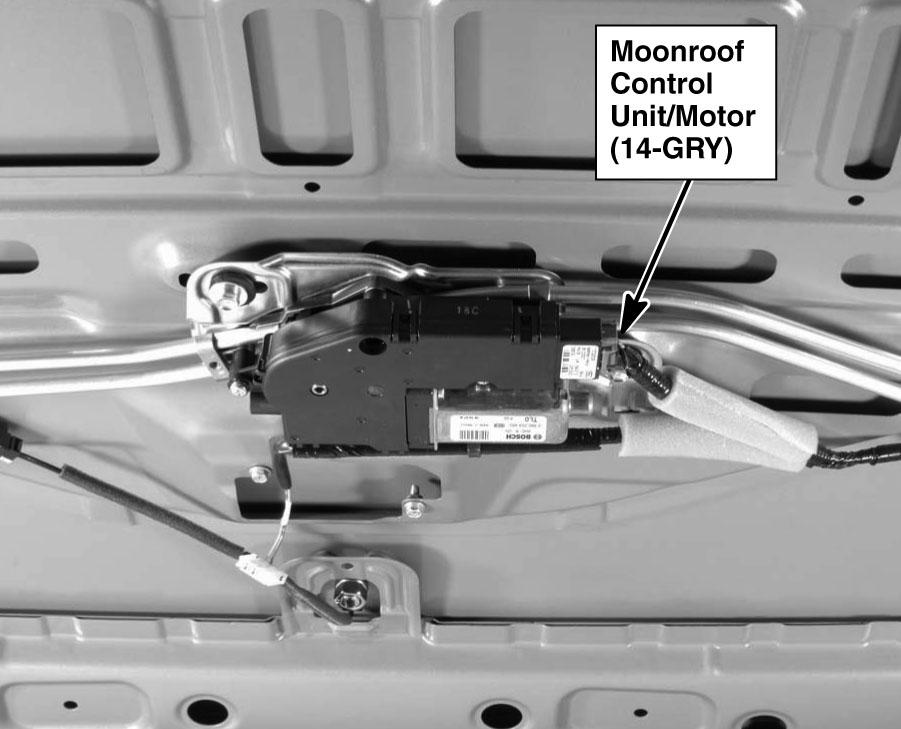

| Moonroof Control Unit/Motor | Center of roof. See Figure. |

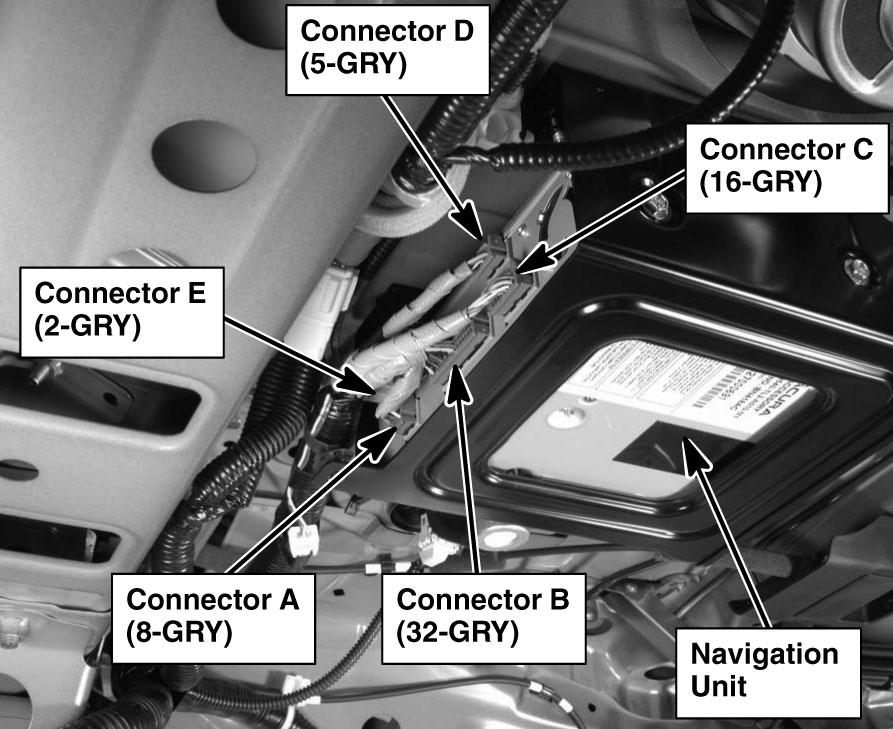

| Navigation Unit | Under right side of rear shelf. See Figure. |

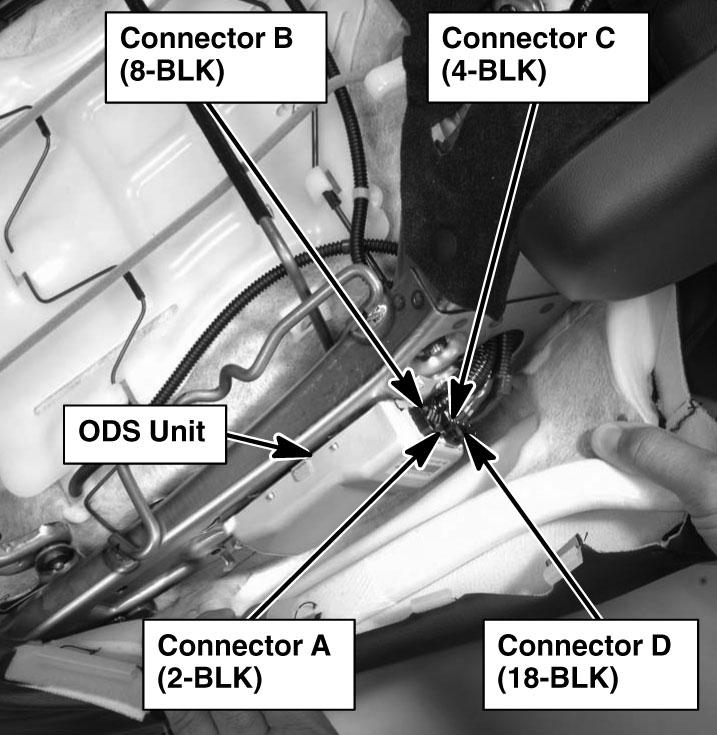

| ODS Unit | Left side of front passenger's seat back. See Figure. |

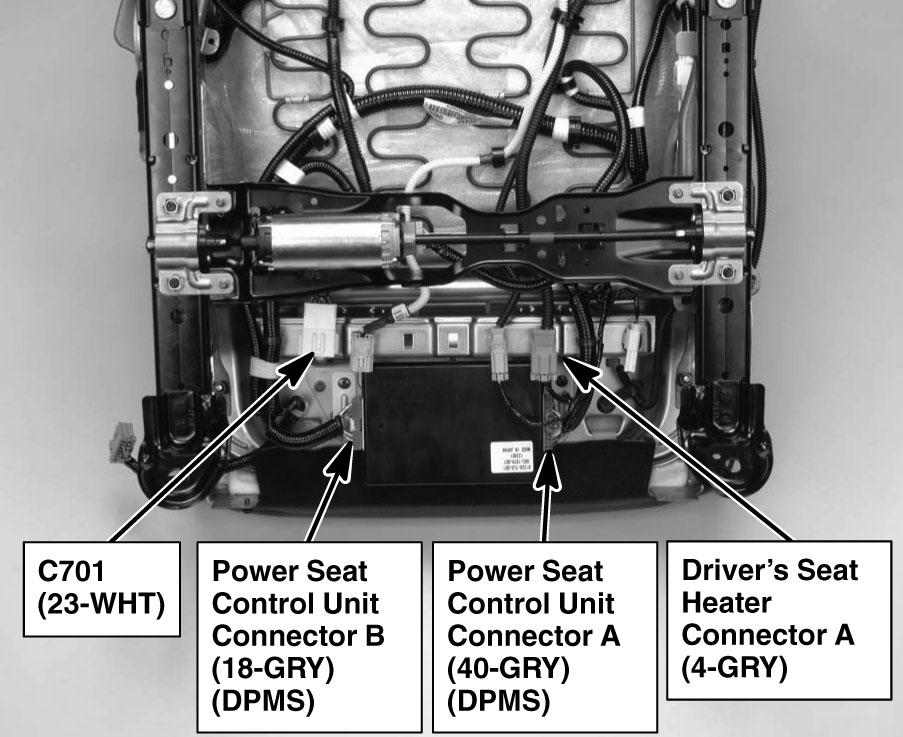

| Power Seat Control Unit | Under driver's seat. See Figure. |

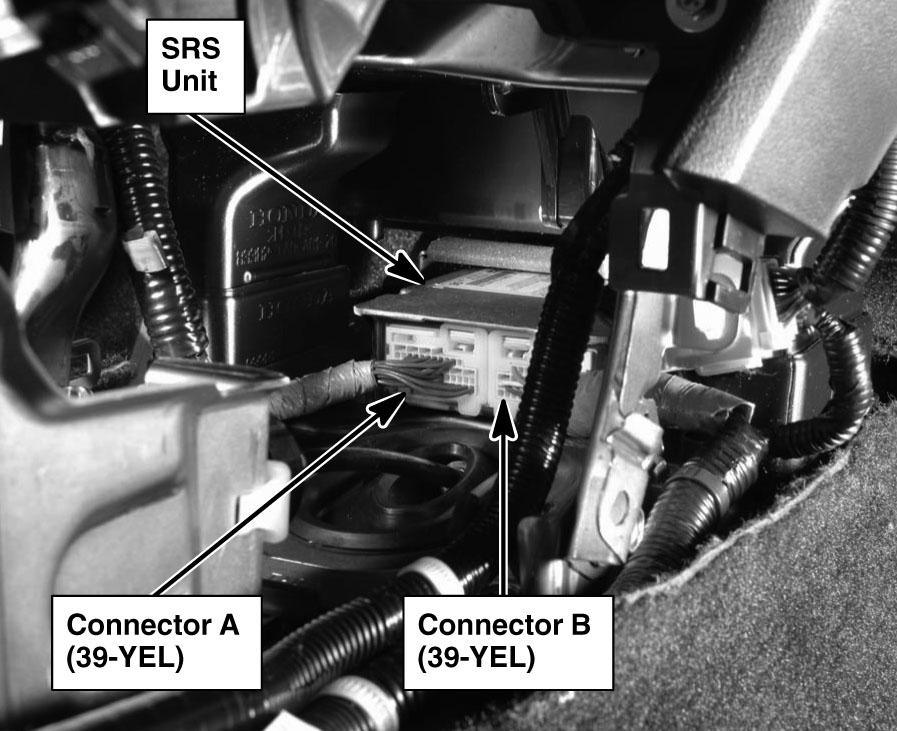

| SRS Unit | Under center of dash. See Figure. |

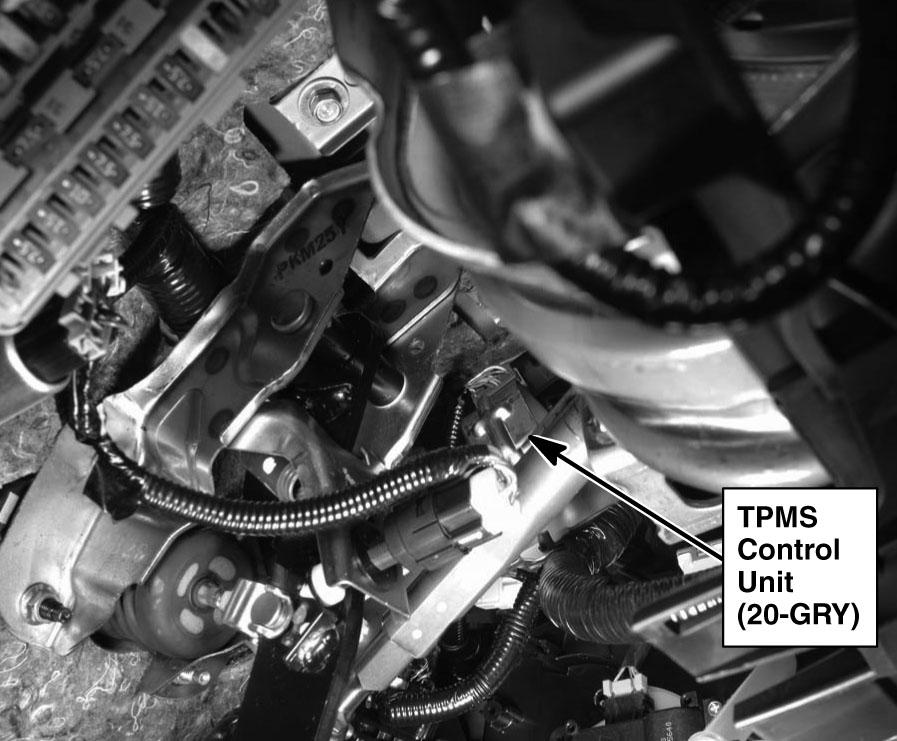

| TPMS Control Unit | Under left side of dash. See Figure. |

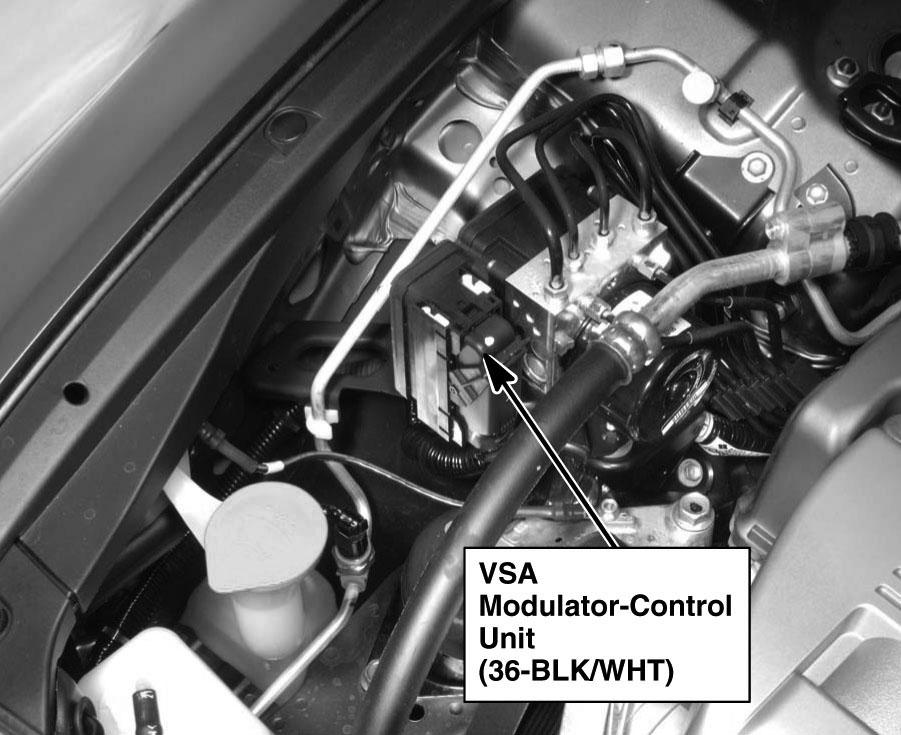

| VSA Modulator-Control Unit | Right side of engine compartment. See Figure. |
