Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00447066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00447065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Side Of Engine Compartment

G00363458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00363459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine Compartment

G00363460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Front Of Engine

G00363462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Middle Of Engine

G00363463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Middle Of Engine

G00363464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Middle Of Engine

G00447063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine

G00363466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Middle Of Engine

G00363467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Middle Of Engine

G00363468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Middle Of Engine

G00363469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Middle Of Engine

G00447064

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Left Side Of Engine

G00363471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Left Side Of Engine

G00363473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Engine

G00363474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

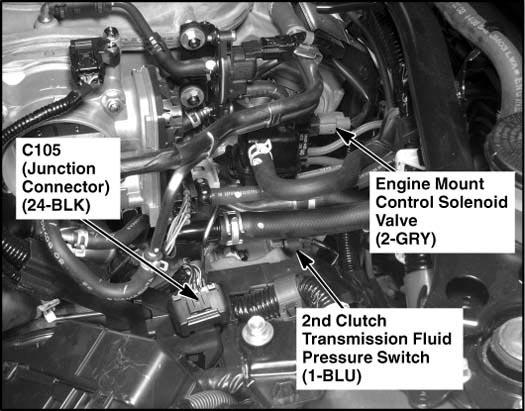

Fig 18: Rear Of Engine

G00477403

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Side Of Engine Compartment

G00363476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Rear Of Engine

G00363477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Transmission Housing

G00363478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Transmission Housing

G00447070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

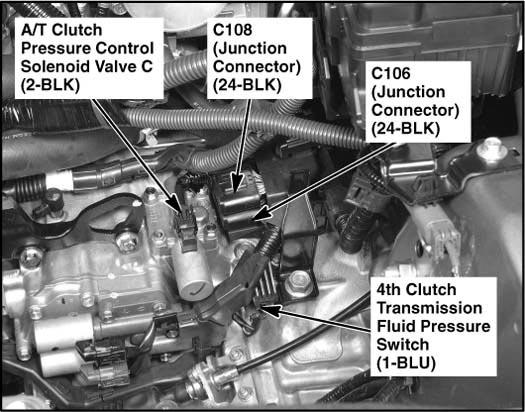

Fig 23: Rear Of Engine

G00477404

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Behind Left Headlight Assembly (Right Similar)

G00363481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Behind Left Headlight Assembly (Right Similar)

G00363482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

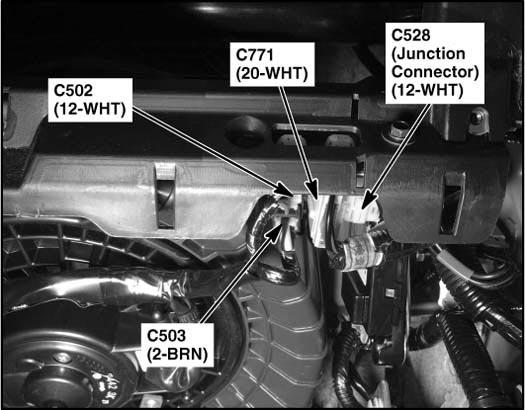

Fig 26: Middle Of Engine Compartment

G00363483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

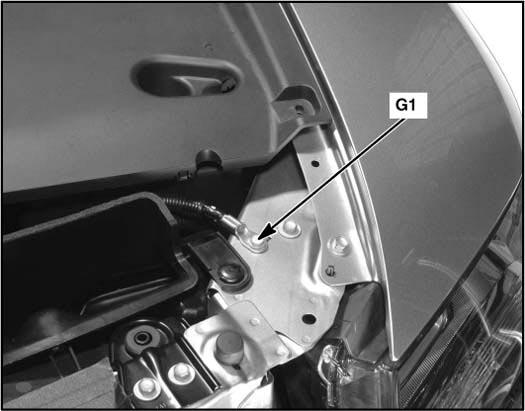

Fig 27: Left Side Of Engine Compartment

G00477402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Left Side Of Engine Compartment

G00363485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Left Side Of Engine Compartment

G00363486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Side Of Engine Compartment

G00363487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Left Side Of Engine Compartment

G00471366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Left Side Of Engine Compartment

G00447061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Left Side Of Engine Compartment

G00447062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Side Of Engine Compartment

G00363491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Under Left Side Of Cowl Cover

G00363492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Left Side Of Dash

G00363493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Left Side Of Dash

G00363494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Left Side Of Dash

G00471367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Left Side Of Dash

G00477418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Left Side Of Dash

G00363497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Base Of Steering Wheel

G00363498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Inside Steering Wheel

G00363499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

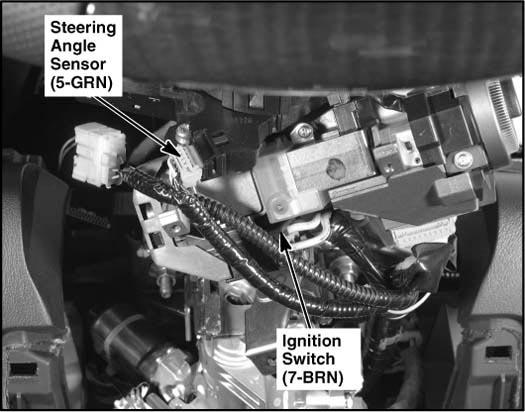

Fig 43: In Steering Column

G00477413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: In Steering Wheel Cover

G00363501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

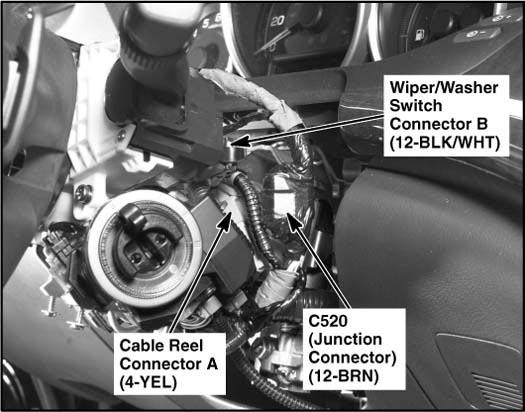

Fig 45: In Steering Wheel Cover

G00477412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: In Steering Wheel Cover

G00363503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: In Steering Wheel Cover

G00447105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Behind Gauge Control Module

G00363505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Left Side Of Dash

G00363506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Left Side Of Dash

G00363507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Under Left Side Of Dash

G00363509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Left Side Of Dash

G00447073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Left Side Of Dash

G00363511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Left Side Of Dash

G00363512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Left Side Of Dash

G00363513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Left Side Of Dash

G00363514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Behind Left Kick Panel

G00363515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00447075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Under Left Side Of Dash

G00363521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Left Side Of Dash

G00363522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Left Side Of Dash

G00363523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Above Rear Differential

G00363524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Middle Of Dash

G00363525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Behind Middle Of Dash

G00363527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

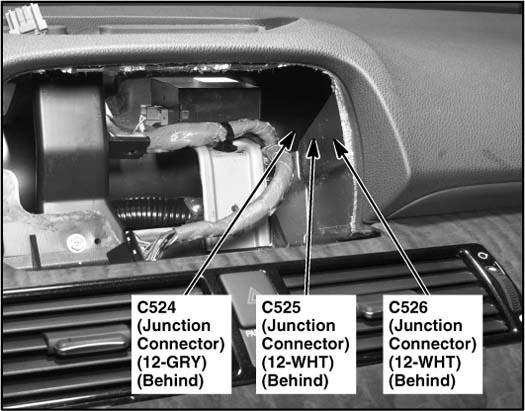

Fig 65: Behind Middle Of Dash

G00477421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Behind Middle Of Dash

G00363529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Middle Of Dash

G00471368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Behind Middle Of Dash

G00447078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Behind Middle Of Dash

G00363533

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Behind Middle Of Dash

G00363534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Under Middle Of Dash

G00363535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Under Middle Of Dash

G00363536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Under Middle Of Dash

G00363537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Under Center Console

G00471369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Under Center Console

G00363539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

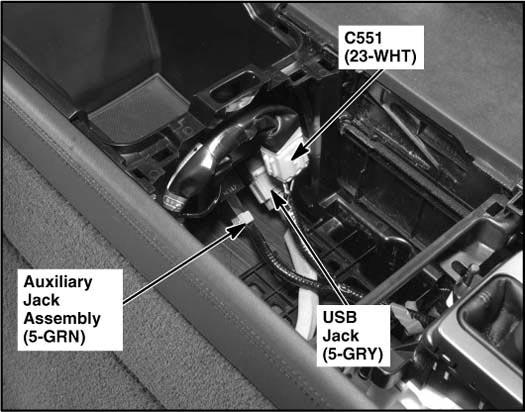

Fig 76: Under Center Console

G00477424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Behind Glove Box

G00447084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Behind Glove Box

G00447085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Behind Glove Box

G00363545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Under Right Side Of Dash

G00363547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Under Right Side Of Dash

G00363548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Under Right Side Of Dash

G00477427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Behind Right Kick Panel

G00477429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

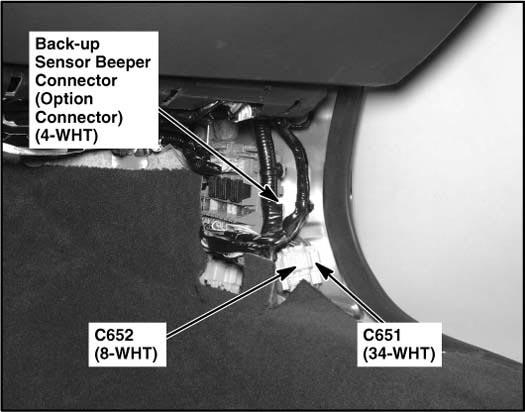

Fig 84: Behind Right Kick Panel

G00363551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Behind Right Kick Panel

G00477428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Right Kick Panel

G00363554

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Under Driver's Seat

G00363559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

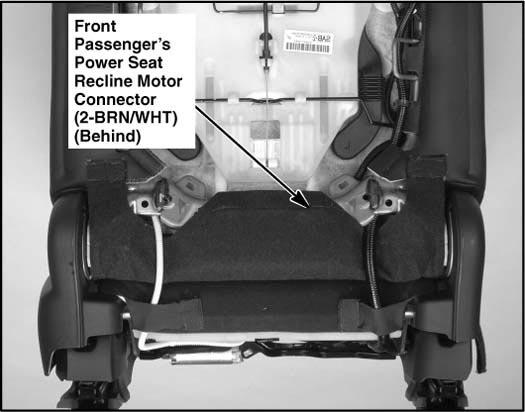

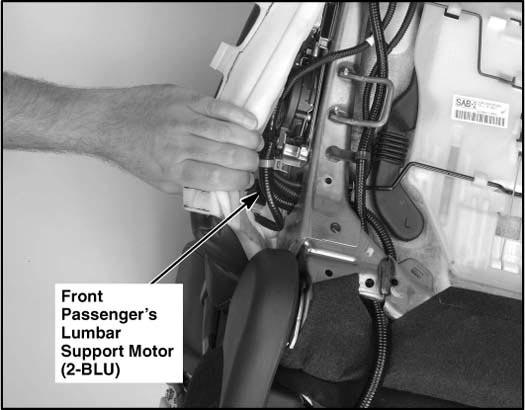

Fig 88: Front Passenger's Seat Back

G00477449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Left Rear Headrest

G00447091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Right Side Of Rear Seat

G00363572

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Center Of Rear Seat

G00363573

Courtesy of AMERICAN HONDA MOTOR CO., INC.

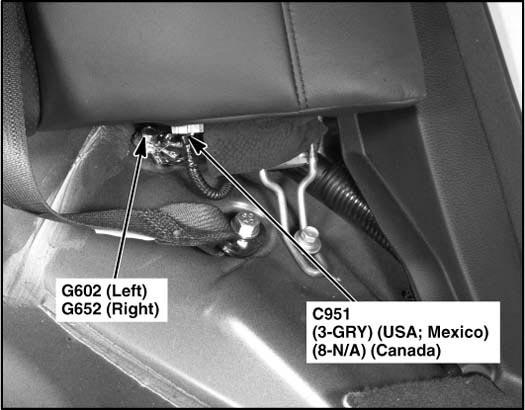

Fig 92: Under Left Side Of Rear Seat (Right Similar)

G00477454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Left Side Of Floor (Right Similar)

G00363575

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Under Rear Seat

G00363576

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under Left Side Of Rear Seat

G00363577

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Under Rear Seat

G00363578

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Left "B" Pillar (Right Similar)

G00447087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

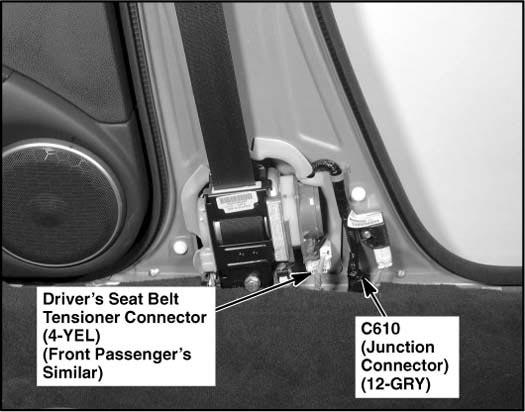

Fig 98: Left "B" Pillar (Right Similar)

G00477430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Left "B" Pillar (Right Similar)

G00363581

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Driver's Door (Front Passenger's Similar)

G00363582

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Driver's Door (Front Passenger's Similar)

G00363583

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Driver's Door (Front Passenger's Similar)

G00363584

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Left Rear Door (Right Similar)

G00363585

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Driver's Door (Front Passenger's Similar)

G00363586

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Driver's Door (Front Passenger's Similar)

G00363587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Driver's Door

G00363588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Front Passenger's Door

G00363589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Left Rear Door (Right Similar)

G00363590

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Left Rear Door (Right Similar)

G00471370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Left Front Of Roof

G00363593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Right "C" Pillar

G00447095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Right "C" Pillar

G00447096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Right "C" Pillar

G00447100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Left "C" Pillar

G00363600

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Left "C" Pillar

G00363601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Left "C" Pillar (Right Similar)

G00447092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

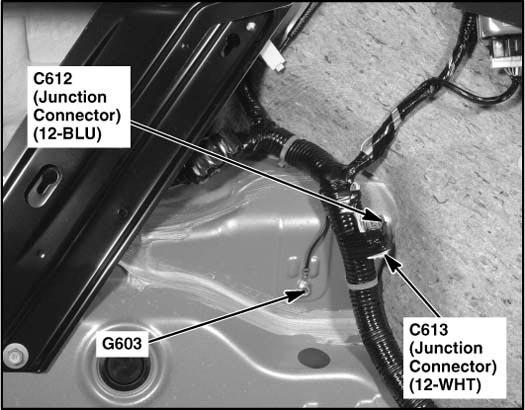

Fig 117: Left "C" Pillar

G00477456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Behind Rear Seat

G00363605

Courtesy of AMERICAN HONDA MOTOR CO., INC.

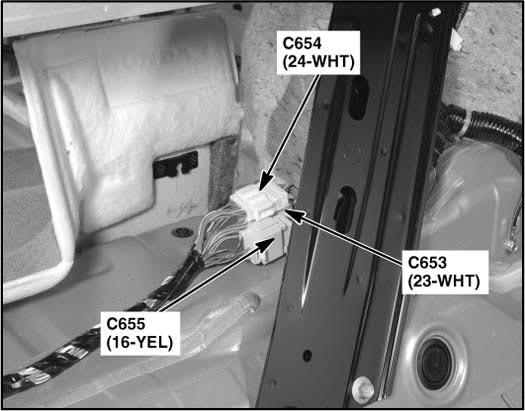

Fig 119: Behind Rear Seat

G00477458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

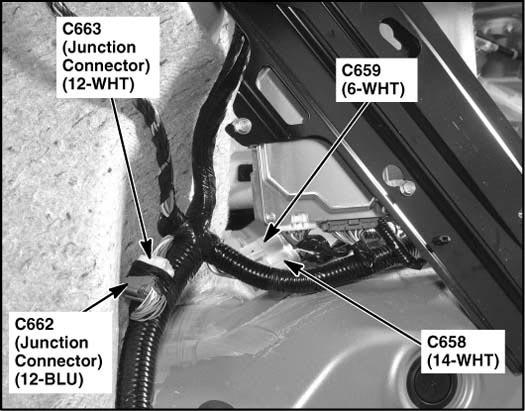

Fig 120: Behind Rear Seat

G00477459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Behind Rear Seat

G00363609

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Left Side Of Trunk

G00363610

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left Side Of Trunk

G00447101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Left Side Of Trunk (USA: Technology Package)

G00363612

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Left Side Of Rear Shelf

G00447099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Left Side Of Rear Shelf

G00363614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Middle Of Rear Shelf

G00363615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Middle Of Rear Shelf

G00363616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Right Side Of Rear Shelf

G00447106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Right Side Of Trunk

G00363620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Right Side Of Trunk

G00363621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Right Side Of Trunk

G00477462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

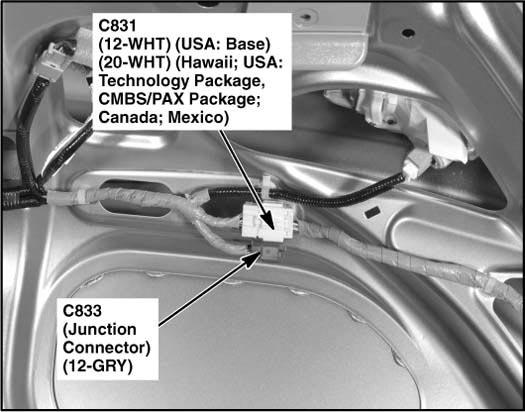

Fig 133: Middle Of Trunk Lid

G00477463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Behind Middle Of Rear Bumper

G00363624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Behind Right Side Of Front Bumper

G00363625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 136: Behind Middle Of Front Bumper

G00447071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Behind Right Side Of Front Bumper

G00477409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

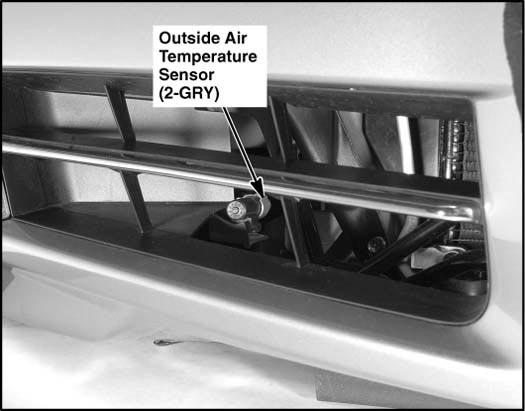

Fig 138: Behind Left Side Of Front Bumper (Right Similar)

G00363629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Behind Left Side Of Front Bumper

G00363630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

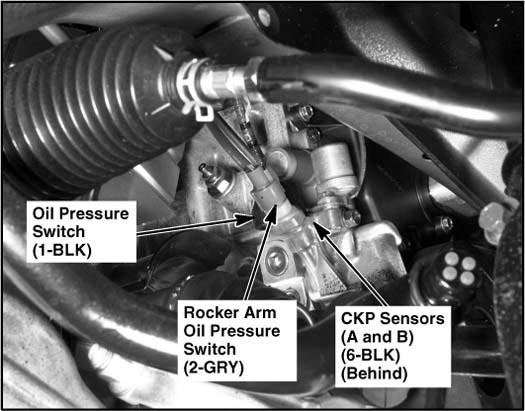

Fig 140: Under Right Side Of Engine

G00477411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Right Side Of Engine

G00447068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 142: Right Side Of Engine Compartment

G00363633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 143: Middle Of Engine Compartment

G00363635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 144: Under Left Side Of Engine Compartment

G00477408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

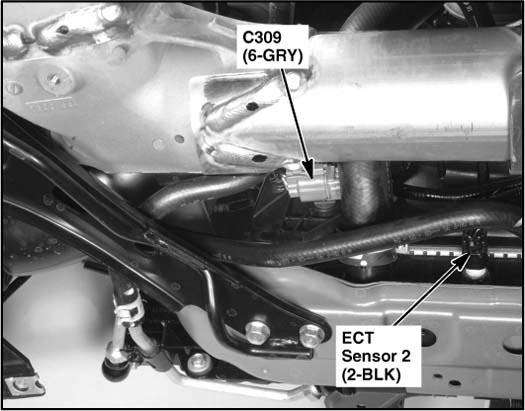

Fig 145: Transmission Housing

G00363638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Left Rear Fenderwell (Right Similar)

G00363639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 147: Under Left Rear Of Vehicle

G00477464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

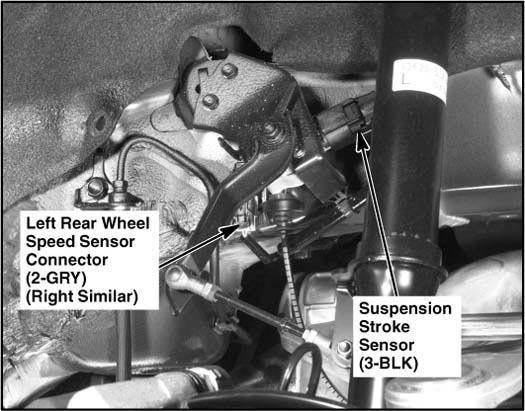

Fig 148: Rear Differential

G00363641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 149: Rear Differential

G00363642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 150: Rear Differential

G00363643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 151: Rear Differential

G00363644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Rear Differential

G00363645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 153: Above Rear Differential

G00363646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

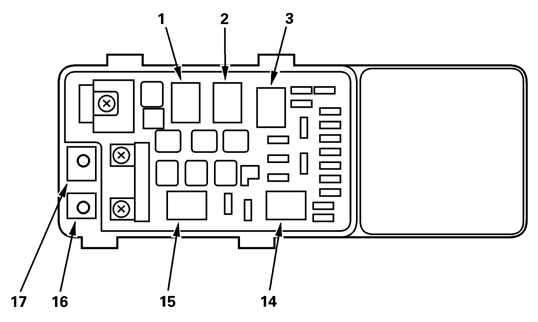

Fig 154: Under-Hood Fuse/Relay Box

G00477399

Courtesy of AMERICAN HONDA MOTOR CO., INC.

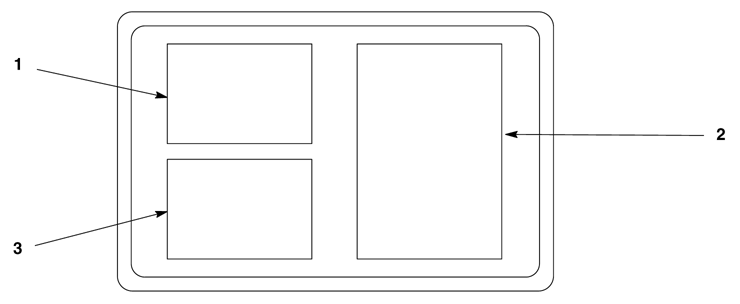

Fig 155: Auxiliary Under-Hood Relay Box

G00477400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Behind Left Kick Panel

G00363650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 157: Passenger's Under-Dash Fuse/Relay Box

G00363651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 158: Driver's Auxiliary Under-Dash Relay Box

G00363653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 159: Left Side Of Engine Compartment

G00430628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Under Middle Of Dash

G00447076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 161: Under Middle Of Dash

G00430631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 162: Behind Right Side Of Glove Box

G00447086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Behind Right Kick Panel

G00430633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 164: Auxiliary Under-Dash Fuse/Relay Box

G00430635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 165: Left Rear Door (Right Similar)

G00447109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 166: Rear Of Roof (USA)

G00446863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 167: Left Side Of Trunk (USA: Base)

G00446866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 168: Center Rear Of Trunk

G00446867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: Middle Of Trunk Lid

G00446868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

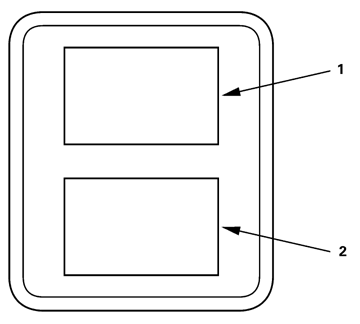

Fig 170: Passenger's Auxiliary Under-Dash Relay Box (Canada)

G00477401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Front Of Engine Compartment

G00477405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

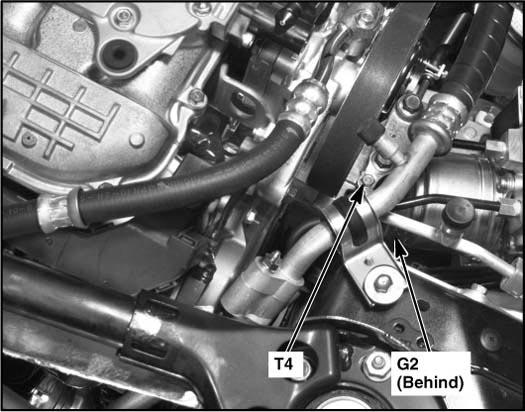

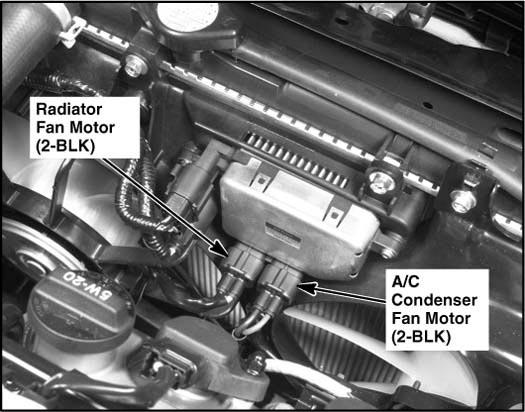

Fig 172: Right Side Of Engine Compartment

G00477406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

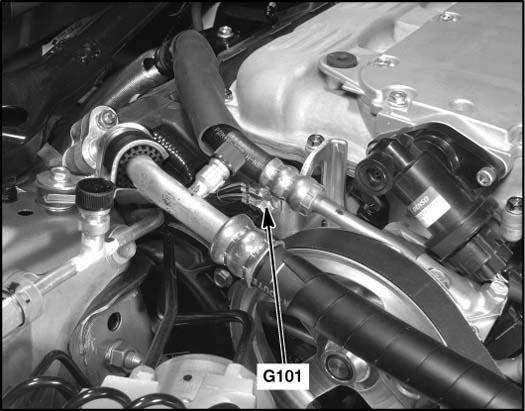

Fig 173: Front Of Engine

G00477407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

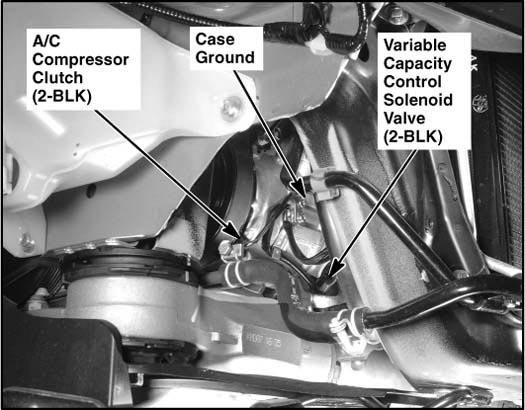

Fig 174: Under Right Side Of Engine Compartment

G00477410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

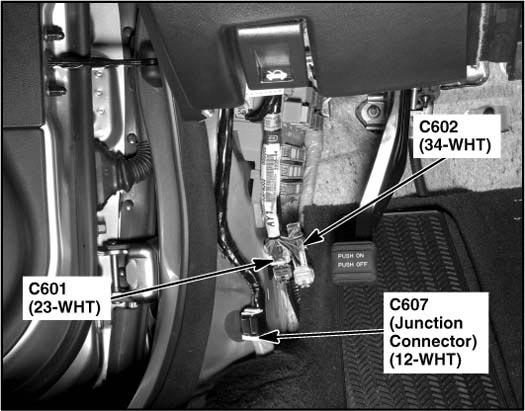

Fig 175: Behind Left Kick Panel

G00477414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

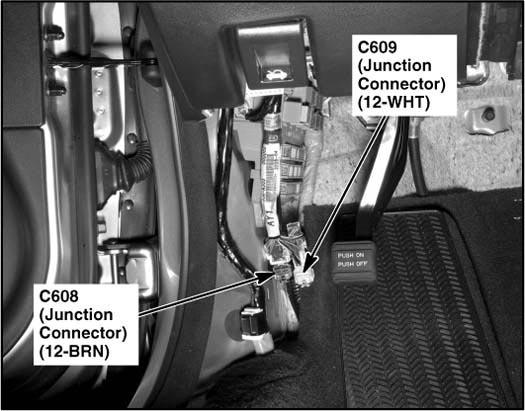

Fig 176: Behind Left Kick Panel

G00477415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 177: Under Left Side Of Dash

G00477416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

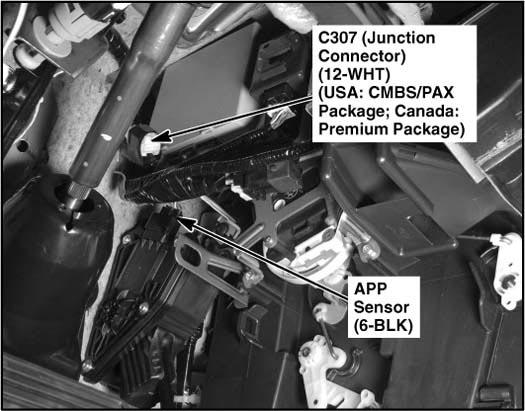

Fig 178: Under Left Side Of Dash

G00477417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 179: Under Left Side Of Dash

G00477419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 180: Under Left Side Of Dash

G00477420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

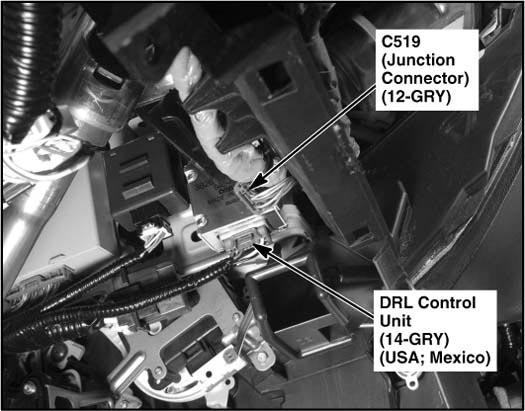

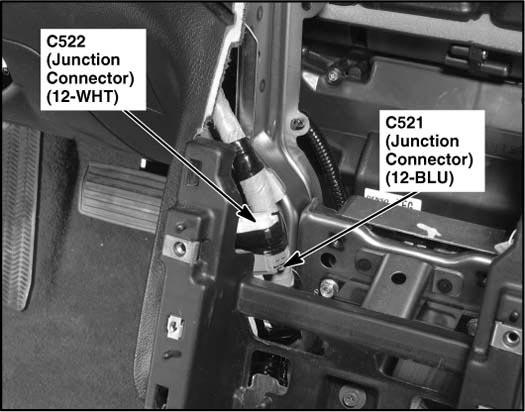

Fig 181: Behind Middle Of Dash

G00477422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

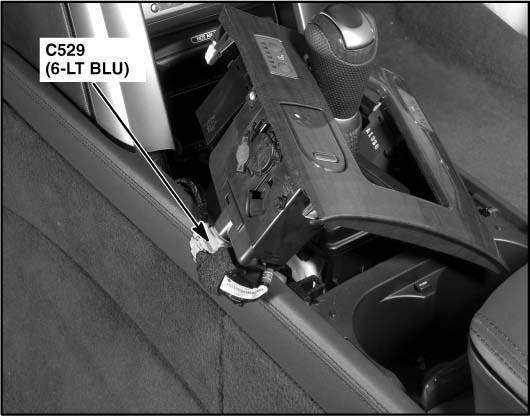

Fig 182: Under Center Console

G00477423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

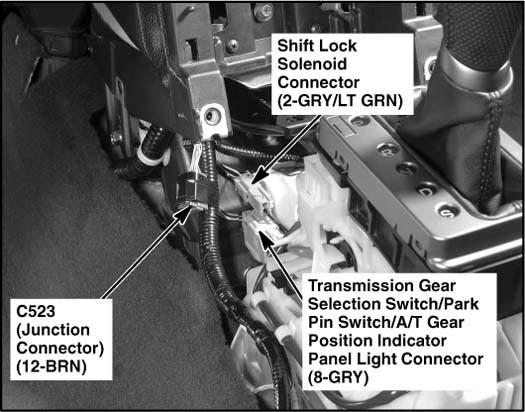

Fig 183: Under Center Console

G00477425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 184: Behind Left Side Of Glove Box

G00477426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

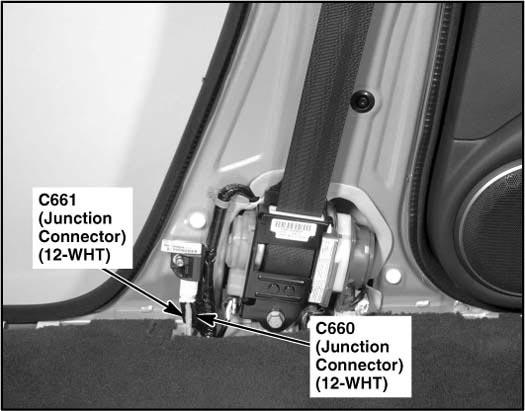

Fig 185: Right "B" Pillar

G00477431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

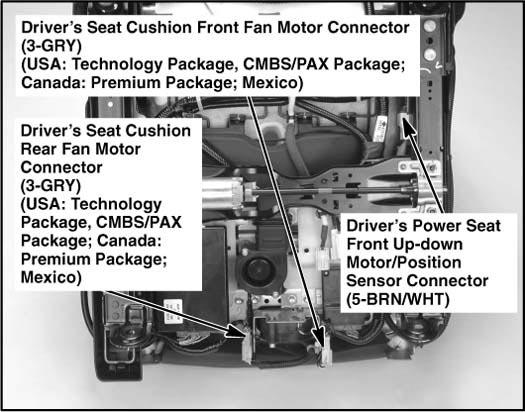

Fig 186: Under Driver's Seat

G00477432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 187: Under Driver's Seat

G00477433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

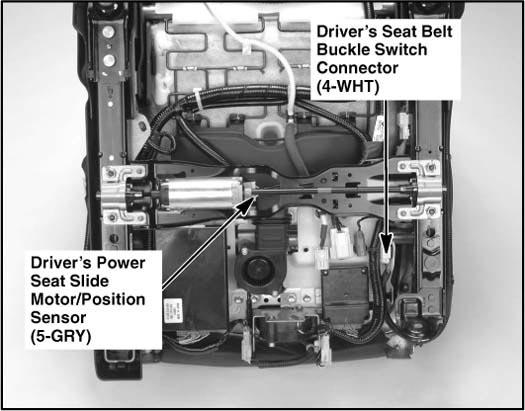

Fig 188: Under Driver's Seat

G00477434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 189: Under Driver's Seat

G00477435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

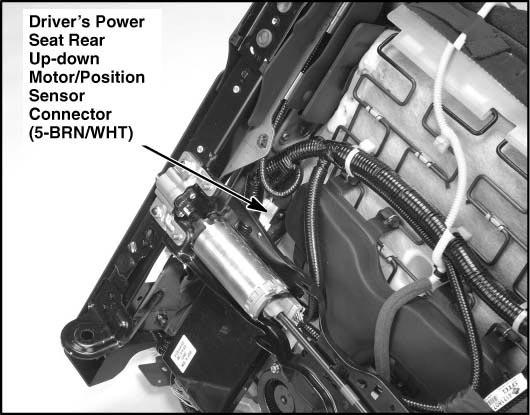

Fig 190: Under Driver's Seat

G00477436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 191: Under Driver's Seat

G00477437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

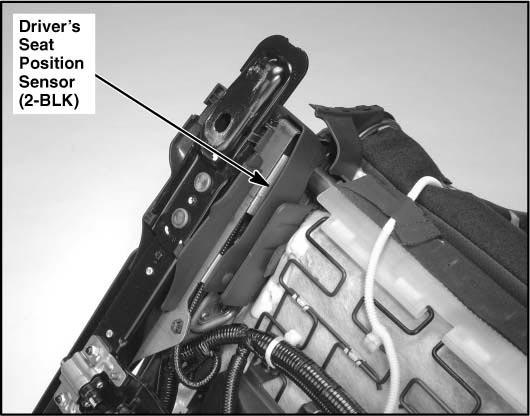

Fig 192: Driver's Seat Back

G00477438

Courtesy of AMERICAN HONDA MOTOR CO., INC.

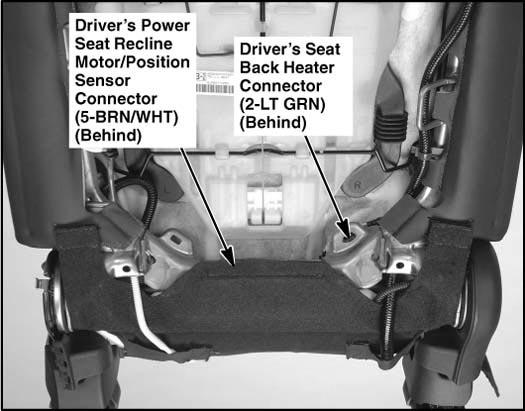

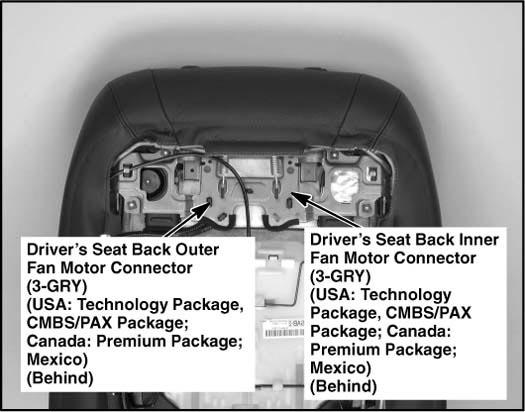

Fig 193: Driver's Seat Back

G00477439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

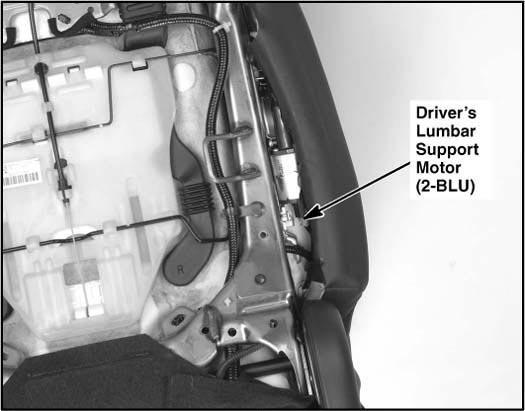

Fig 194: Driver's Seat Back

G00477440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

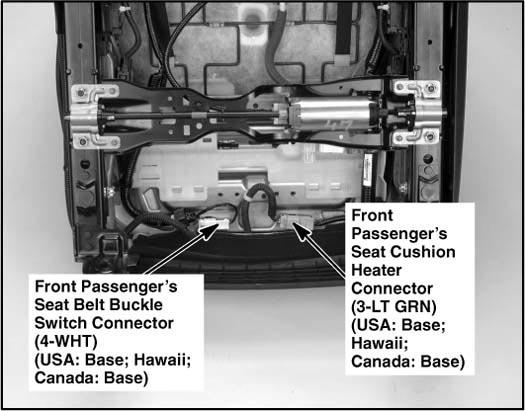

Fig 195: Under Front Passenger's Seat

G00477441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

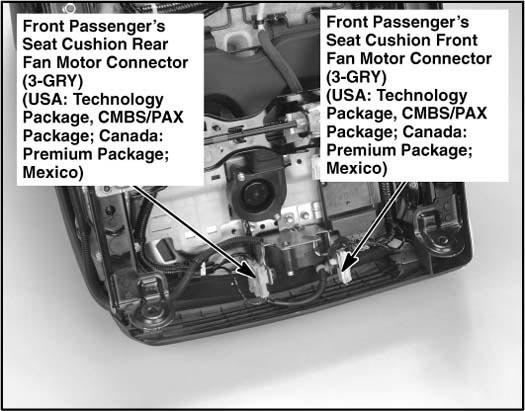

Fig 196: Under Front Passenger's Seat

G00477442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 197: Under Front Passenger's Seat

G00477443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

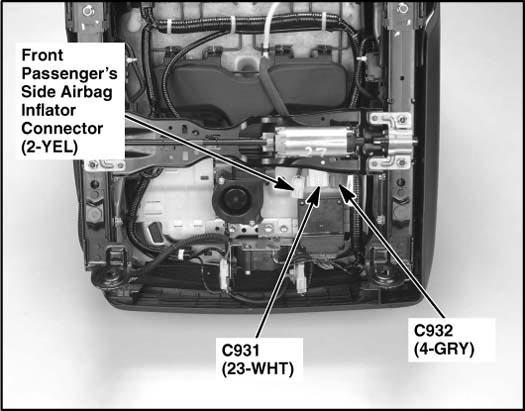

Fig 198: Under Front Passenger's Seat

G00477444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

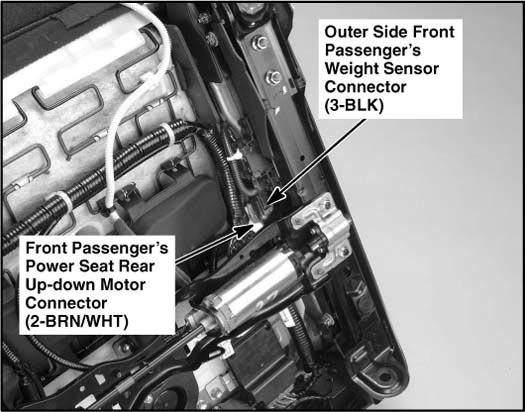

Fig 199: Under Front Passenger's Seat

G00477445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

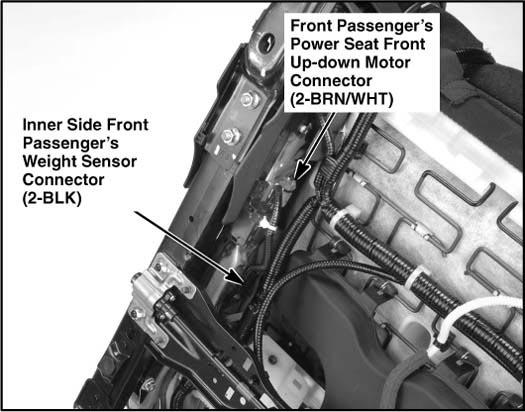

Fig 200: Under Front Passenger's Seat

G00477446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 201: Front Passenger's Seat Back

G00477447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 202: Front Passenger's Seat Back

G00477448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

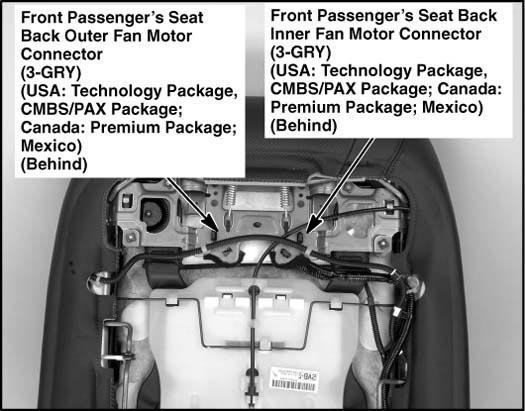

Fig 203: Front Passenger's Seat Back

G00477450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

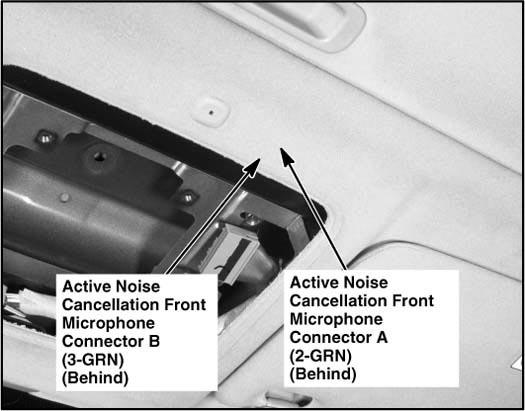

Fig 204: Front Of Roof

G00477451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 205: Rear Of Roof

G00477452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

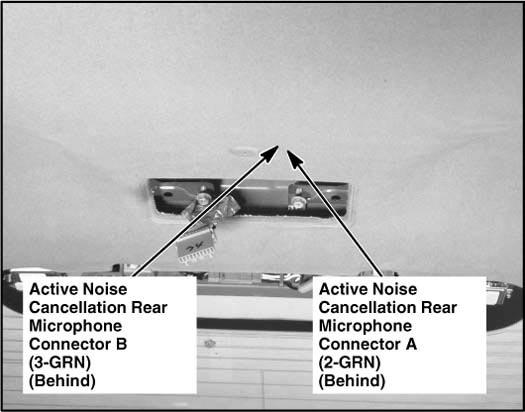

Fig 206: Rear Of Roof

G00477453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 207: Left "C" Pillar

G00477455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

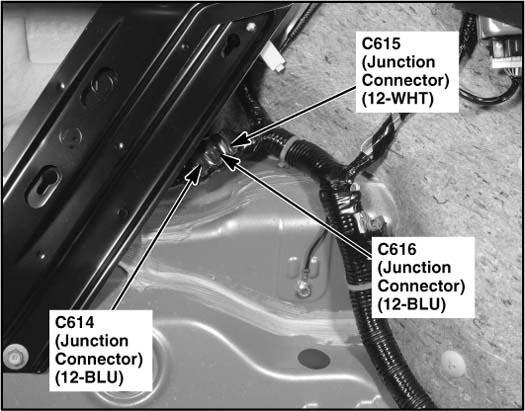

Fig 208: Left "C" Pillar

G00477457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

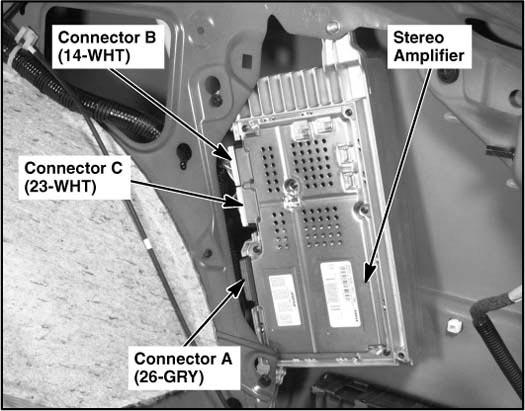

Fig 209: Right Side Of Trunk

G00477461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

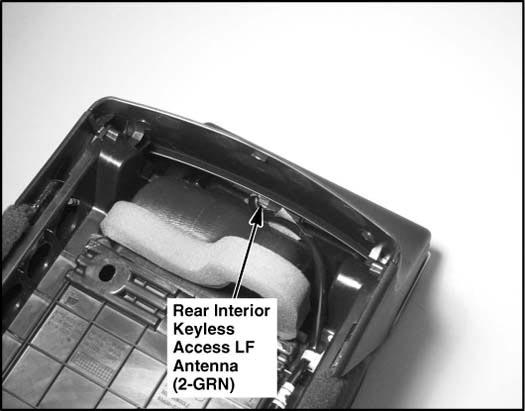

Fig 210: Under Center Console

G00477465

Courtesy of AMERICAN HONDA MOTOR CO., INC.
