Fuel Pump Control Module Replacement

  1. Remove the seat-back (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the fuel pump control module connector (A).

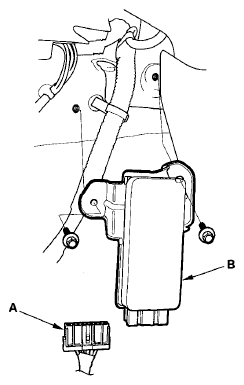

    Fig 1: Locating Fuel Pump Control Module Connector And Fuel Pump Control Module
    G06164148Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module (B).
  4. Install the parts in the reverse order of removal.
