Driving Position Memory Switch Test/Replacement

  1. Carefully pry the driving position memory switch (A) out from the door panel.
    Fig 1: Identifying Driving Position Memory Switch
    G06427866
  2. Disconnect the 7P connector (B) from the switch.

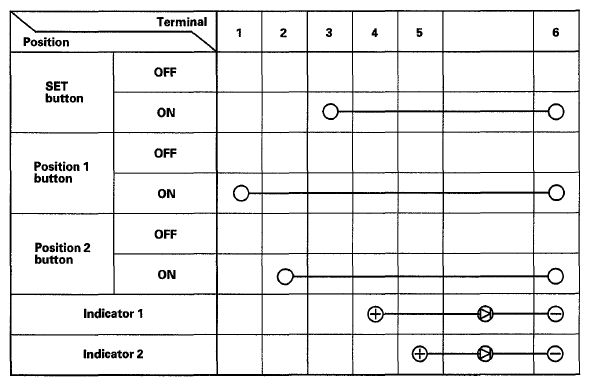

  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Identifying 7P Connector From Switch
    G06427867
  4. If the continuity is not as specified, replace the switch.
