Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

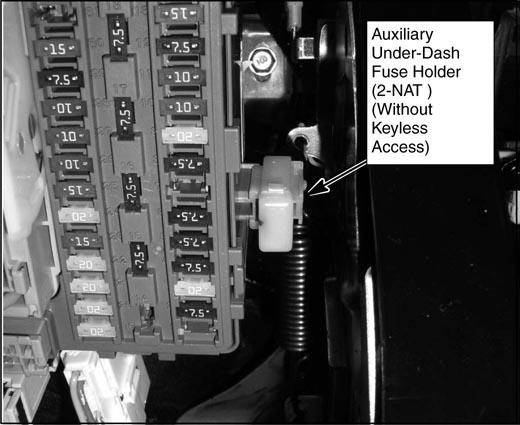

| Auxiliary Under-Dash Fuse Holder | Left kick panel. See Figure. |

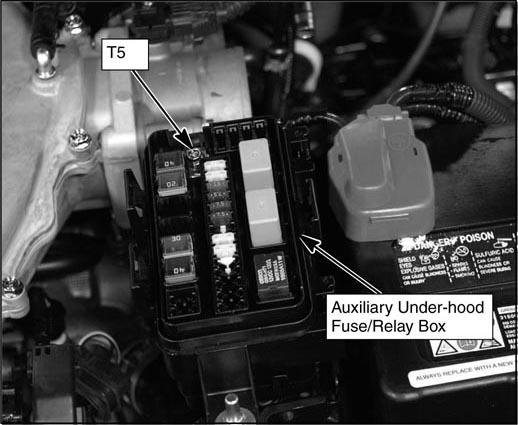

| Auxiliary Under-Hood Fuse/Relay Box | Left side of engine compartment. See Figure. |

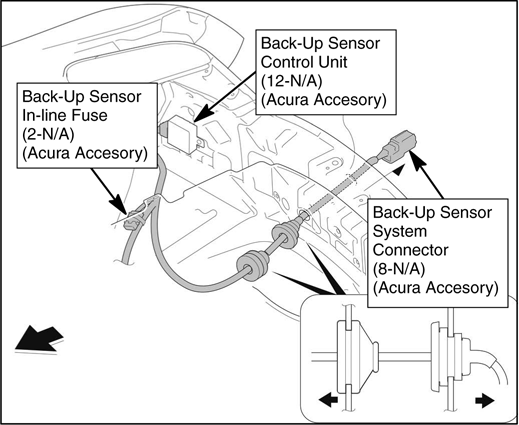

| Back-Up Sensor In-Line Fuse | Right rear of cargo area. See Figure. |

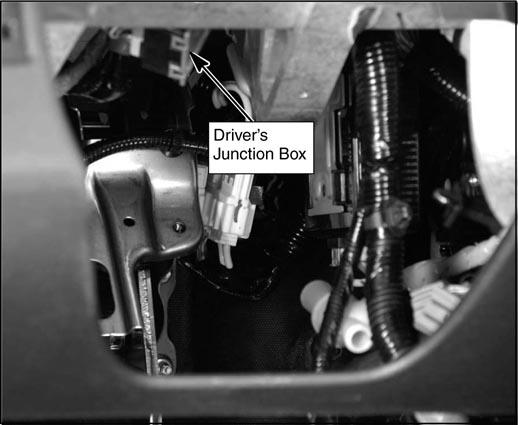

| Junction Box (Driver's) | Left side of dash. See Figure. |

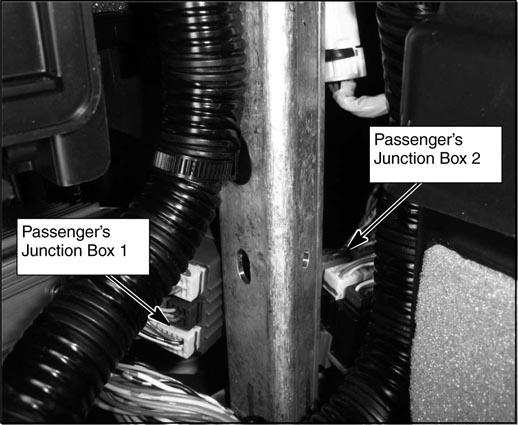

| Junction Box 1 & 2 (Passenger's) | Right side of dash. See Figure. |

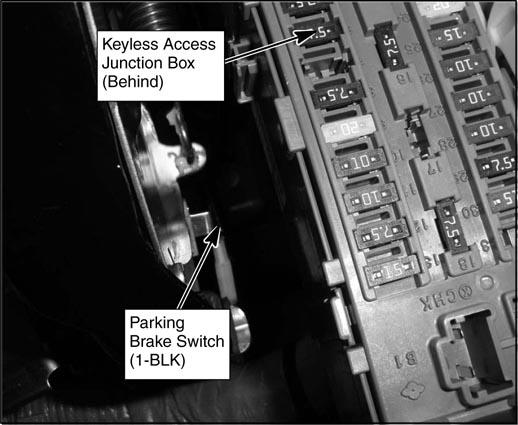

| Keyless Access Junction Box | Left end of dash. See Figure. |

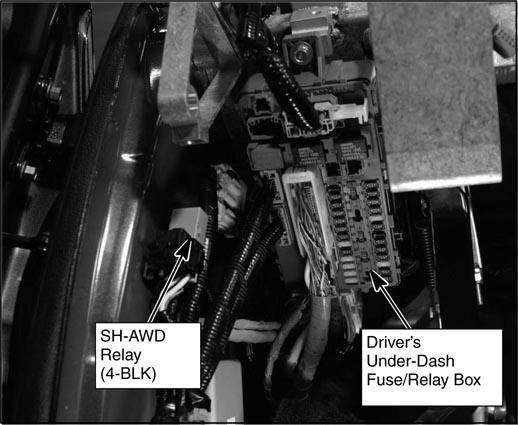

| Under-Dash Fuse/Relay Box (Driver's) | Left side of dash. See Figure. |

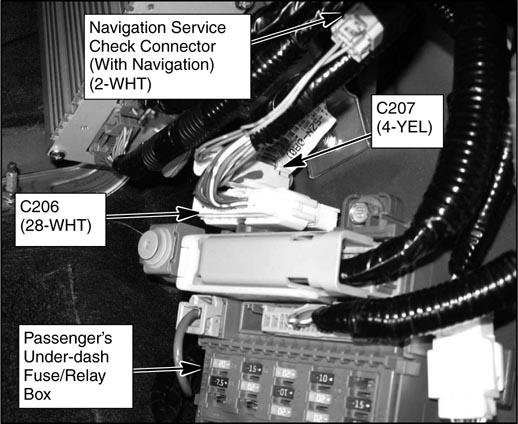

| Under-Dash Fuse/Relay Box (Passenger's) | Right kick panel. See Figure. |

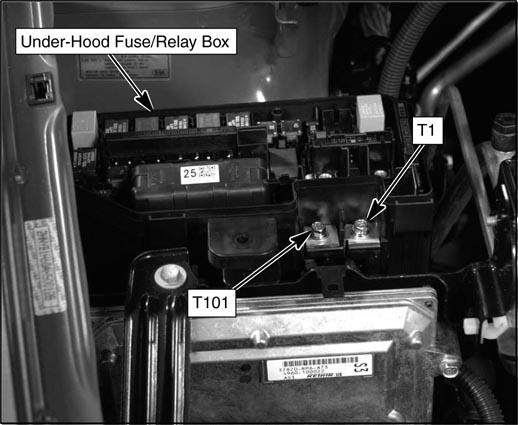

| Under-Hood Fuse/Relay Box | Right side of engine compartment. See Figure. |
