Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Driver's Under-Dash Fuse/Relay Box

G00478961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

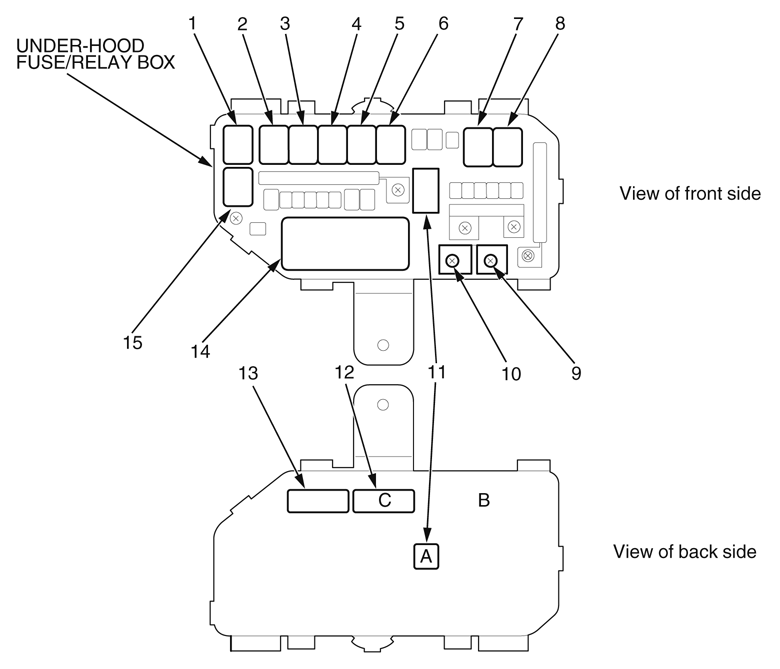

Fig 2: Under-Hood Fuse/Relay Box

G00478962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

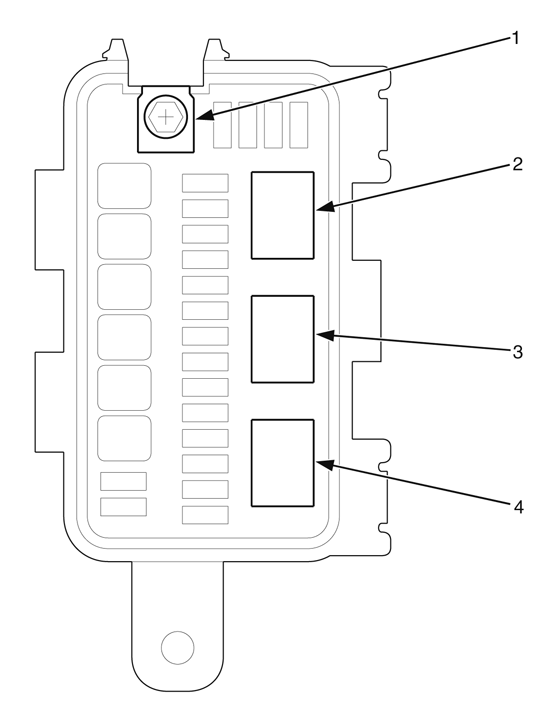

Fig 3: Auxiliary Under-Hood Fuse/Relay Box

G00478963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Left Headlight Assembly

G00478964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

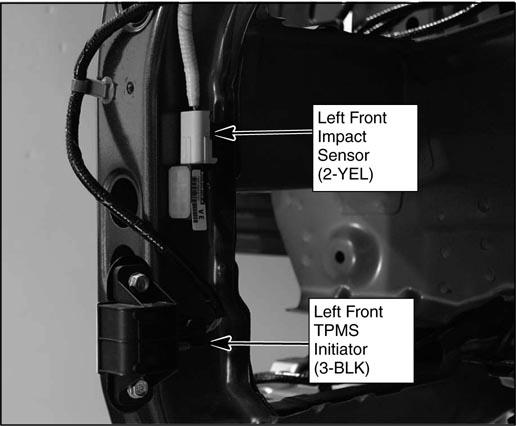

Fig 5: Left Side Of Front Bumper

G00478965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

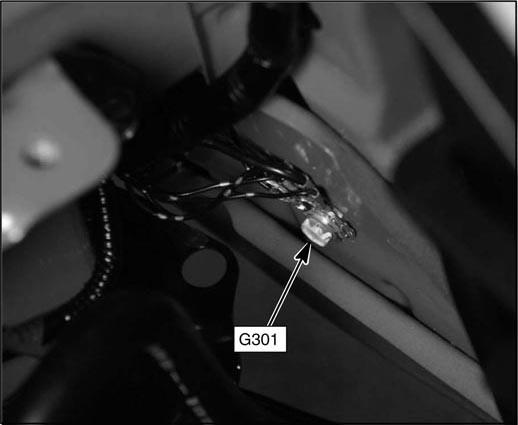

Fig 6: Left Side Of Front Bumper

G00478966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Headlight Assembly

G00478967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

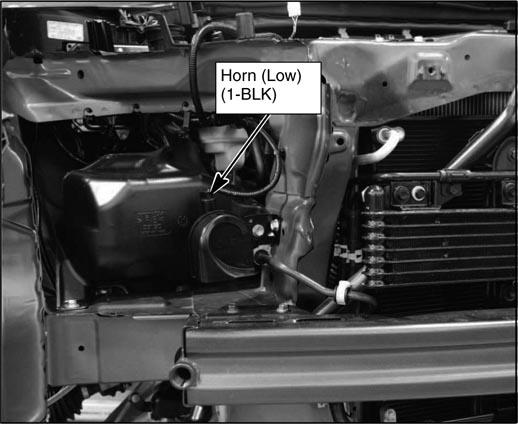

Fig 8: Behind Right Headlight

G00478968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

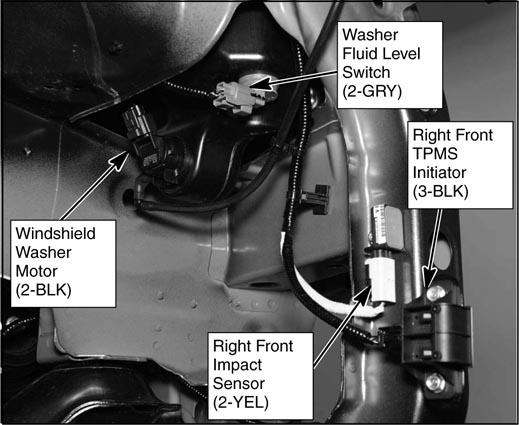

Fig 9: Behind Right Side Of Front Bumper

G00478969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Behind Right Side Of Front Bumper

G00478970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

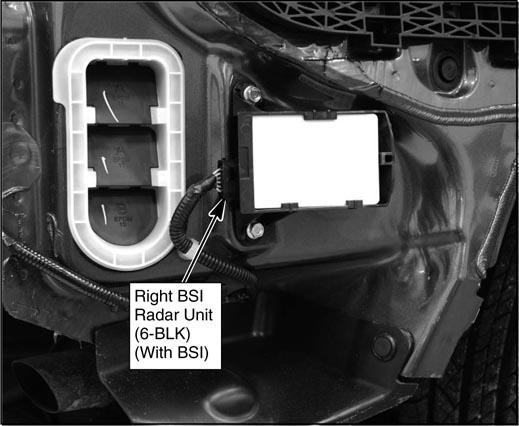

Fig 11: Behind Right Side Of Rear Bumper

G00478971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

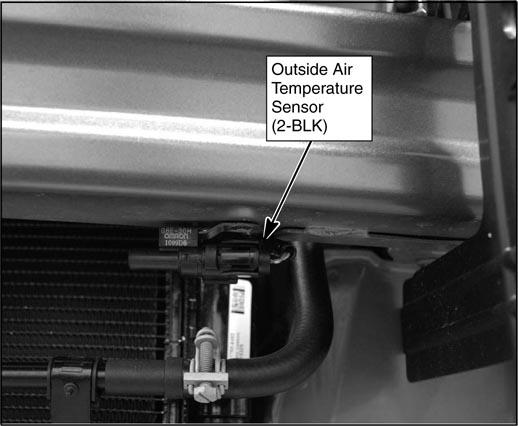

Fig 12: Front Of Engine Compartment

G00478972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

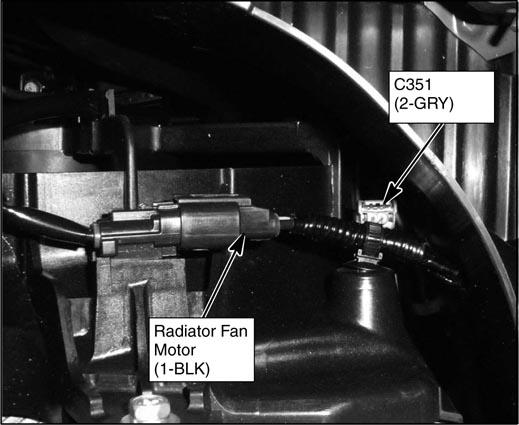

Fig 13: Front Of Engine Compartment

G00478973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

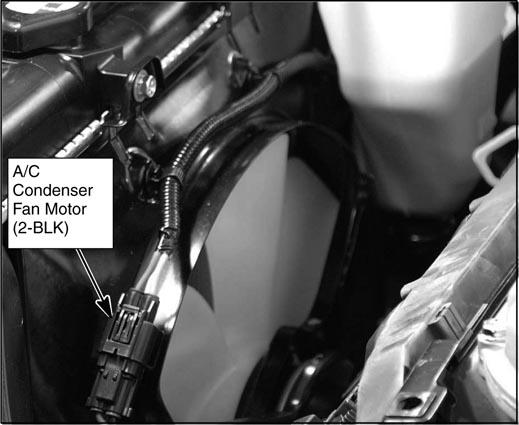

Fig 14: Front Of Engine Compartment

G00478974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

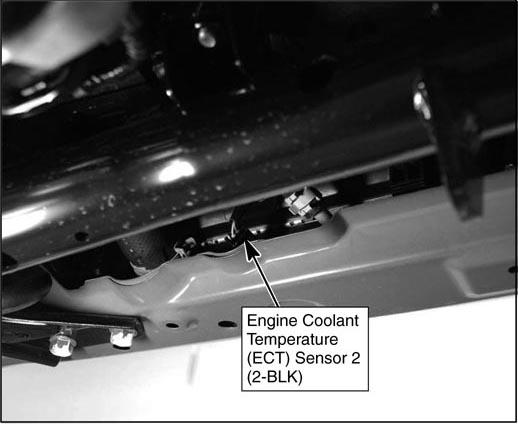

Fig 15: Front Of Engine Compartment

G00478975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

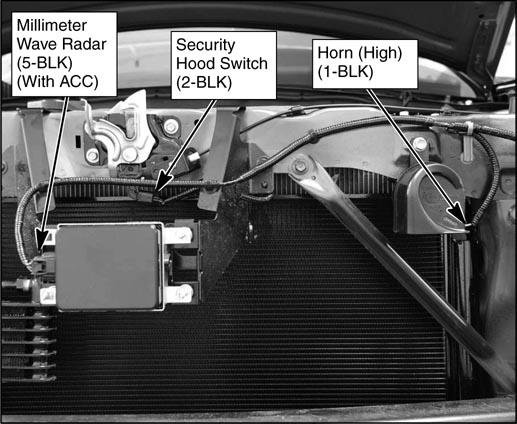

Fig 16: Front Of Engine Compartment

G00478976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

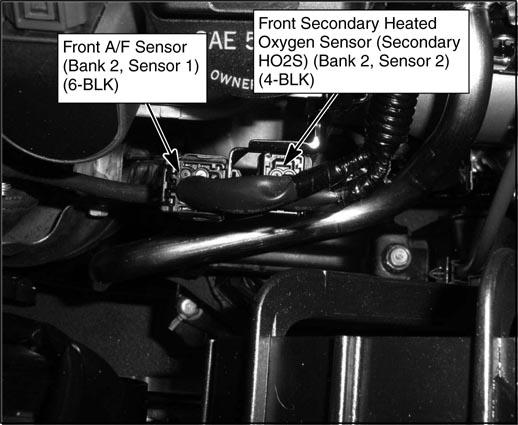

Fig 17: Left Side Of Engine

G00478977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

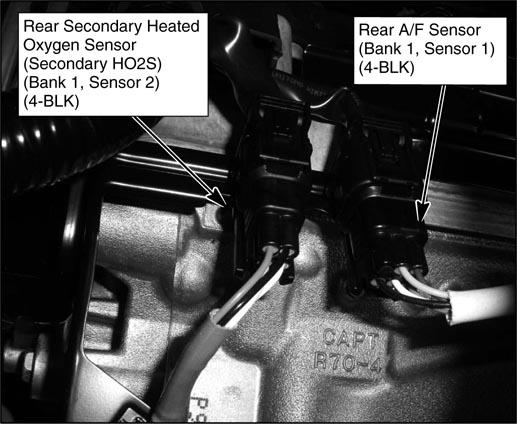

Fig 18: Right Side Of Engine

G00478978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

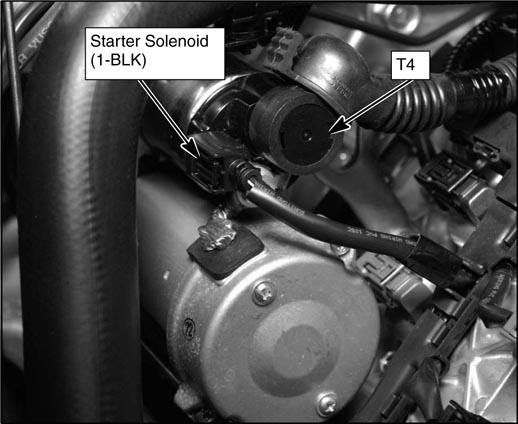

Fig 19: Left Side Of Engine

G00478979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

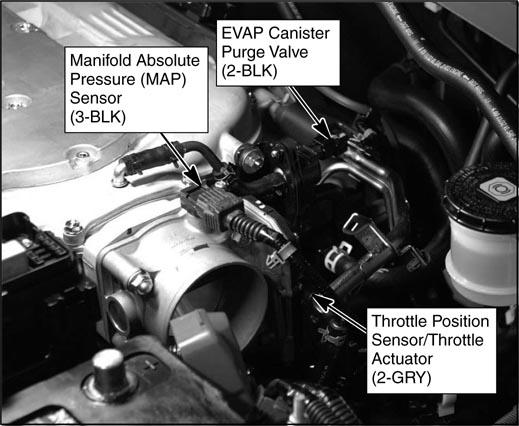

Fig 20: Rear Of Engine

G00478980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

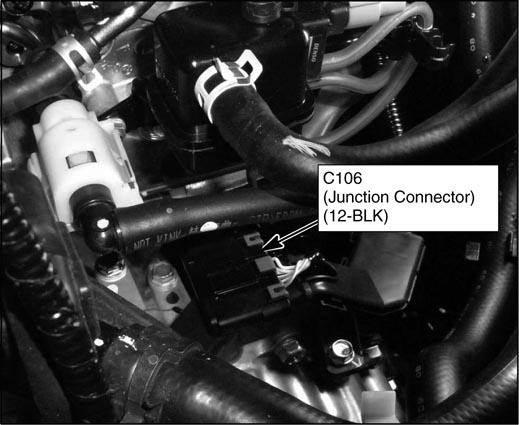

Fig 21: Right Rear Of Engine

G00478981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

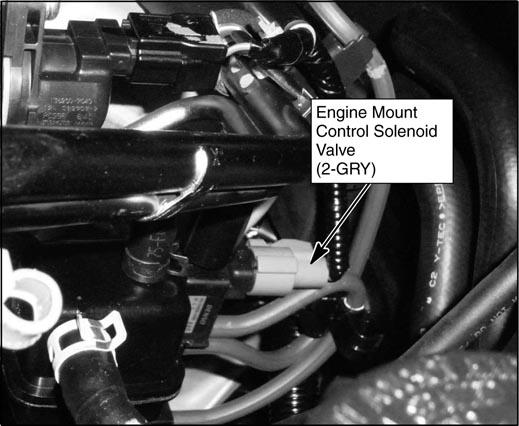

Fig 22: Right Rear Of Engine

G00478982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

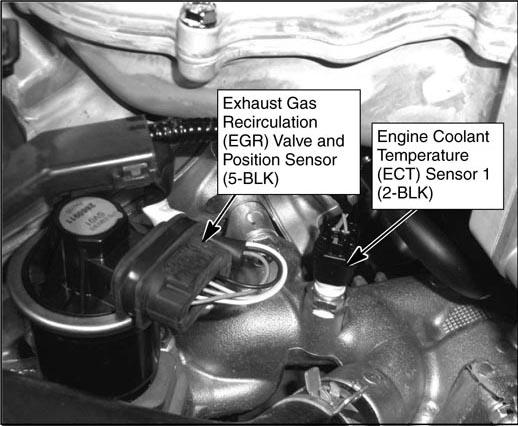

Fig 23: Left Rear Of Engine

G00478983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

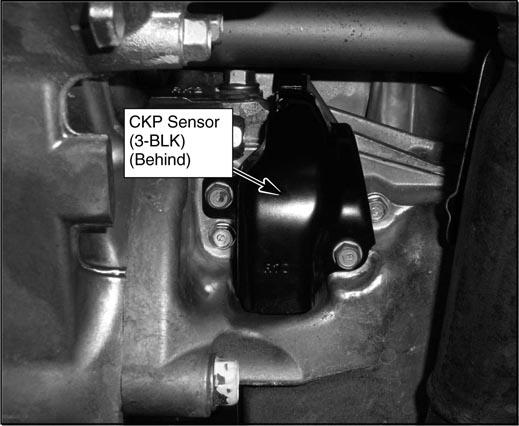

Fig 24: Rear Of Engine

G00478984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

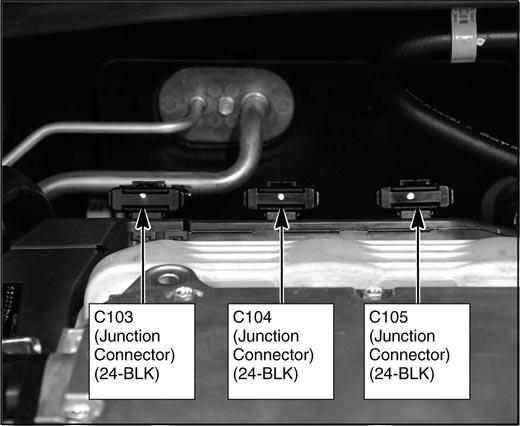

Fig 25: Middle Of Engine

G00478985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

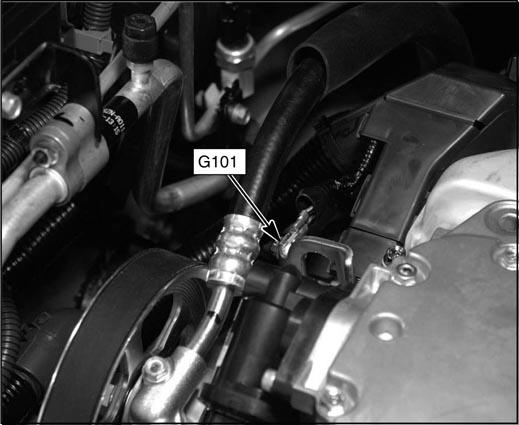

Fig 26: Front Of Engine

G00478986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

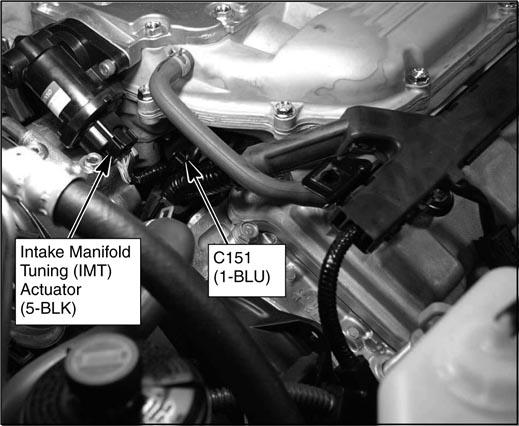

Fig 27: Left Front Of Engine

G00478987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

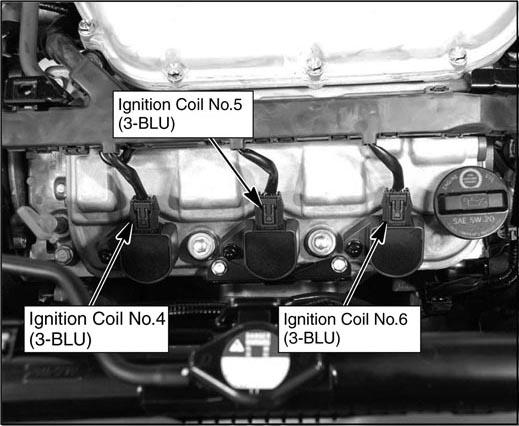

Fig 28: Left Side Of Engine

G00478988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

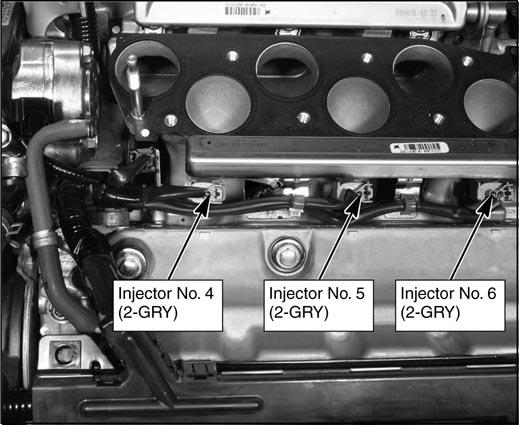

Fig 29: Left Side Of Engine

G00478989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

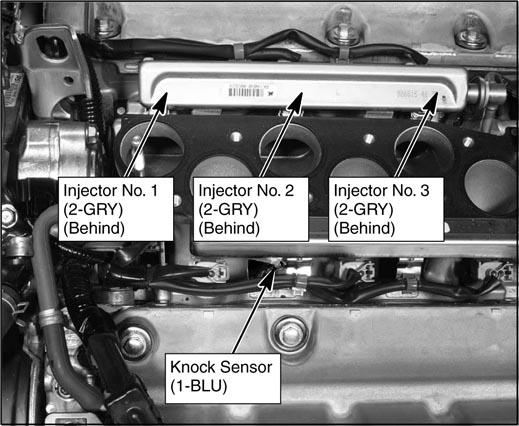

Fig 30: Right Side Of Engine

G00478990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

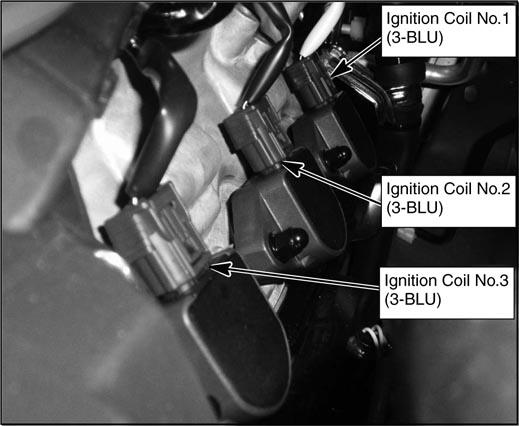

Fig 31: Right Side Of Engine

G00478991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

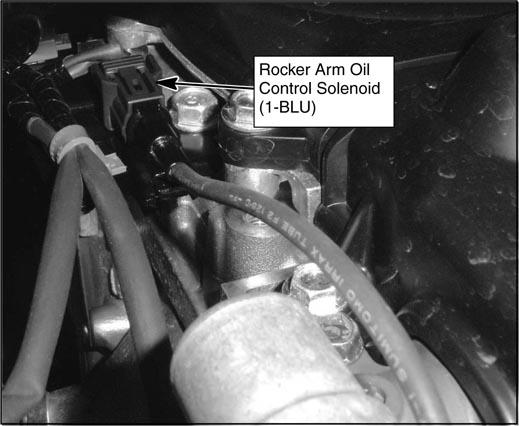

Fig 32: Front Of Engine

G00478992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

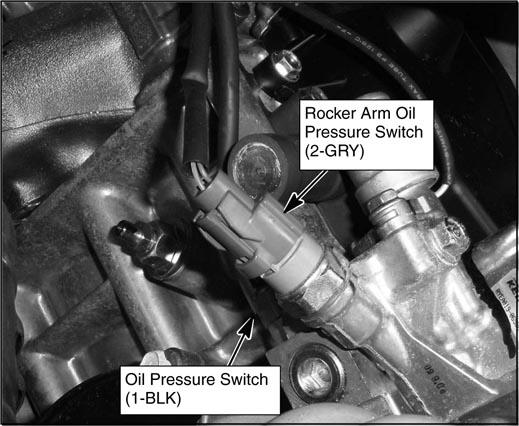

Fig 33: Front Of Engine

G00478993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

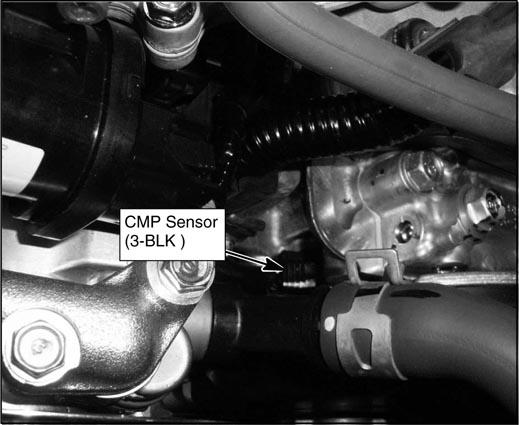

Fig 34: Left Front Of Engine

G00478994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

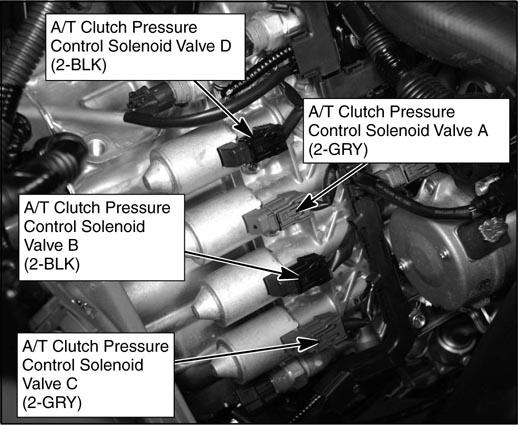

Fig 35: Transmission Housing

G00478995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

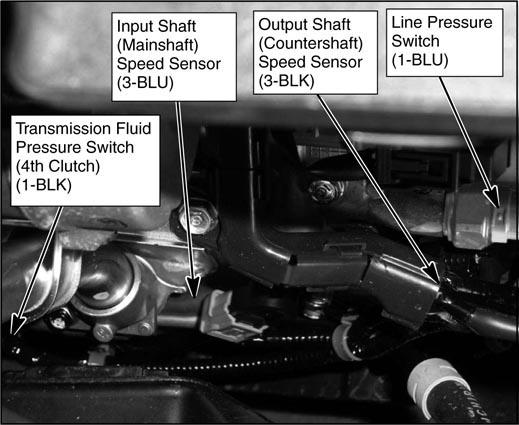

Fig 36: Transmission Housing

G00478996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

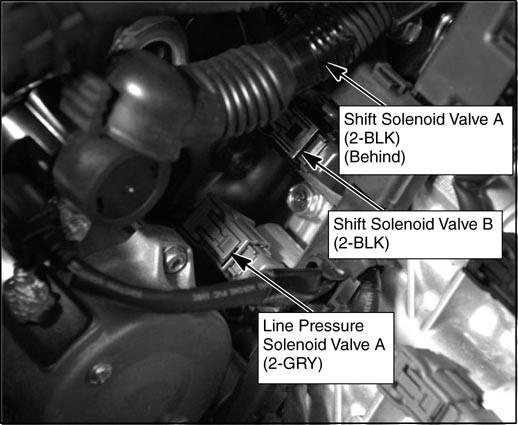

Fig 37: Transmission Housing

G00478997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

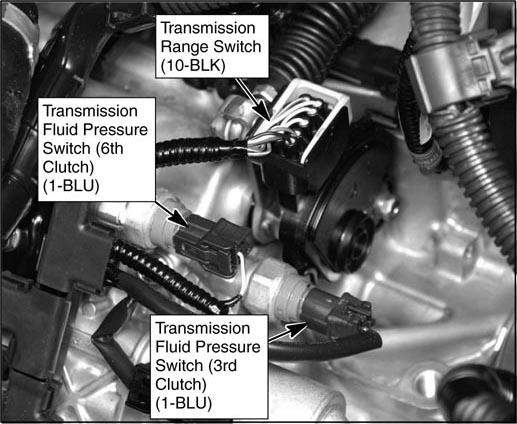

Fig 38: Transmission Housing

G00478998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

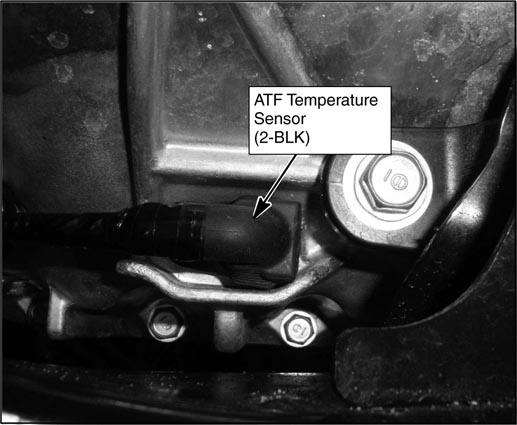

Fig 39: Transmission Housing

G00478999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

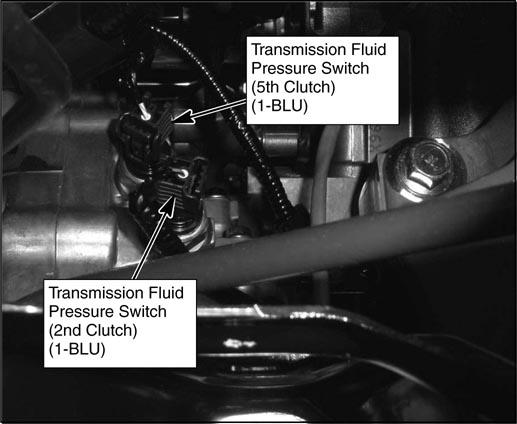

Fig 40: Transmission Housing

G00479000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

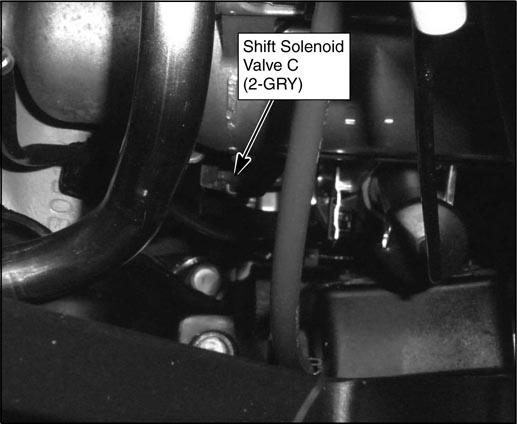

Fig 41: Transmission Housing

G00479001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

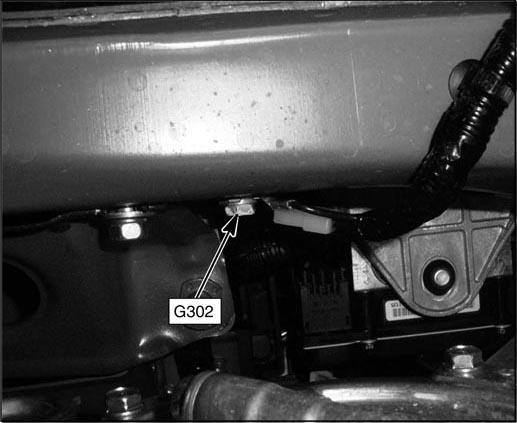

Fig 42: Left Side Of Engine Compartment

G00479002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

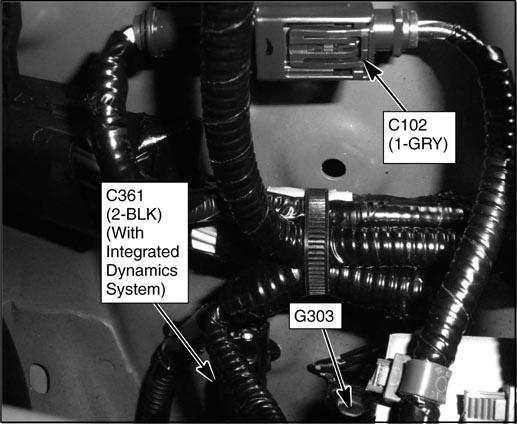

Fig 43: Left Side Of Engine Compartment

G00479003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Left Rear Of Engine Compartment

G00479004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

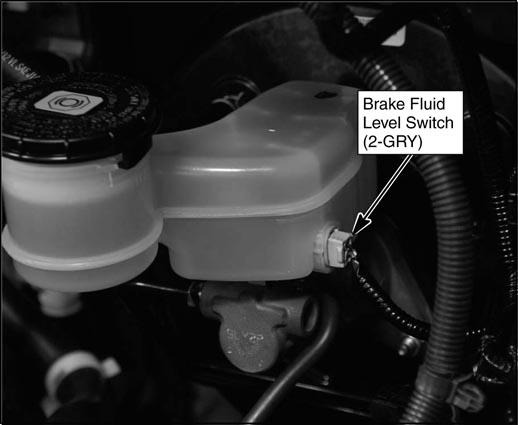

Fig 45: Left Rear Of Engine Compartment

G00479005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Left Side Of Engine Compartment

G00479006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

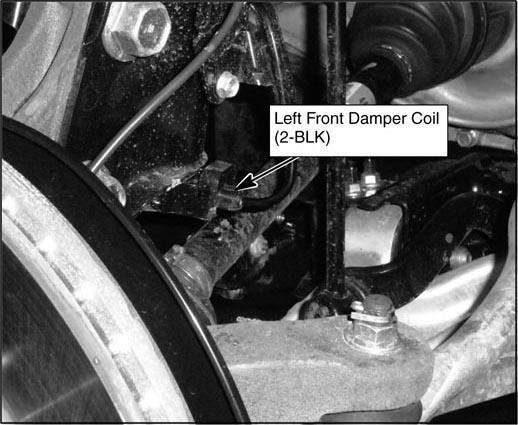

Fig 47: Left Side Of Engine Compartment

G00479007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

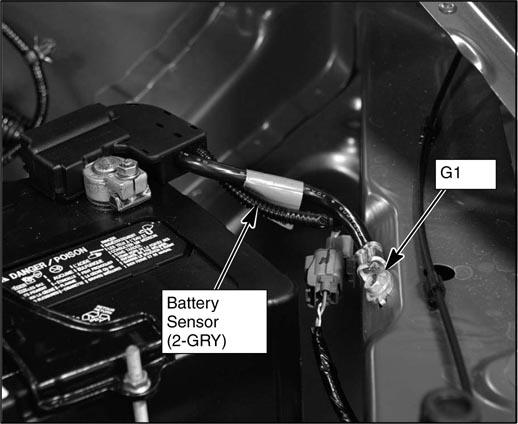

Fig 48: Left Side Of Engine Compartment

G00479008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Left Side Of Engine Compartment

G00479009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

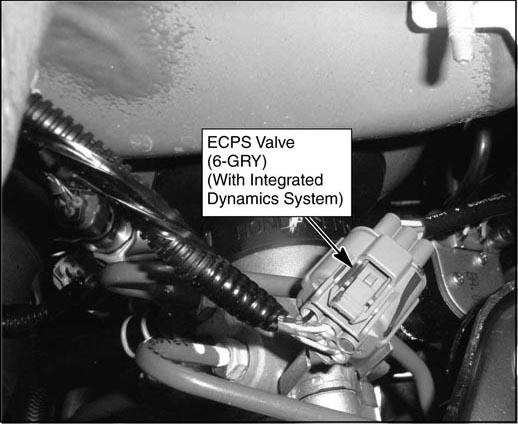

Fig 50: Left Side Of Engine Compartment

G00479010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

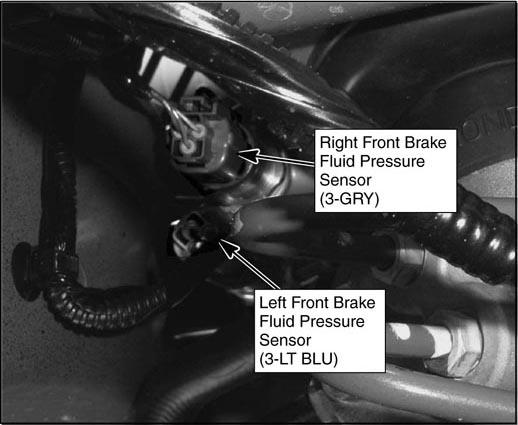

Fig 51: Left Side Of Engine Compartment

G00479011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

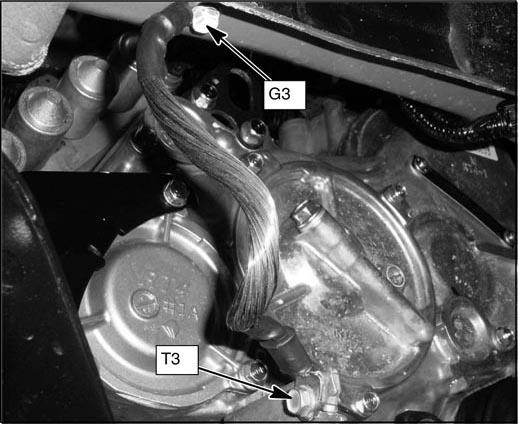

Fig 52: Left Side Of Engine Compartment

G00479012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

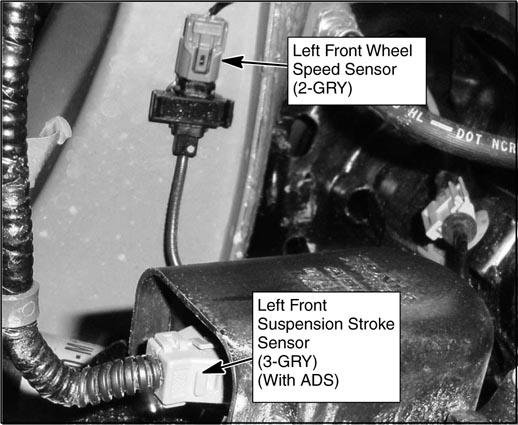

Fig 53: Left Side Of Engine Compartment

G00479013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

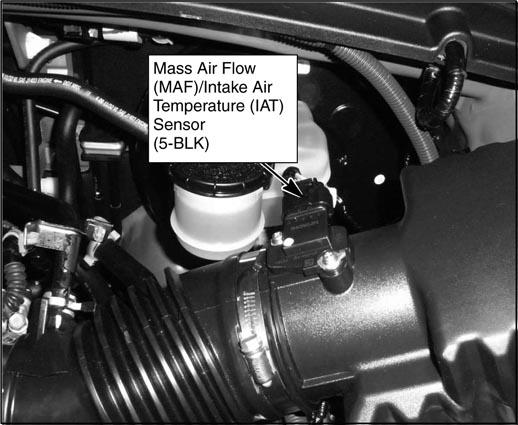

Fig 54: Left Side Of Engine Compartment

G00479014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

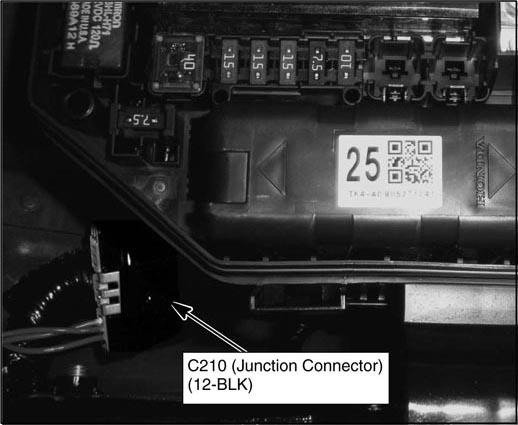

Fig 55: Right Side Of Engine Compartment

G00479015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

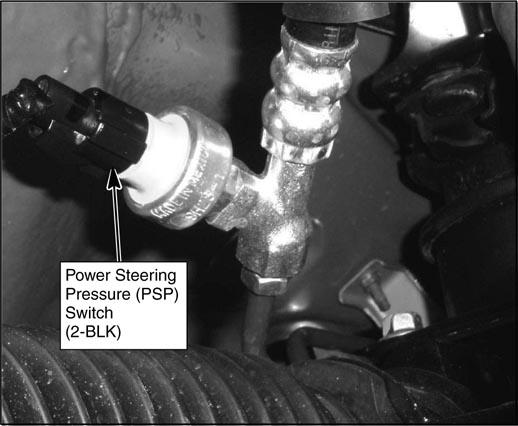

Fig 56: Right Side Of Engine Compartment

G00479016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

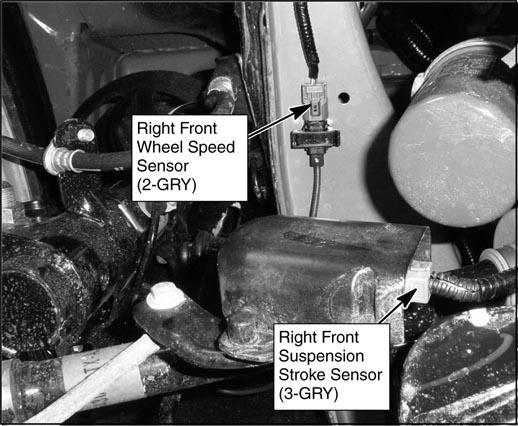

Fig 57: Right Side Of Engine Compartment

G00479017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Right Side Of Engine Compartment

G00479018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

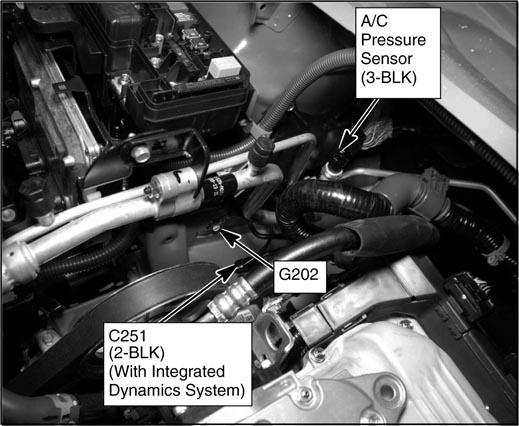

Fig 59: Right Side Of Engine Compartment

G00479019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

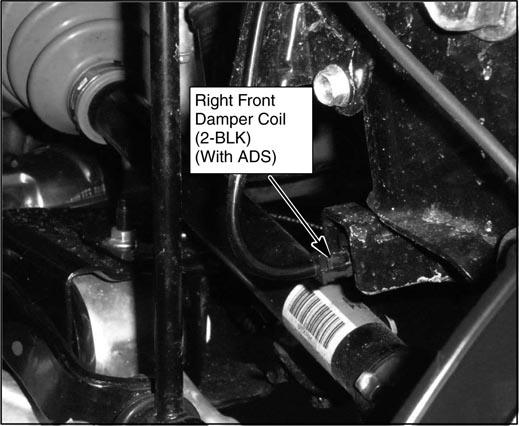

Fig 60: Right Side Of Engine Compartment

G00479020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

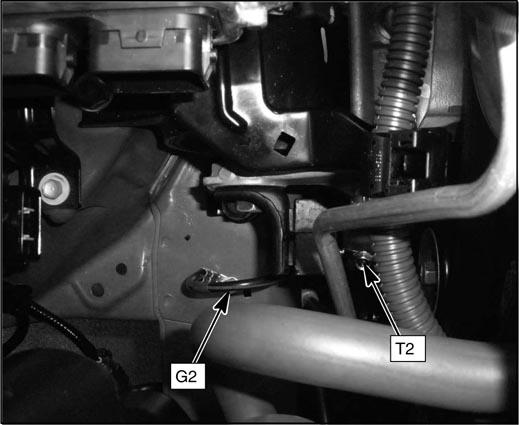

Fig 61: Front Of Engine

G00479021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

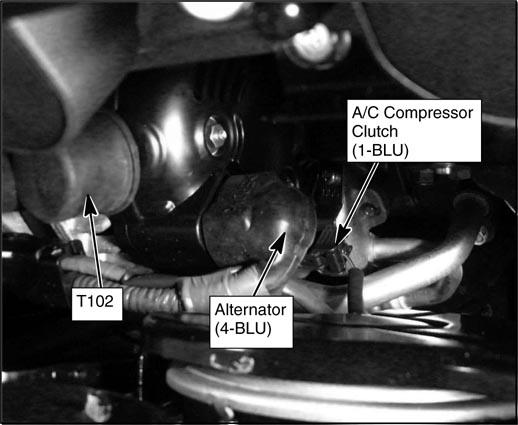

Fig 62: Lower Left Front Of Engine

G00479022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Right Side Of Engine Compartment

G00479023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Left Side Of Dash

G00479024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

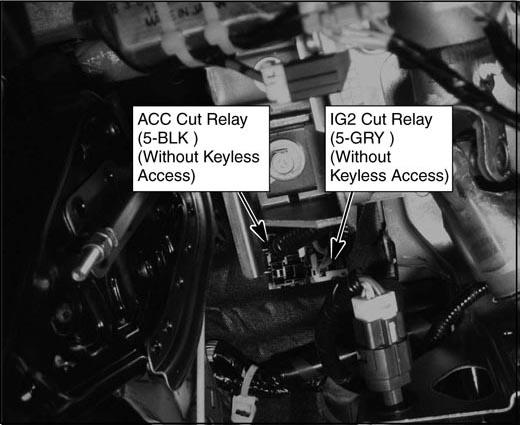

Fig 65: Left Side Of Dash

G00479025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

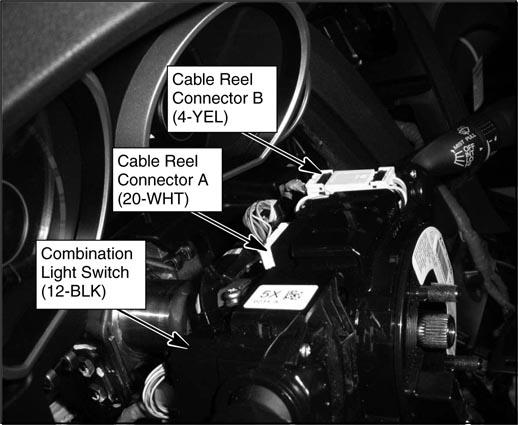

Fig 66: Steering Column

G00479026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

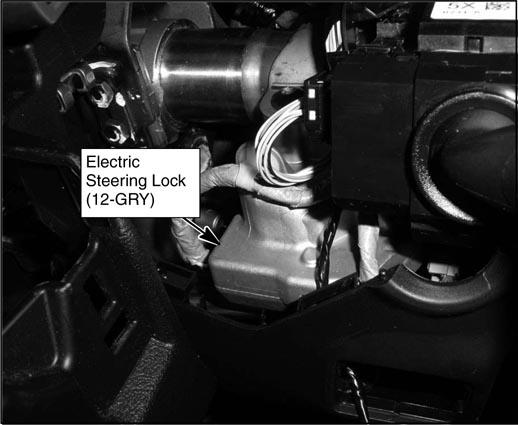

Fig 67: Steering Column

G00479027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

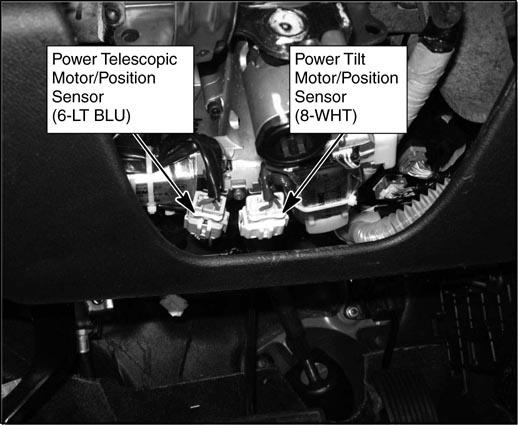

Fig 68: Steering Column

G00479028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

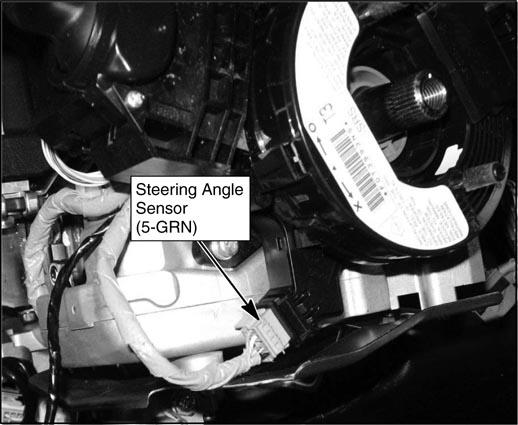

Fig 69: Steering Column

G00479029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Steering Column

G00479030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

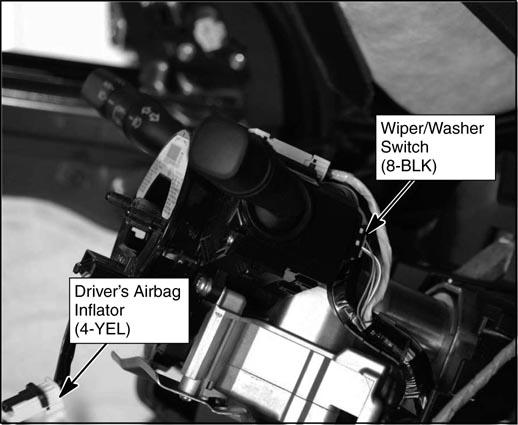

Fig 71: Steering Column

G00479031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

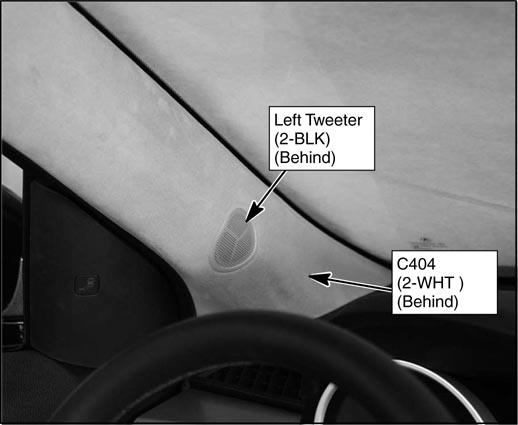

Fig 72: Left "A" Pillar

G00479032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Left Side Of Dash

G00479033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

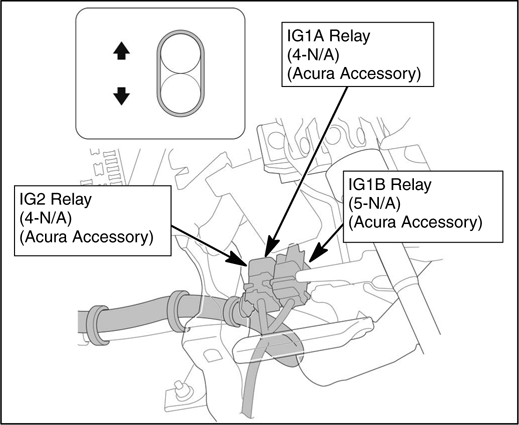

Fig 74: Left Side Of Dash

G00479034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

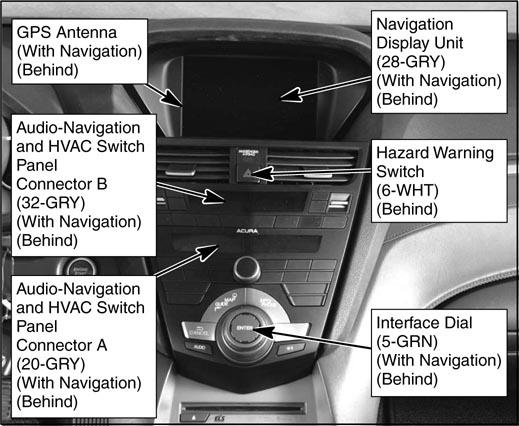

Fig 75: Middle Of Dash

G00479035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

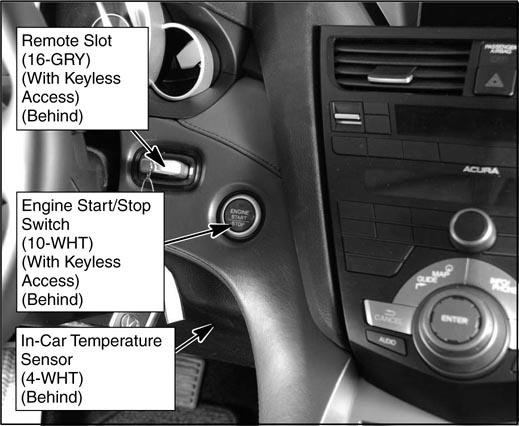

Fig 76: Middle Of Dash

G00479036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

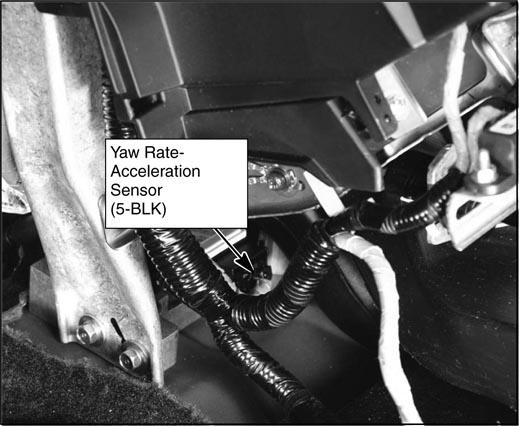

Fig 77: Middle Of Dash

G00479037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

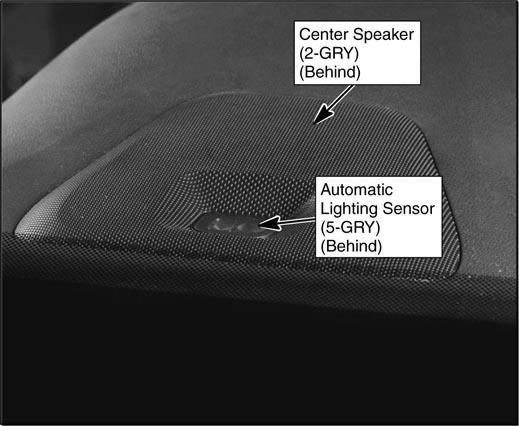

Fig 78: Top Center Of Dash

G00479038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

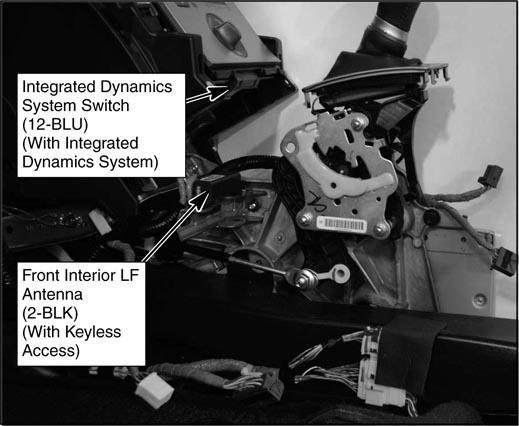

Fig 79: Middle Of Dash

G00479039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

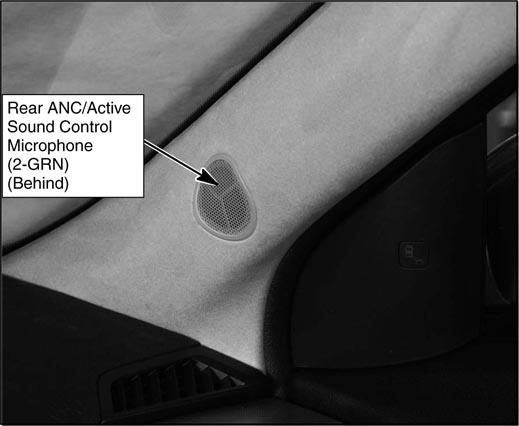

Fig 80: Right "A" Pillar

G00479040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

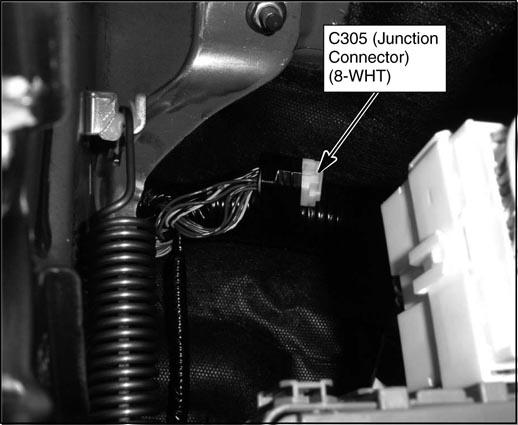

Fig 81: Left Side Of Dash

G00479041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Left Side Of Dash

G00479042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

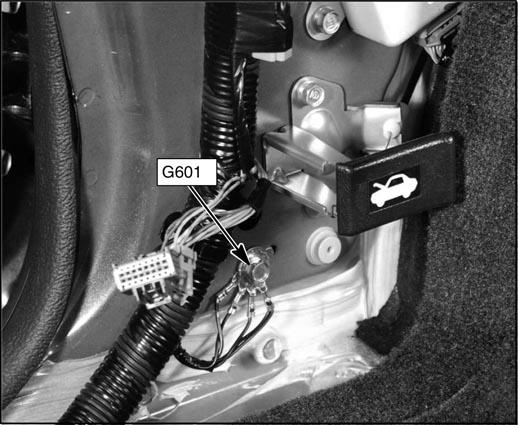

Fig 83: Left Kick Panel

G00479043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Left Kick Panel

G00479044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

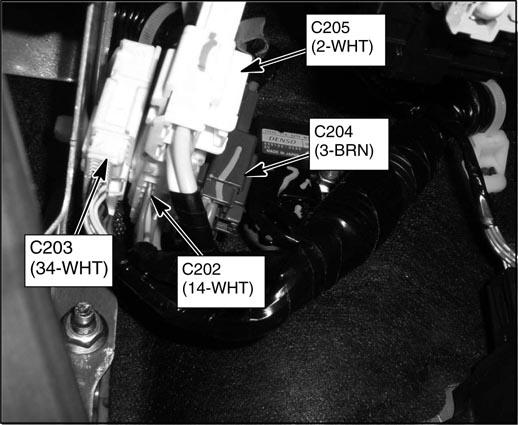

Fig 85: Left End Of Dash

G00479045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

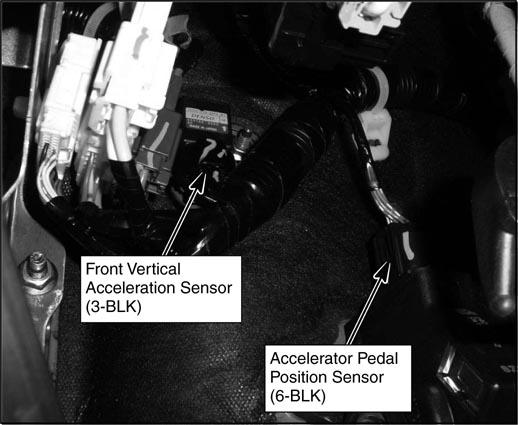

Fig 86: Left Side Of Dash

G00479046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Left Side Of Dash

G00479047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Left End Of Dash

G00479048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

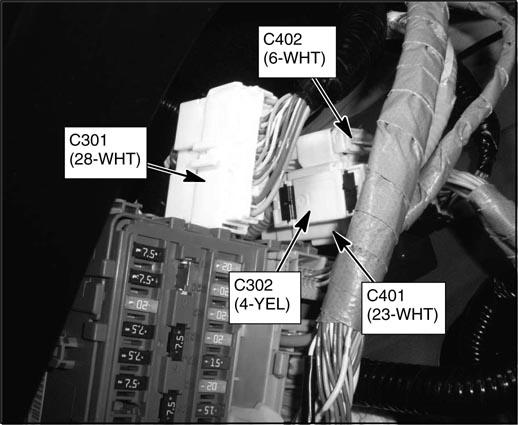

Fig 89: Left Side Of Dash

G00479049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Left Kick Panel

G00479050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

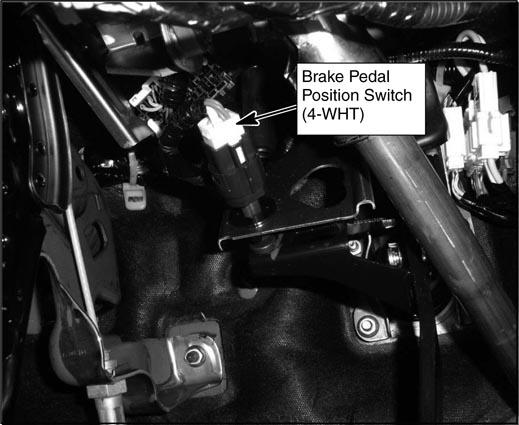

Fig 91: Left Side Of Dash

G00479051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Left Side Of Dash

G00479052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

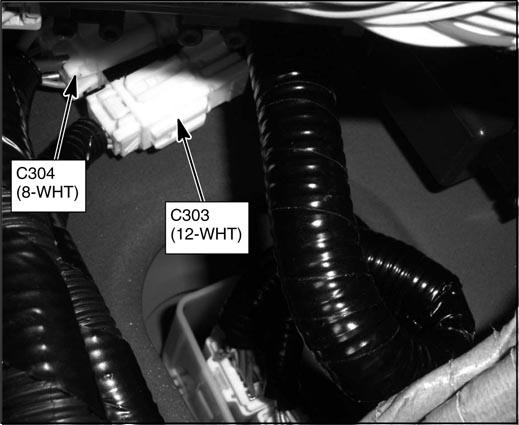

Fig 93: Left Side Of Dash

G00479053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Left Side Of Dash

G00479054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

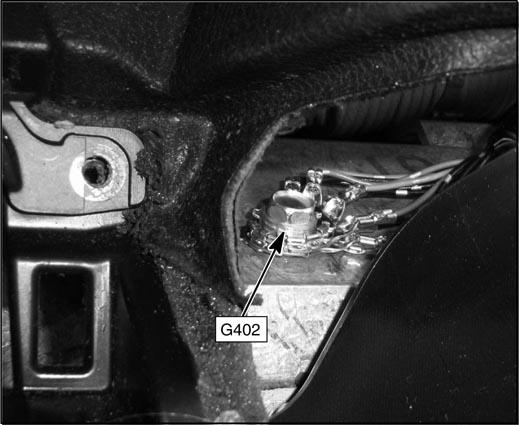

Fig 95: Left Side Of Dash

G00479055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Left Side Of Dash

G00479056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Left Kick Panel

G00479057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

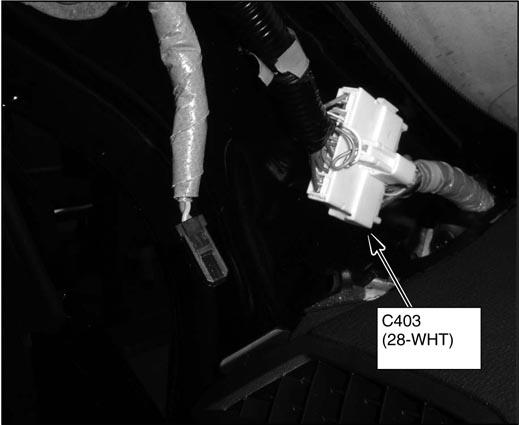

Fig 98: Left Side Of Dash

G00479058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Left Side Of Dash

G00479059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

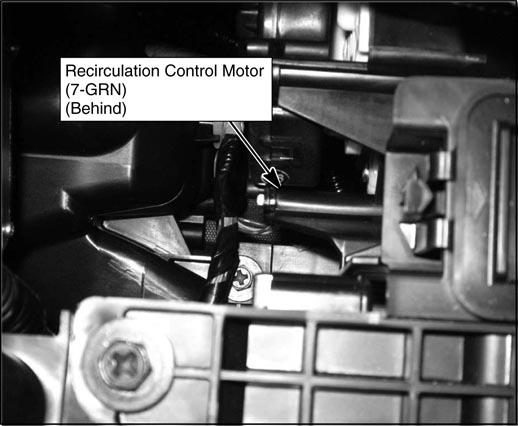

Fig 100: Middle Of Dash

G00479060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Middle Of Dash

G00479061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Middle Of Dash

G00479062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

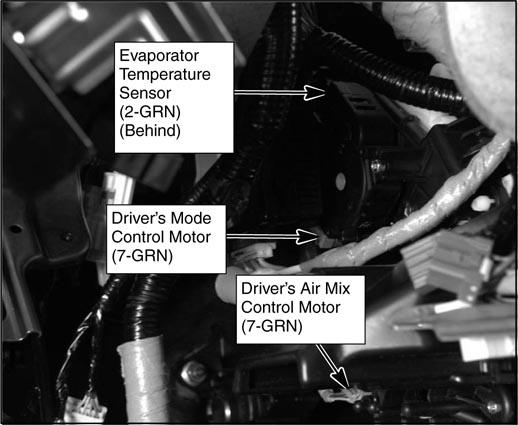

Fig 103: Middle Of Dash

G00479063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

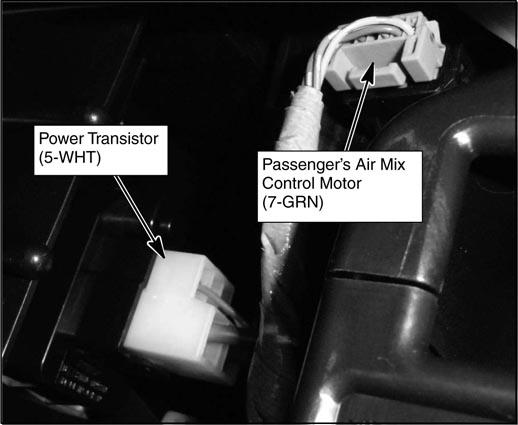

Fig 104: Middle Of Dash

G00479065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Center Console

G00479066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

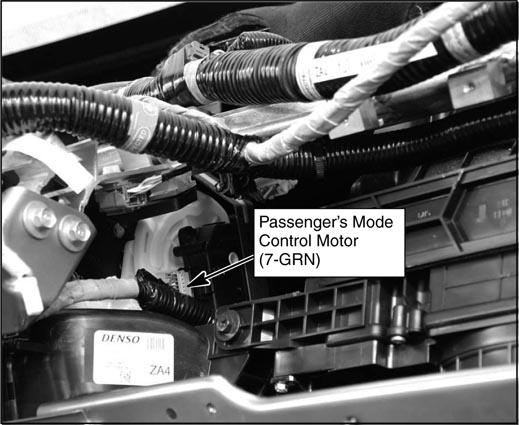

Fig 106: Middle Of Dash

G00479067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Middle Of Dash

G00479068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Right Kick Panel

G00479069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

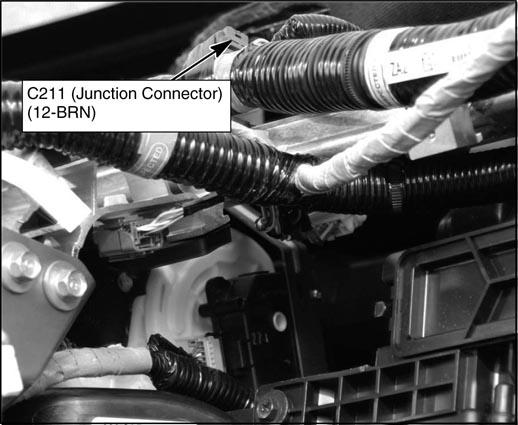

Fig 109: Right Side Of Dash

G00479070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

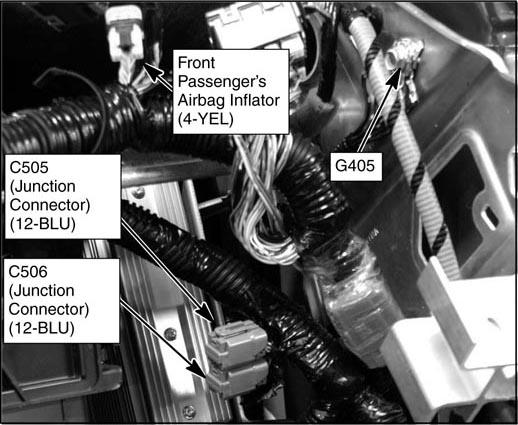

Fig 110: Right Side Of Dash

G00479071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

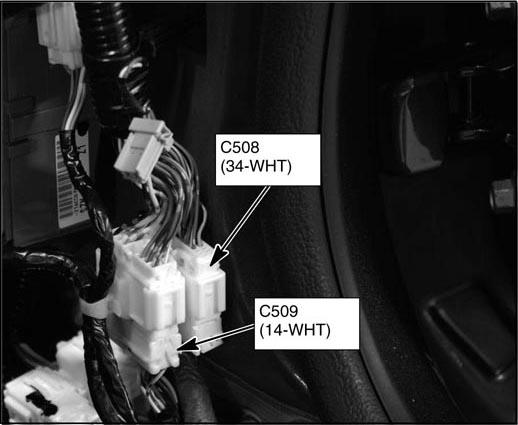

Fig 111: Right Kick Panel

G00479072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

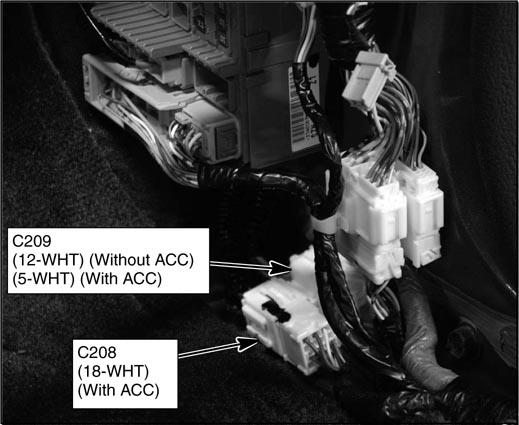

Fig 112: Right Kick Panel

G00479073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

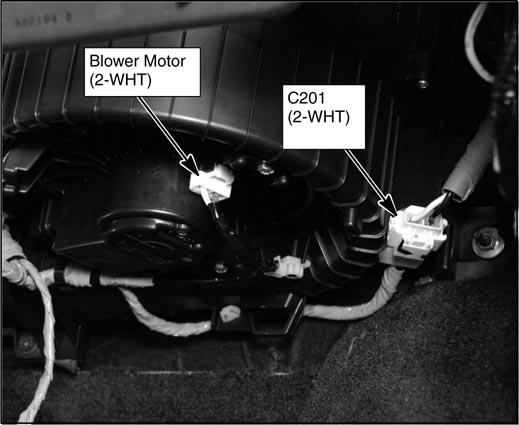

Fig 113: Right Side Of Dash

G00479074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

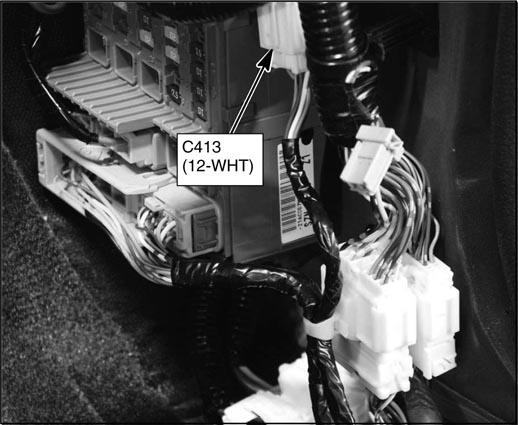

Fig 114: Right Kick Panel

G00479075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

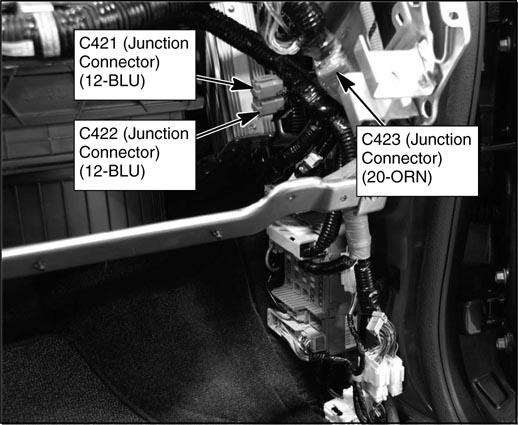

Fig 115: Right Kick Panel

G00479076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

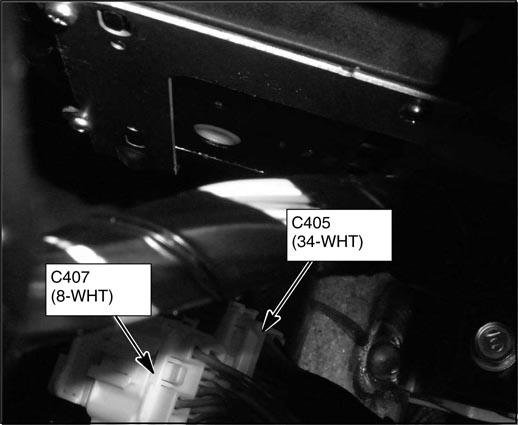

Fig 116: Right Side Of Dash

G00479077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Right Side Of Dash

G00479078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

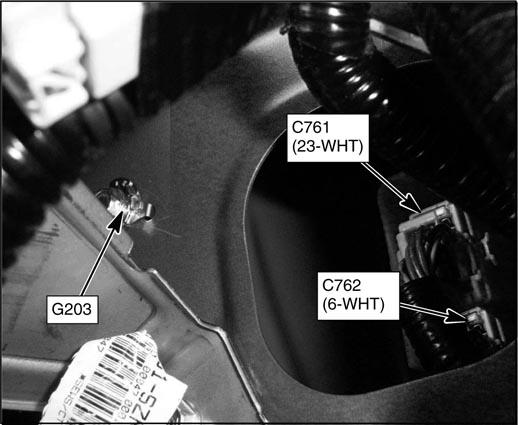

Fig 118: Right End Of Dash

G00479079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

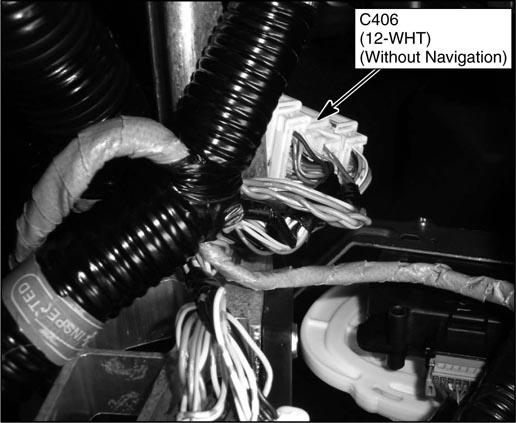

Fig 119: Right Side Of Dash

G00479080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

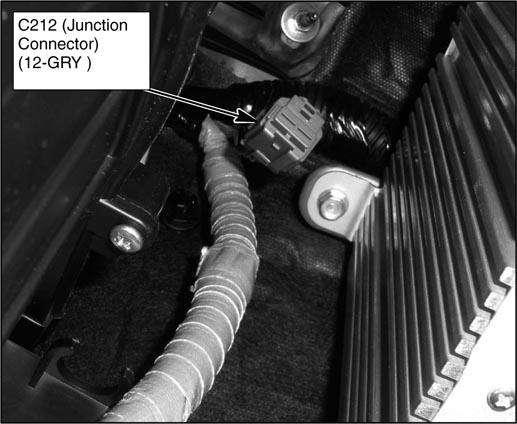

Fig 120: Right Side Of Dash

G00479081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

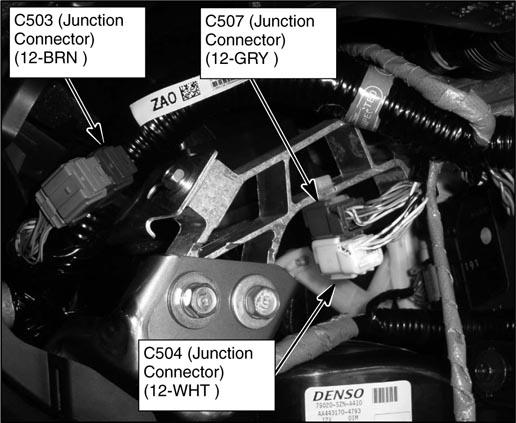

Fig 121: Right Side Of Dash

G00479082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

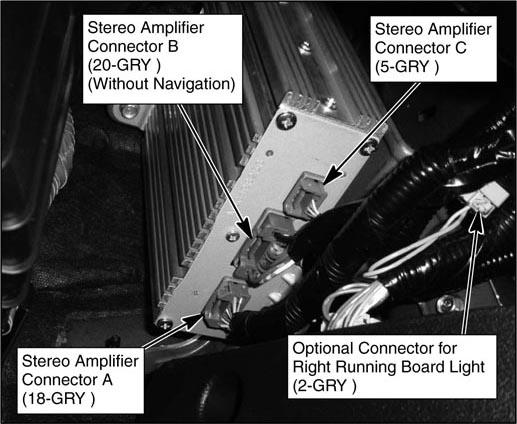

Fig 122: Right Side Of Dash

G00479083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

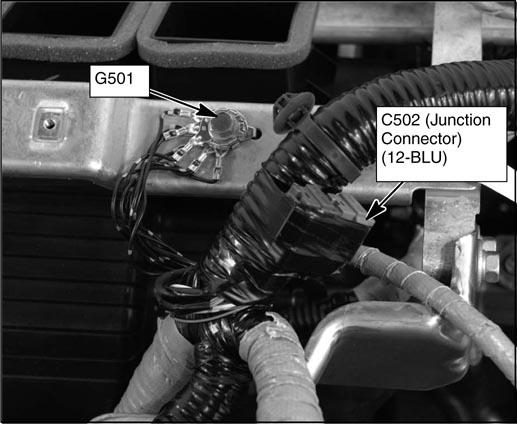

Fig 123: Right Side Of Dash

G00479084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

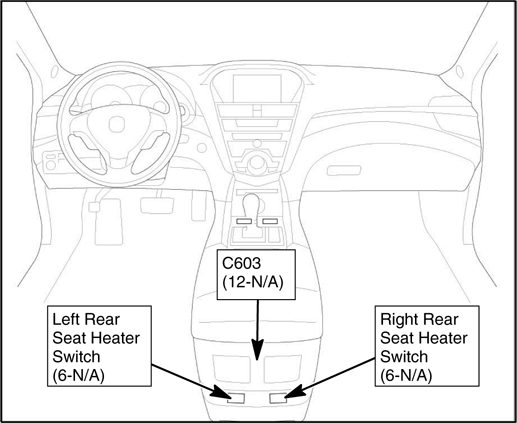

Fig 124: Rear Of Center Console

G00479085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Under Center Console

G00479086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

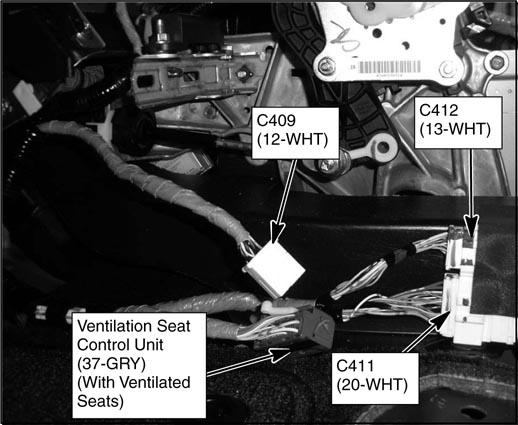

Fig 126: Under Center Console

G00479087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Under Center Console

G00476270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

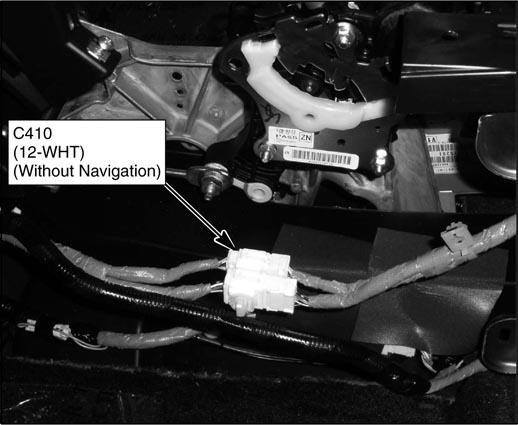

Fig 128: Under Center Console

G00476271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Under Center Console

G00476272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

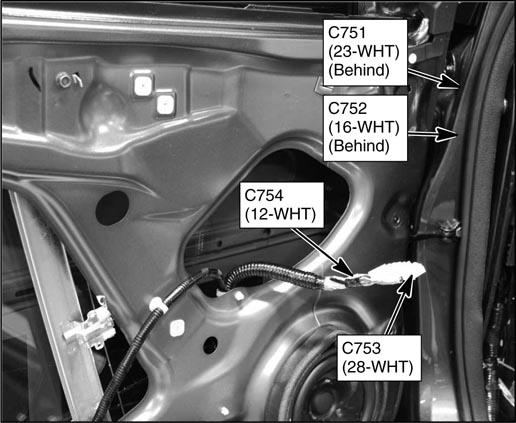

Fig 130: Driver's Door

G00476273

Courtesy of AMERICAN HONDA MOTOR CO., INC.

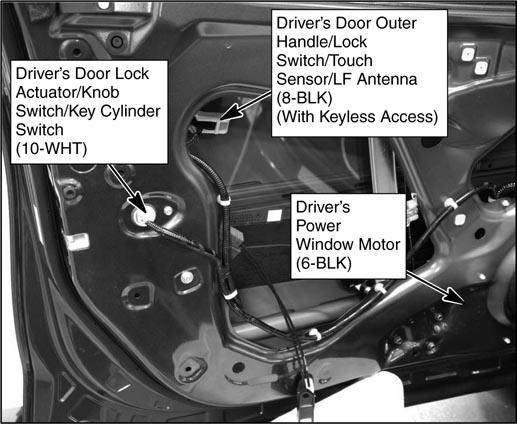

Fig 131: Driver's Door

G00476274

Courtesy of AMERICAN HONDA MOTOR CO., INC.

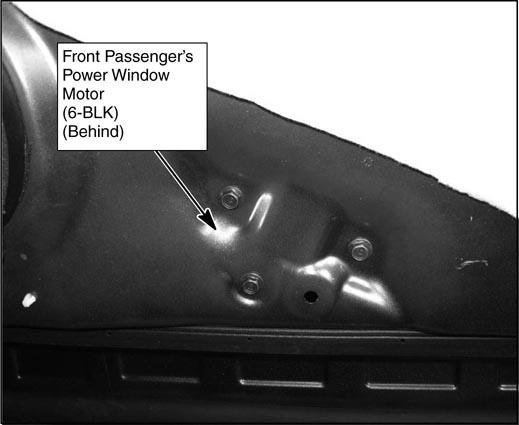

Fig 132: Front Passenger's Door

G00476275

Courtesy of AMERICAN HONDA MOTOR CO., INC.

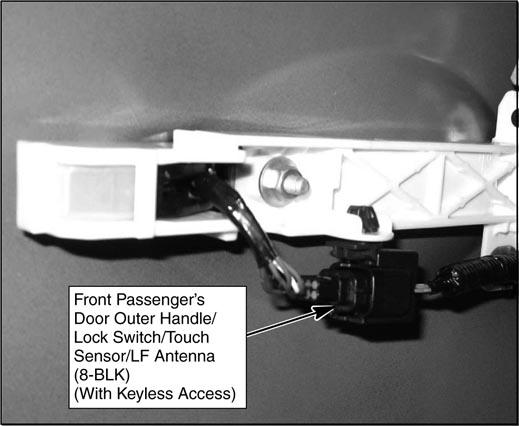

Fig 133: Front Passenger's Door

G00476276

Courtesy of AMERICAN HONDA MOTOR CO., INC.

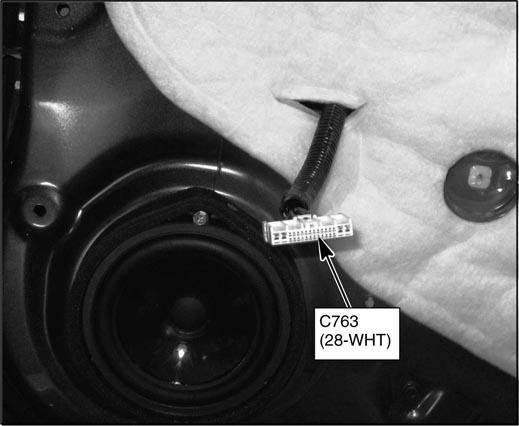

Fig 134: Front Passenger's Door

G00476277

Courtesy of AMERICAN HONDA MOTOR CO., INC.

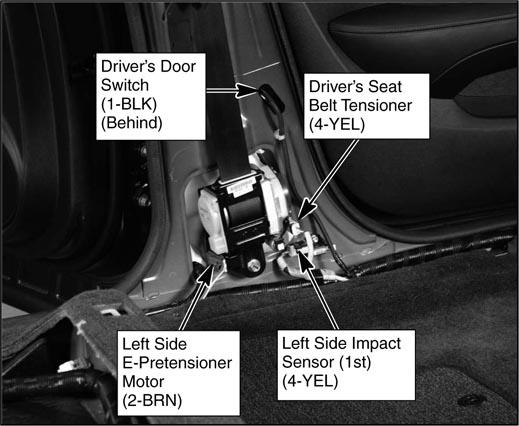

Fig 135: Left "B" Pillar

G00476278

Courtesy of AMERICAN HONDA MOTOR CO., INC.

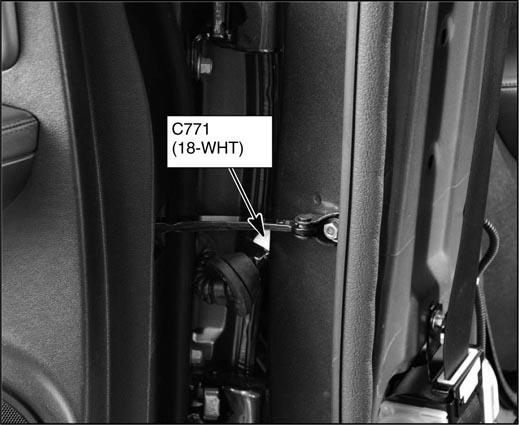

Fig 136: Left "B" Pillar

G00476279

Courtesy of AMERICAN HONDA MOTOR CO., INC.

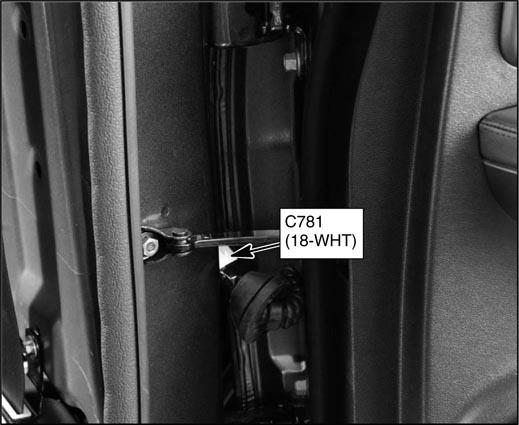

Fig 137: Right "B" Pillar

G00476280

Courtesy of AMERICAN HONDA MOTOR CO., INC.

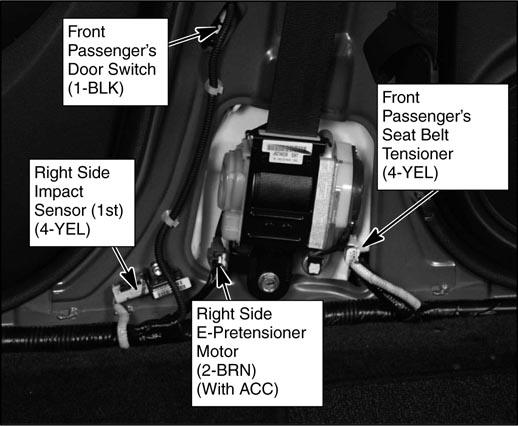

Fig 138: Right "B" Pillar

G00476281

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Left "C" Pillar

G00476282

Courtesy of AMERICAN HONDA MOTOR CO., INC.

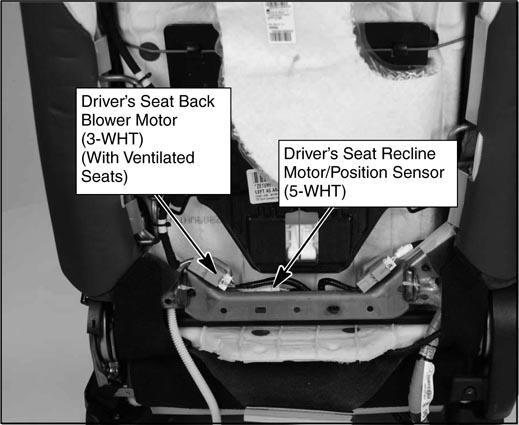

Fig 140: Driver's Seat Back

G00476283

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Front Passenger's Seat Back

G00476284

Courtesy of AMERICAN HONDA MOTOR CO., INC.

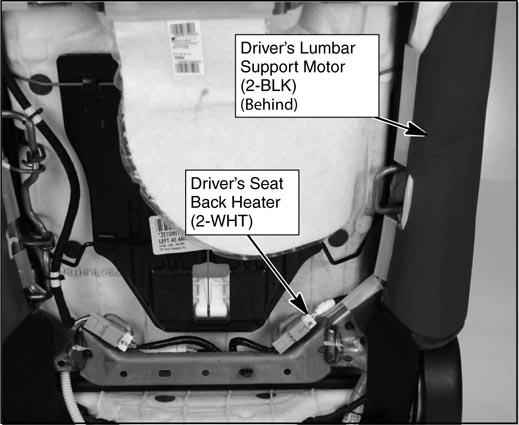

Fig 142: Driver's Seat Back

G00476285

Courtesy of AMERICAN HONDA MOTOR CO., INC.

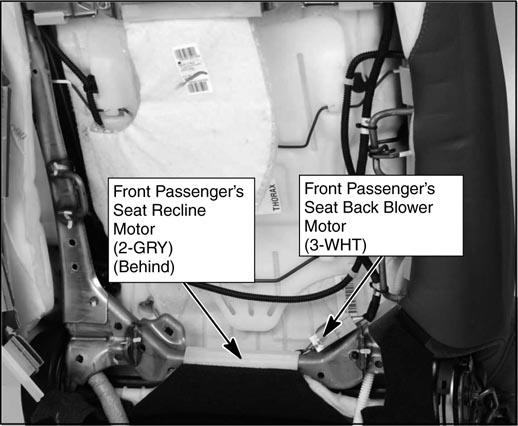

Fig 143: Front Passenger's Seat Back

G00476286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 144: Under Driver's Seat

G00476287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

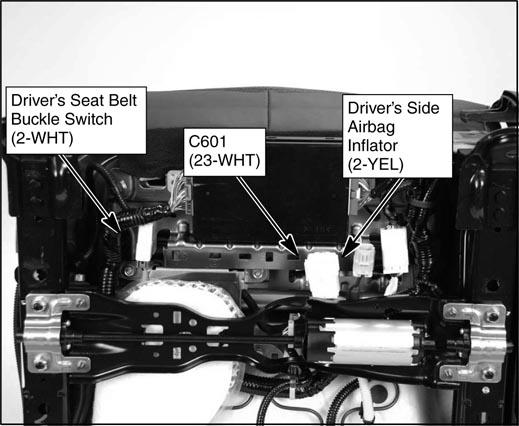

Fig 145: Under Driver's Seat

G00476288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

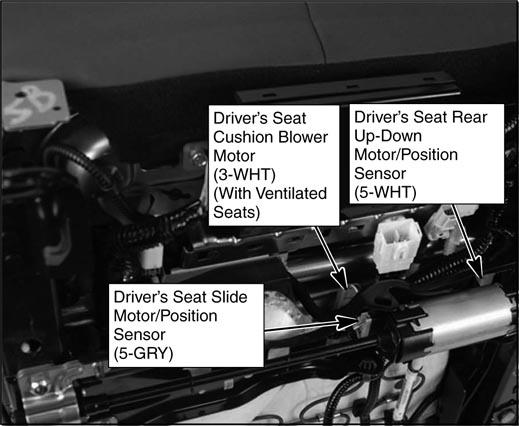

Fig 146: Under Driver's Seat

G00476289

Courtesy of AMERICAN HONDA MOTOR CO., INC.

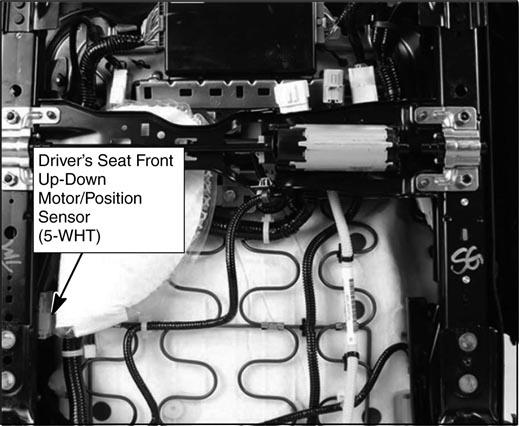

Fig 147: Under Driver's Seat

G00476290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

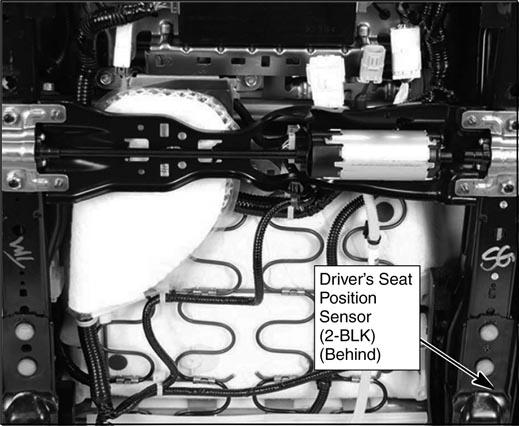

Fig 148: Under Driver's Seat

G00476291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

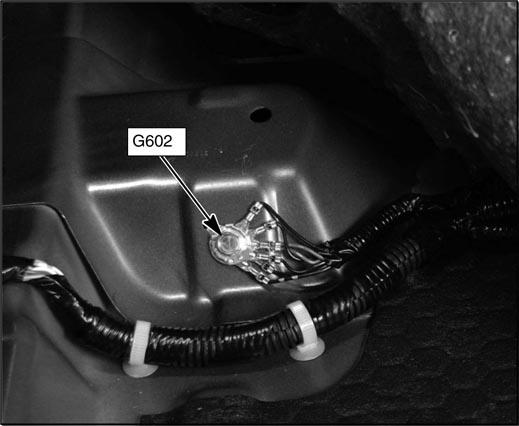

Fig 149: Under Driver's Seat

G00476292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

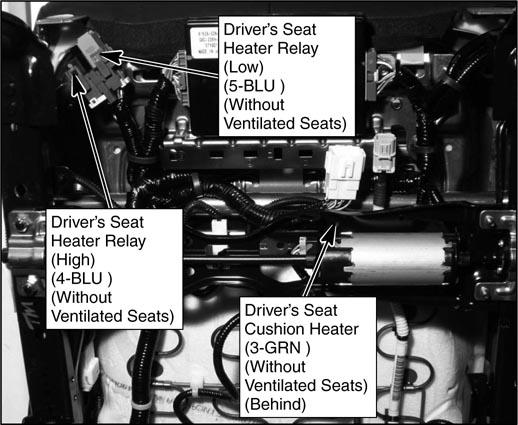

Fig 150: Under Driver's Seat

G00476293

Courtesy of AMERICAN HONDA MOTOR CO., INC.

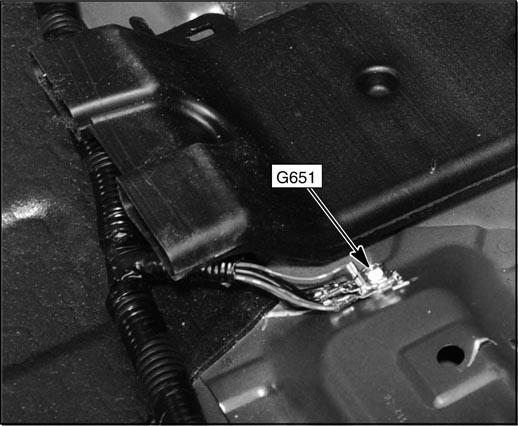

Fig 151: Under Front Passenger's Seat

G00476294

Courtesy of AMERICAN HONDA MOTOR CO., INC.

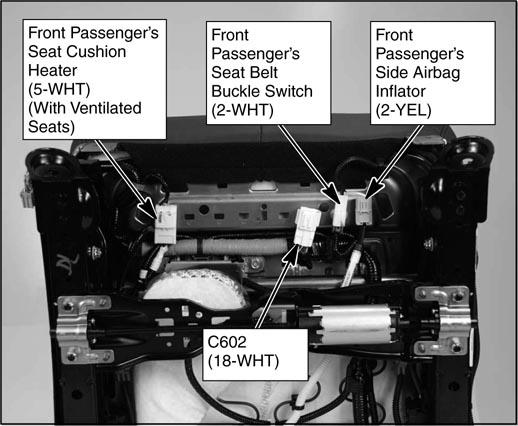

Fig 152: Under Front Passenger's Seat

G00476295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

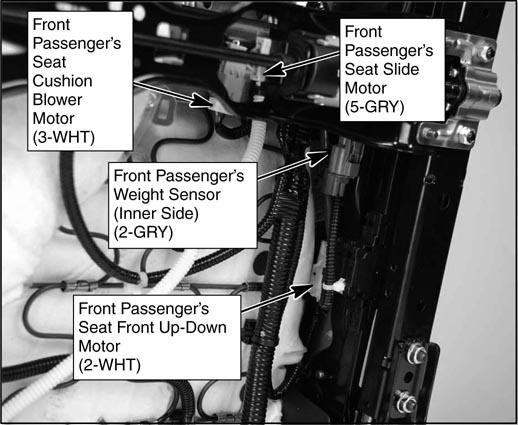

Fig 153: Under Front Passenger's Seat

G00476296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

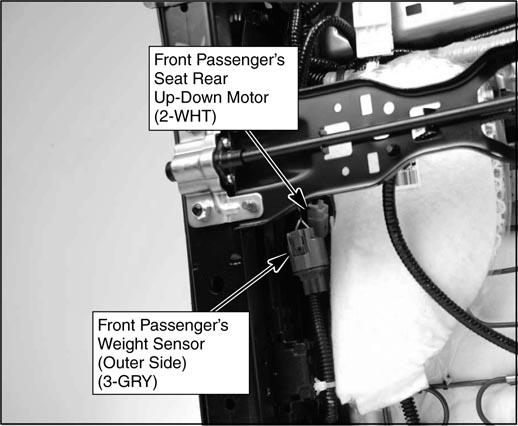

Fig 154: Under Front Passenger's Seat

G00476297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

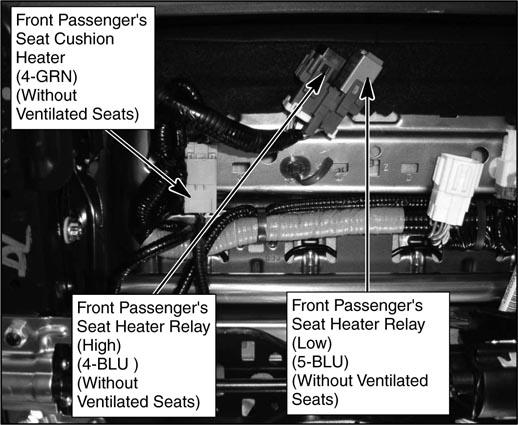

Fig 155: Under Front Passenger's Seat

G00476298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

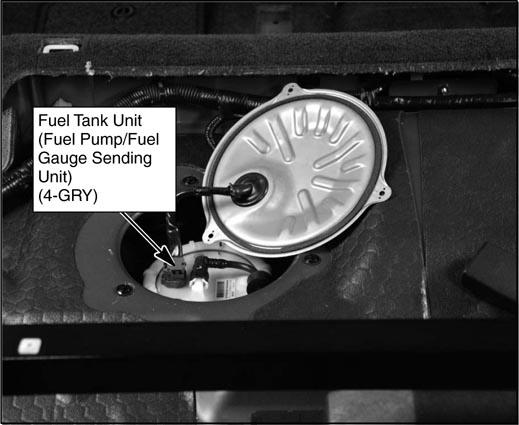

Fig 156: Top Of Fuel Tank

G00476299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

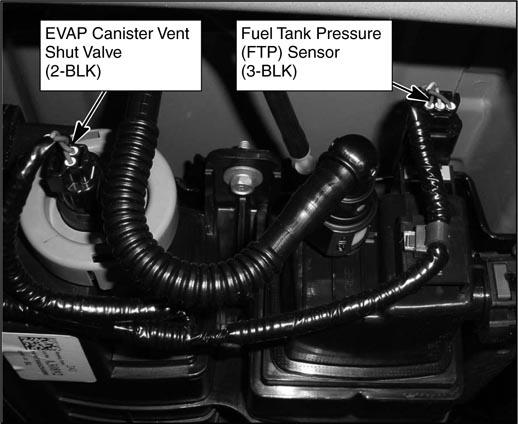

Fig 157: Fuel Tank

G00476300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

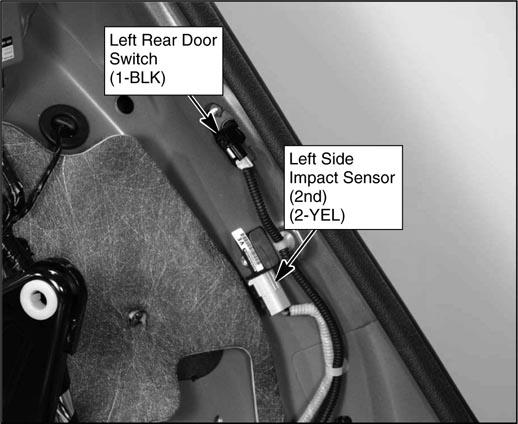

Fig 158: Left "C" Pillar

G00476301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

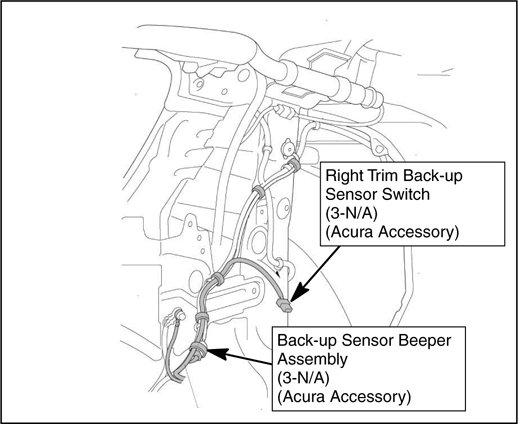

Fig 159: Right "C" Pillar

G00476302

Courtesy of AMERICAN HONDA MOTOR CO., INC.

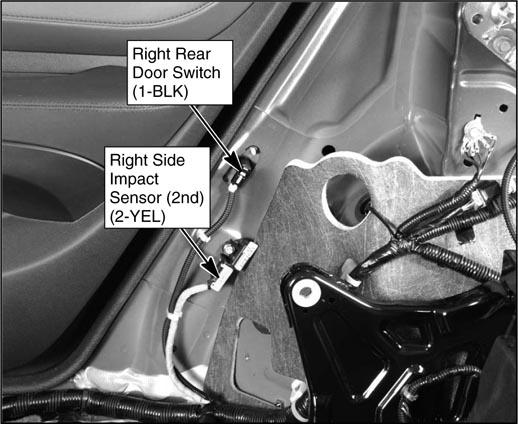

Fig 160: Right "C" Pillar

G00476303

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 161: Right "C" Pillar

G00476304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

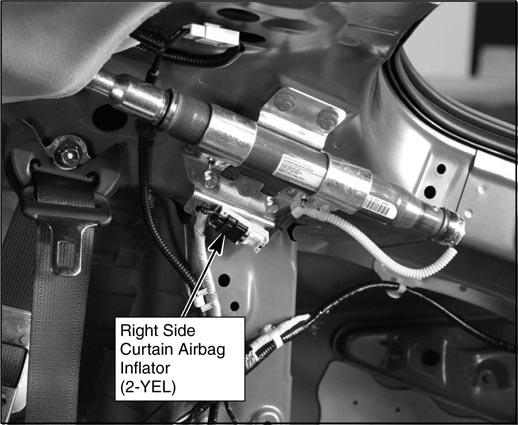

Fig 162: Right "C" Pillar

G00476305

Courtesy of AMERICAN HONDA MOTOR CO., INC.

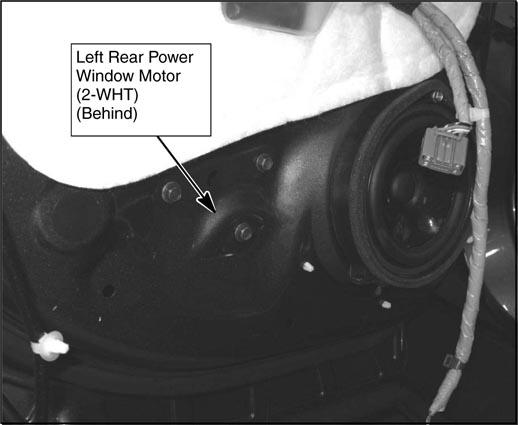

Fig 163: Left Rear Door

G00476306

Courtesy of AMERICAN HONDA MOTOR CO., INC.

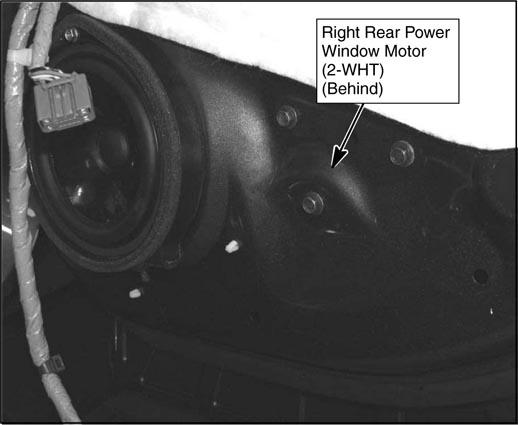

Fig 164: Right Rear Door

G00476307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

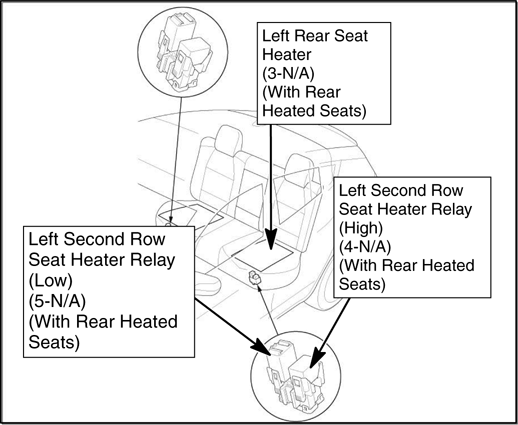

Fig 165: Under Left Rear Seat

G00476308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

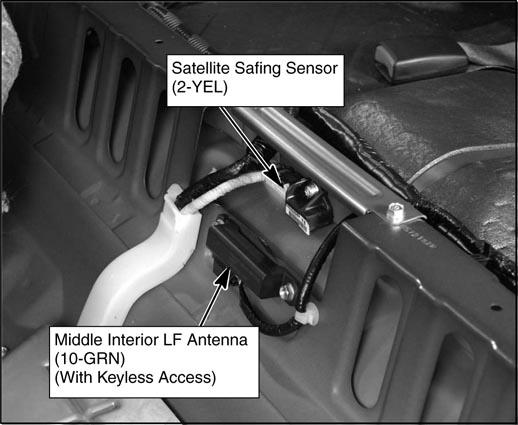

Fig 166: Under Rear Seat

G00476309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 167: Under Rear Seat

G00476310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

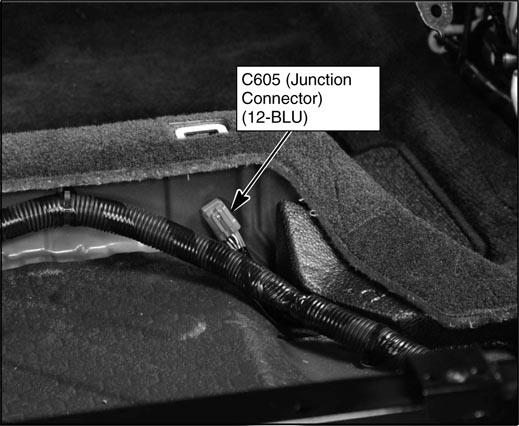

Fig 168: Under Right Rear Seat

G00476311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

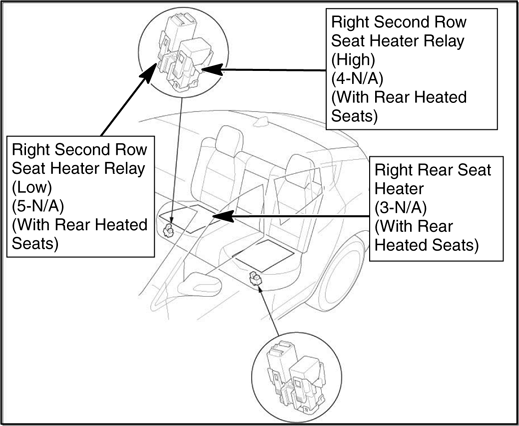

Fig 169: Under Right Rear Seat

G00476312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

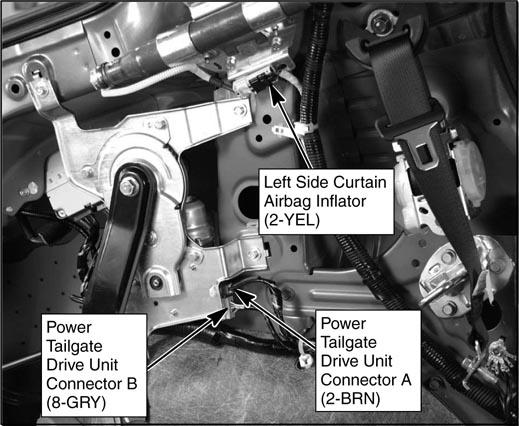

Fig 170: Left "C" Pillar

G00476313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Left Side Of Cargo Area

G00476314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

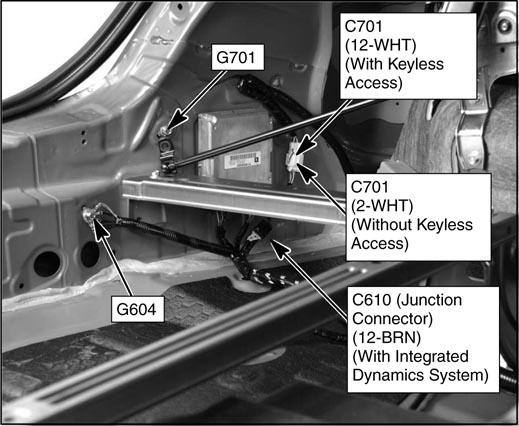

Fig 172: Left Side Of Cargo Area

G00476316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 173: Left Side Of Cargo Area

G00476317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

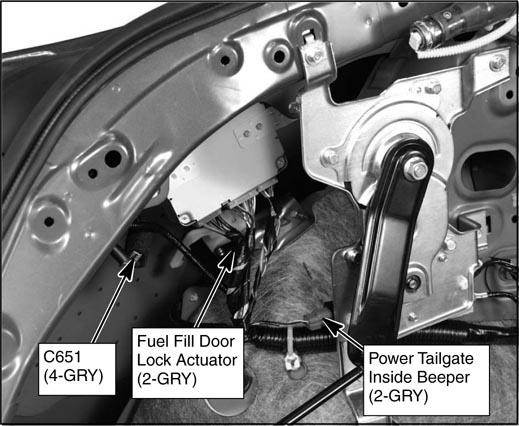

Fig 174: Left Side Of Cargo Area

G00476318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

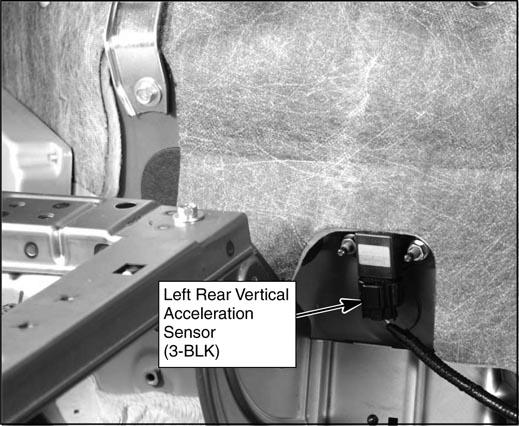

Fig 175: Left Side Of Cargo Area

G00476319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Left Side Of Cargo Area

G00476320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

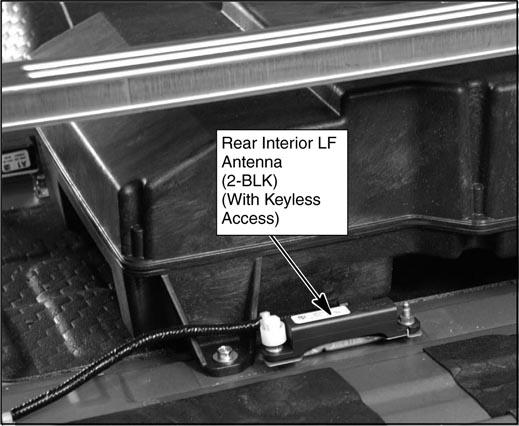

Fig 177: Left Side Of Cargo Area

G00476321

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Left Side Of Cargo Area

G00476322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

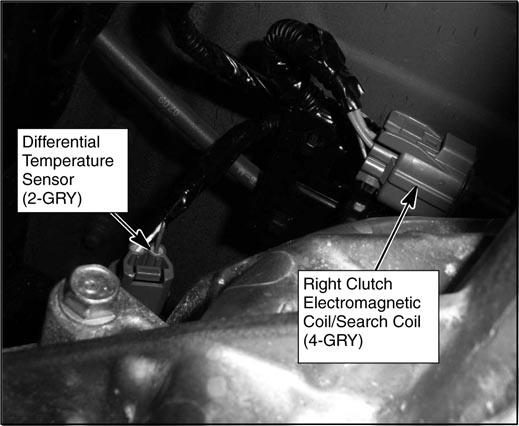

Fig 179: Rear Differential

G00476323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

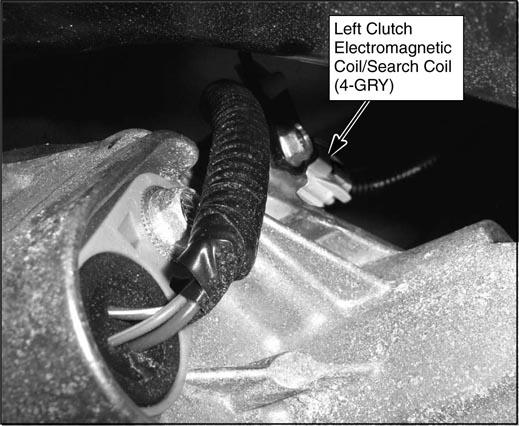

Fig 180: Rear Differential

G00476324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Right Side Of Cargo Area

G00476325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 182: Right Side Of Cargo Area

G00476326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

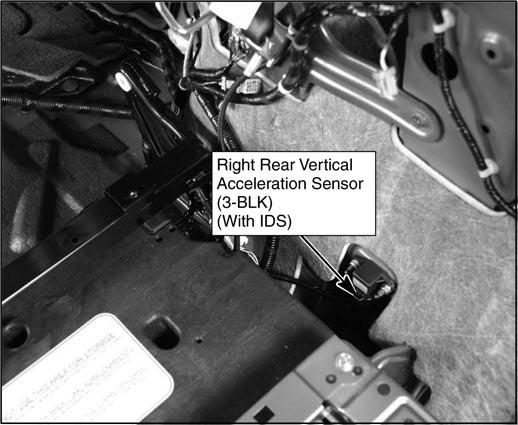

Fig 183: Right Side Of Cargo Area

G00476327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 184: Right Side Of Cargo Area

G00476328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

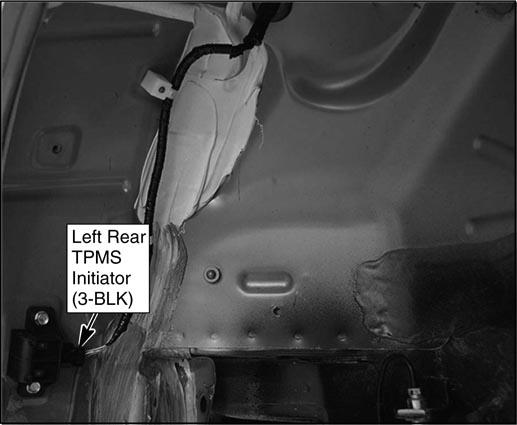

Fig 185: Under Left Rear Of Vehicle

G00476329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

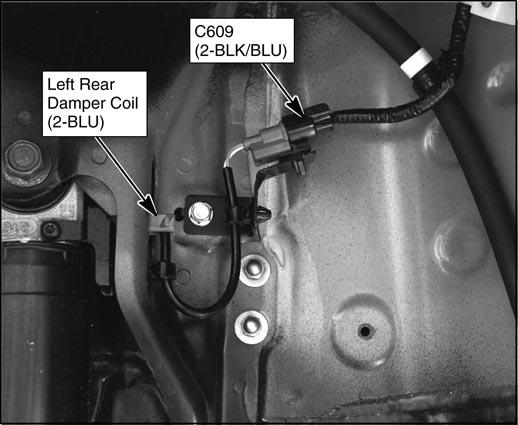

Fig 186: Under Left Side Of Vehicle

G00476330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

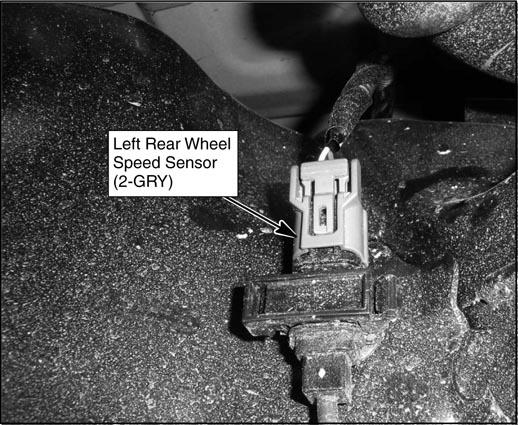

Fig 187: Under Left Side Of Vehicle

G00476331

Courtesy of AMERICAN HONDA MOTOR CO., INC.

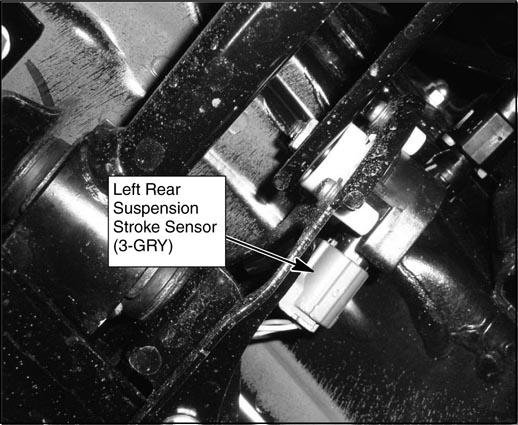

Fig 188: Under Left Side Of Vehicle

G00476332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

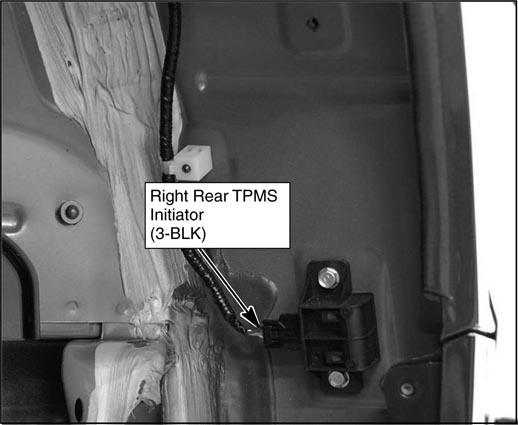

Fig 189: Under Right Side Of Vehicle

G00476333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

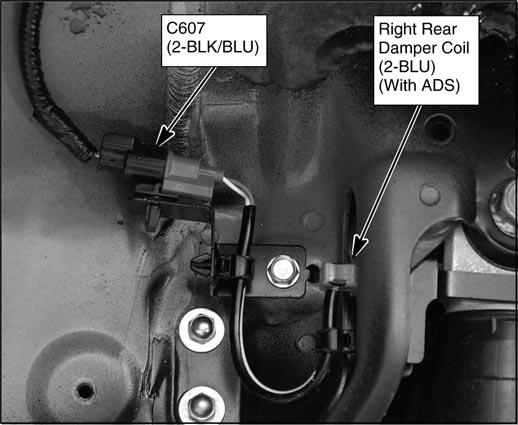

Fig 190: Under Right Side Of Vehicle

G00476334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

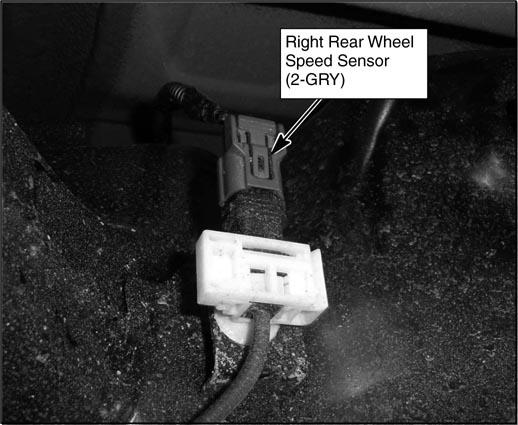

Fig 191: Under Right Side Of Vehicle

G00476335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

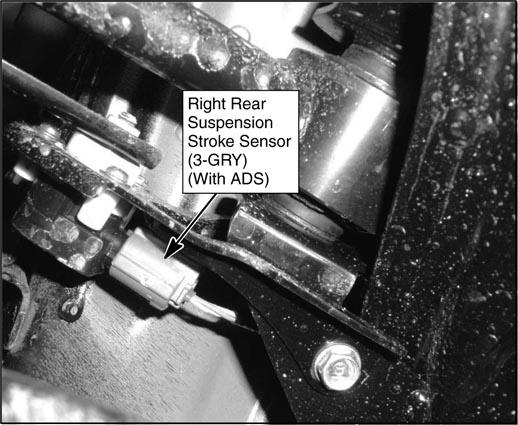

Fig 192: Under Right Side Of Vehicle

G00476336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

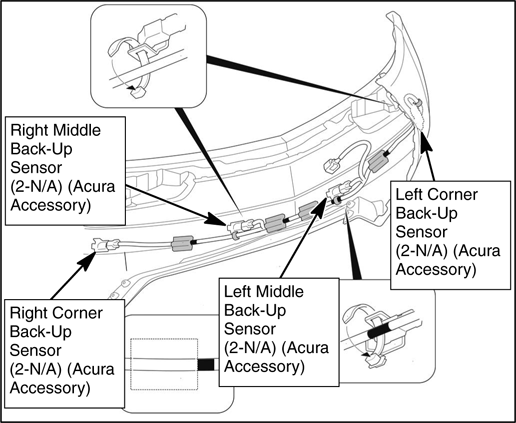

Fig 193: Behind Rear Bumper

G00476337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

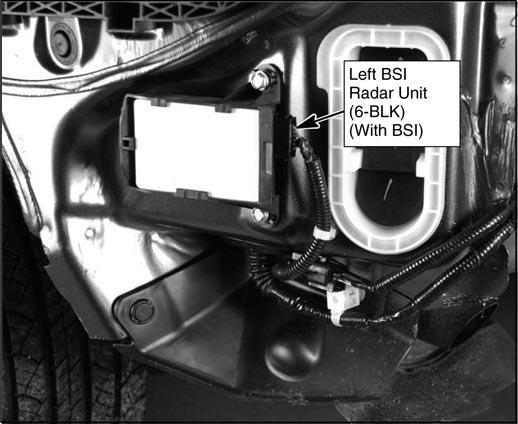

Fig 194: Behind Left Side Of Rear Bumper

G00476338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

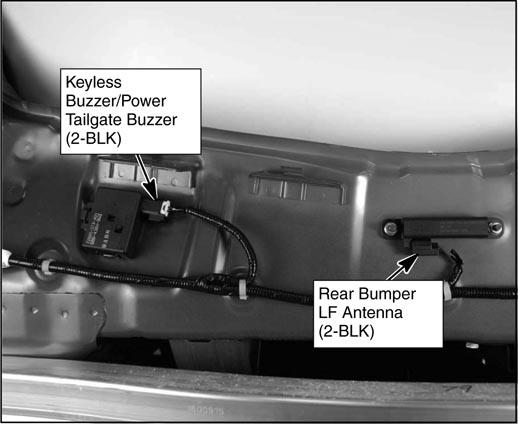

Fig 195: Behind Middle Of Rear Bumper

G00476339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

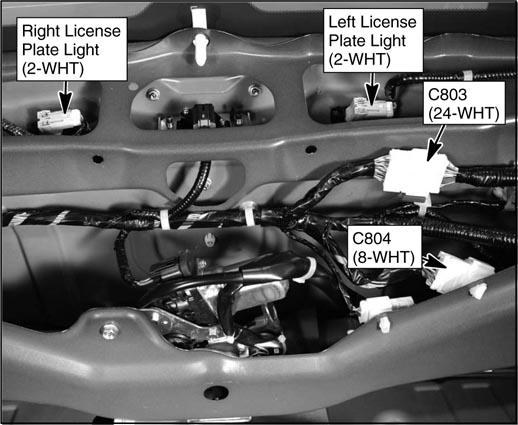

Fig 196: Center Of Tailgate

G00476340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

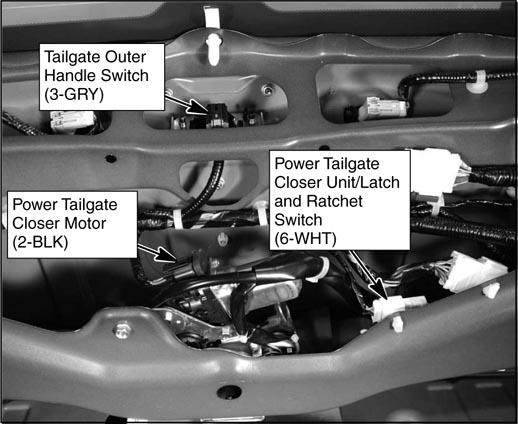

Fig 197: Center Of Tailgate

G00476341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

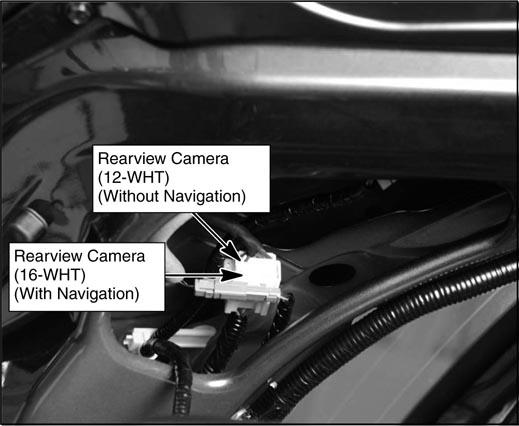

Fig 198: Center Of Tailgate

G00476342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

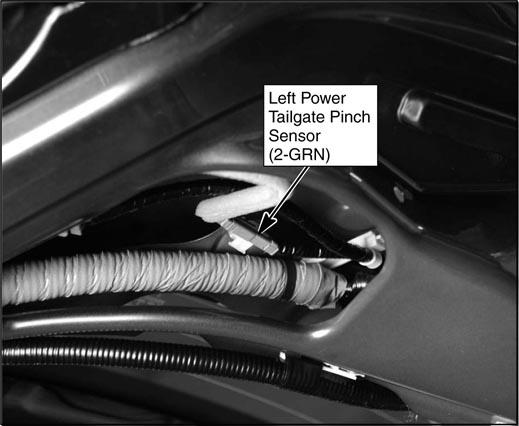

Fig 199: Left Side Of Tailgate

G00476343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

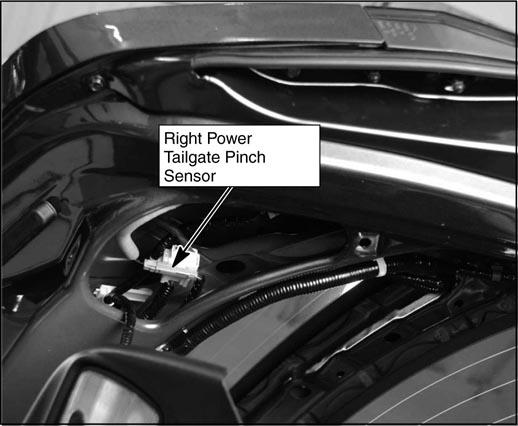

Fig 200: Right Side Of Tailgate

G00476344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

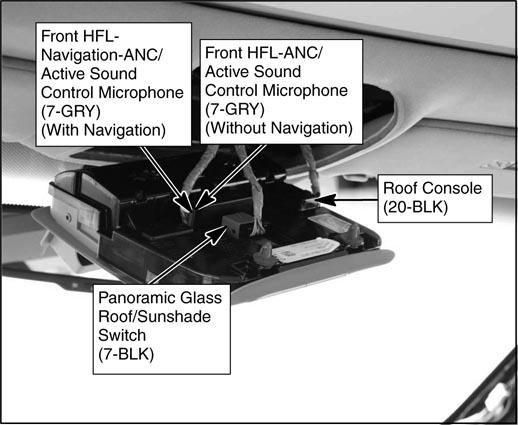

Fig 201: Front Center Of Roof

G00476345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

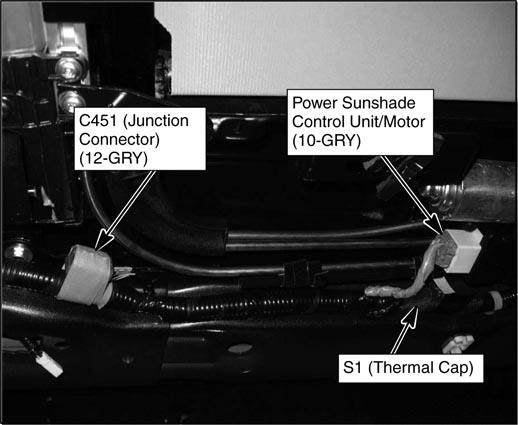

Fig 202: Middle Of Roof

G00476346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

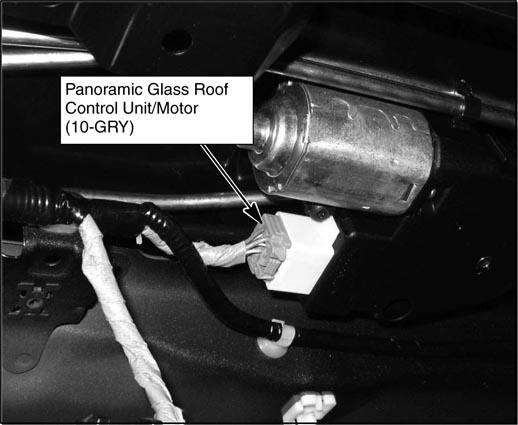

Fig 203: Middle Of Roof

G00476347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

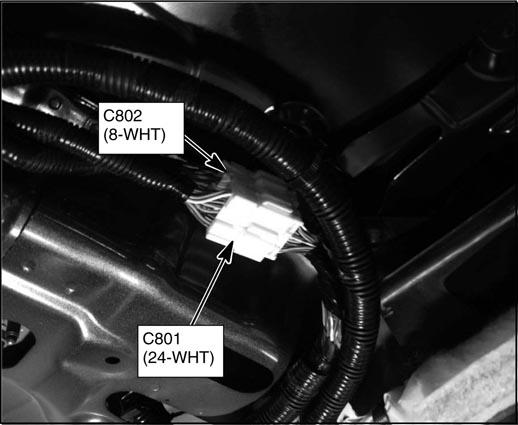

Fig 204: Right Rear Of Roof

G00476348

Courtesy of AMERICAN HONDA MOTOR CO., INC.
