Line Pressure Switch Replacement
- Do the battery removal procedure (see
BATTERY REMOVAL AND INSTALLATION
).
- Remove the air cleaner (see
AIR CLEANER ELEMENT INSPECTION/REPLACEMENT
).
- Remove the intake air duct (see step 8 on TRANSMISSION REMOVAL
).
- Remove the battery heat shield (see step 9 on TRANSMISSION REMOVAL
).
- Remove the auxiliary under-hood fuse/relay box (see step 10 on TRANSMISSION REMOVAL
).
- Remove the battery base (see step 11 on TRANSMISSION REMOVAL
).

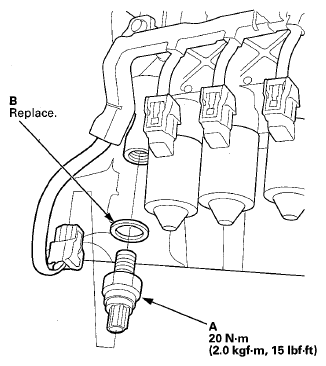

- Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the line pressure switch and a new sealing washer, and tighten the switch.
- Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
- Install the battery base (see step 66 on TRANSMISSION INSTALLATION
).
- Install the auxiliary under-hood fuse/relay box (see step 67 on TRANSMISSION INSTALLATION
).
- Install the battery heat shield (see step 68 on TRANSMISSION INSTALLATION
).
- Install the intake air duct (see step 69 on TRANSMISSION INSTALLATION
).
- Install the air cleaner (see
AIR CLEANER ELEMENT INSPECTION/REPLACEMENT
).
- Do the battery installation procedure (see
BATTERY REMOVAL AND INSTALLATION
).
