EGR Valve Replacement

  1. Remove the engine cover (see step 2 on INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the EGR valve connector (A).

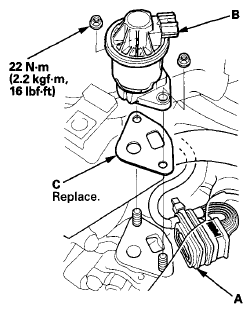

    Fig 1: Disconnecting EGR Valve Connector With Torque Specifications
    G07354033Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
