EVAP Canister Replacement

  1. Remove the propeller shaft (see PROPELLER SHAFT RUNOUT ).
  2. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).
  3. Disconnect the connectors (A) and the hoses (B).

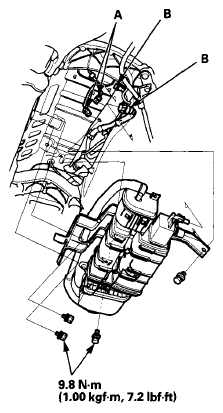

    Fig 1: Disconnecting Connectors And Hoses With Torque Specifications
    G07362128Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EVAP canister (A).
    Fig 2: Removing EVAP Canister With Torque Specifications
    G07362129Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal
