Security Hood Switch Test
- Open the hood then remove the bulkhead cover (see
ENGINE COMPARTMENT COVER REPLACEMENT
)

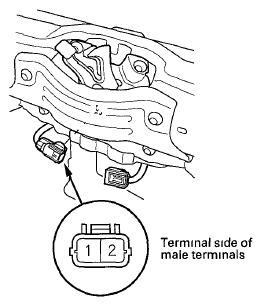

- Disconnect the 2P connector from the security hood switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals
- There should be continuity between terminals No 1 and No 2 when the hood is opened (latch released)
- There should be no continuity between terminals No 1 and No 2 when the hood is closed (latch pushed down)
- If the continuity is not as specified, replace the hood latch assembly (see
HOOD LATCH REPLACEMENT
)
