Front Subframe Torque

If you remove the mounting bolts for any of the following items, always replace the bolts with new ones

• Front suspension subframe
• Front suspension subframe middle rubber mount
• Front subframe front stiffener
• Front suspension subframe rear bracket
• Rear engine mounting base bracket

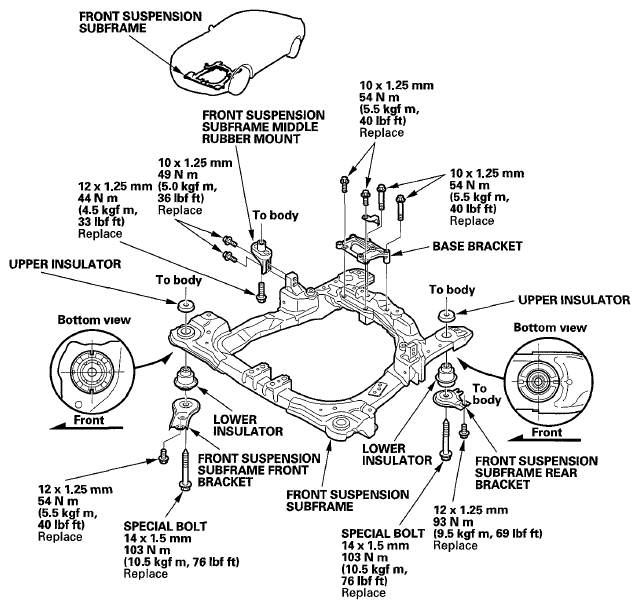

Fig 1: Front Subframe Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
