Rear Subframe Torque

NOTE:

Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin
Always replace any removed subframe mounting bolts with new ones

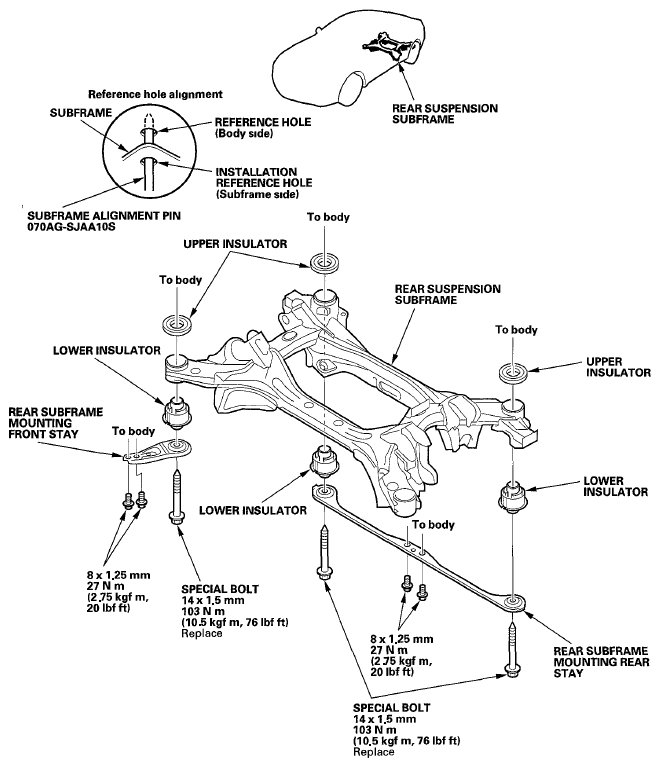

Fig 1: Rear Subframe Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
