Power Mirror Switch Test/Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )

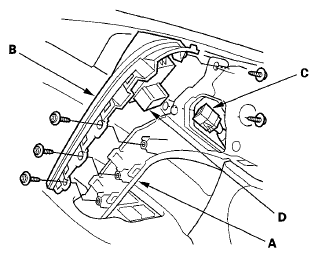

  2. Remove the screws from the driver's door grip (A) and grip cover (B)
    Fig 1: Identifying Driver's Door Grip, Grip Cover Power Mirror Switch And 13P Connector With Screws
    G05989113Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull out the grip cover slightly from the door grip, then disconnect the 13P connector (C) from the power mirror switch (D)

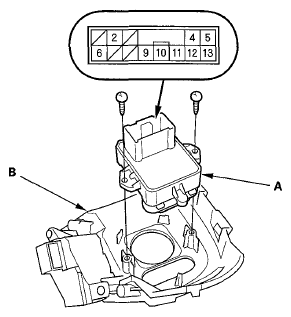

  4. Remove the two screws and the power mirror switch (A) from the grip trim (B)
    Fig 2: Identifying Power Mirror Switch, Grip Trim And Connector Terminals With Screws
    G05989114Courtesy of AMERICAN HONDA MOTOR CO., INC.

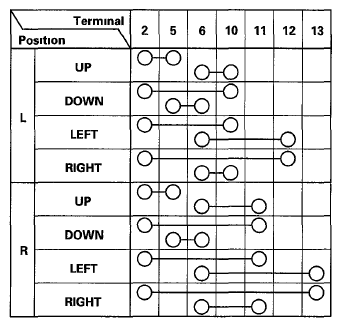

  5. Check for continuity between the terminals in each switch position according to the table

    Power mirror switch

    Fig 3: Terminal Continuity Reference Chart
    G05989115Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, replace the power mirror switch
  7. Install the switch in the reverse order of removal
