Front Passenger's Power Window Motor Test

Motor Test

1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
2. Test the front passenger's power window motor in each direction by connecting battery power and ground to the front passenger's power window switch 37P connector (A) according to the table
   Fig 1: Front Passenger's Power Window Motor Terminals Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

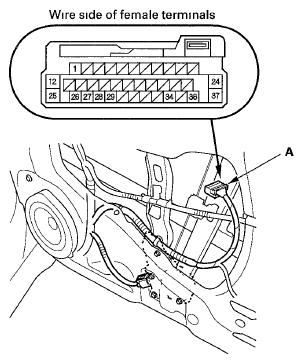

   Fig 2: Identifying Front Passenger's Power Window Switch 37P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If the front passenger's power window motor does not run or fails to run smoothly, go to step 4, if the motor runs smoothly, go to step  7
4. Disconnect the 6P connector (A) from the front passenger's power window motor (B)

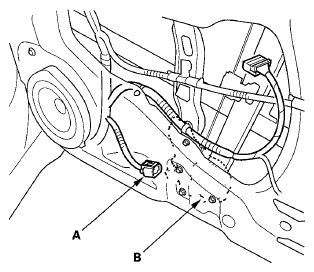

   Fig 3: Identifying Front Passenger's Power Window Motor And 6P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check for continuity between front passenger's power window switch 37P connector terminals No 12 and No 24, and front passenger's power window motor 6P connector terminals No 1 and No 4 respectively There should be continuity

   FRONT PASSENGER'S POWER WINDOW SWITCH 37P CONNECTOR

   Terminal No 12

   Terminal No 24

   FRONT PASSENGER'S POWER WINDOW MOTOR 6P CONNECTOR

   Terminal No 4

   Terminal No 1

   Fig 4: Checking Continuity Between Front Passenger's Power Window Switch 37P And Front Passenger's Power Window Motor 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If there is no continuity, repair open in the wires If the wire harness is OK, replace the front passenger's power window motor

   Pulser Test

7. Check for continuity between front passenger's power window motor 6P connector terminal No 2 and body ground There should be continuity
   • If there is continuity, go to step 8
   • If there is no continuity, check for an open in the GRY wire or poor ground (G401)

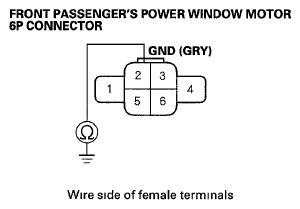

   Fig 5: Checking Continuity Between Front Passenger's Power Window Motor 6P Connector Terminal And Body Ground

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Do the front passenger's power window switch input test terminals No 26, No 27, and No 28 (see FRONT PASSENGER'S POWER WINDOW SWITCH INPUT TEST )
