Home >> Acura >> 2011 >> TL Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window System >> Power Window Master Switch Replacement

Power Window Master Switch Replacement

  1. Remove the driver's door armrest (see step 12 on FRONT DOOR PANEL REMOVAL/INSTALLATION )
  2. Remove the two screws (A), then remove the bracket (B) from the armrest assembly (C)

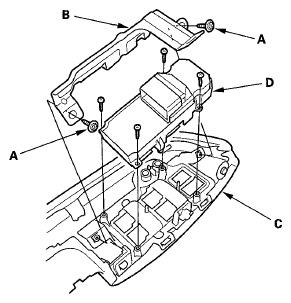

    Fig 1: Identifying Power Window Master Switch And Screws
    G05989023Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four screws and the power window master switch (D)
  4. Install the switch in the reverse order of removal
  5. After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT )
