Center Console Panel Disassembly/Reassembly

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

NOTE:

Take care not to scratch the center console or related parts
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components

Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION )
Remove the screws from the back or the center console panel (A), then remove the panel from the center console pocket assembly (B) and the beverage holder assembly (C)

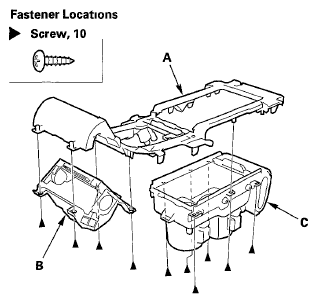

Fig 1: Identifying Center Console Panel, Center Console Pocket Assembly And Beverage Holder Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws from the both side of the beverage holder (A), then remove the driver's side shutter rail (B), the passenger's side shutter rail (C), and the console shutter (D)

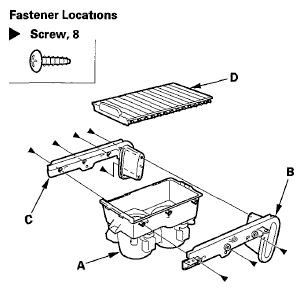

Fig 2: Identifying Beverage Holder, Driver's Side Shutter Rail, Passenger's Side Shutter Rail And Console Shutter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the center console panel in the reverse order of disassembly
