System Description: Overview: Notes

The electrical compass sends the azimuth (direction) information in the 8-directions (N, NE, E, SE, S, SW, W, NW) to the audio-HVAC display unit via the audio unit

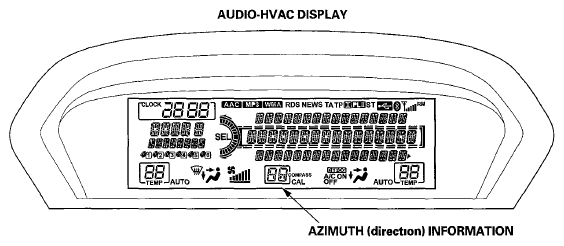

Fig 1: Audio-HVAC Screen Display Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
