Starter Removal and Installation: Installation

Install the starter, then tighten the mounting bolts (A)
NOTE: Always use a new gasket (A/T model)

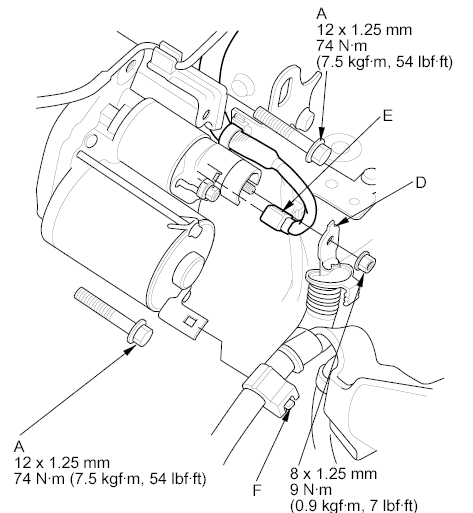

Fig 1: Starter And Mounting Bolts With Torque Specifications (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Starter And Mounting Bolts With Torque Specifications (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
A/T model: Install the upper radiator hose bracket (B) and the dipstick (C)
Connect the positive starter cable (D) and the S terminal connector (E) Make sure the crimped side of the ring terminal faces away from the starter when you connect it
Install the harness clamp (F)
Install the air intake duct splash separator (see step 63 on ENGINE INSTALLATION )
Install the battery base (see step 60 on ENGINE INSTALLATION )
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION )
Start the engine to make sure the starter works properly
Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT )
