Component Location Index

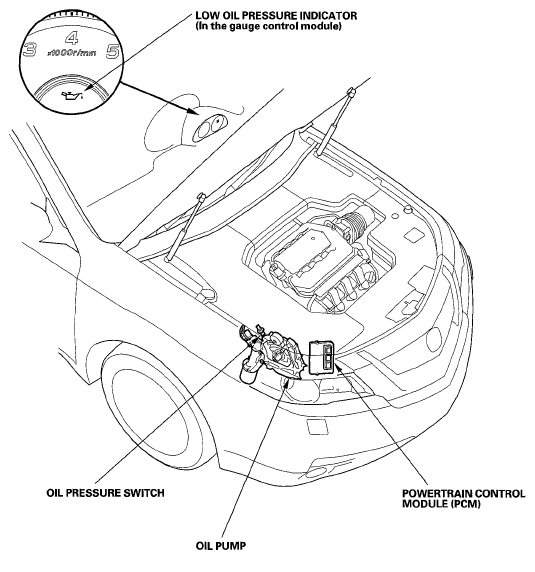

Fig 1: Identifying Engine Lubrication Component Locations (1 Of 2)
G05987090Courtesy of AMERICAN HONDA MOTOR CO., INC.

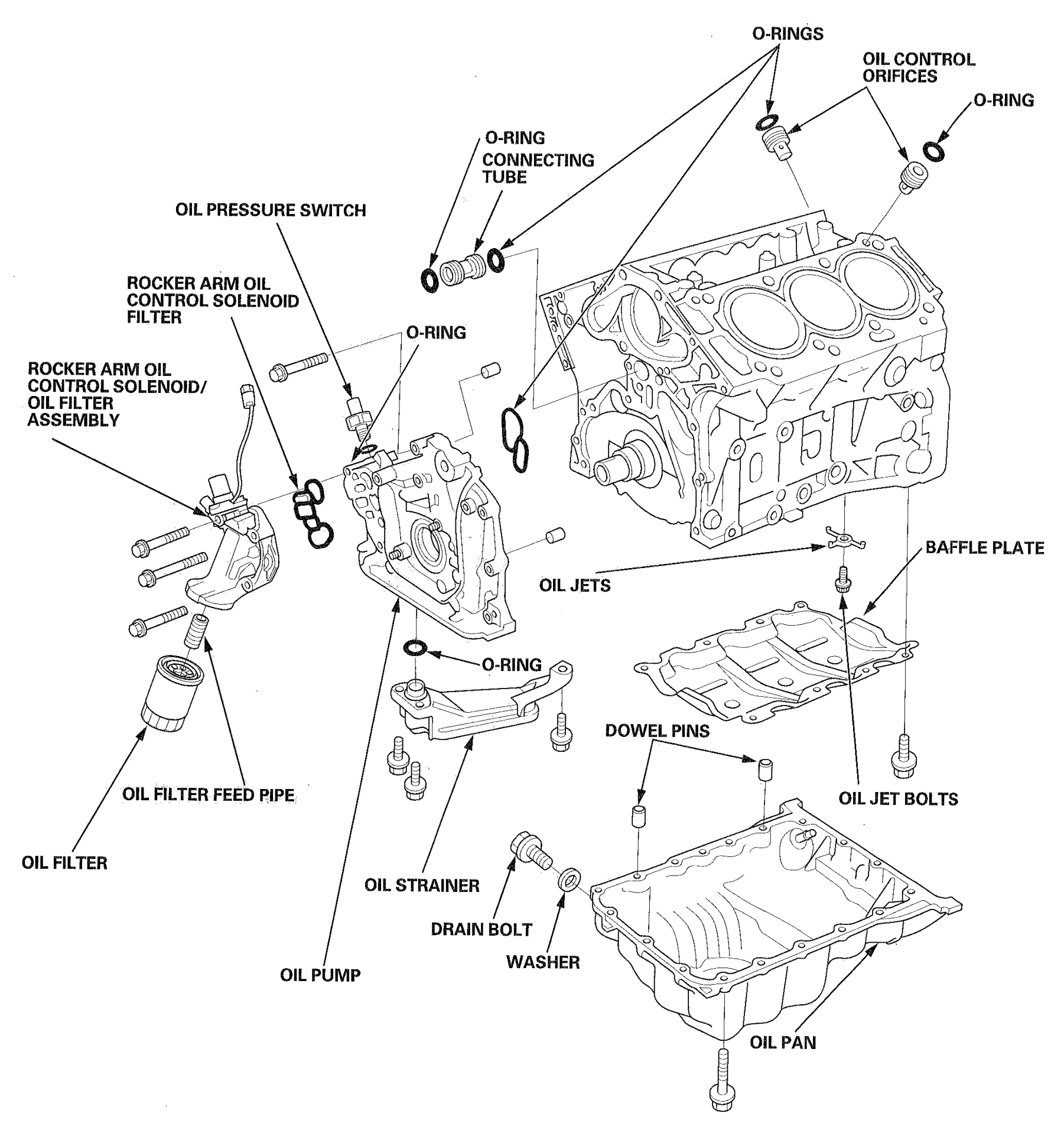

Fig 2: Identifying Engine Lubrication Components Locations (2 Of 2)
G05987091Courtesy of AMERICAN HONDA MOTOR CO., INC.
