Main Valve Body

The main valve body contains the manual valve, the modulator valve, the torque converter check valves, shift valve A, B, and E, CPC valve A, the servo control valve, the relief valve, the lock-up shift valve, the lock-up timing valve, the lubrication control valve, the lubrication check valve, the ATF pump drive gear, and the ATF pump driven gear The primary function of the main valve body is to switch fluid pressure on and off to control hydraulic pressure going to the hydraulic control system

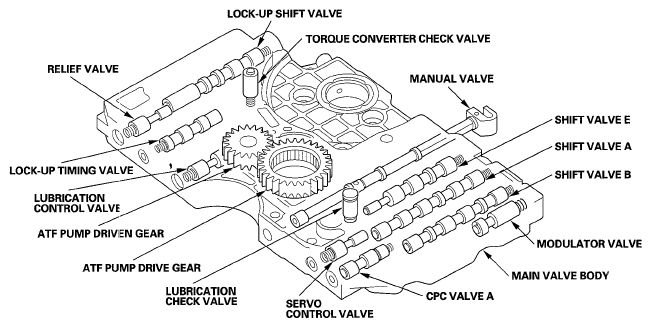

Fig 1: Identifying Main Valve Body Components
G05990613Courtesy of AMERICAN HONDA MOTOR CO., INC.
