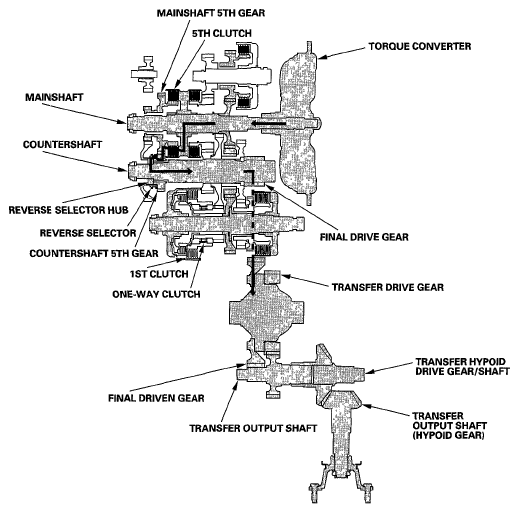

In 5th gear
- Hydraulic pressure is applied to the servo valve to engage the reverse selector with the countershaft 5th gear while the shift lever is in the forward range (D and S)
- Hydraulic pressure is applied to the 5th clutch, then the 5th clutch engages the mainshaft 5th gear with the mainshaft.
- The mainshaft 5th gear drives the countershaft 5th gear, which drives the reverse selector hub and the countershaft
- With SH-AWD Power is transmitted to the final drive gear, which in turn drives the final driven gear and the transfer drive gear
- Power is transmitted to the final drive gear, which in turn drives the final driven gear and front differential
- With SH-AWD As the final driven gear turns the front differential, power is transmitted through the transfer drive gear to the transfer output shaft that drives the transfer hypoid drive gear/shaft and the transfer output shaft (hypoid gear)
- Hydraulic pressure is also applied to the 1st clutch, but since the rotation speed of 5th gear exceeds that of 1st gear, power from 1st gear is cut off at the one-way clutch
NOTE:
The illustration shows the SH-AWD transfer assembly that is not available on all models
