DTC P0685: Engine Control Module (ECM)/Powertrain Control Module (PCM) Power Control Circuit/Internal Circuit Malfunction: Notes

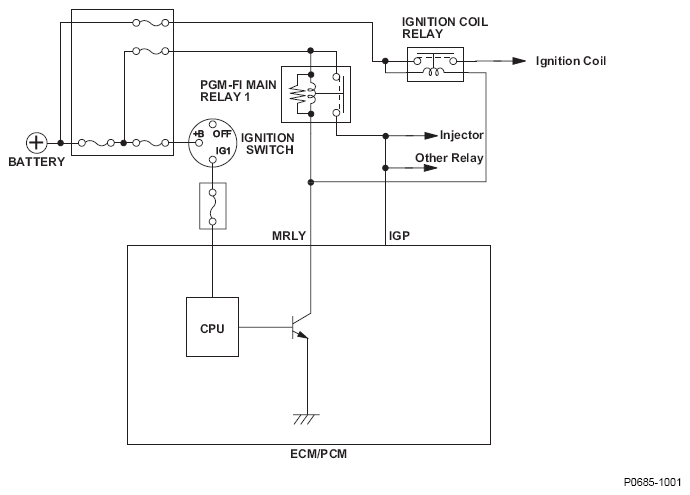

Fig 1: Engine Control Module/Powertrain Control Module Power Control Circuit/Internal - Circuit Diagram
