System Indicator: Notes

This system has four indicators and one warning:

• ABS indicator (A)
• Brake system indicator (B)
• VSA indicator (C)
• VSA OFF indicator (D)
• Trailer stability assist warning (E)

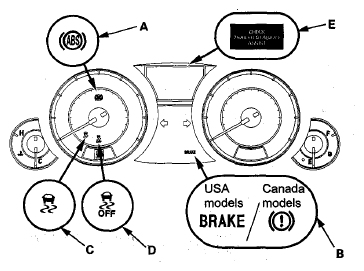

  Fig 1: Identifying System Indicators

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the system detects a problem, it will turn the appropriate indicator on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.

When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), then goes off.
