Home >> Acura >> 2012 >> MDX >> Repair and Diagnosis >> Electrical >> Body Electrical >> Relay And Control Unit Locations >> Door

Relay And Control Unit Locations: Door

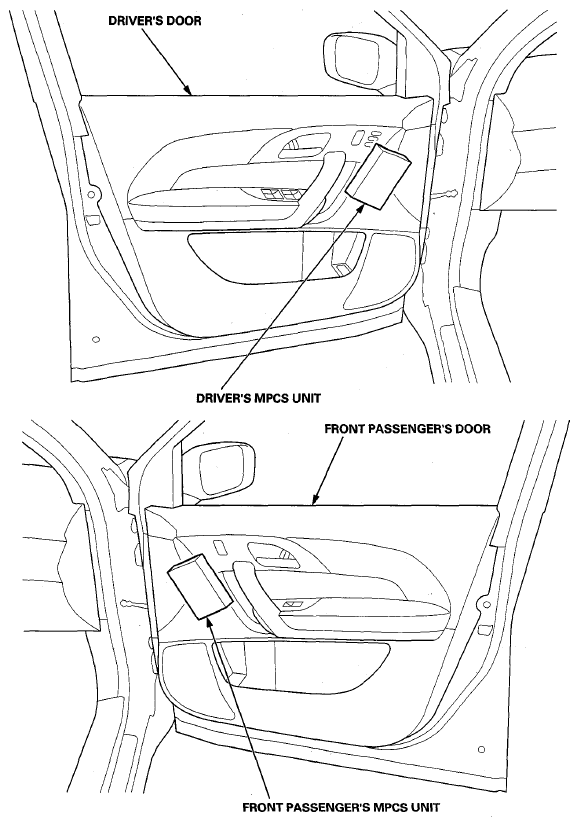

Fig 1: Identifying Relay And Control Unit Locations - Door
G08053715Courtesy of AMERICAN HONDA MOTOR CO., INC.
