Power Relay Test: Notes
Special Tools Required
- Relay Puller 07AAC-000A1 AO or 07AAC-000A2A1
- Relay Socket Extension (4 Pin) 07AGK-000A1A0
- Relay Socket Extension (5 Pin) 07AGK-000A2A0
Use this chart to identify the type of relay, then do the test listed for it.
| Relay | Test |
|---|---|
| A/C compressor clutch relay | Normally-open four-terminal type |
| A/C condenser fan relay | |
| Accessory power socket relay | |
| Cargo area accessory power socket relay | |
| Front blower motor relay | |
| Front seat heater relay | |
| Fog light relay | |
| Headlight low beam relay | |
| Headlight washer relay | |
| Interior light relay | |
| PGM-FI main relay 2 (Fuel pump) | |
| Power window relay | |
| Radiator fan relay | |
| Rear blower motor relay | |
| Rear window defogger relay | |
| Second row seat heater relay | |
| SH-AWD relay | |
| Starter cut relay 1, 2 | |
| TECH relay | |
| ACC cut relay | Five-terminal type |
| Brake light relay | |
| Fan control relay | |
| IG2 cut relay |
NOTE:
- The following relays are part of the relay control module: PGM-FI main relay 1, ignition coil relay, PGM-FI subrelay and ETCS control relay. To test these relays, do the relay control module test.

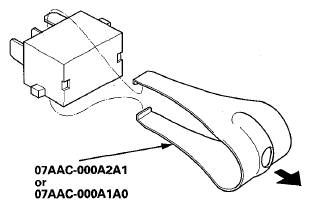

- Using the relay puller, carefully remove the relay from the under-dash fuse/relay box using the relay puller. Do not use pliers. Pliers will damage the relay.
