FTP Sensor Replacement

  1. Raise the vehicle on a lift.
  2. Remove the EVAP canister cover (A).

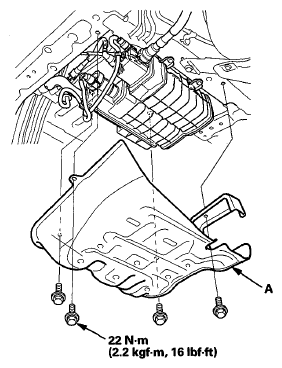

    Fig 1: EVAP Canister Cover And Mounting Bolts With Torque Specification
    G08052685Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the FTP sensor 3P connector (A).

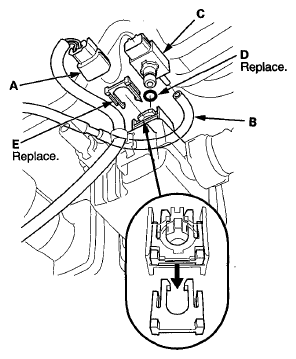

    Fig 2: Identifying FTP Sensor 3P Connector, Hose, FTP Sensor, O-Ring And Retainer
    G08052686Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the hose (B), and remove the FTP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
NOTE: Do not coat the O-ring with oil.
