Ignition Switch Knob Replacement

  1. Remove the ignition switch knob (A). Then remove the two screws (B) and lower knob portion from the ignition key cylinder (C).

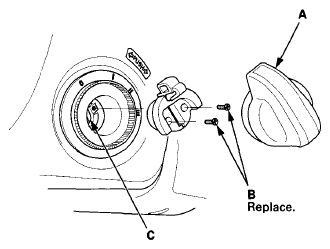

    Fig 1: Removing Screws And Lower Knob Portion From Ignition Key Cylinder
    G07363821Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Replace the screws with new ones, and install the knob in the reverse order of removal.
