Keyless Buzzer Circuit Troubleshooting
- Connect the HDS to the data link connector (DLC).
- Turn the ignition switch to ON (II).
- Check the "CUSTOMIZE SETUP" information on the multi-information display.
Does the keyless buzzer (KEYLESS LOCK AKNOWLEGEMENT) information indicate off?
YES -Change to ON.
NO -Go to step 4.
- Turn the ignition switch to LOCK (0).
- Disconnect the keyless buzzer 2P connector.
- Check for continuity between keyless buzzer 2P connector terminal No. 2 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 7.
NO -Repair an open or high resistance in the ground wire or poor ground (G701).
- Disconnect driver's under-dash fuse/relay box connector P (30P).
- Connect keyless buzzer 2P connector terminal No. 1 to body ground with a jumper wire.

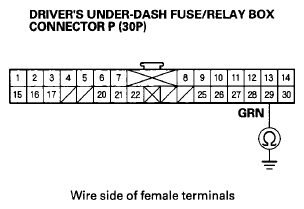

- Check for continuity between driver's under-dash fuse/relay box connector P (30P) terminal No. 29 and body ground.Fig 3: Checking Continuity Between Driver's Under-Dash Fuse/Relay Box Connector P (30P) Terminal No. 29 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 10.
NO -Repair an open or high resistance in the wire.
- Remove the jumper wire.

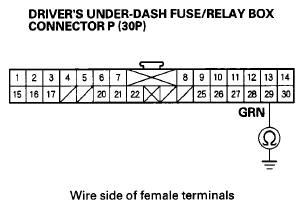

- Check for continuity between driver's under-dash fuse/relay box connector P (30P) terminal No. 29 and body ground.Fig 4: Checking Continuity Between Driver's Under-Dash Fuse/Relay Box Connector P (30P) Terminal No. 29 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to ground in the wire.
NO -Substitute a known-good keyless access control unit and recheck. If there is still a malfunction, the MICU must be faulty, replace the driver's under-dash fuse/relay box (see DRIVER'S UNDER-DASH FUSE/RELAY BOX (MICU) REMOVAL/INSTALLATION ).
