Home >> Acura >> 2012 >> RL >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Access System >> RF Unit 2 Replacement

RF Unit 2 Replacement

  1. Remove the rear shelf (see TRIM REMOVAL/INSTALLATION - REAR SHELF AREA ).
  2. Disconnect the 6P connector (A) from RF unit 2 (B).

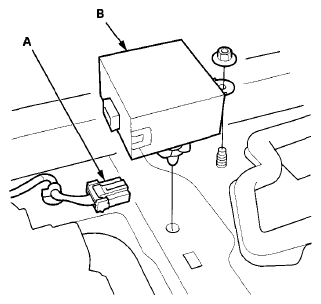

    Fig 1: Disconnecting 6P Connector From RF Unit
    G07363815Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the nut and RF unit 2.
  4. Install the unit in the reverse order of removal.
